50Hz 90kW 113kVA Diesel Generator with Deutz BF4M1013EC G2 Engine
Introduction
The GENLITEC POWER GPD113D5 / GPD113S5 diesel generator set is a reliable power solution designed for prime, standby and backup power applications.
Powered by a DEUTZ BF4M1013EC G2 diesel engine, the generator set delivers 90kW/113kVA prime power and 100kW/125kVA standby power at 50Hz and 1500RPM. The generator set features a 170L fuel tank. Multiple voltage configurations are available, including 220/380V, 230/400V and 240/415V, making it suitable for a wide range of commercial, industrial and backup power applications.
Generator Set

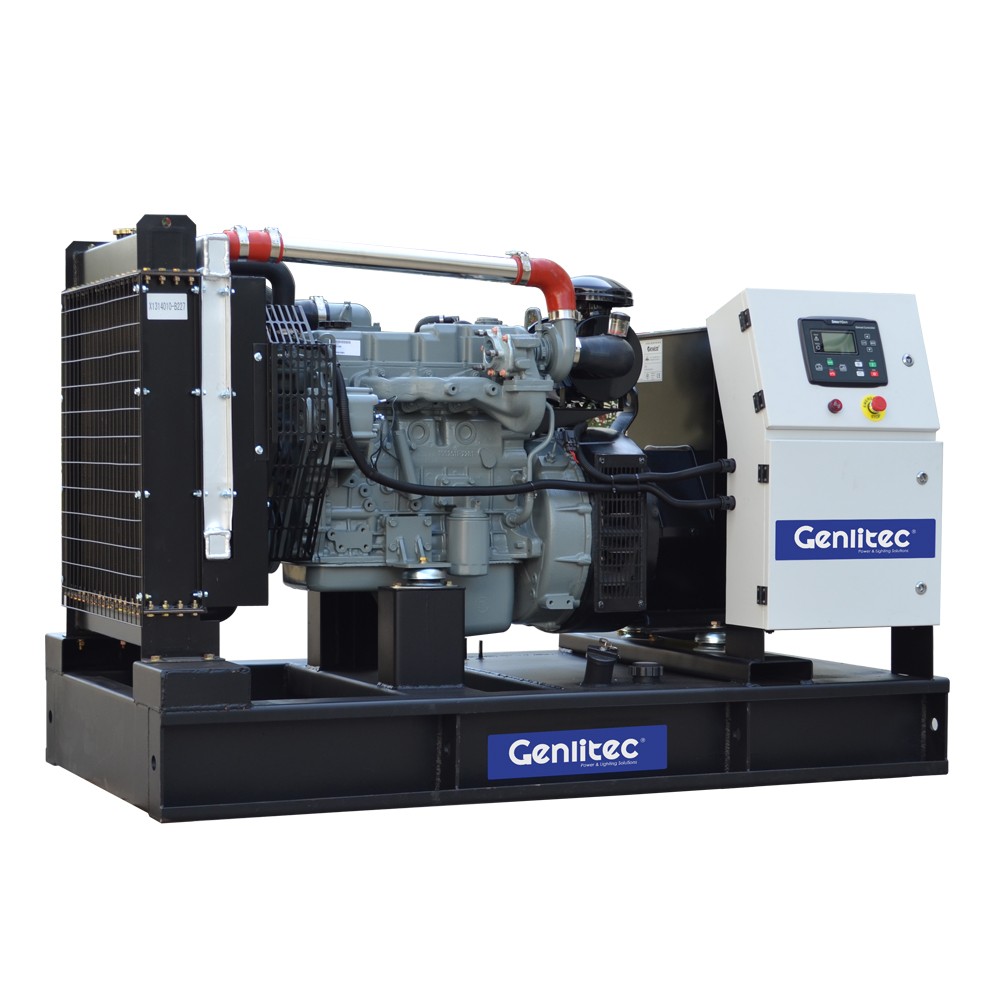

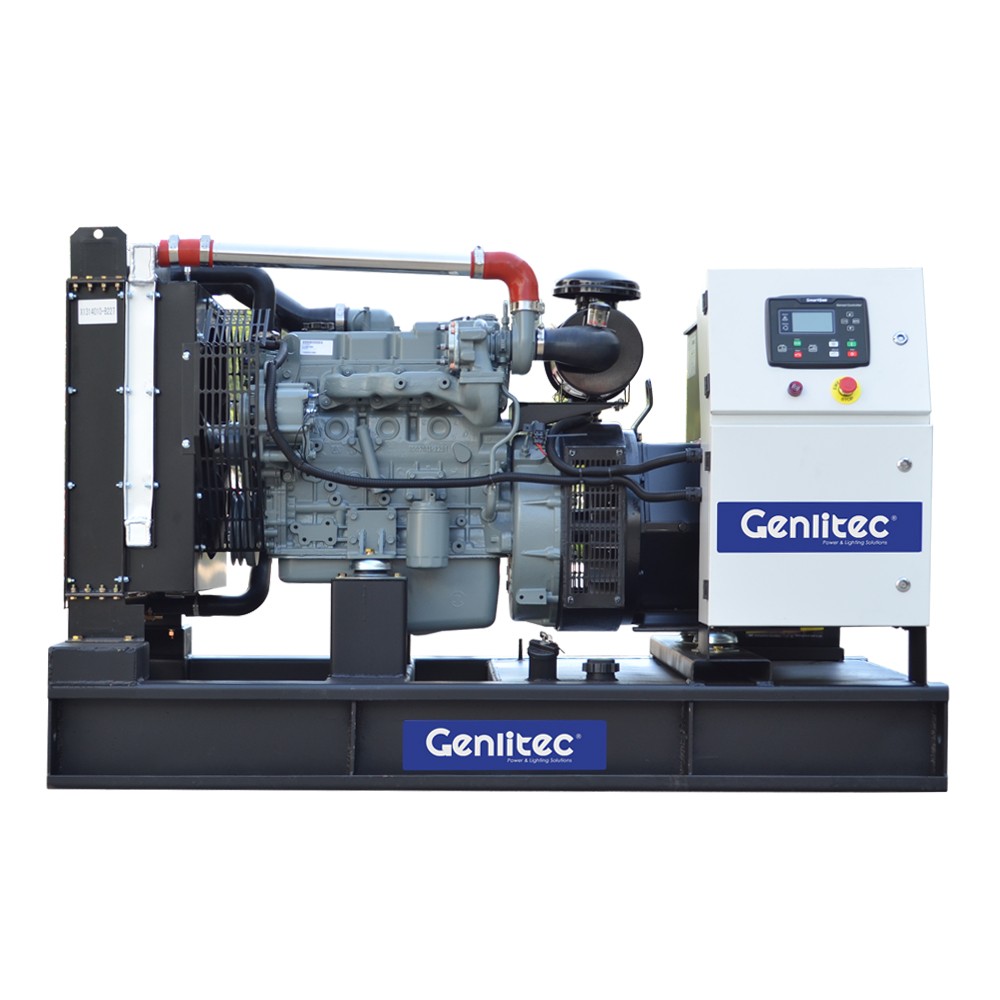

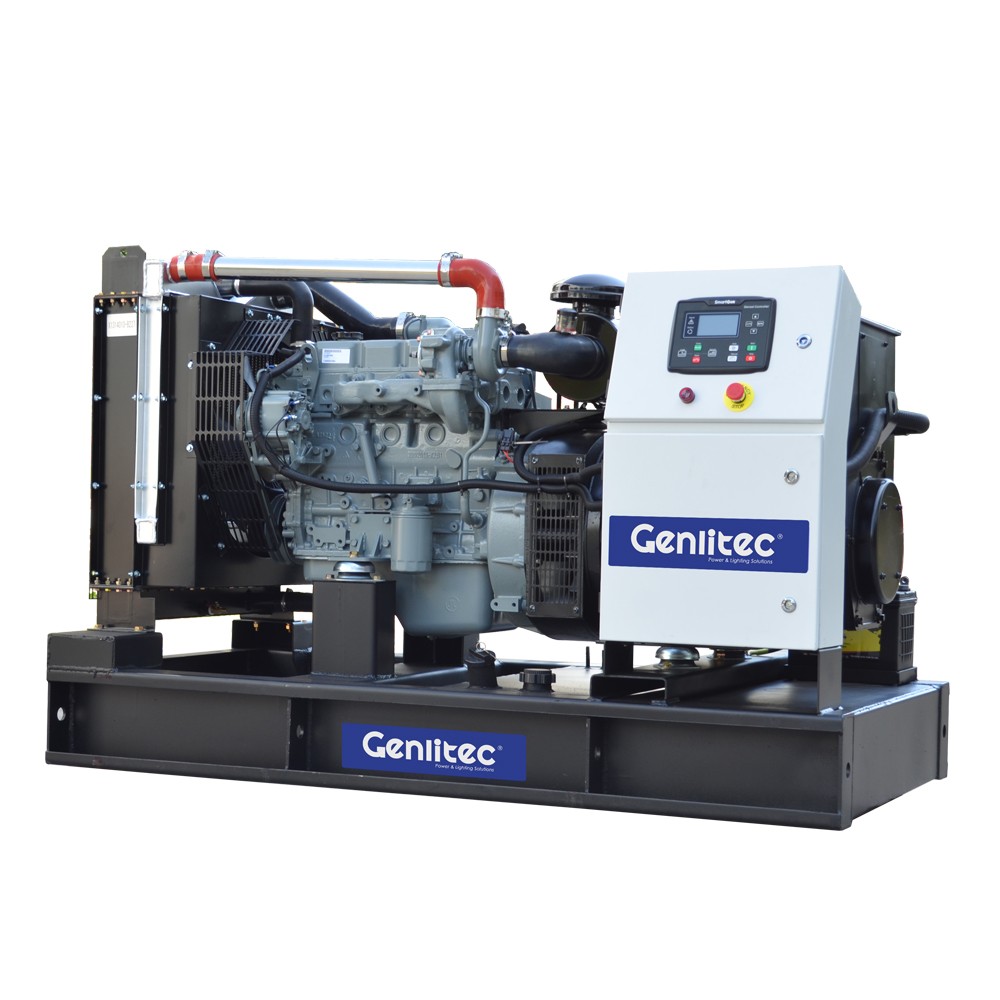

| Open Type Model | GPD113D5 |
| Silent Type Model | GPD113S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 90kW/113kVA |
| Standby Power | 100kW/125kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 170L |
Diesel Engine
| Engine Model | DEUTZ BF4M1013EC G2 |
| Cylinder Number | 4 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged, Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 108 x 130 mm |
| Compression Ratio | 19:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.76L |
| Prime Power (Engine) | 105kW @ 1500 RPM |
| Standby Power (Engine) | 116kW @ 1500 RPM |
| Fuel System | Single Injection Pumps |
| Oil Capacity | 11L |
| Coolant Capacity | 7.4L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 26.1L/H |
| 75% Prime Load | 19.3L/H |
| 50% Prime Load | 12.9L/H |
| 25% Prime Load | 7.1L/H |
| 100% Standby Load | 26.1L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 90kW/112.5kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

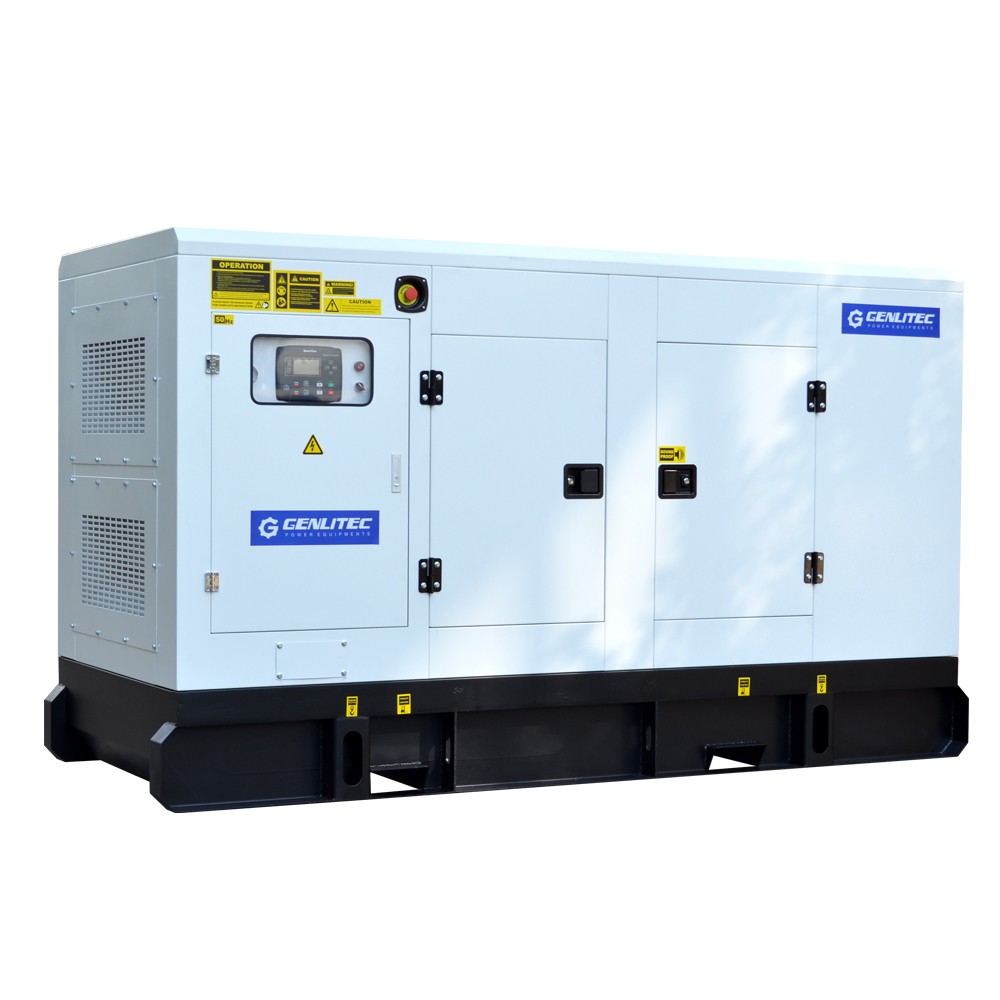

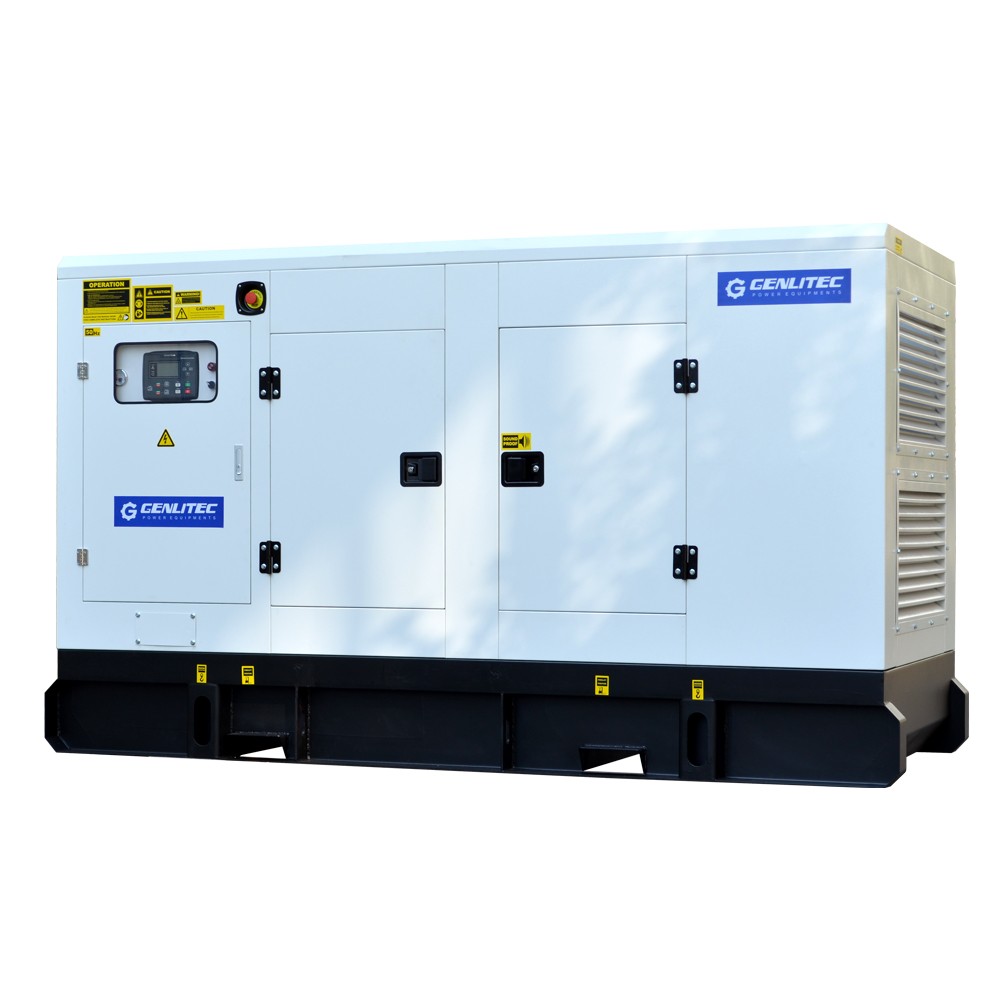

The GPD113S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide reliable protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use

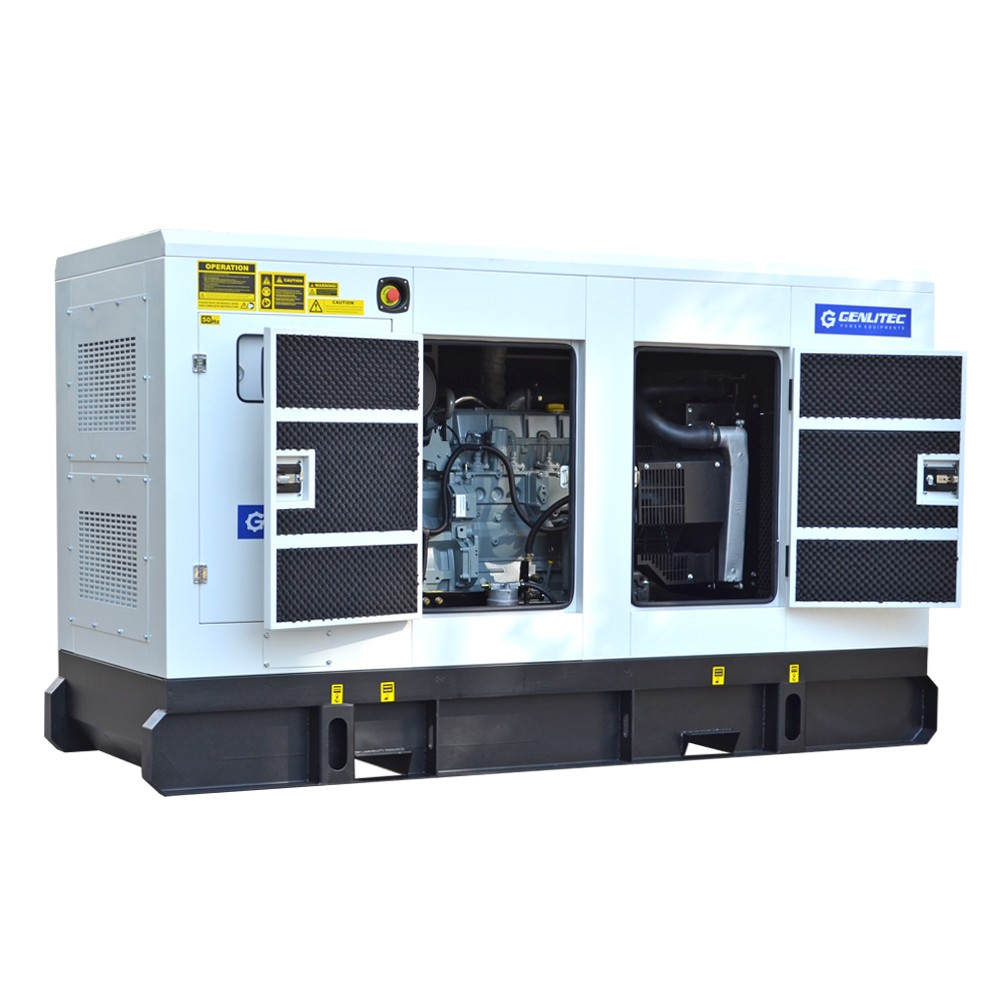

○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 90kW/113kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable and efficient power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
