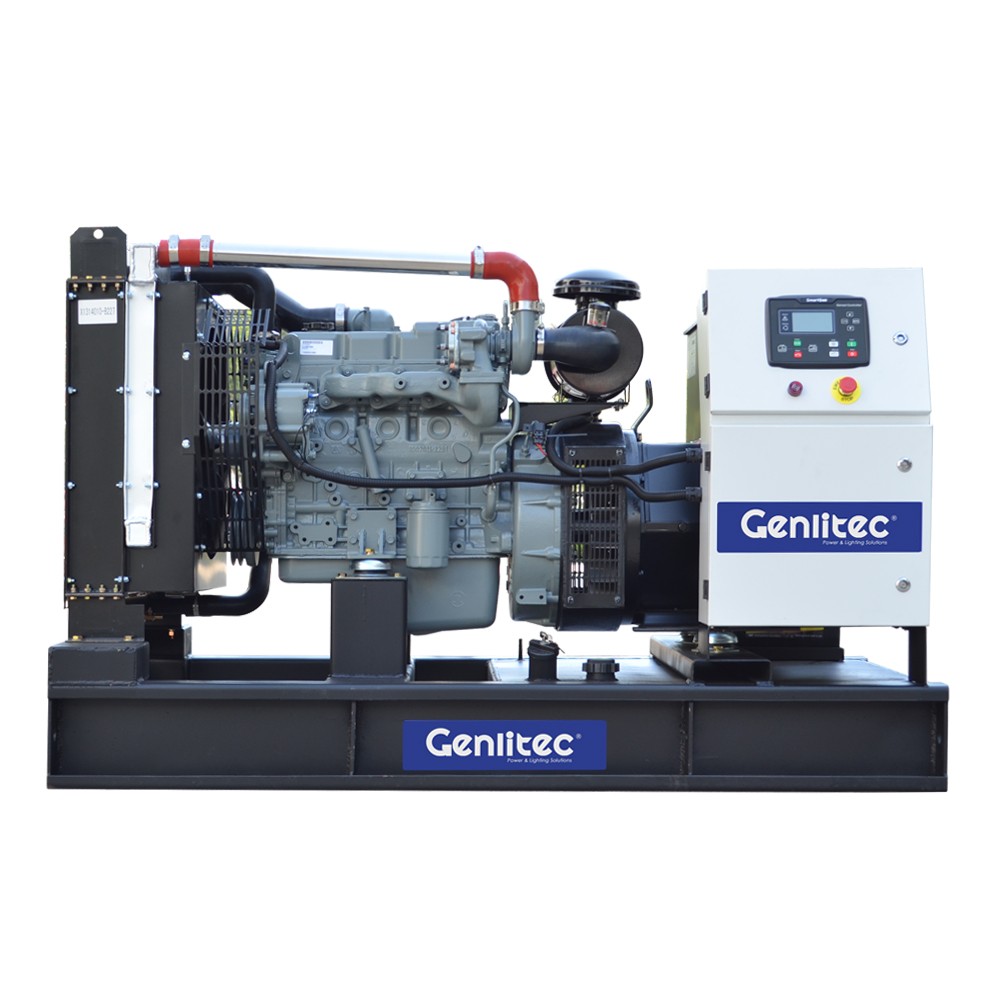

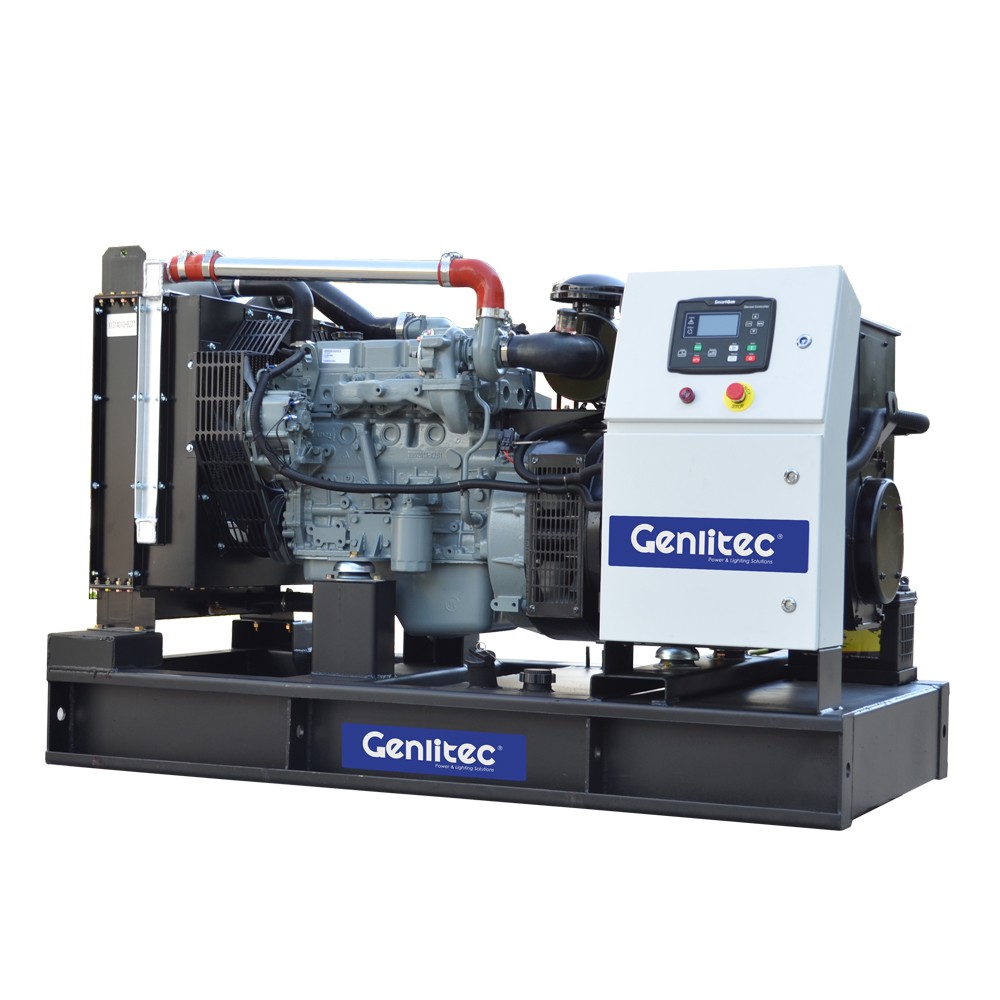

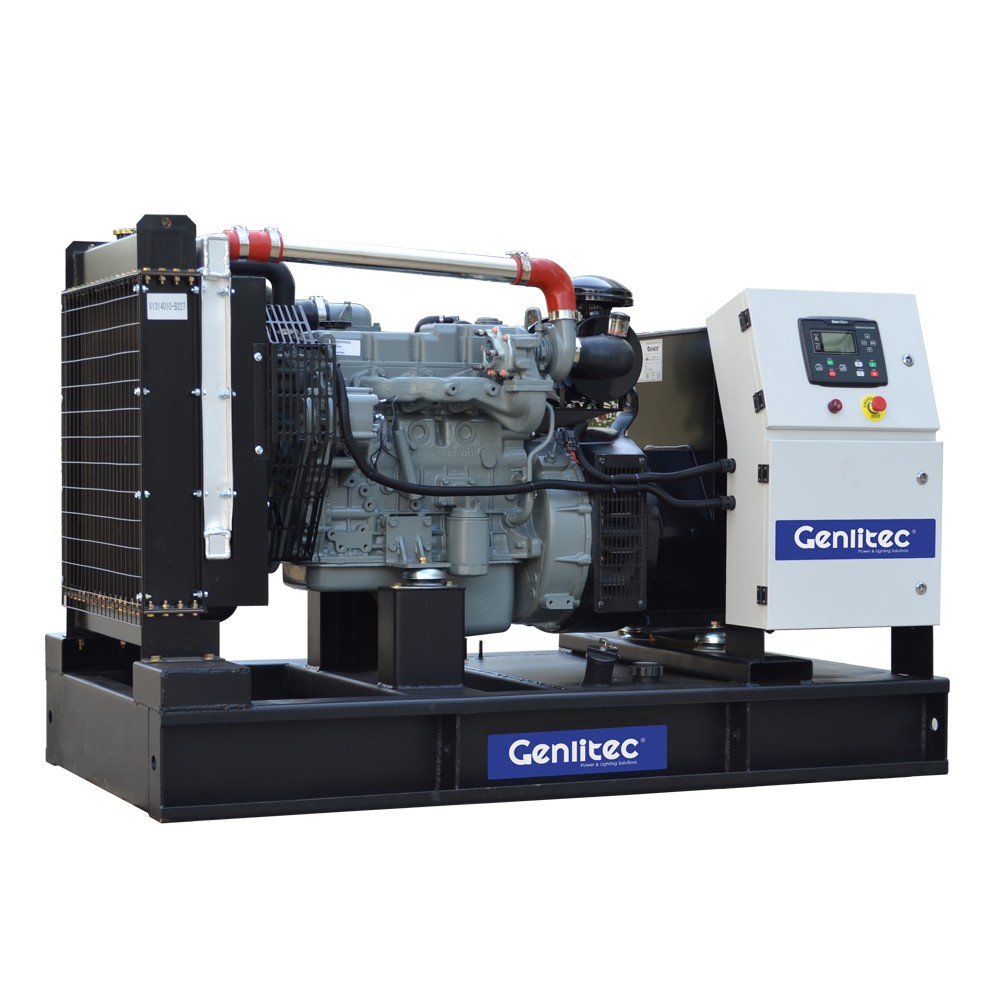

100KW/125KVA DEUTZ DIESEL GENERATOR SET SPECIFICATIONS

• Standby Power: 110KW/138KVA
• Prime Power: 100KW/125KVA
• Frequency: 60Hz
• Speed: 1800 RPM
• Voltage: 110/190V (120/208V, 127/220V or 254/440V available according to different countries)
• Fuel Tank Capacity: 8~10 hours continuous running

ENGINE

• Powered by: DEUTZ
• Engine Model: BF4M1013EC G2

ALTERNATOR

• Alternator Model: GENLITEC S274G100 (STAMFORD & LEROY SOMER alternators for options)
• High Efficiency
• IP23 Protection

CONTROL PANEL

• Emergency stop button
• Main circuit breaker
• Float baterry charger
• Manual/Autostart control panel
• Fuel level meter
• Controller power switch
• Alarm buzzer
• DEIF digital controller (SMARTGEN, DEEPSEA & COMAP controllers for options)

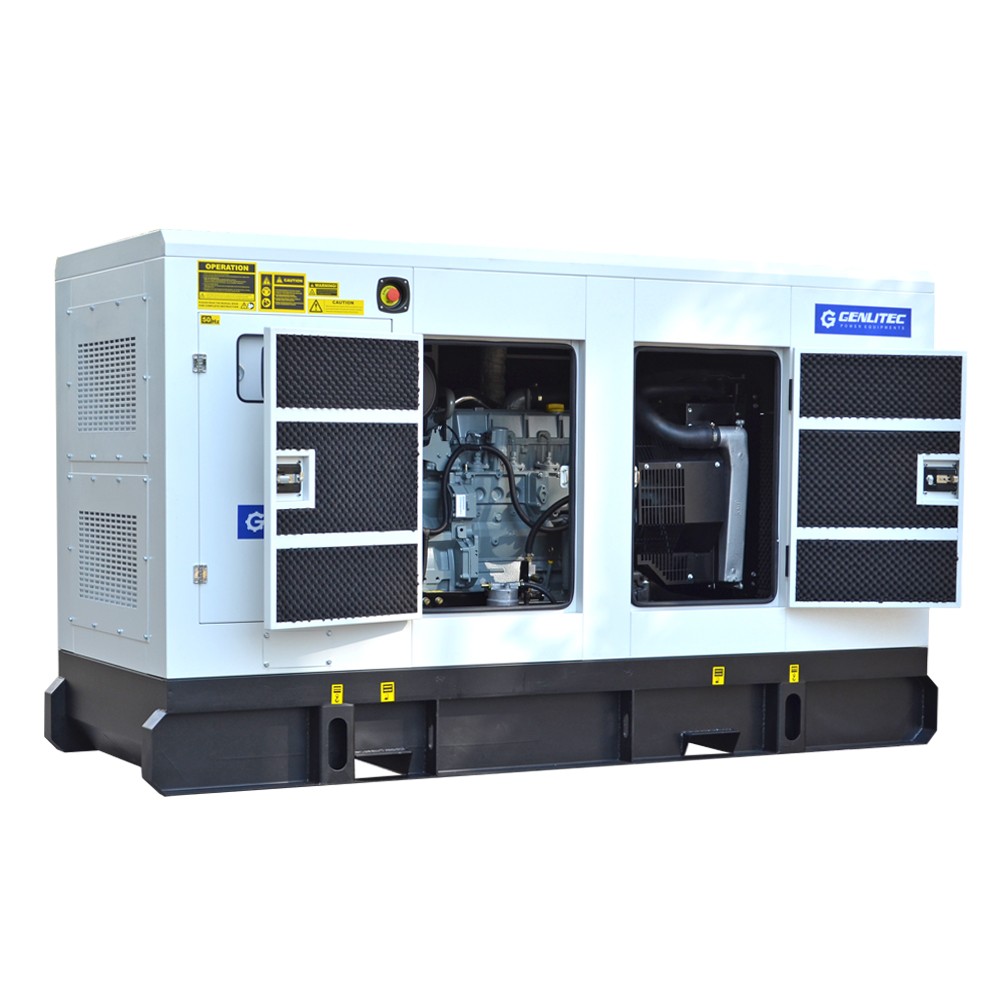

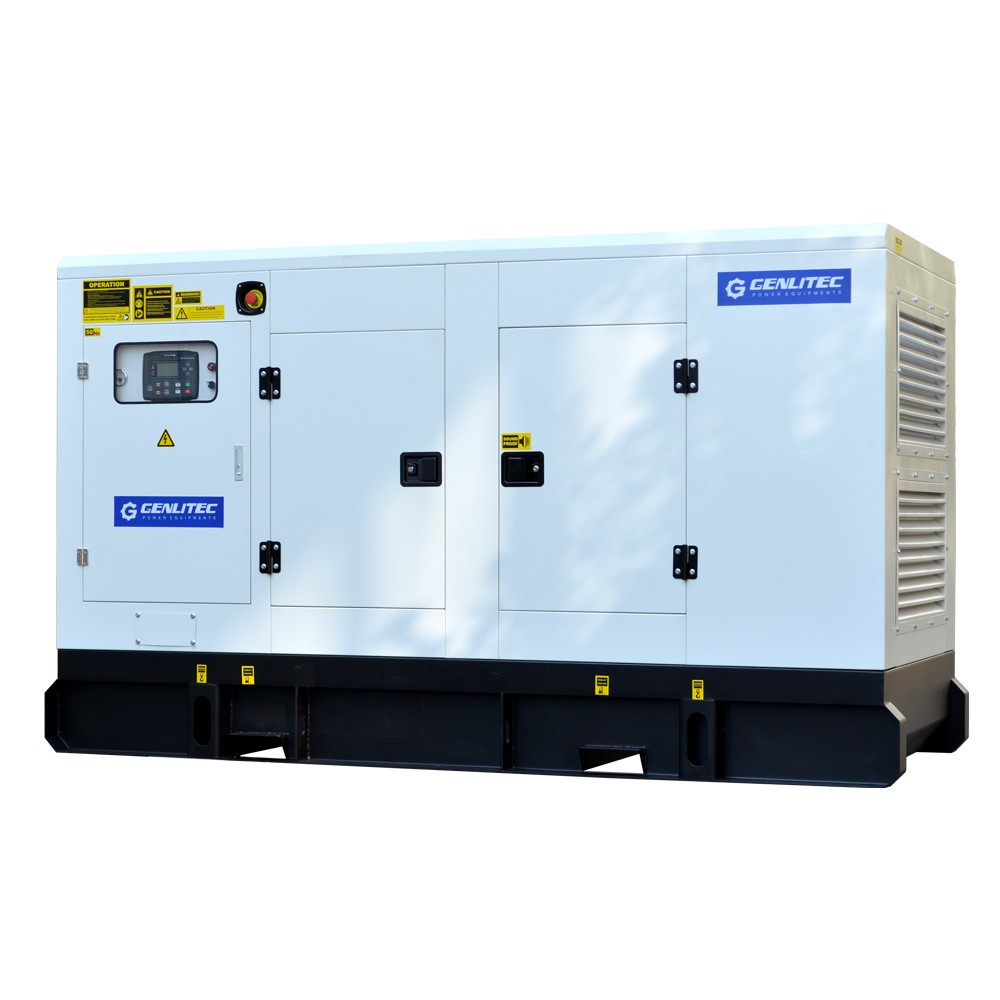

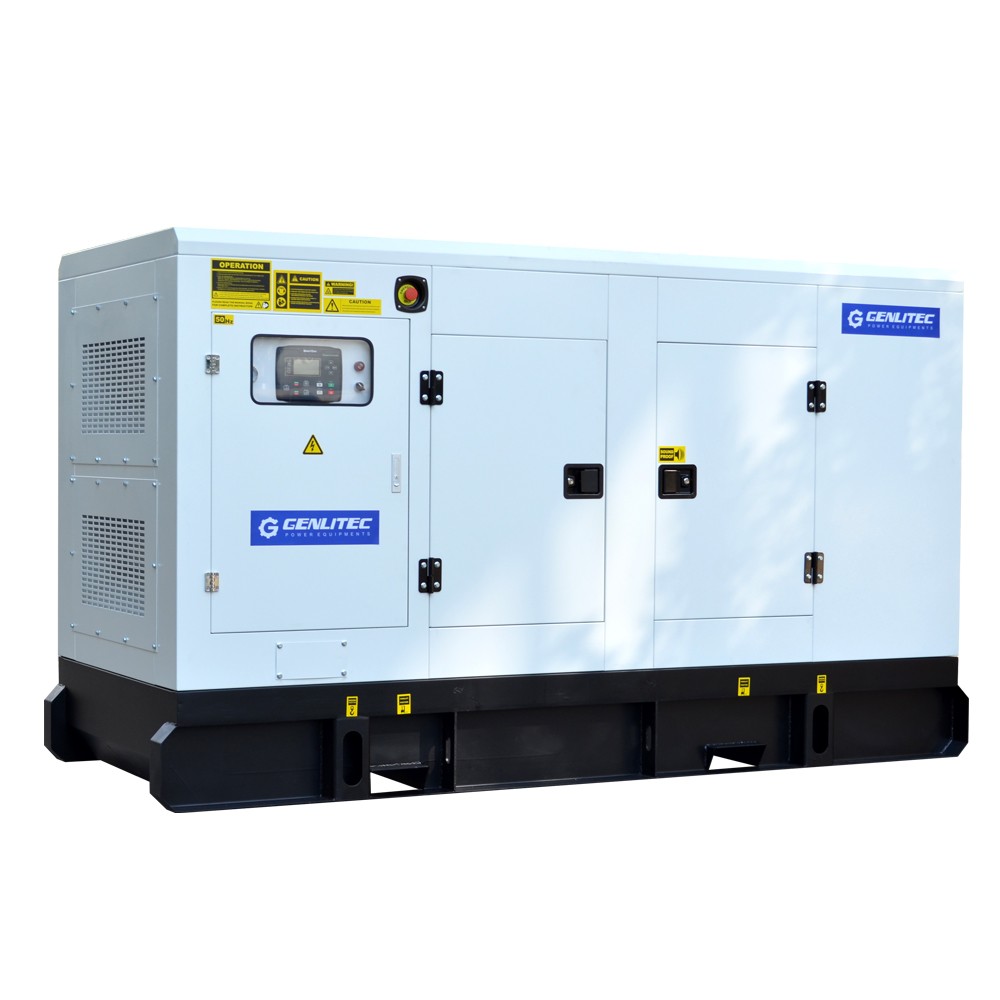

SOUND ATTENUATED ENCLOSURE

• Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
• Highly Corrosion Resistant Construction

WARRANTY

• 12 months or 1000 working hours, whichever comes first

OPTIONS

• ATS (for automatic start & stop when electricity power off & on)
• Single axle trailer
• 12 hours fuel tank
• 24 hours fuel tank
• Power Sockets (CEE or AUS standard)
