280KVA Perkins Diesel Generator-60Hz

280KVA Perkins Diesel Generator-60Hz - Image 1
  • 280KVA Perkins Diesel Generator-60Hz - Image 1
  • 280KVA Perkins Diesel Generator-60Hz - Image 2
  • 280KVA Perkins Diesel Generator-60Hz - Image 3
  • 280KVA Perkins Diesel Generator-60Hz - Image 4

Short Description

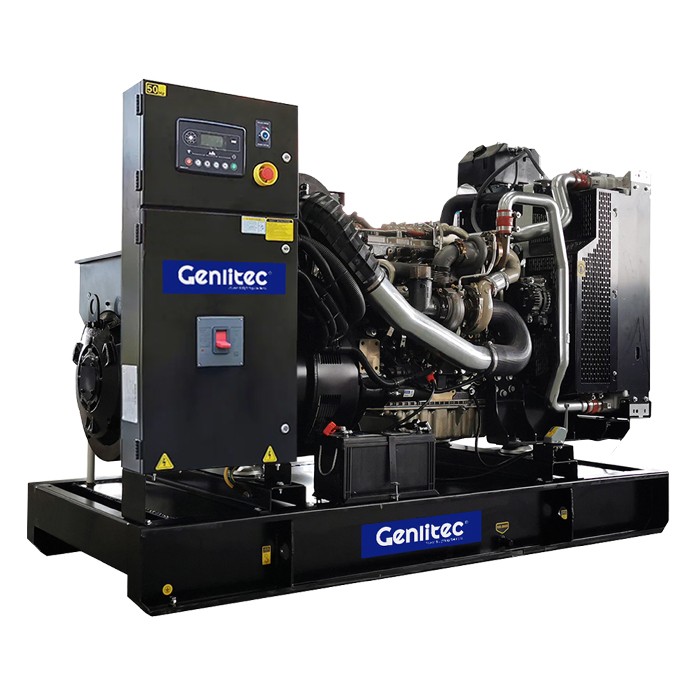

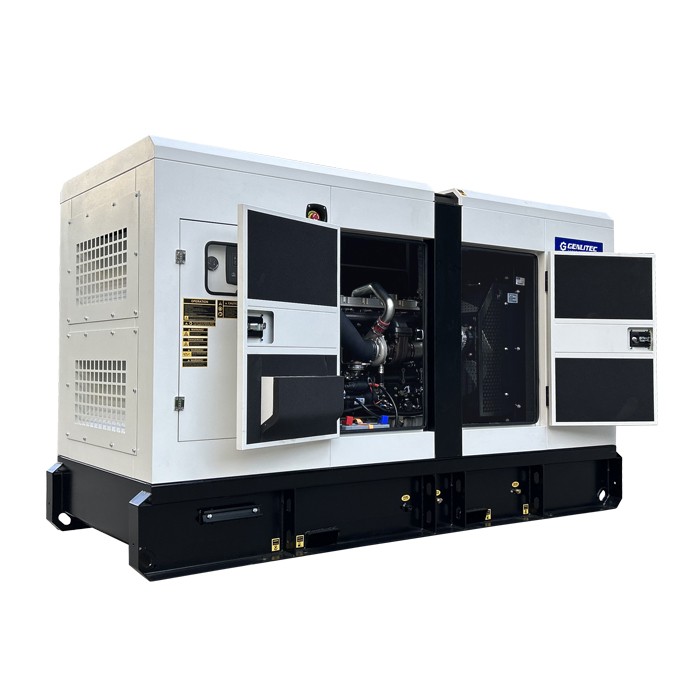

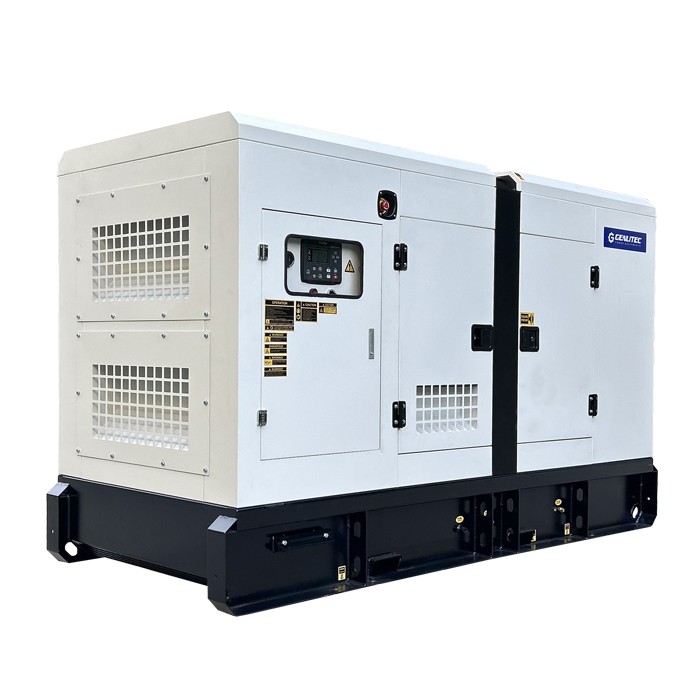

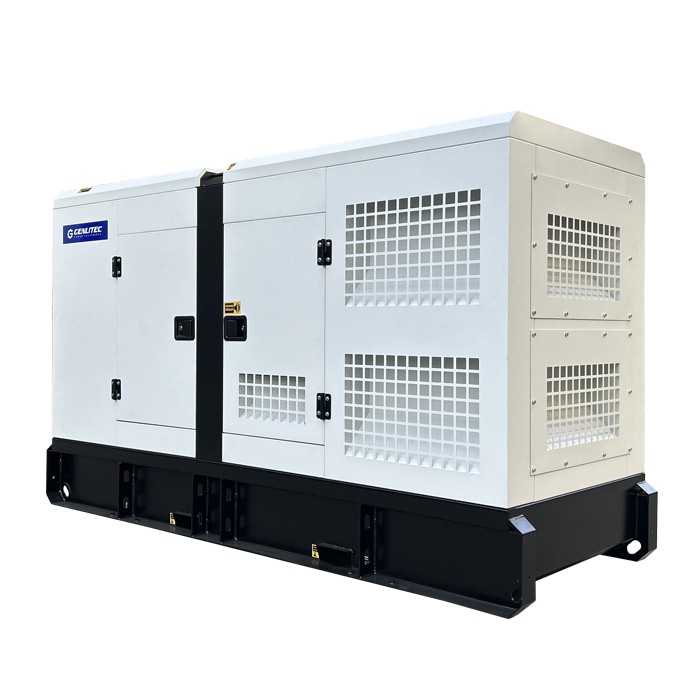

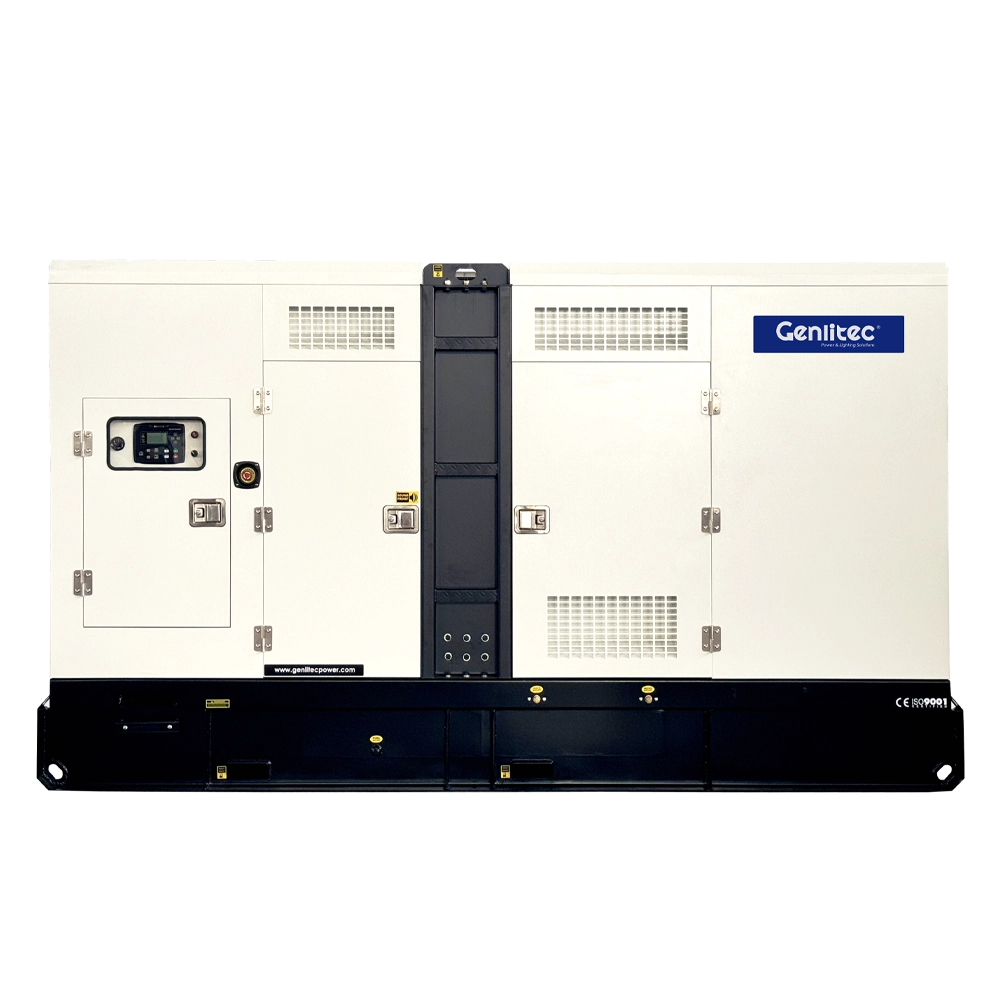

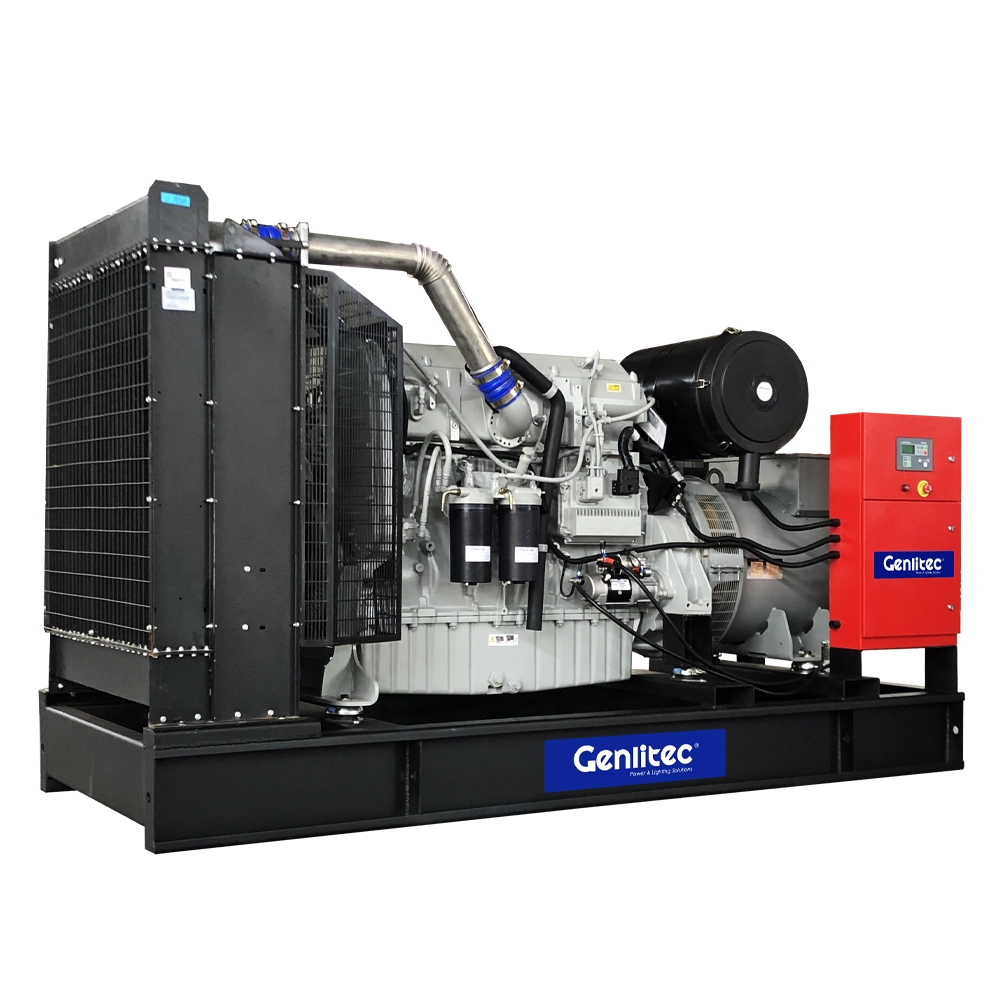

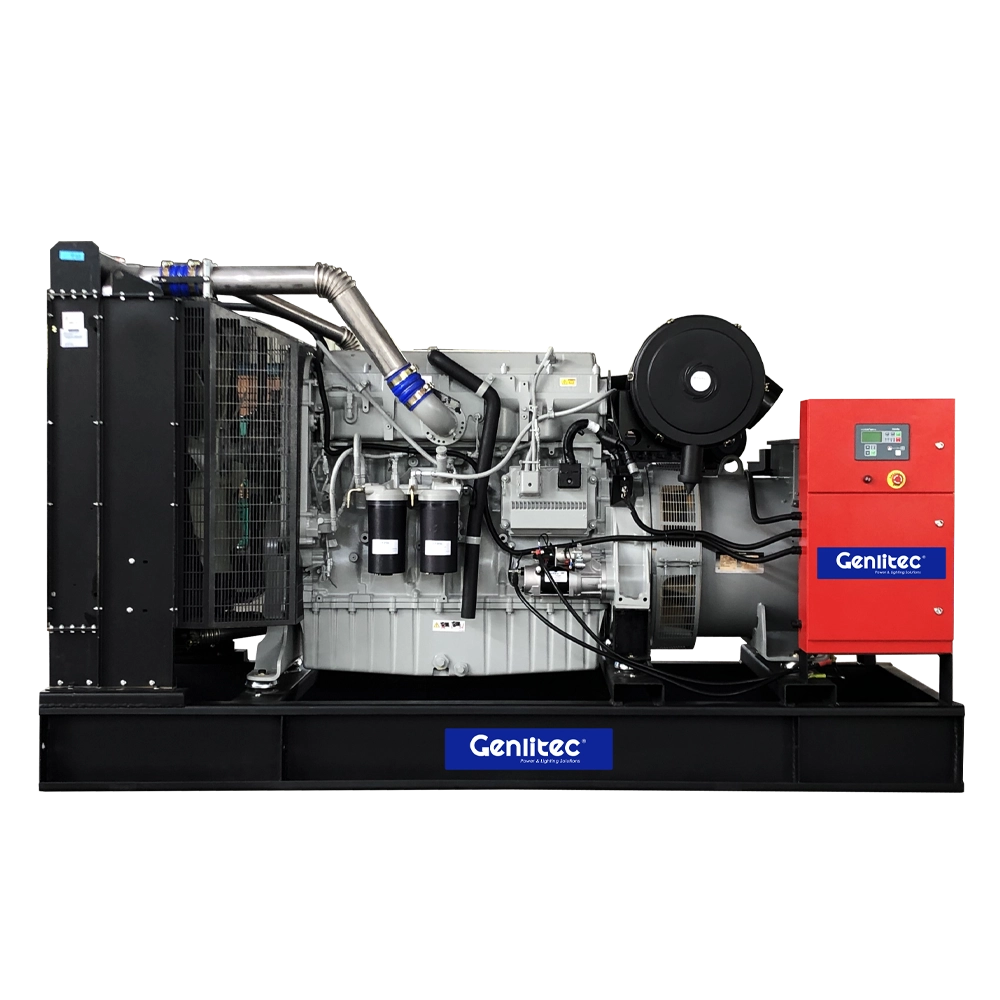

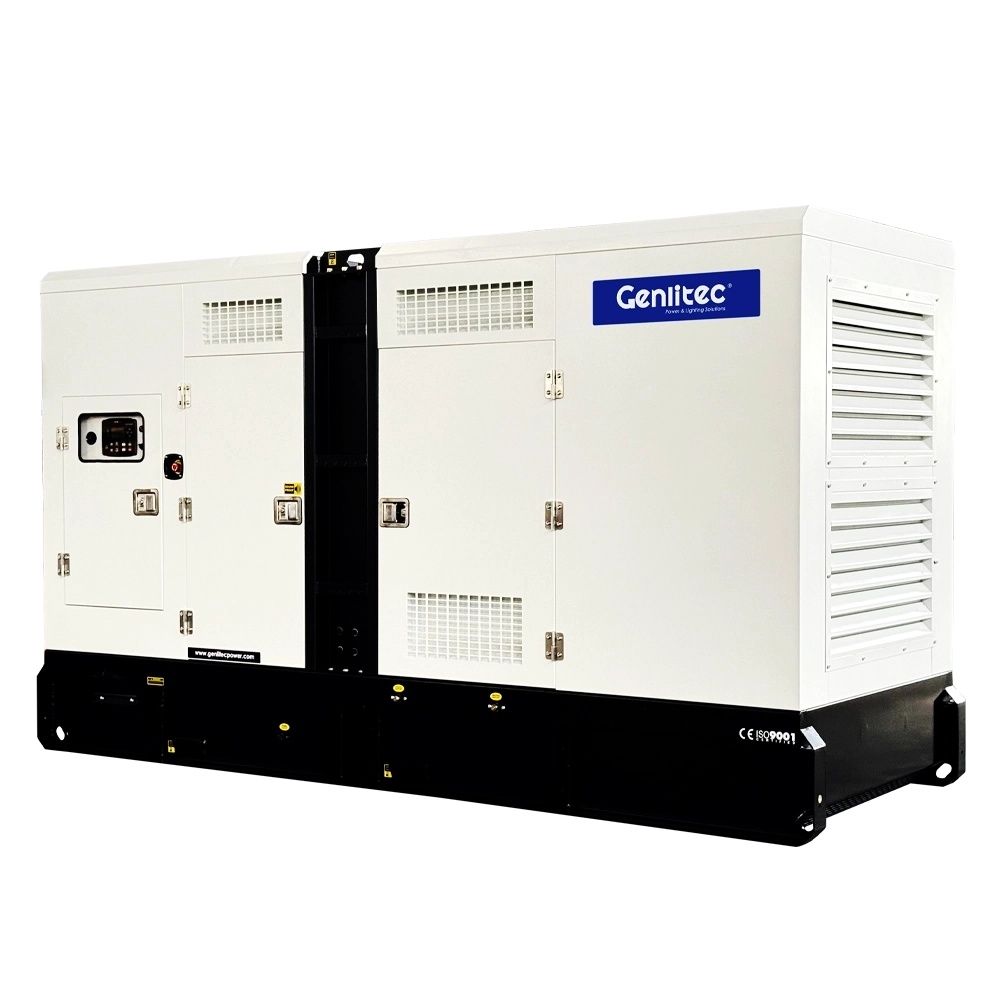

GENLITEC POWER® GPP280D6 (open type), GPP280S6 (silent type) diesel generator set powered by original PERKINS 1506A-E88TAG3, with prime power 224KW/280KVA standby power 250KW/313KVA.

  • ModelGPP280D6 | GPP280S6
  • ModelGPP280D6 | GPP280S6
  • EnginePERKINS 1506A-E88TAG3
  • Prime Power224KW/280KVA
  • Standby Power250KW/313KVA
  • Voltage110/190V | 120/208V | 127/220V | 254/440V
Share
Download as PDF

Product Details

Product Tags

224KW/280KVA PERKINS DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 250KW/313KVA
  • Prime Power: 224KW/280KVA
  • Frequency: 60Hz
  • Speed: 1800 RPM
  • Voltage: 110/190V (120/208V, 127/220V or 254/440V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: PERKINS
  • Engine Model: 11506A-E88TAG3


ALTERNATOR

  • Alternator Model: GENLITEC S274G200 (STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer


CONTAINERIZED SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS panel (for automatic start & stop when electricity power off & on)
  • Trailer Type
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power sockets (CEE or AUS standard)
  • Remote & Monitoring system (4G, WIFI or Ethernet)
