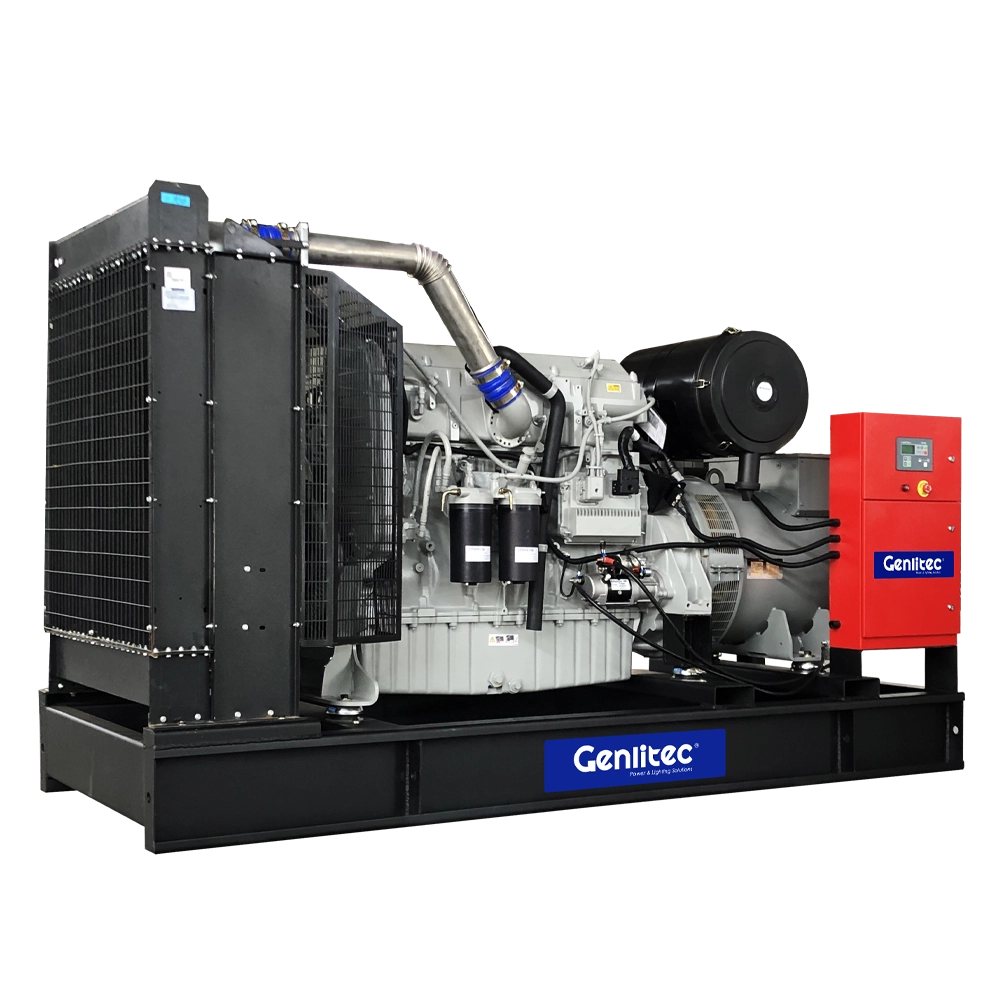

280KW/350KVA Perkins Diesel Generator-50Hz
● GENLITEC POWER® 280KW/350KVA PERKINS DIESEL GENERATOR SET FEATURES
○ Brand new original PERKINS 2206C-E13TAG2 water cooled diesel engine
○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator
○ Rating 380V/400V/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class
○ 50℃ radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller
○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with blexible connects and elbow
○ Complete engine alarm system
● GENERATOR SET

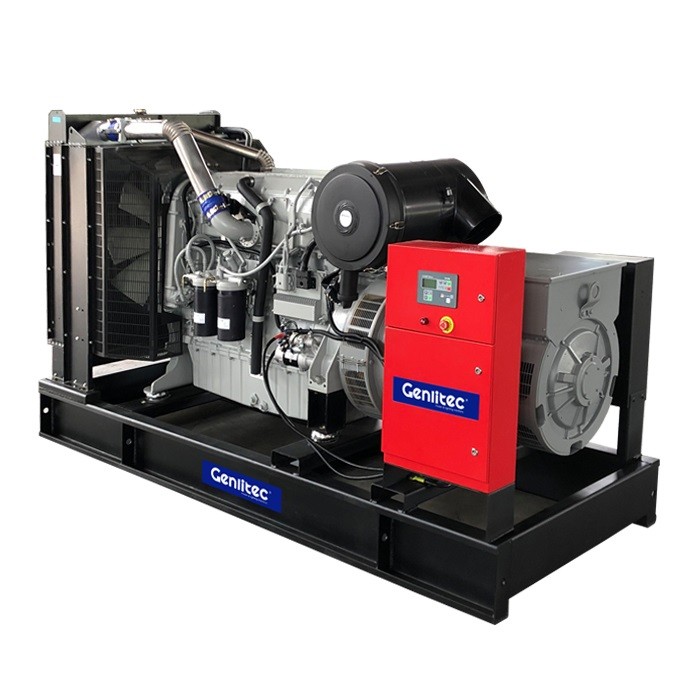

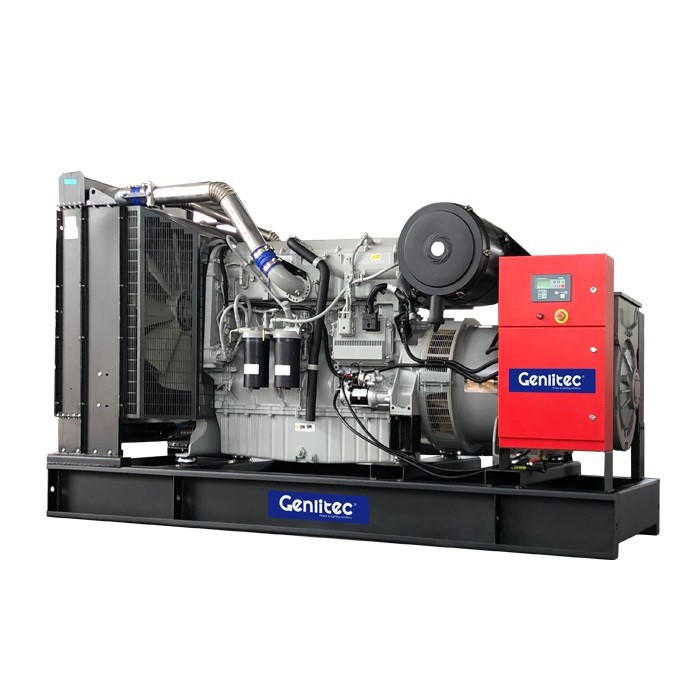

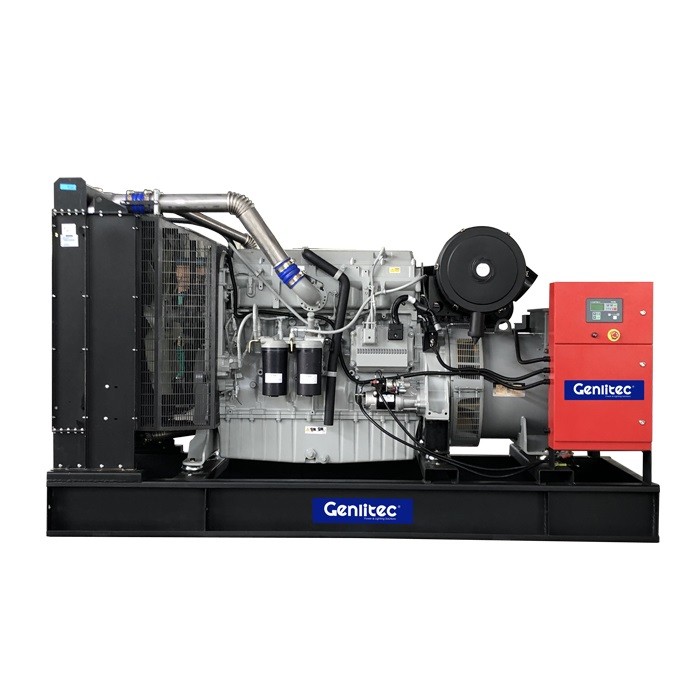

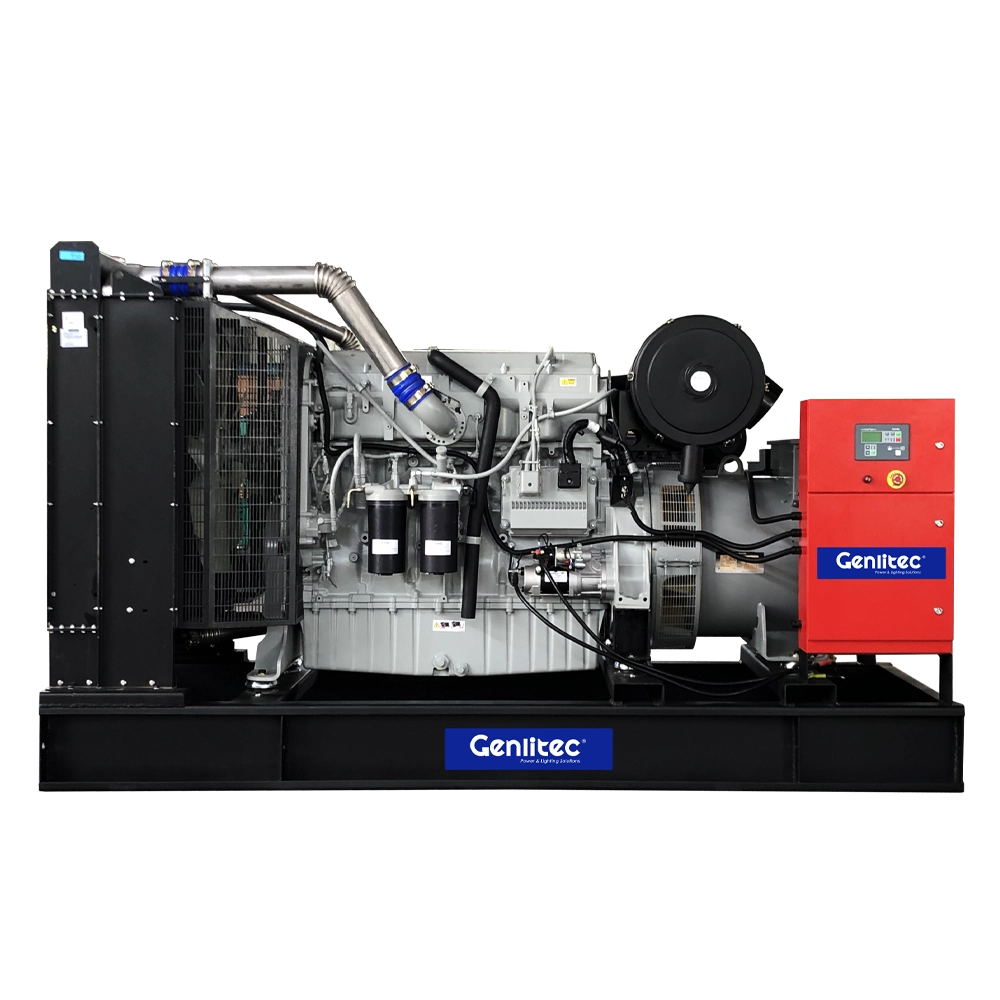

Open Type Model
GPP350D5

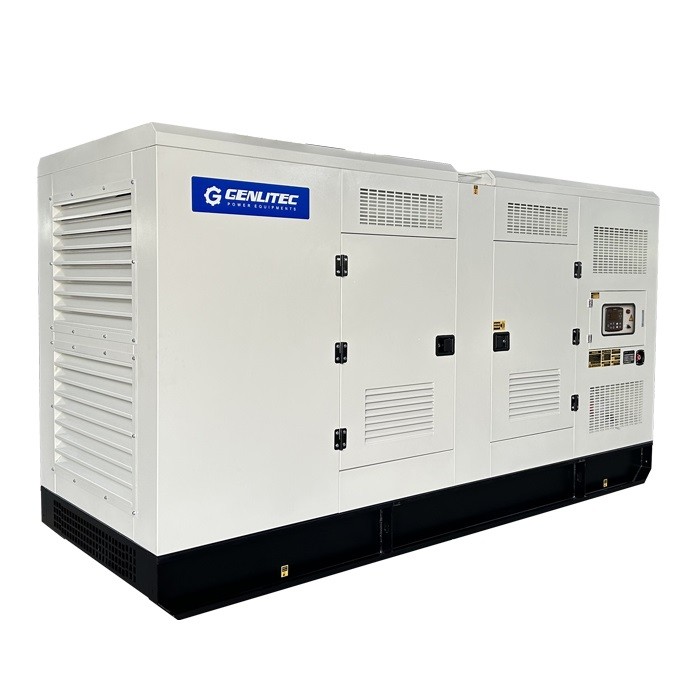

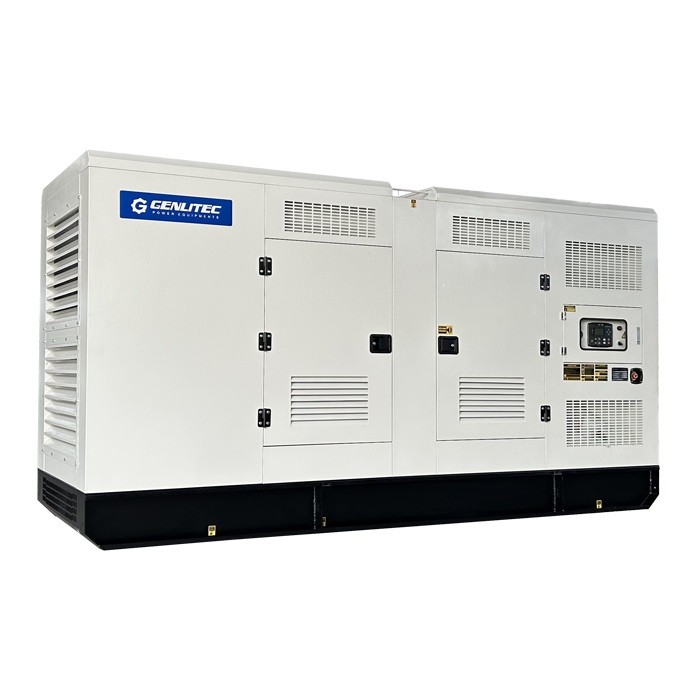

Silent Type Model
GPP350S5
Prime Power
280KW/350KVA
Standby Power
308KW/385KVA
Frequency
50Hz
Phase & Wires
3 Phase, 4 Wires
Power Factor
0.8
Rated Power
220/380V, 230/400V, 240/415V
Fuel Tank Capacity
530L
● DIESEL ENGINE
Engine Model
PERKINS 2206C-E13TAG2
Cylinder Number
6
Aspiration System
Turbocharged, Air to Air Charge Cooled
Cooling Method
Water Cooled
Governor Type
ECM
Bore x Stroke
130 x 157 mm
Compression Ratio
16.3:1
Rated Speed
1500 RPM
Displacement
12.5L
Rated Power
324KW
Standby Power
368KW
Combustion System
Direct Injection
Coolant Capacity
51.4L
Oil Capacity
40L
Electric Starting System
DC 24V
● FUEL CONSUMPTION
110% Prime Load
82L/H
100% Prime Load
75L/H
75% Prime Load
58L/H
50% Prime Load
40L/H
● ALTERNATOR
Number of Phase
3
Rated Power
280KW/350KVA
Frequency
50Hz
Power Factor
0.8
Poles
4
Temp. Rise
125K
Terminals
6/12
Insulation Class
H
Ambient Temp.
40℃
IP Rating
IP23
Excitation System
Self-Excited
Bearing
Single Bearing
Coating
Vacuum Impregnation
Voltage Regulator
A.V.R
Coupling
Flexible Disc
● CONTROL PANEL
○ Emergency stop button
○ Main circuit breaker
○ Float baterry charger
○ Manual/Autostart control panel
○ Fuel level meter
○ Controller power switch
○ Alarm buzzer

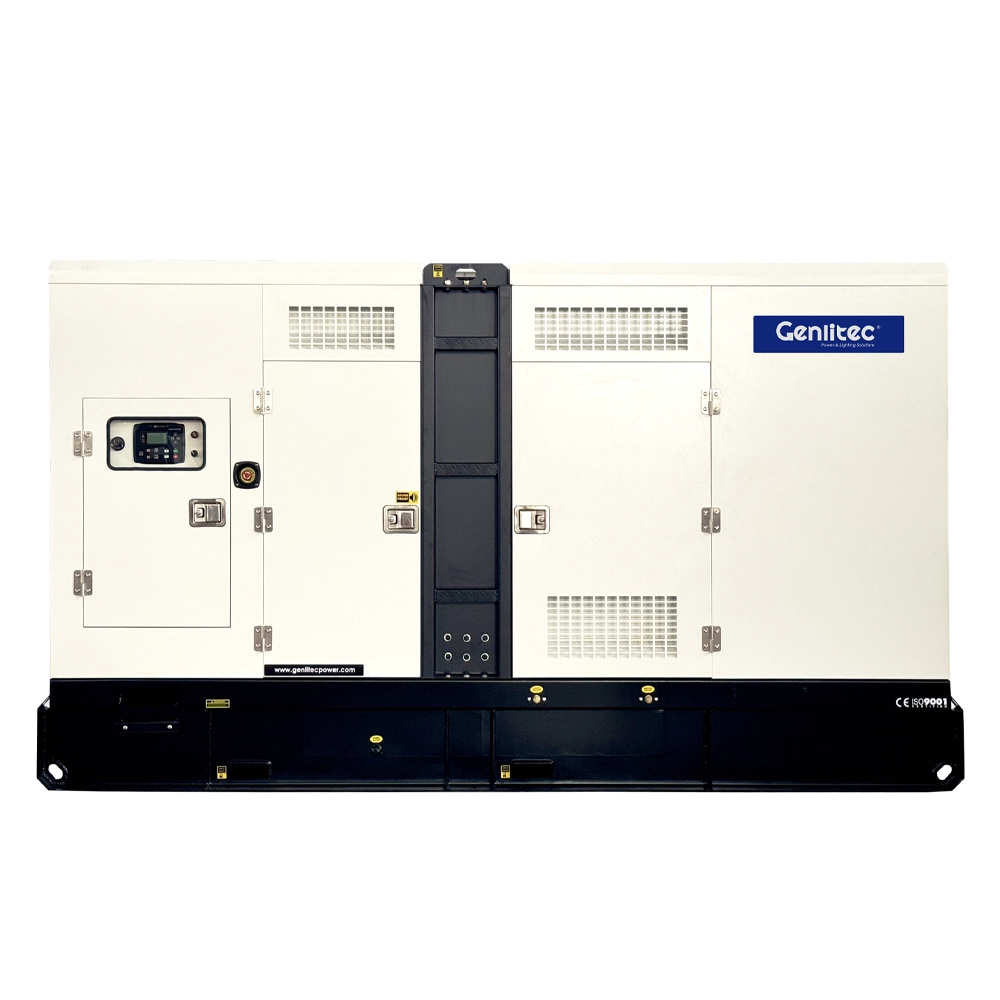

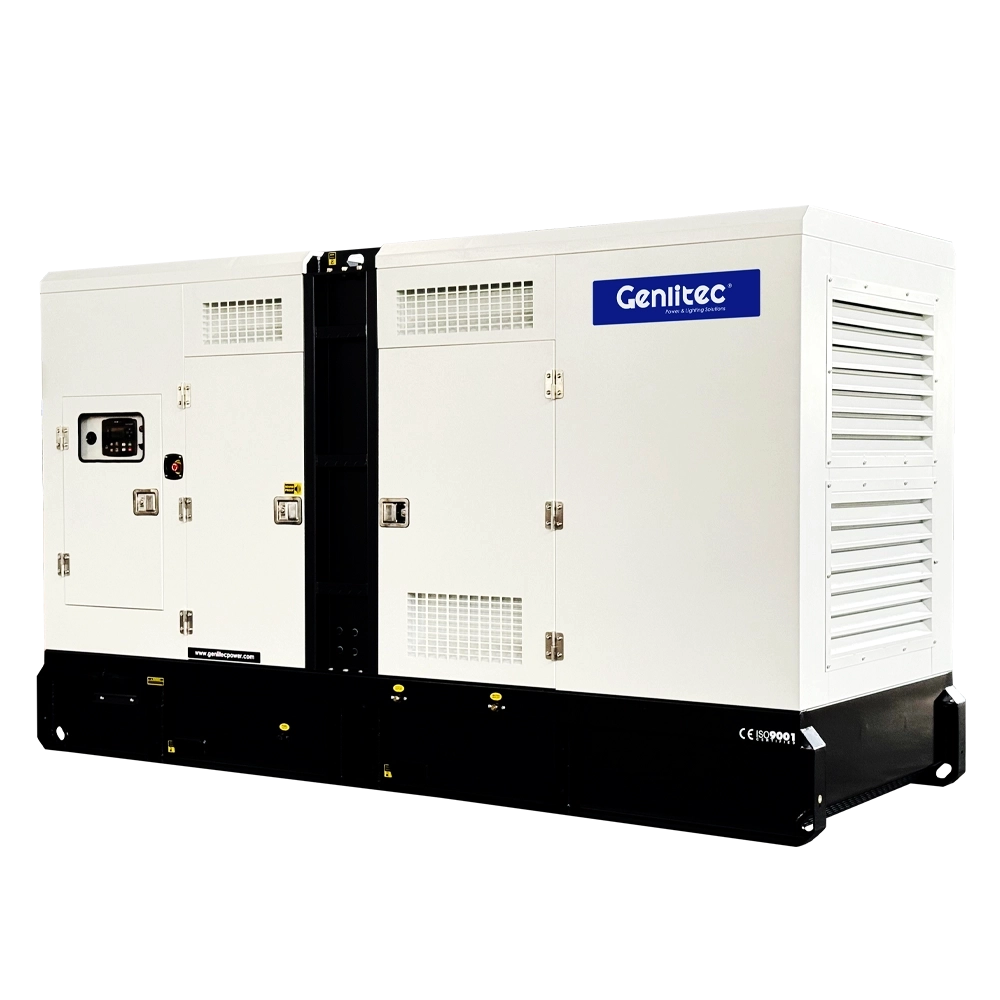

● SOUND ATTENUATED ENCLOSURE
○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
● OPTIONS
○ ATS Panel (for automatic start & stop when electricity power off & on)
○ Heater
○ 12 hours fuel tank
○ 24 hours fuel tank
○ Power Sockets (CEE or AUS standard)
○ Remote & Mornitoring System (4G or Wifi)
○ Sychronization Panel
