50Hz 300kW 375kVA Diesel Generator with Deutz BF6M1015CP-LA G Engine
Introduction

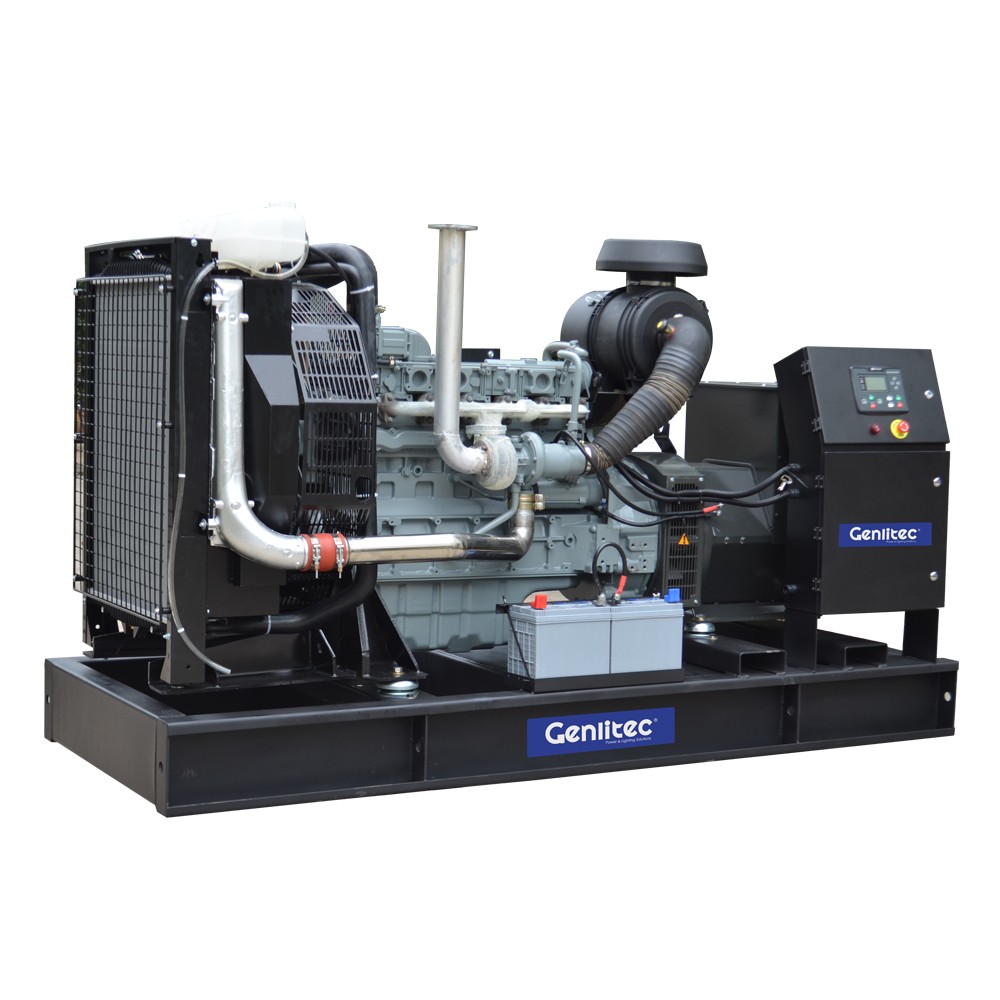

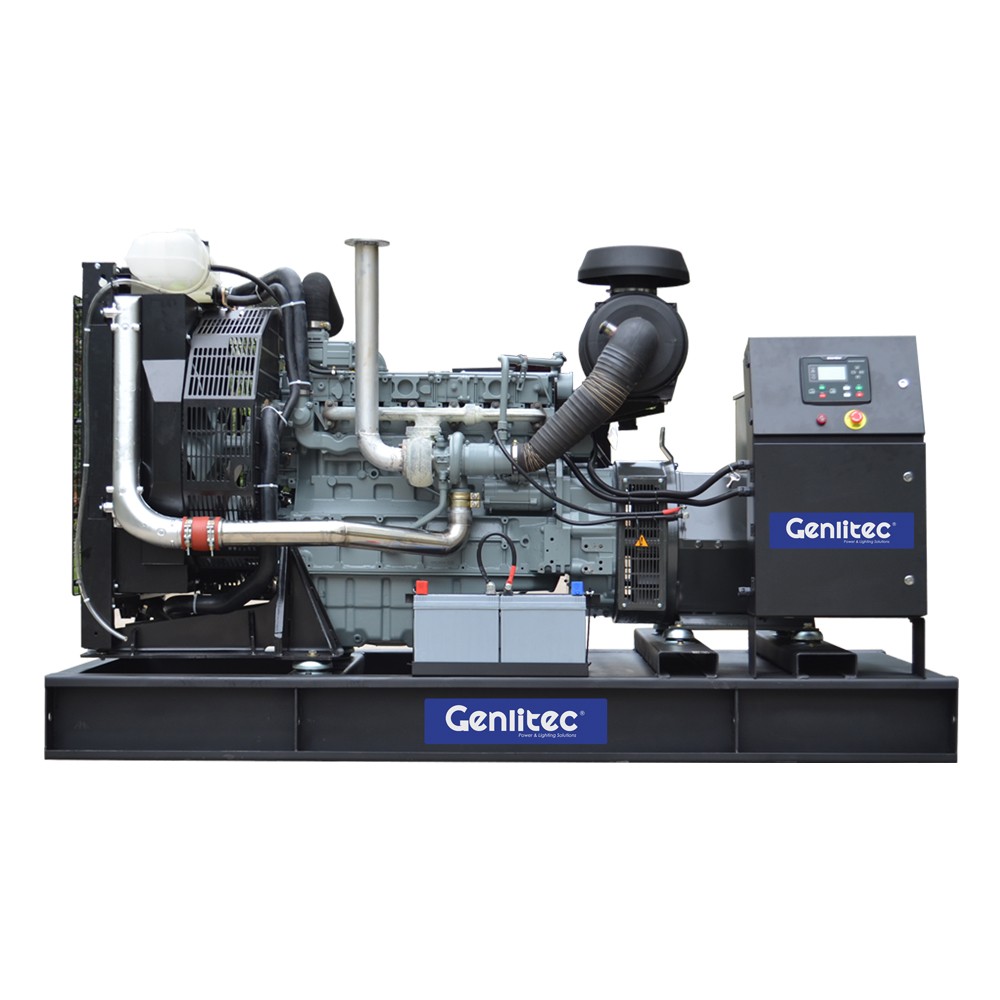

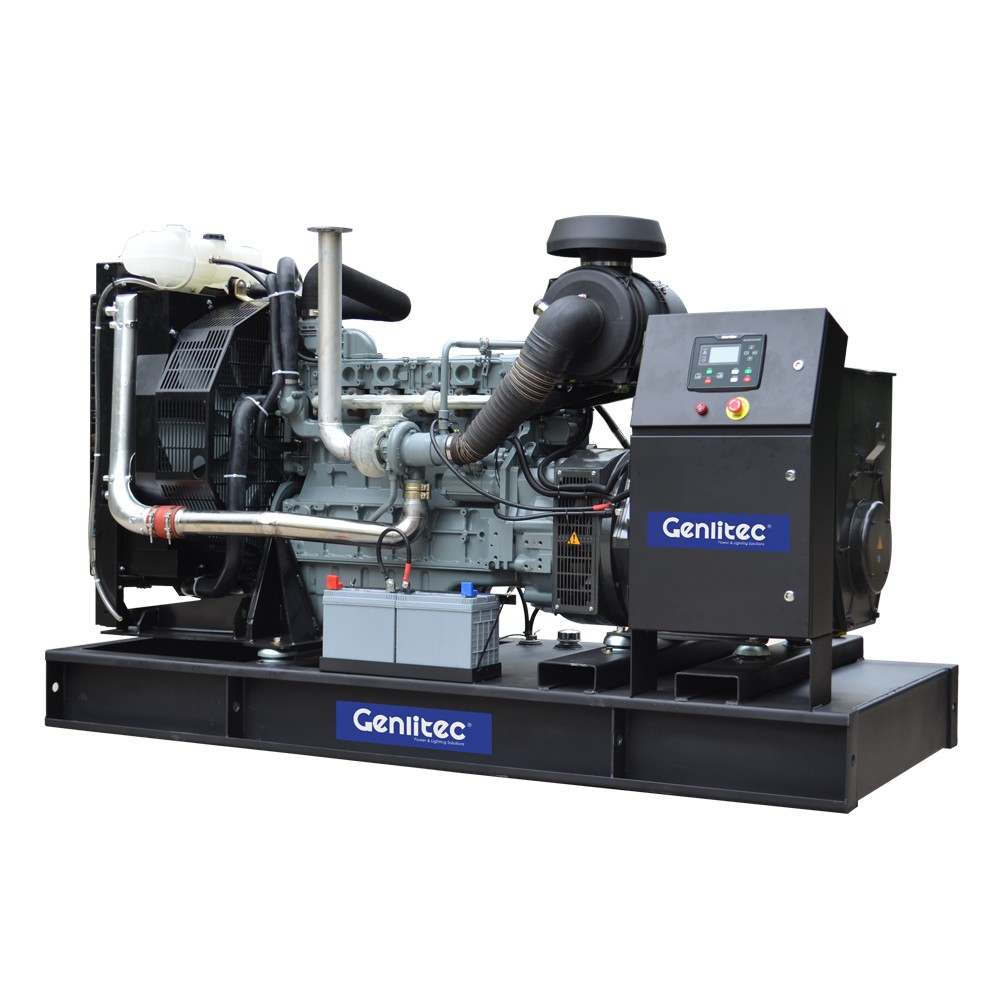

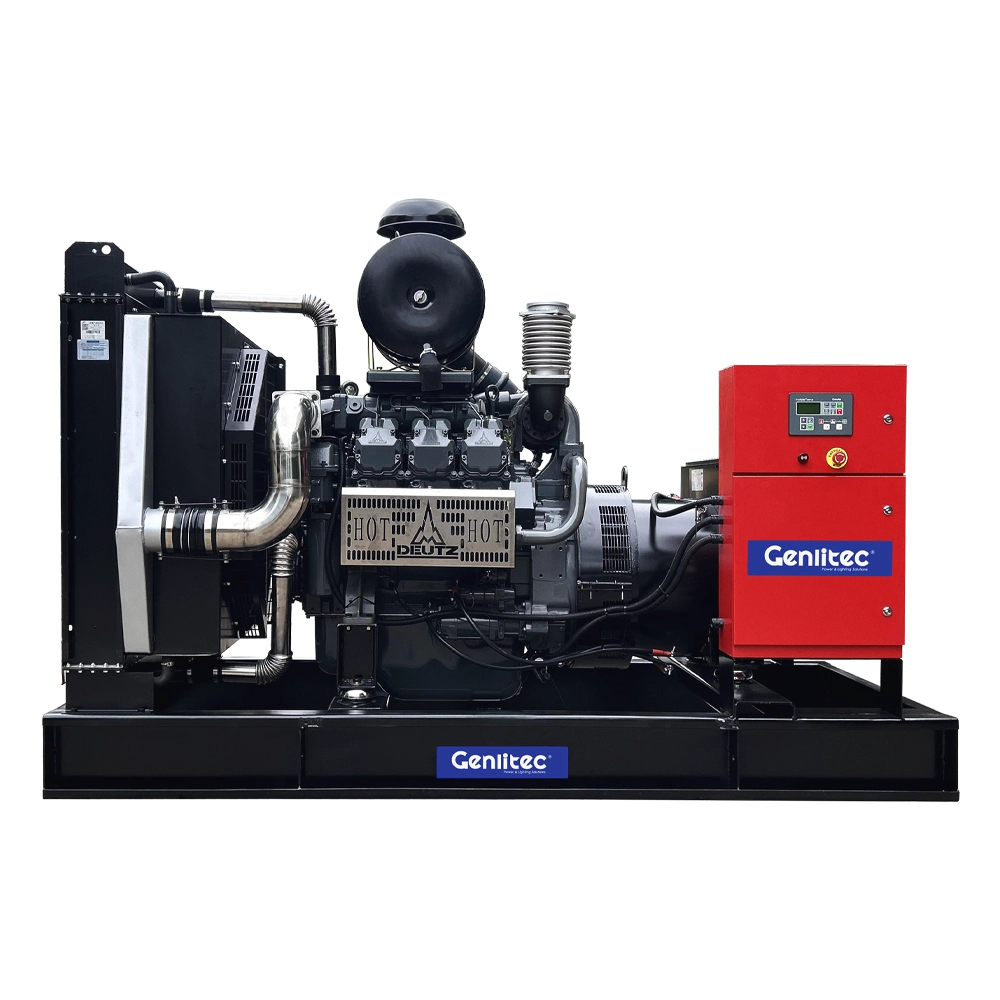

The GENLITEC POWER GPD375D5-II / GPD375S5-II is a 375kVA DEUTZ diesel generator set designed for dependable prime, standby and backup power. Powered by the DEUTZ BF6M1015CP-LA G diesel engine, this 50Hz generator delivers 300kW/375kVA prime power and 330kW/413kVA standby power at a rated speed of 1500RPM.
Equipped with a 570L fuel tank and configurable three-phase, four-wire output, the GPD375 series supports voltage options of 220/380V, 230/400V and 240/415V. The GPD375D5-II open-type diesel generator allows convenient access for installation and maintenance, while the GPD375S5-II silent diesel generator features a sound-attenuated enclosure for noise-sensitive environments and outdoor applications. These DEUTZ-powered generator sets are suitable for factories, commercial buildings, construction sites, agricultural facilities, telecommunications infrastructure and emergency power systems.
Generator Set
| Open Type Model | GPD375D5-II |
| Silent Type Model | GPD375S5-II |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/413kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 570L |
Diesel Engine
| Engine Model | DEUTZ BF6M1015CP-LA G |
| Cylinder Number | 6 |
| Cylinder Arrangement | V-Type, 90° |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged with Charge Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 132 x 145 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 11.906L |
| Prime Power (Engine) | 328kW |
| Standby Power (Engine) | 356kW |
| Fuel System | Direct Injection |
| Oil Capacity | Approx. 38L |
| Coolant Capacity | Approx. 17L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 76.5L/H |
| 75% Prime Load | 57.4L/H |
| 50% Prime Load | 38.2L/H |
| 25% Prime Load | N/A |
Alternator
| Number of Phase | 3 |
| Rated Power | 300kW/375kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

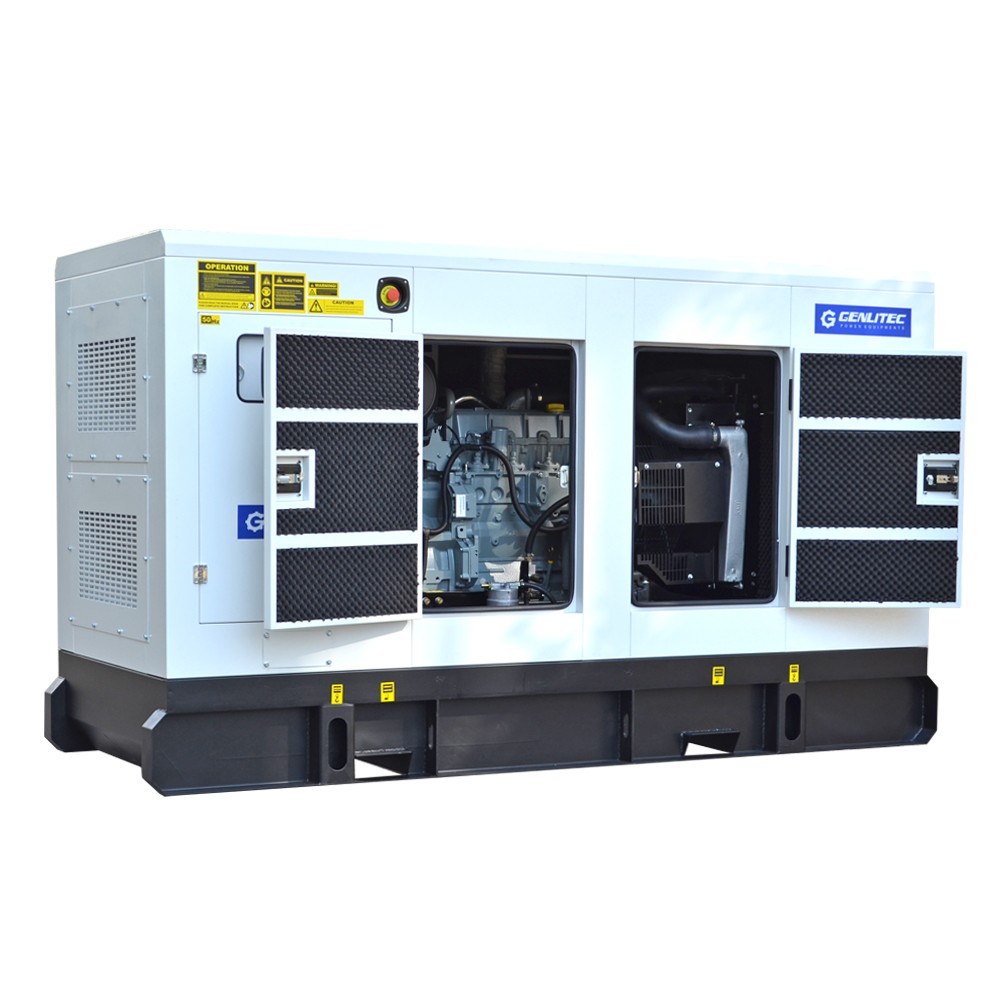

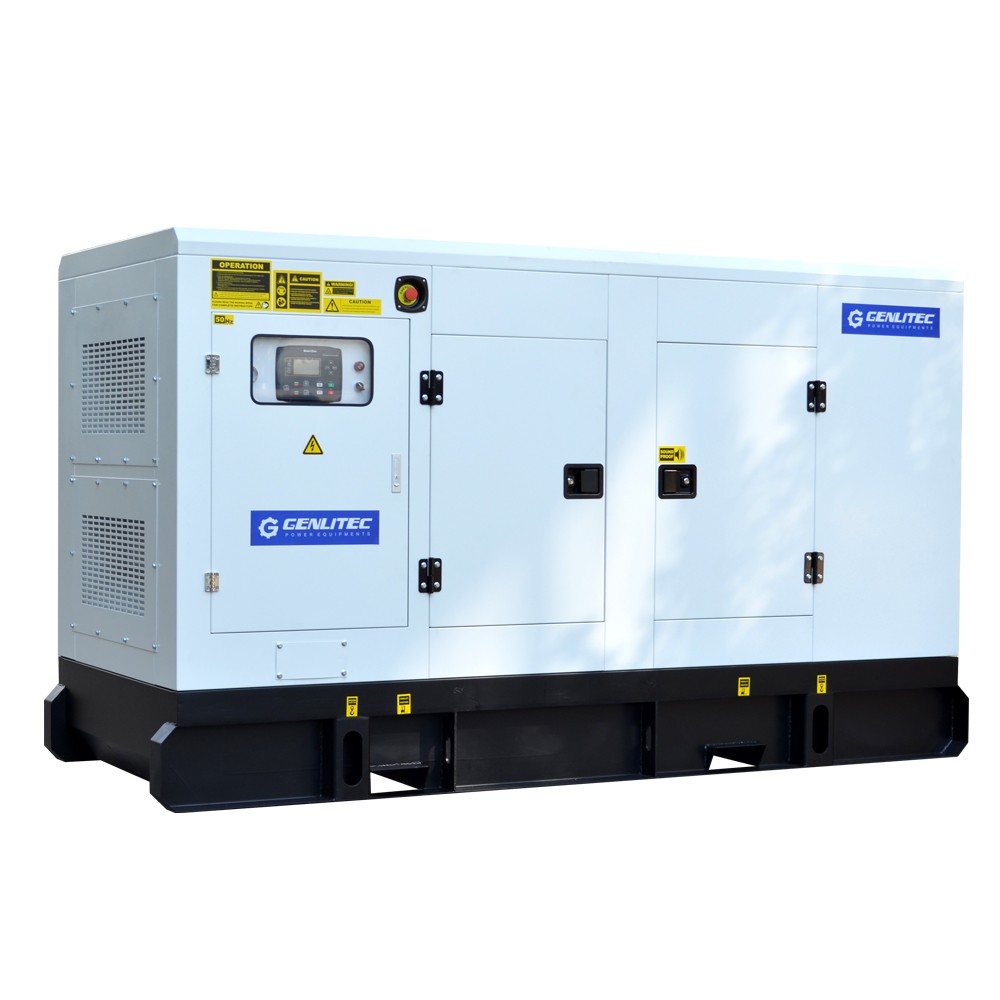

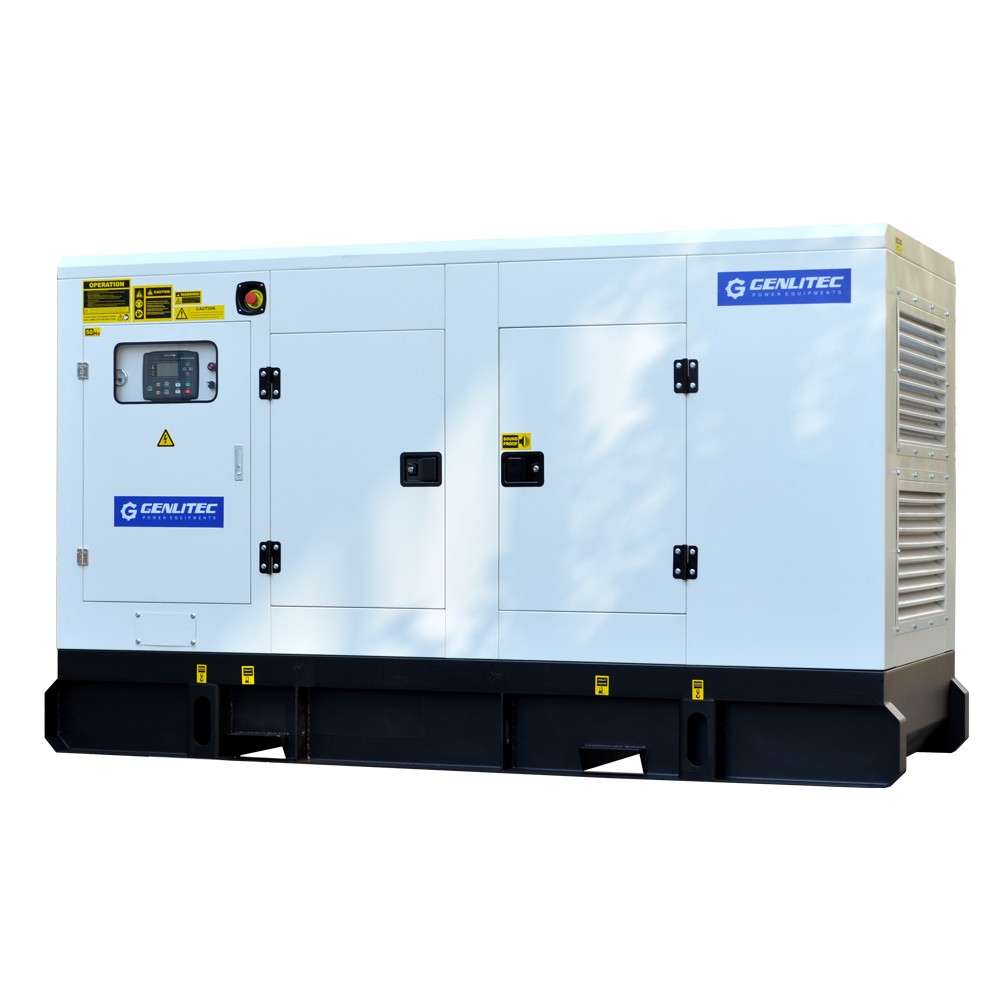

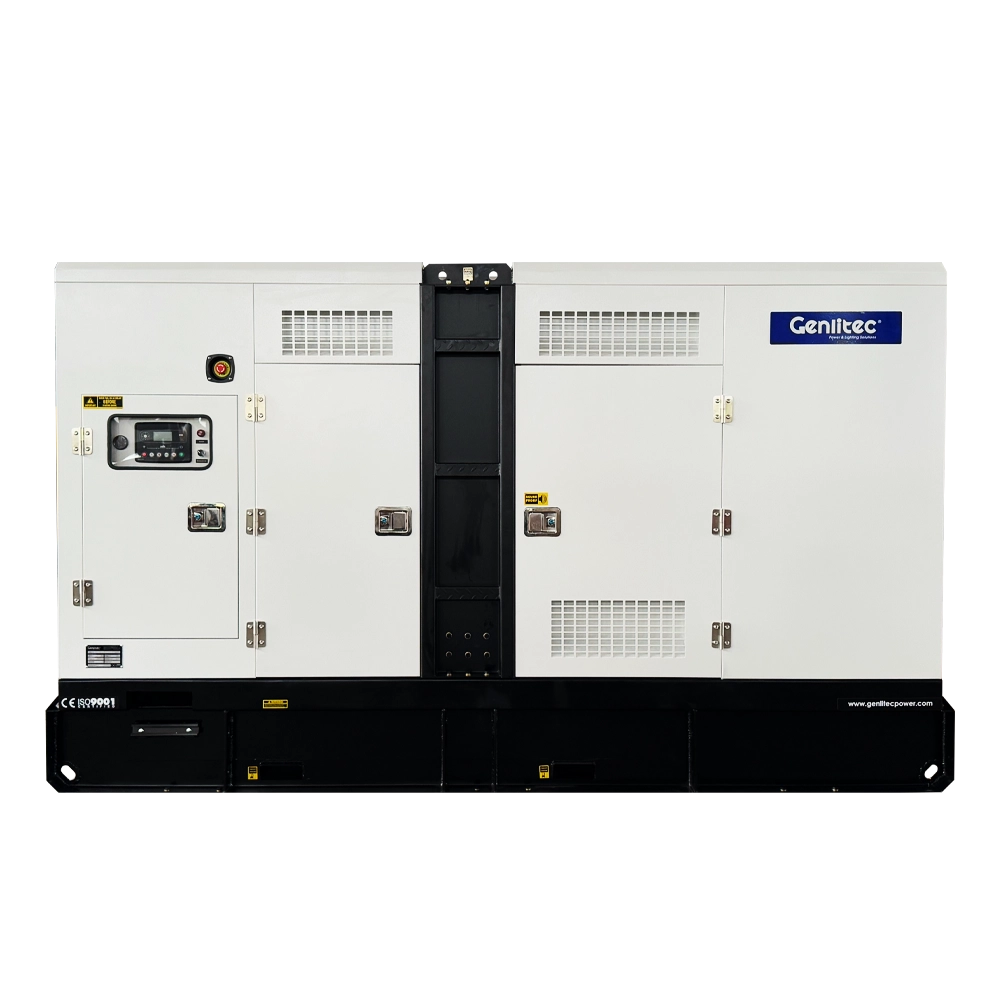

The GPD375S5-II silent diesel generator is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization system
Applications
The GENLITEC POWER 300kW/375kVA DEUTZ diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities and factories
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets combine dependable power generation with practical configuration options for commercial, industrial and standby applications.
○ DEUTZ BF6M1015CP-LA G diesel engine
○ 300kW/375kVA prime power and 330kW/413kVA standby power
○ Multiple voltage configurations available
○ Open and sound-attenuated configurations available
○ 570L fuel tank for extended operating intervals between refills
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
