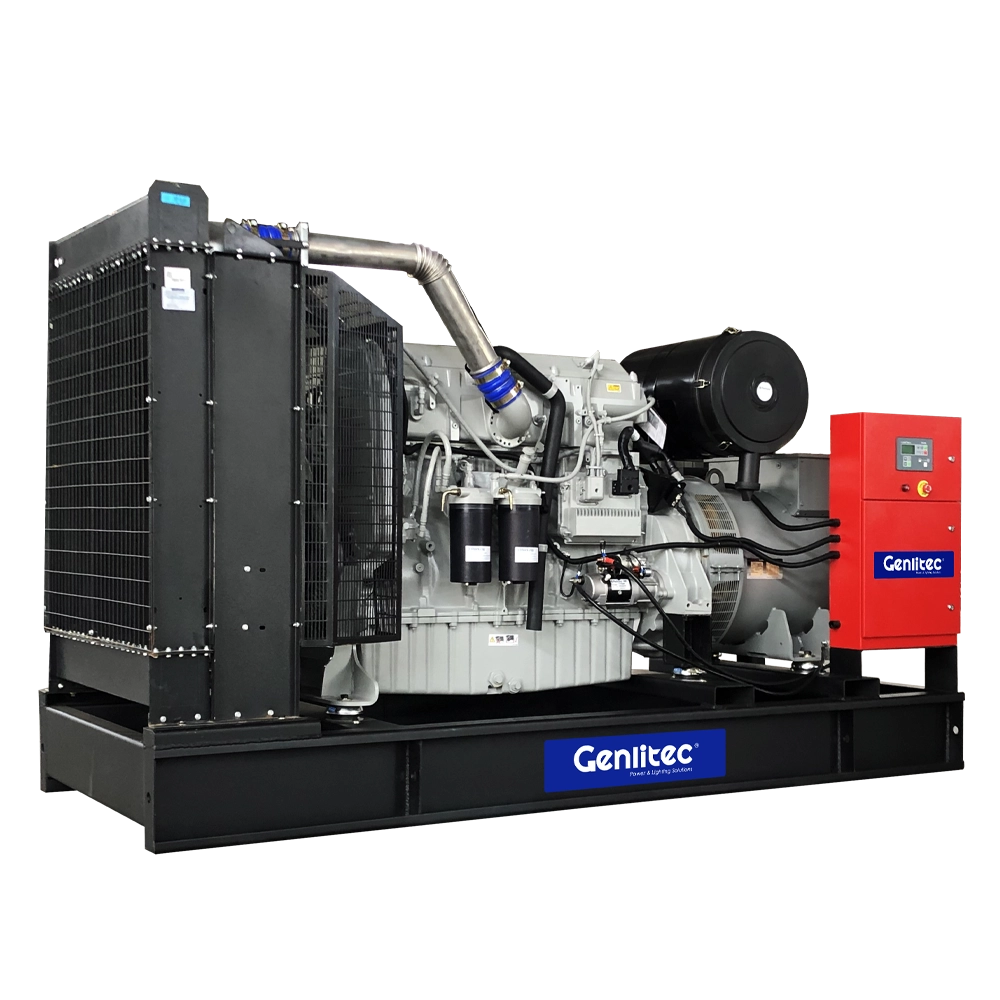

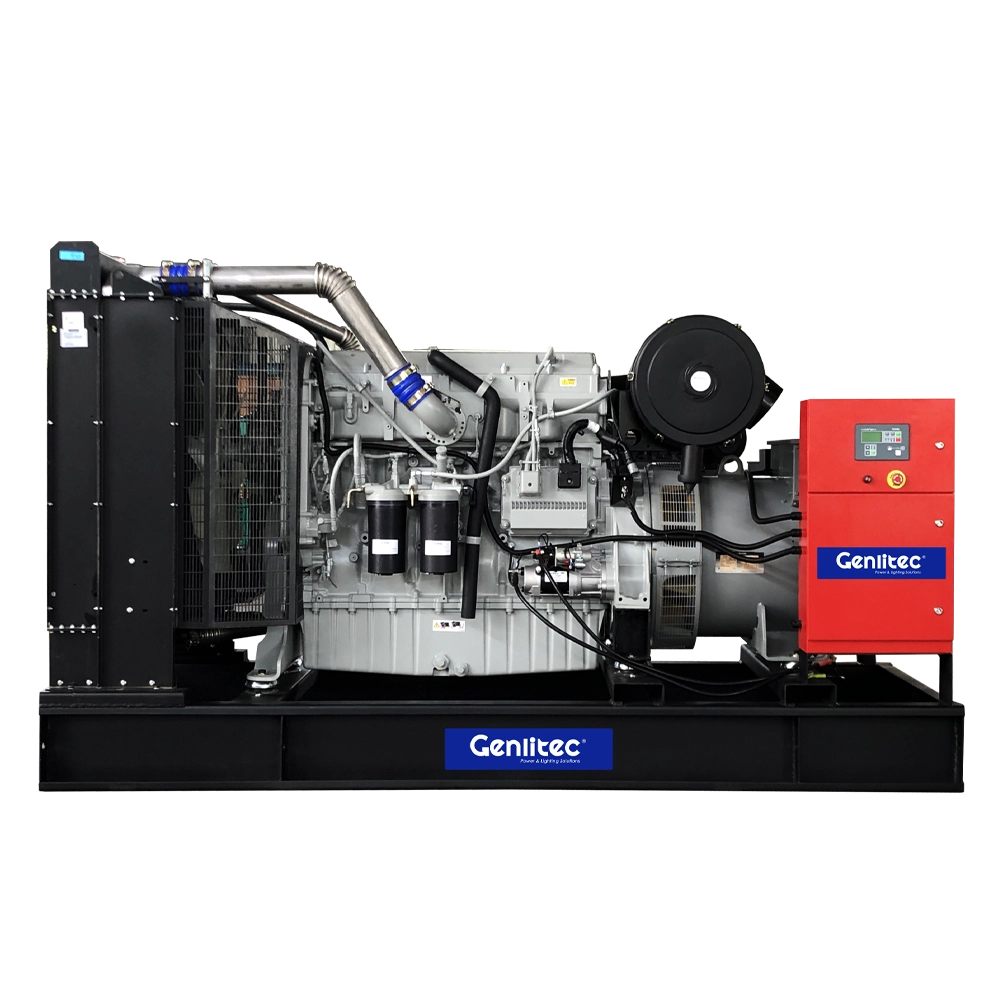

50Hz 360kW 450kVA Diesel Generator with Perkins 2506C-E15TAG1 Engine
Introduction
The GENLITEC POWER GPP450D5 / GPP450S5 is a 450 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 360KW/450KVA prime power and 400KW/500KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 2506C-E15TAG1 turbocharged and air-to-air charge cooled diesel engine, the GPP450D5 / GPP450S5 combines a 15.2L six-cylinder engine with electronic engine control, high power density and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 680L standard fuel tank is provided, while optional 12-hour, 24-hour and 48-hour fuel tanks, ATS, trailer, remote monitoring system and power sockets are available for different project requirements. This 360KW/450KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and efficient electricity supply is required.
Generator Set
| Open Type Model | GPP450D5 |
| Silent Type Model | GPP450S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 360KW/450KVA |
| Standby Power | 400KW/500KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 680L |
Diesel Engine
| Engine Model | Perkins 2506C-E15TAG1 |
| Cylinder Number | 6 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged and Air-to-Air Charge Cooled |
| Cooling Method | Liquid Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 137 x 171 mm |
| Compression Ratio | 16.0:1 |
| Rated Speed | 1500 RPM |
| Displacement | 15.2L |
| Rated Power | 412KW |
| Standby Power | 451KW |
| Combustion System | Direct Injection |
| Coolant Capacity | Approximately 50L |
| Oil Capacity | Approximately 45L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 110% Prime Load | 109L/H |
| 100% Prime Load | 99L/H |
| 75% Prime Load | 73L/H |
| 50% Prime Load | 51L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 360KW/450KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP450S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Double-axle trailer
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
Applications
The GENLITEC POWER 360KW/450KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP450D5 / GPP450S5 diesel generator sets combine a Perkins 2506C-E15TAG1 engine with a high-power generator set configuration for dependable prime and standby power.
○ Perkins 2506C-E15TAG1 diesel engine for reliable high-power generation
○ 360KW/450KVA prime power and 400KW/500KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Electronic engine control for precise engine speed and performance management
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
