DE715GC Standby 715KVA Caterpillar Diesel Generator
Short Description
Producing 715 kVA of reliable power at 50 Hz, the CATERPILLAR DE715 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- ModelCATERPILLAR DE715GC
- Prime Power (PRP)N/A
- Standby Power (ESP)572kW/715kVA
- EngineC15
- Fuel consumption (100%)143.8L/H
Product Details
Product Tags
Video

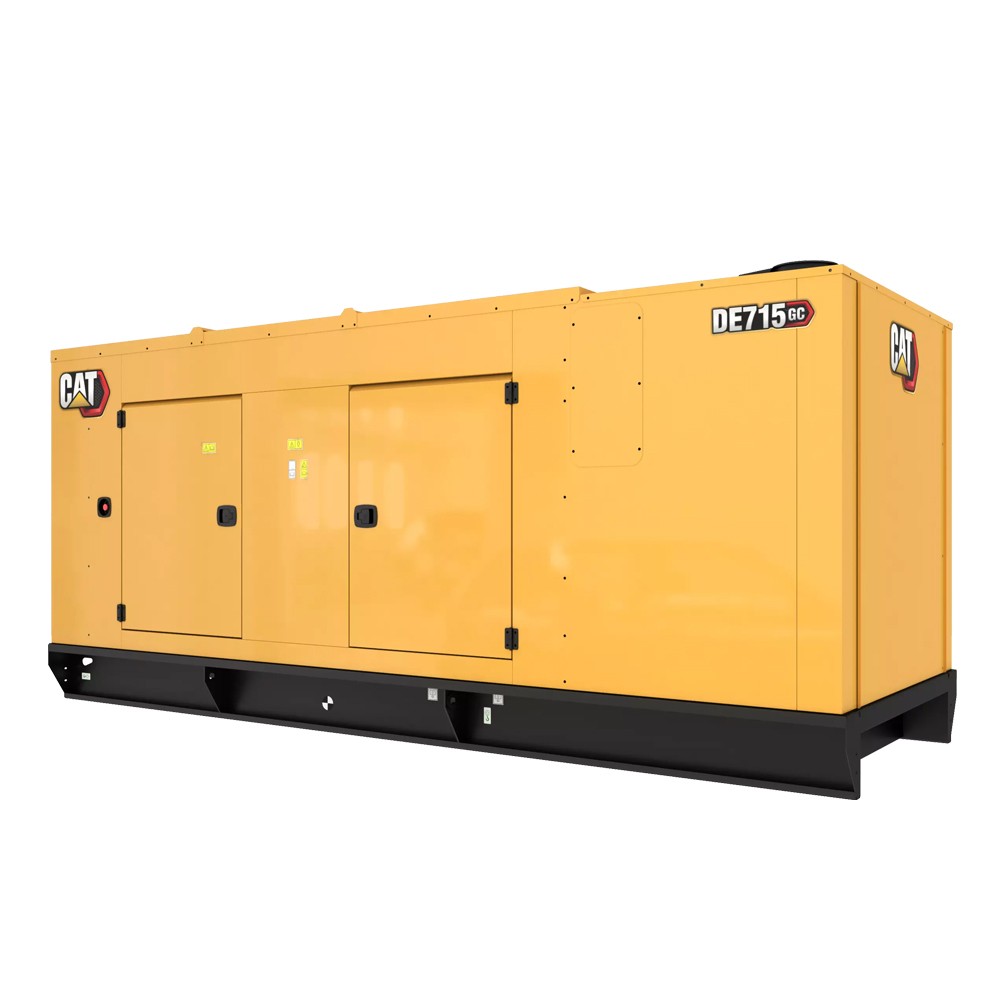

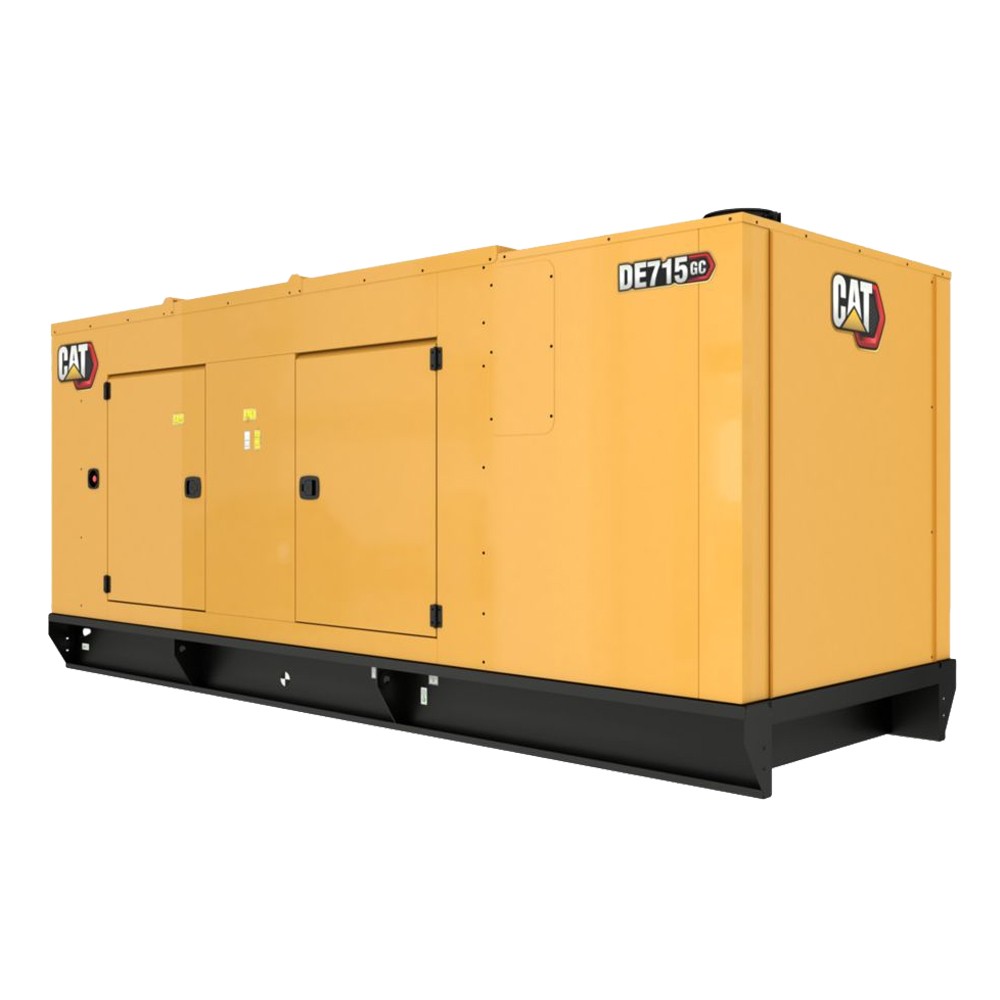

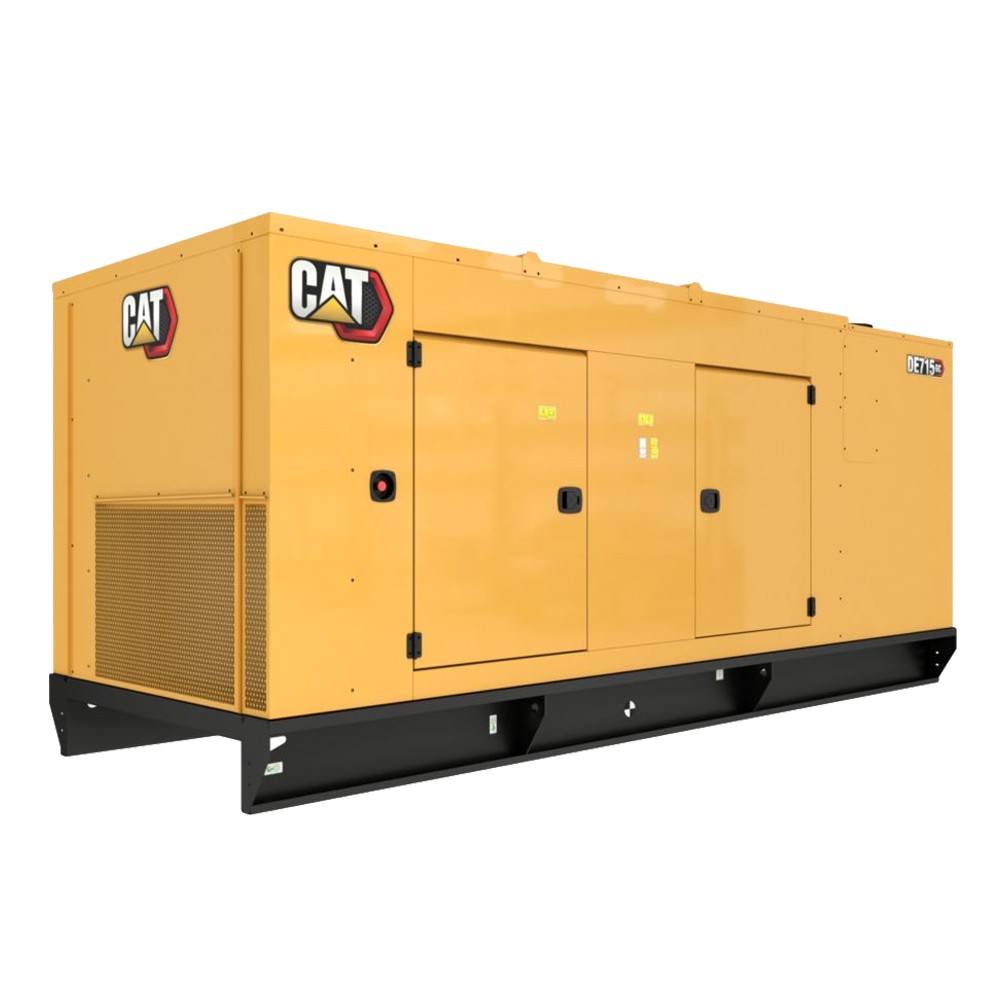

Caterpillar DE715 GC 715kVA Diesel Generator Set
The Caterpillar DE715 GC 715kVA diesel generator set is powered by a Caterpillar C15 inline six-cylinder, four-stroke diesel engine with turbocharged, air-to-air aftercooled aspiration, EUI fuel injection and electronic ADEM A4 governor. It is designed to provide reliable standby power for commercial, industrial, construction, telecommunications and other demanding applications. The generator set is equipped with a CATERPILLAR GCCP1.1 control panel, ABB main circuit breaker and emergency stop button, together with a fully weatherproof sound attenuated enclosure.
Generator Set
| Genset Model | Caterpillar DE715 GC |
| Standby Power | 715kVA / 572kW |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
Diesel Engine
| Engine Model | CAT C15 Inline 6 Cylinder, 4-Stroke Diesel |
| Bore x Stroke | 137 x 171 mm |
| Displacement | 15.2L |
| Compression Ratio | 16.1:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel Injection System | EUI |
| Governor Type | Electronic ADEM A4 |
Fuel Consumption
| Load | Fuel Consumption with Fan |
| 100% Load | 143.8 L/H |
| 75% Load | 108.1 L/H |
| 50% Load | 74.8 L/H |
Control Panel
|
○ Emergency stop button
|
○ ABB brand main circuit breaker
|
|
○ CATERPILLAR GCCP1.1 control panel
|
|
Sound Attenuated Enclosure
○ Fully weatherproof sound attenuated enclosure with internal exhaust silencer
○ Highly corrosion resistant construction
Applications
The Caterpillar DE715 GC 715kVA diesel generator set is suitable for a wide range of standby and backup power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
