Short Description:

GENLITEC POWER® GPC500D6-I (open type), GPC500S6-I (silent type) diesel generator sets powered by original CUMMINS QSZ13-G3, with prime power 400KW/500KVA and standby power 440KW/550KVA....

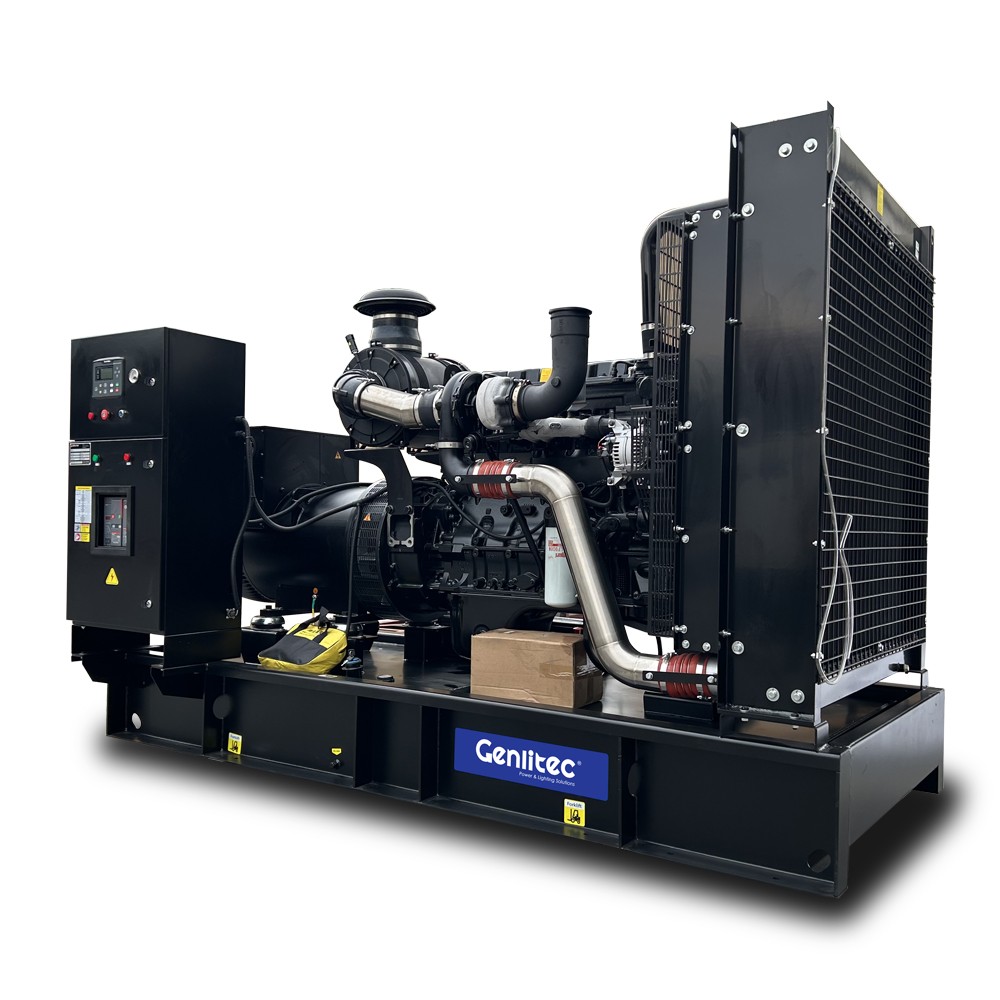

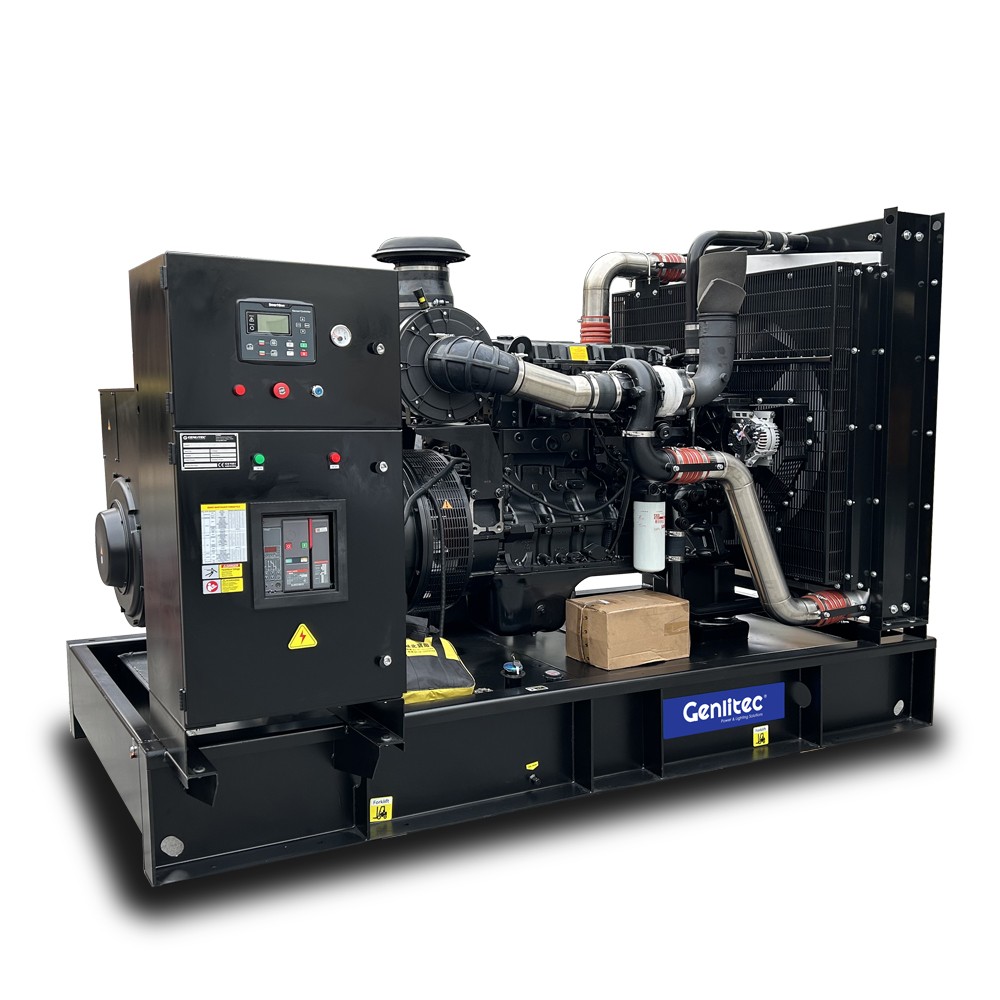

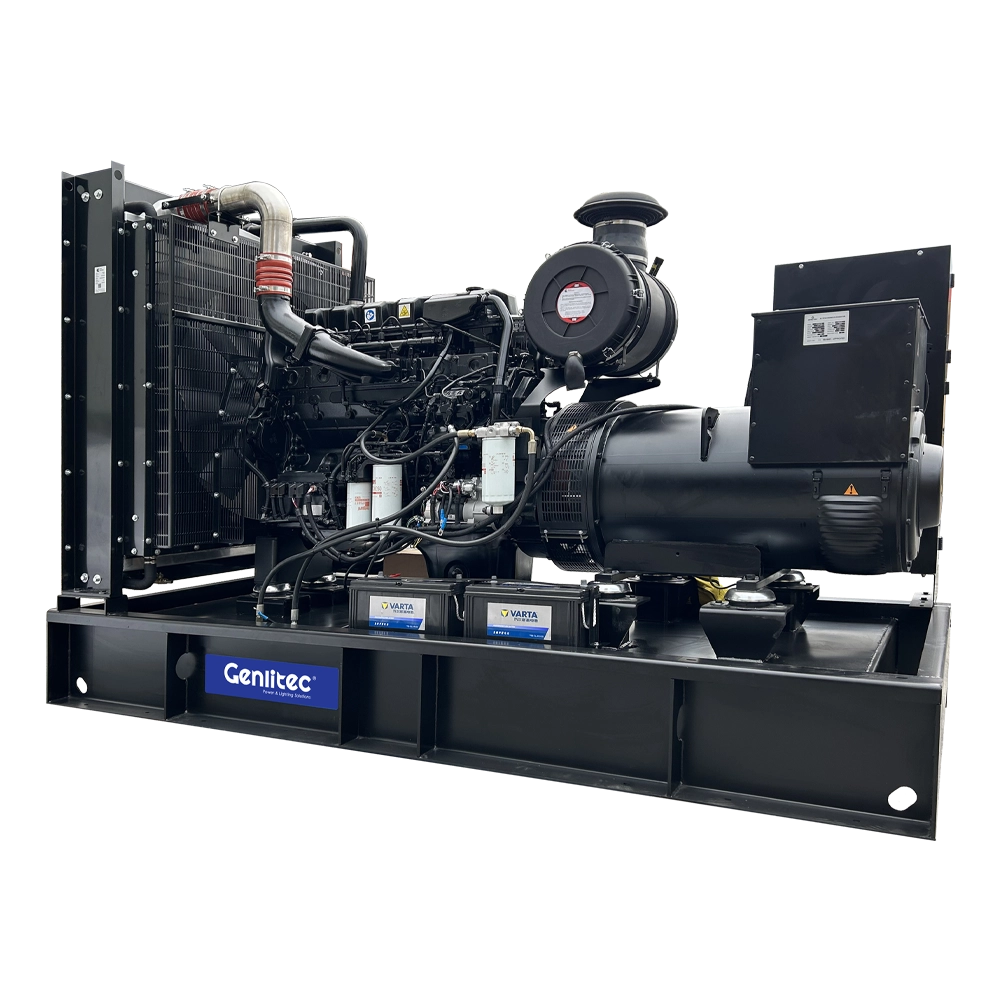

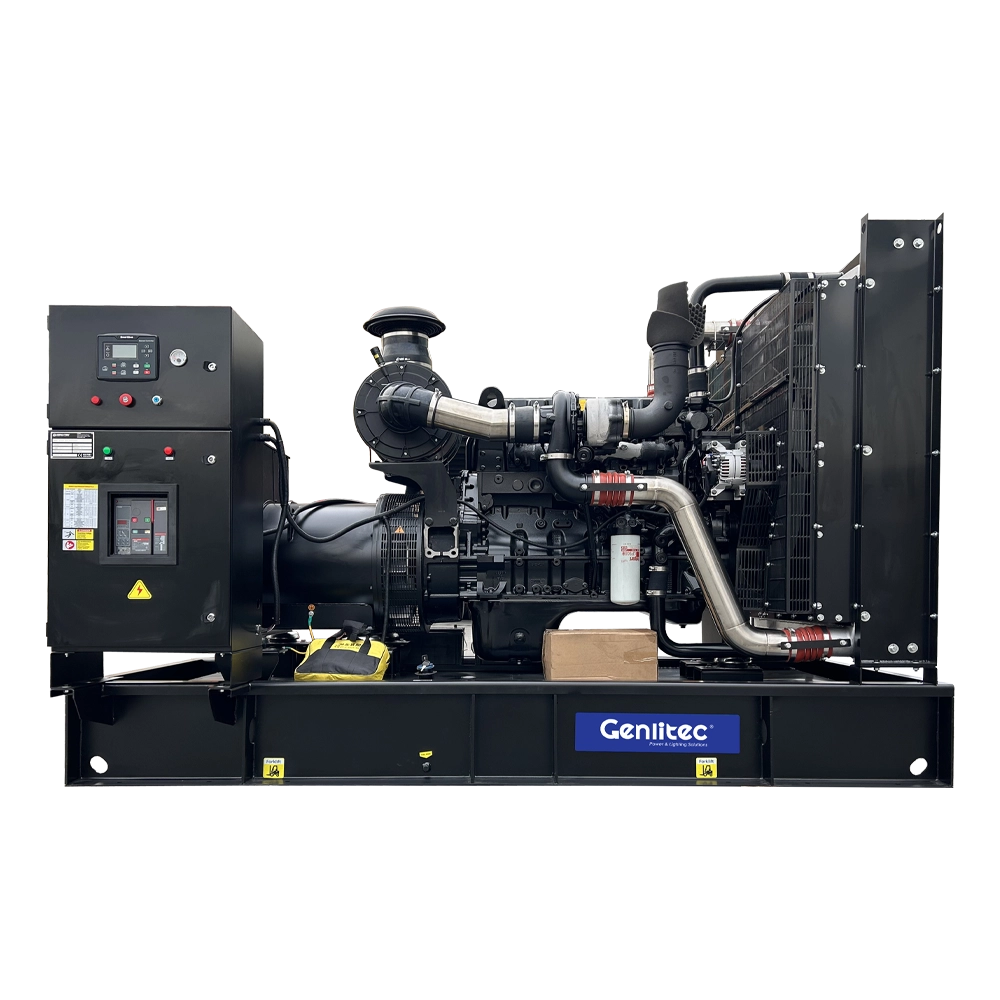

  • Open Type Model: GPC500D6-I

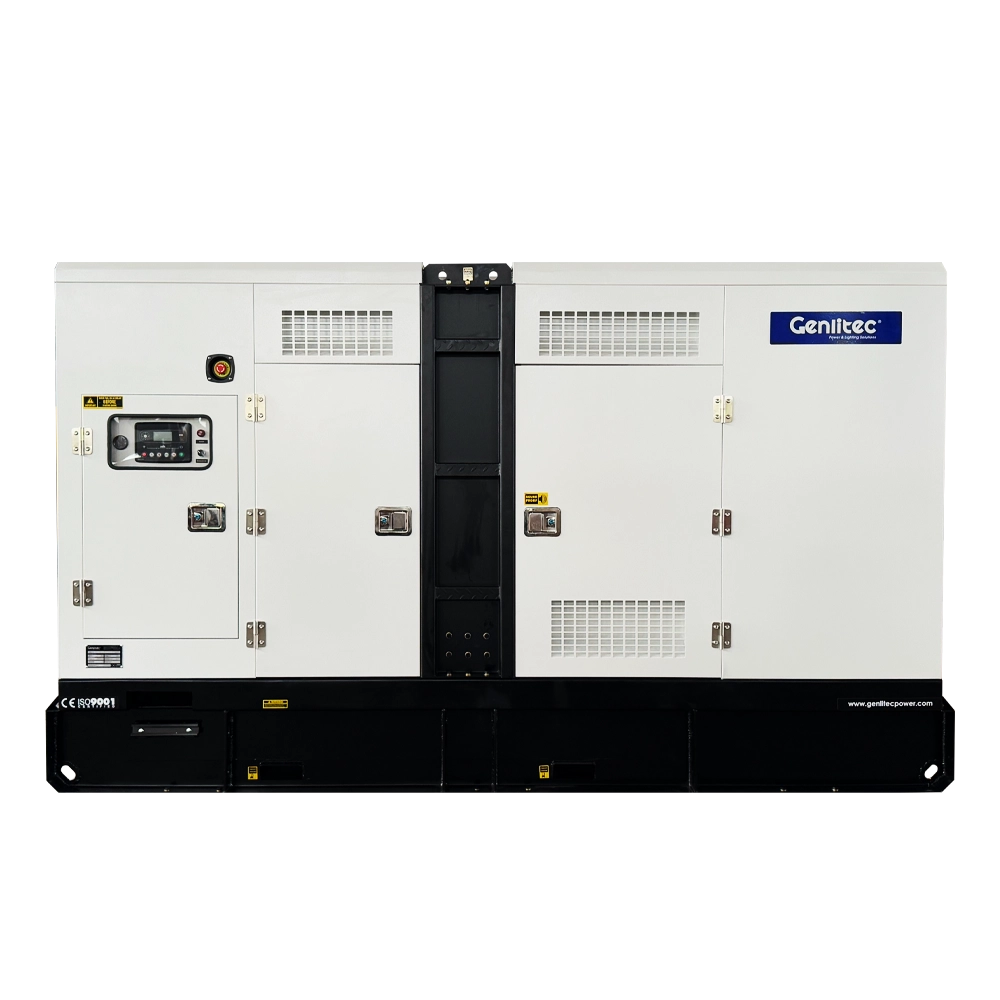

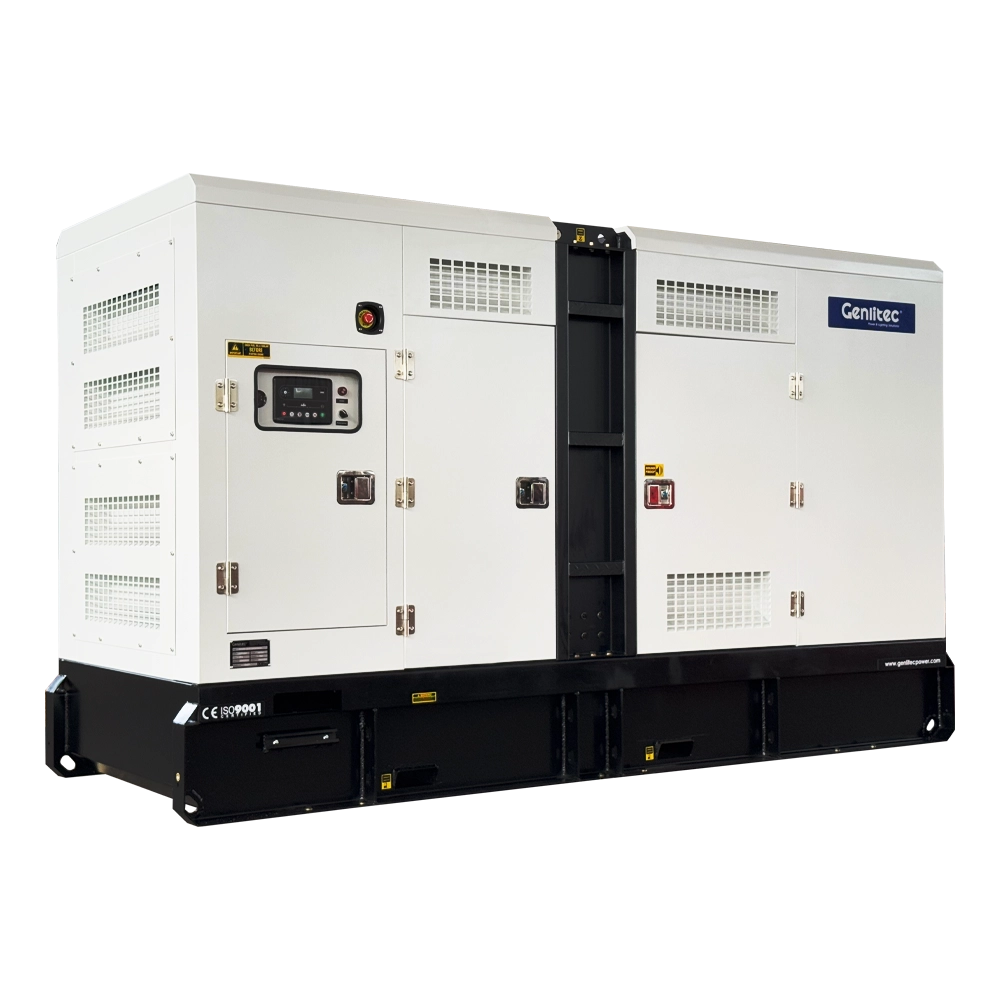

  • Silent Type Model: GPC500S6-I
  • Engine: CUMMINS QSZ13-G3
  • Prime Power: 400KW/500KVA
  • Standby Power: 440KW/550KVA

Product Details

Product Tags

Product Video


GENLITEC POWER® 400KW/500KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS QSZ13-G3 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 127/220V, 3-Phase 4-Wires, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC500D6-I
Silent Type Model GPC500S6-I
Prime Power 400KW/500KVA
Standby Power 440KW/550KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Freuquency 60Hz
Rated Voltage 110/190V, 120/208V, 127/220V, 254/440V, 277/480V
Fuel Tank Capacity 750L

● DIESEL ENGINE


Model CUMMINS QSZ13-G3
Number of Cylinder 6
Aspiration System Turbocharged, Charge air cooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 130 x 163 mm
Compression Ratio 17:1
Rated Speed 1800RPM
Displacement 13L
Rated Power 450KW
Standby Power 500KW
Fuel System Direct Injection
Oil Capacity 45.42L
Coolant Capacity 23.1L (Engine Only)
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 104.1L/H
75% Prime Load 75.7L/H
50% Prime Load 50.8L/H
25% Prime Load 28.0L/H

ALTERNATOR


Number of Phase 3
Rated Power 400KW/500KVA
Frequency 60Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 6/12
Insulation Type H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS Panel (for automatic start & stop when electricity power off & on)

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

○ 4G/Wifi Remote & Monitoring System

○ Sychronization Panel
