50Hz 110kW 138kVA Diesel Generator with Cummins 6BTAA5.9-G2 Engine
Short Description
GENLITEC POWER GPC138D5/GPC138S5 110kW/138kVA diesel generators with Cummins 6BTAA5.9-G2 engine, available in open and silent types.
- ModelGPC138D5 | GPC138S5
- Frequency50Hz
- Prime Power110KW/138KVA
- Standby Power120KW/150KVA
- EngineCummins 6BTAA5.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

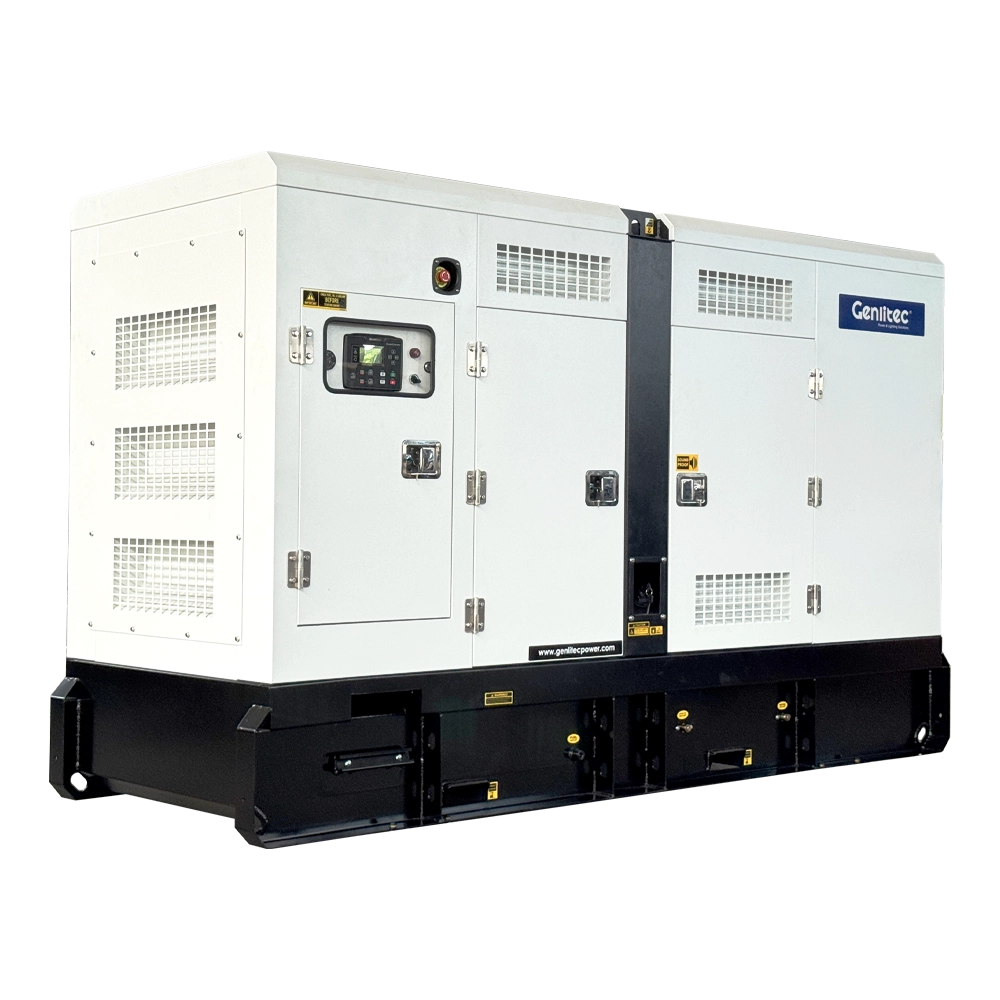

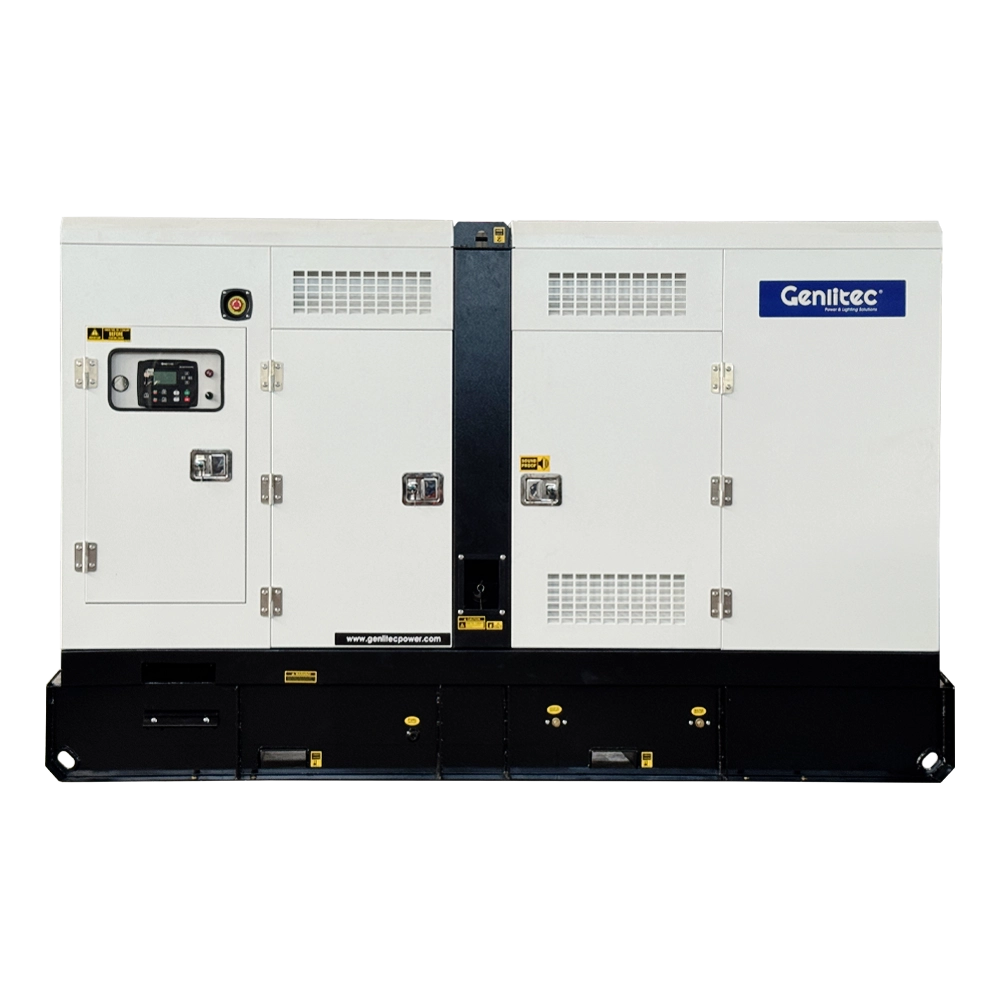

The GENLITEC POWER® GPC138D5 open type and GPC138S5 silent type diesel generator sets provide 110kW/138kVA prime power and 120kW/150kVA standby power. Powered by a Cummins 6BTAA5.9-G2 six-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to deliver stable and reliable power for commercial, industrial, construction, infrastructure and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package features a 24V DC electric starting system, electronic engine governor, water-cooled system, anti-vibration mountings and digital control functions for dependable operation and convenient monitoring.
Generator Set
| Open Type Model | GPC138D5 |
| Silent Type Model | GPC138S5 |
| Prime Power | 110kW/138kVA |
| Standby Power | 120kW/150kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
Diesel Engine
| Engine Model | CUMMINS 6BTAA5.9-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air to Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500 RPM |
| Displacement | 5.9L |
| Rated Power | 120KW |
| Standby Power | 130KW |
| Fuel System | BYC PB Pump |
| Oil Capacity | 16.4L |
| Coolant Capacity | 10L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 30L/H |
| 75% Prime Load | 23L/H |
| 50% Prime Load | 16L/H |
| 25% Prime Load | 9L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 112KW/140KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC138S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 110kW/138kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities and manufacturing plants
○ Construction and infrastructure projects
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for customers and projects in different industries and markets. With practical manufacturing experience, flexible product configurations and international project experience, GENLITEC POWER supplies generator sets from small standby units to high-capacity industrial power systems.
○ More than 10 years of experience in power generation equipment
○ Annual production capacity of more than 2,500 generator sets
○ Products supplied to customers in more than 50 countries
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications and markets
○ Professional manufacturing, assembly and quality control
○ Customized power solutions and technical support
○ International export, project and after-sales service experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
