50Hz 144kW 180kVA Diesel Generator with Cummins 6CTA8.3-G2 Engine
Short Description
GENLITEC POWER GPC180D5/GPC180S5 delivers 144kW/180kVA prime power with a Cummins 6CTA8.3-G2 engine for dependable industrial and commercial use.
- ModelGPC180D5 | GPC180S5
- Frequency50Hz
- Prime Power144KW/180KVA
- Standby Power160KW/200KVA
- EngineCummins 6CTA8.3-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

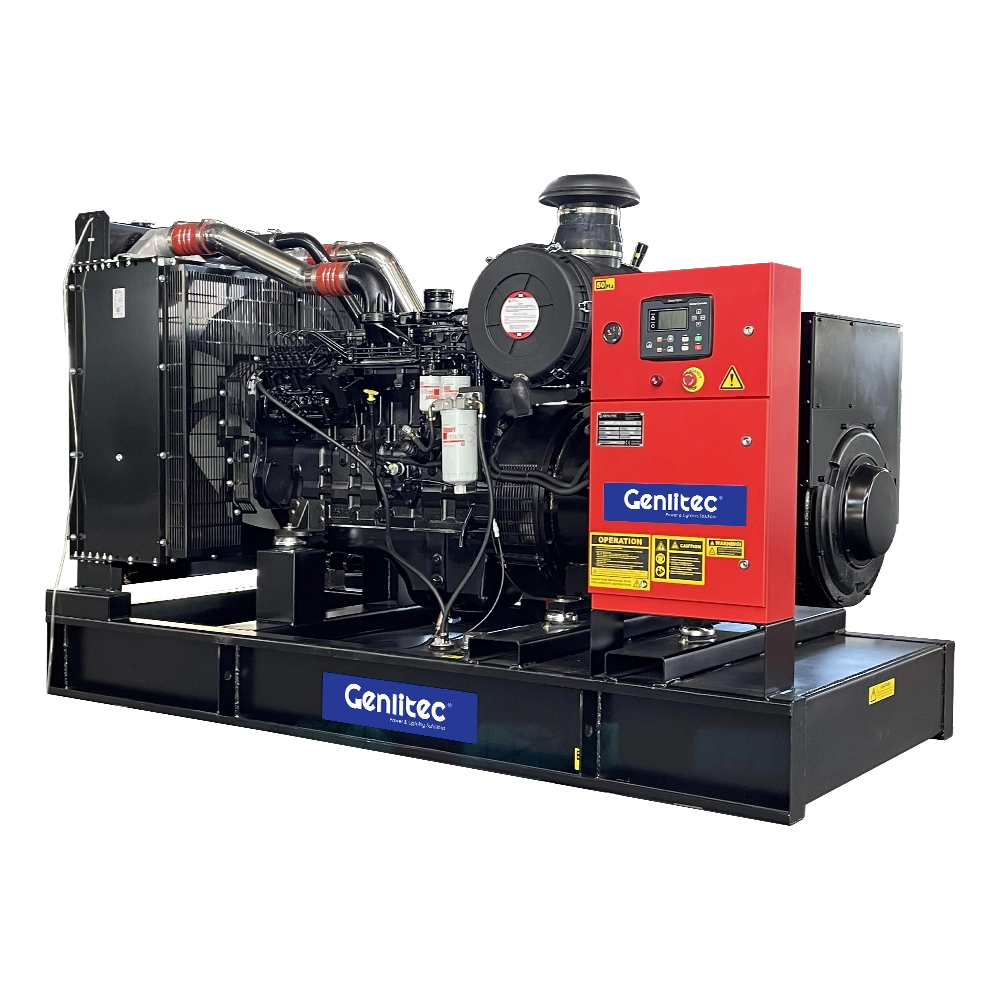

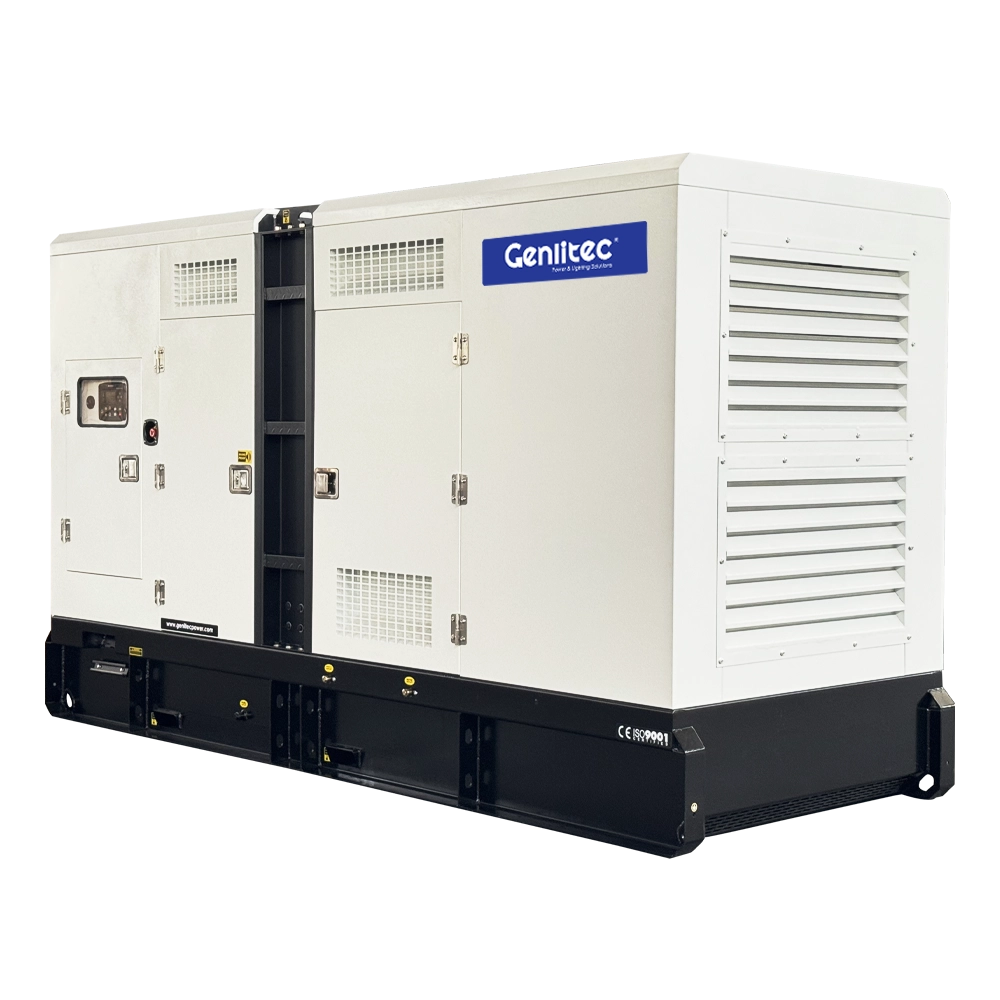

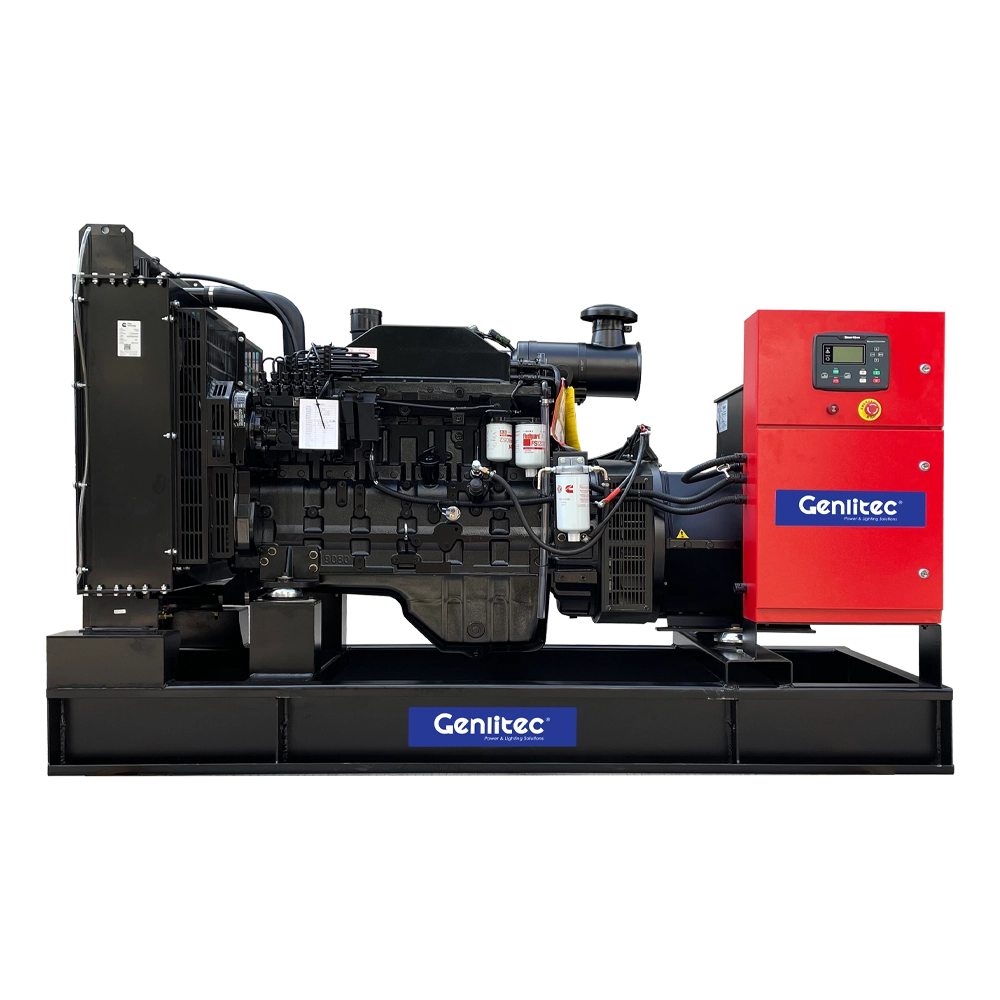

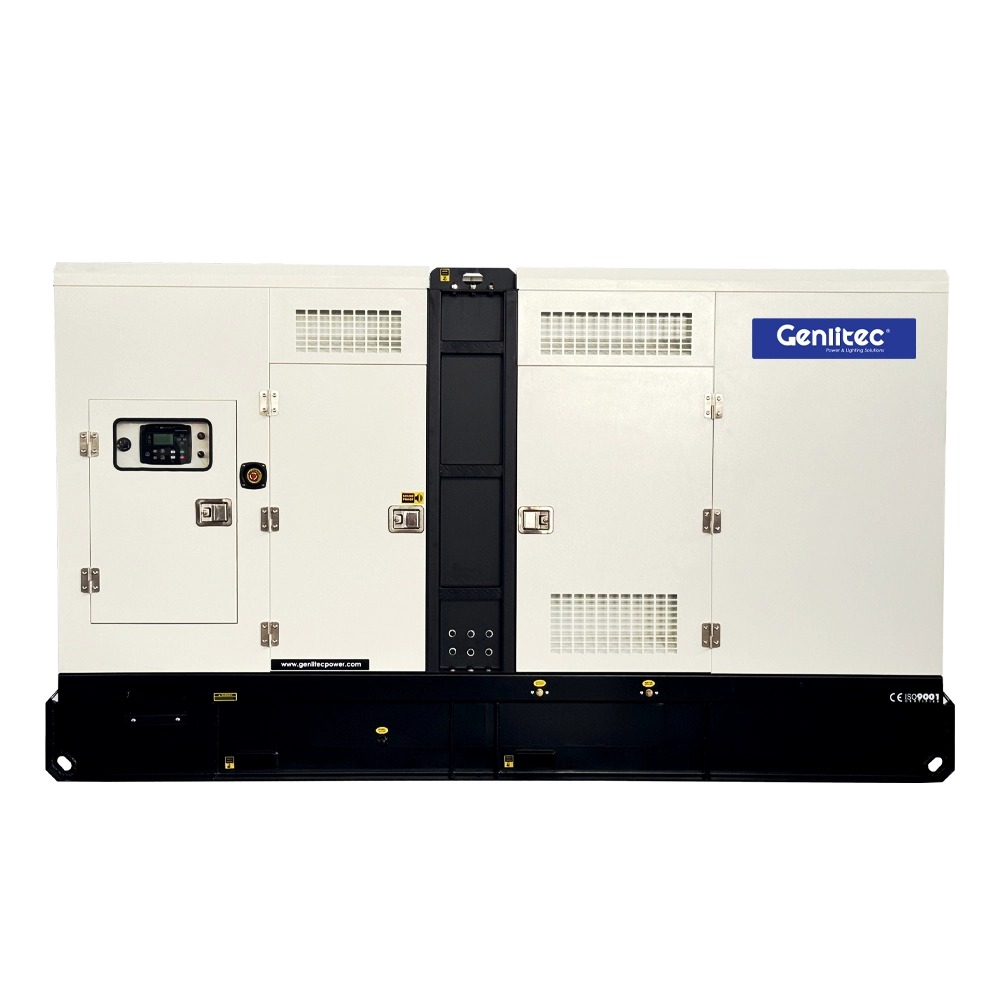

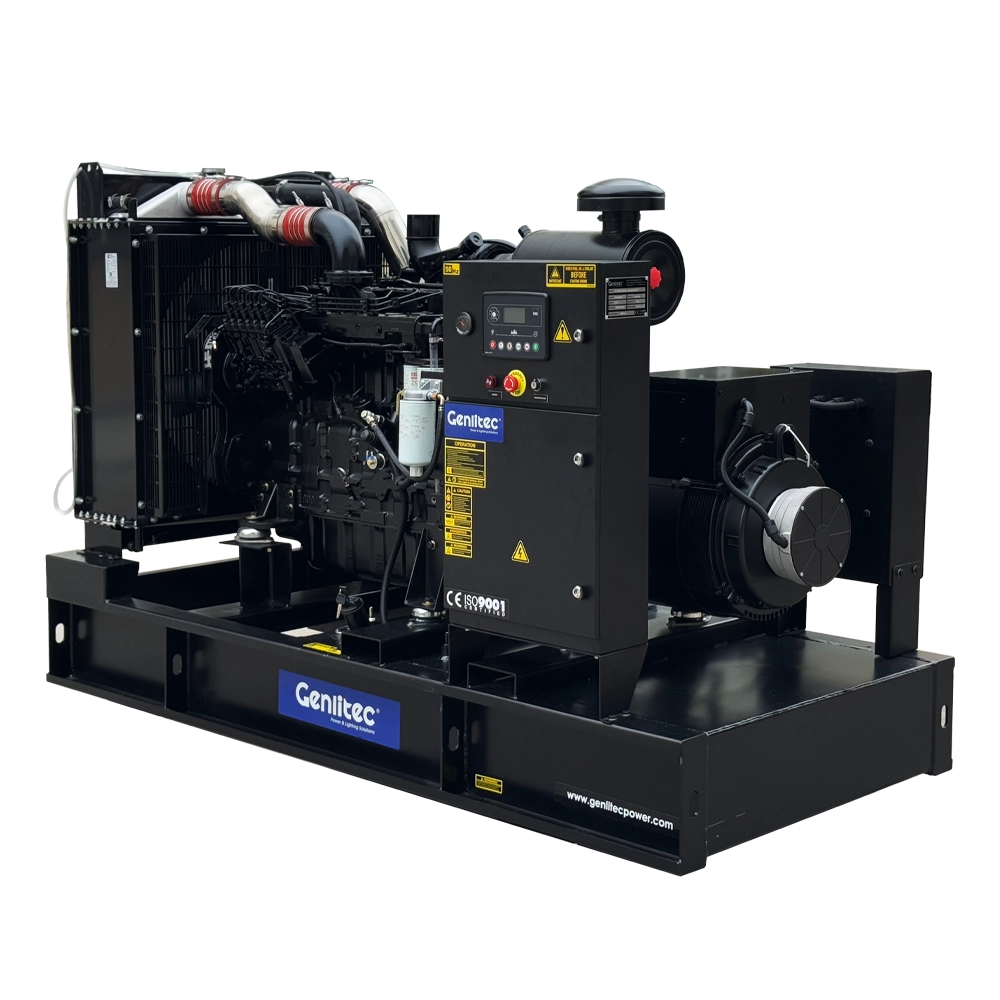

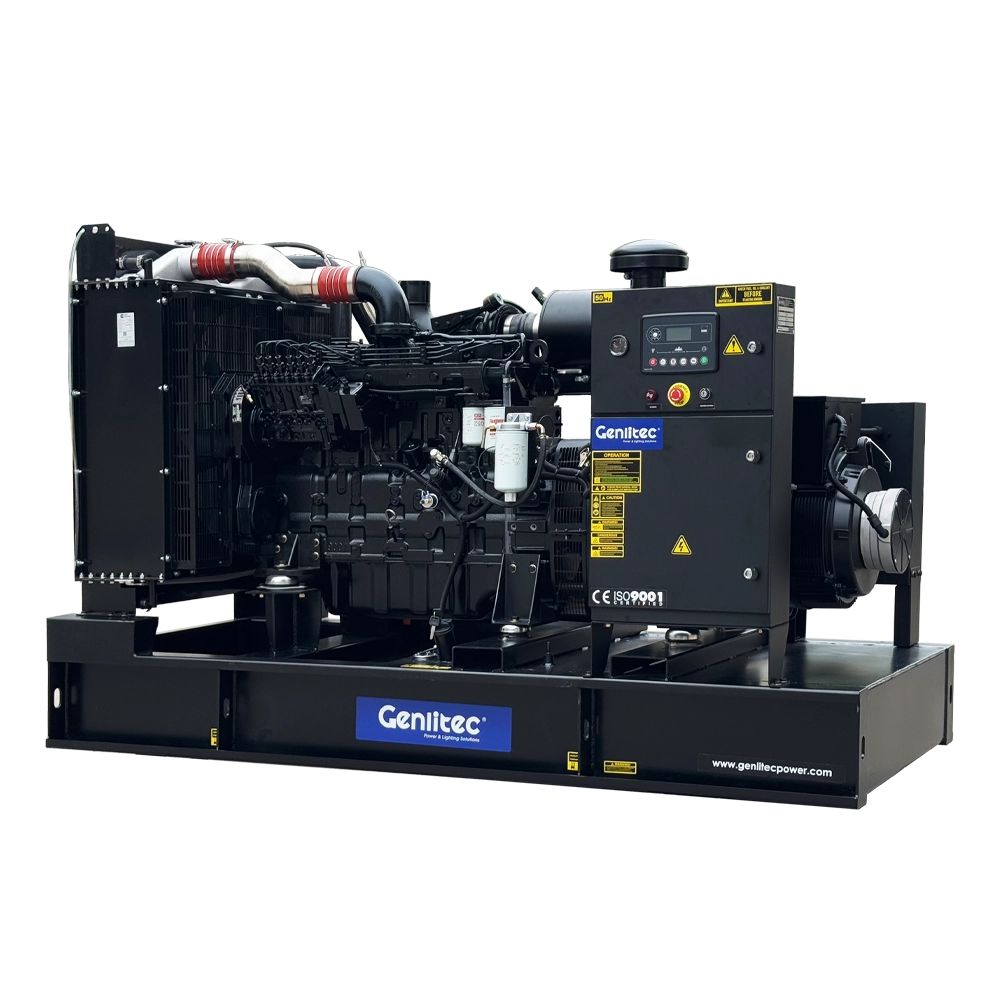

The GENLITEC POWER® GPC180D5 open type and GPC180S5 silent type diesel generator sets provide 144kW/180kVA prime power and 160kW/200kVA standby power. Powered by a Cummins 6CTA8.3-G2 six-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, they are designed to provide stable and reliable power for commercial, industrial, construction, infrastructure and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 400/415V. The package features a 24V DC electric starting system, electronic engine governor, anti-vibration mountings and AVR-controlled alternator for dependable operation and convenient monitoring. The GPC180D5 open type provides easy access for inspection and maintenance, while the GPC180S5 silent type features a weatherproof sound-attenuated enclosure for applications requiring reduced operating noise and additional environmental protection.
Generator Set
| Open Type Model | GPC180D5 |
| Silent Type Model | GPC180S5 |
| Prime Power | 144kW/180kVA |
| Standby Power | 160kW/200kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V or 400/415V |
| Rated Speed | 1500RPM |
Diesel Engine
| Engine Model | CUMMINS 6CTA8.3-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged & Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500RPM |
| Displacement | 8.3L |
| Rated Power | 163KW |
| Standby Power | 180KW |
| Fuel System | BYC P7100 |
| Oil Capacity | 27.6L |
| Coolant Capacity | 12.3L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Power | 42L/H |
| 75% Prime Power | 31L/H |
| 50% Prime Power | 21L/H |
| 25% Prime Power | 13L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 145KW/181KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC180S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
Applications
The GENLITEC POWER 144kW/180kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and infrastructure projects
○ Mining and quarry applications
○ Telecommunication facilities
○ Agricultural and rural facilities
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. Since its establishment, GENLITEC POWER has focused on product quality, flexible configuration, international standards and long-term customer service.
○ Founded in 2016 with more than 10 years of industry experience
○ Annual production capacity of more than 2,500 generator sets
○ Products supplied to customers in more than 50 countries
○ Multiple international engine, alternator and controller brand options
○ Flexible generator configurations for different power and application requirements
○ Professional manufacturing, assembly and quality control
○ Export experience for commercial, industrial, mining, construction and infrastructure projects
○ Technical support and after-sales service for international customers
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
