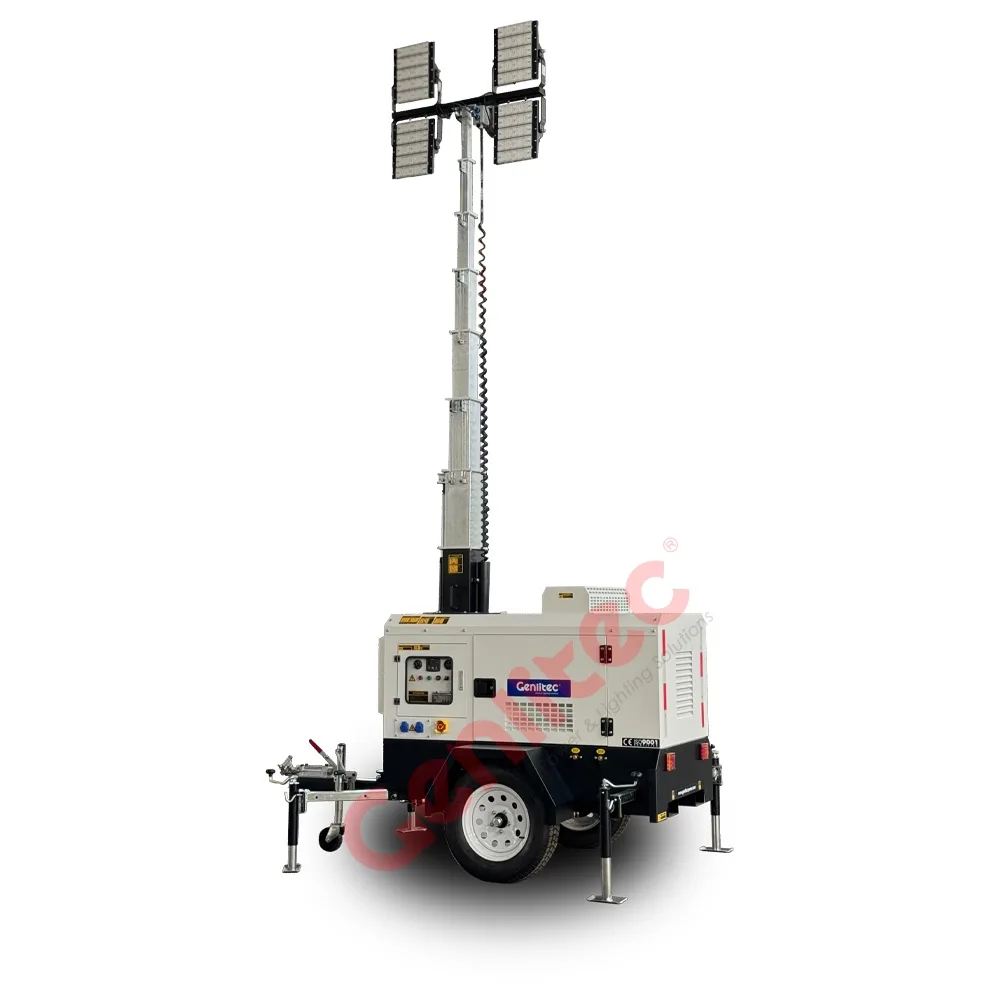

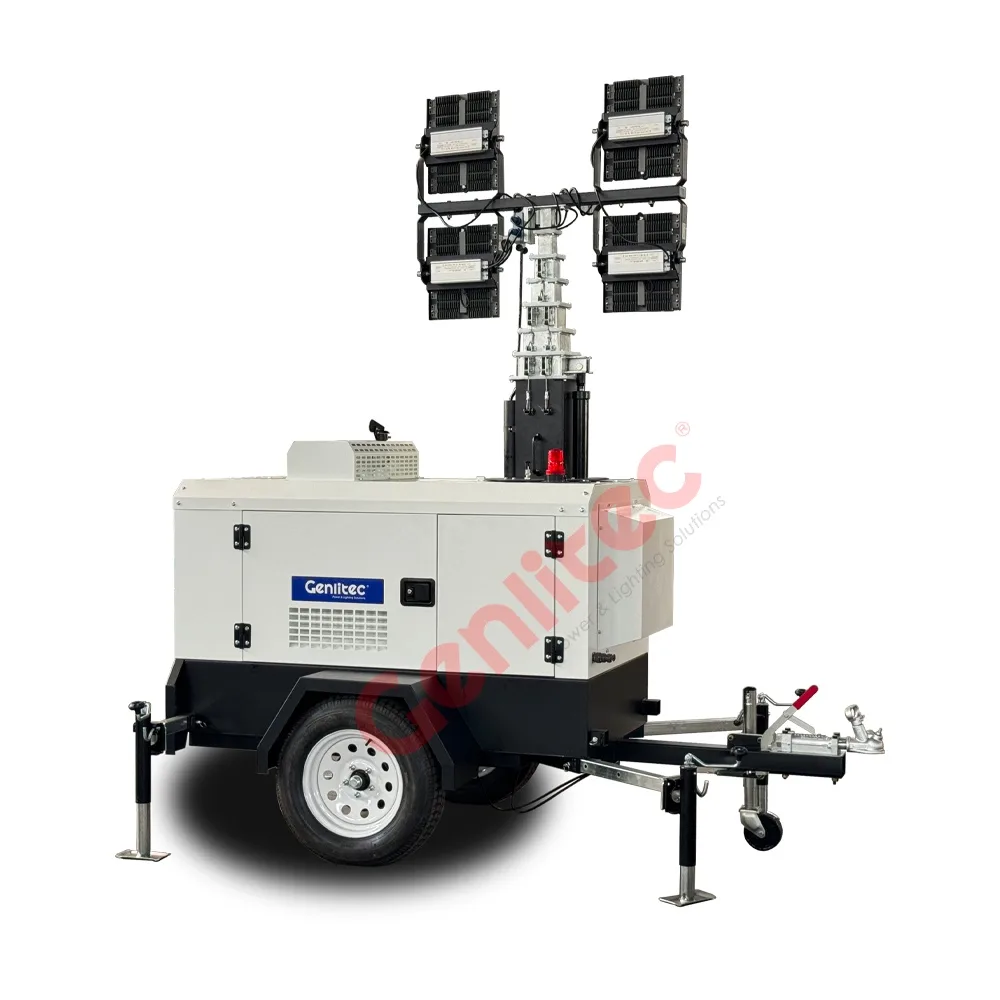

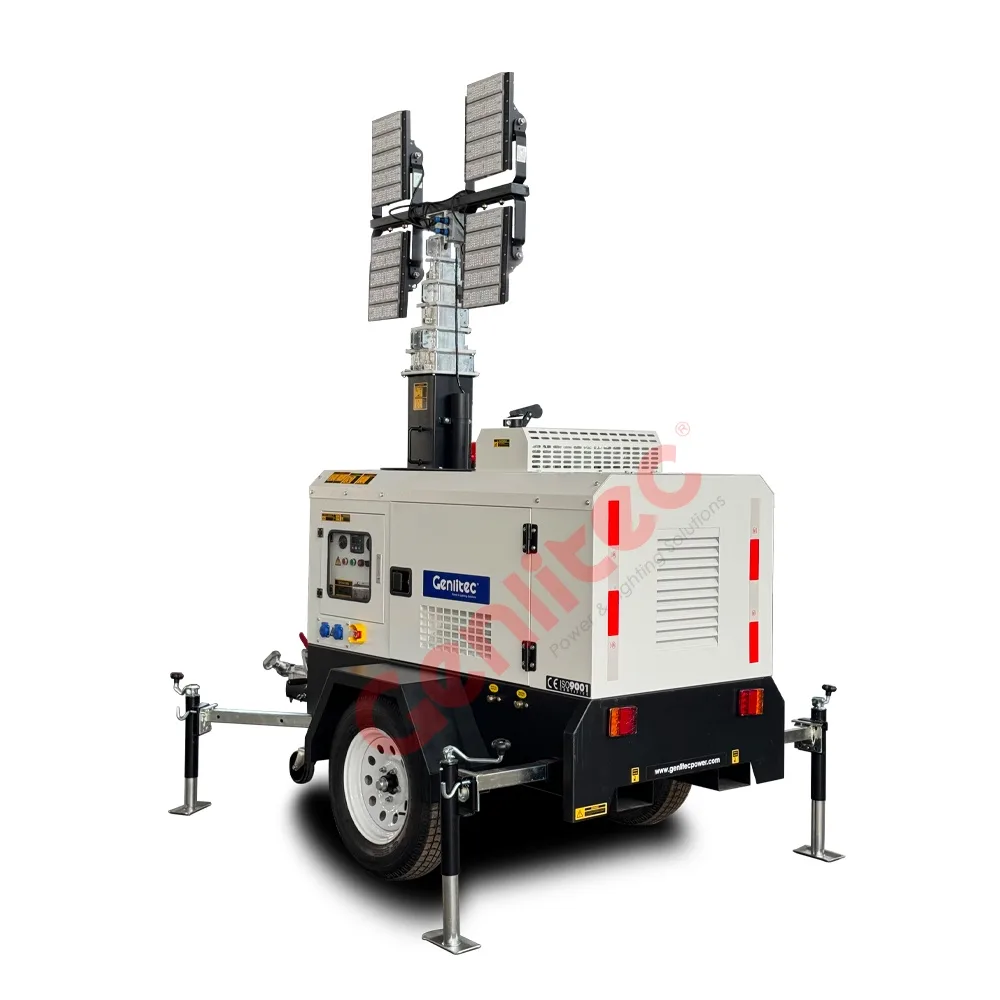

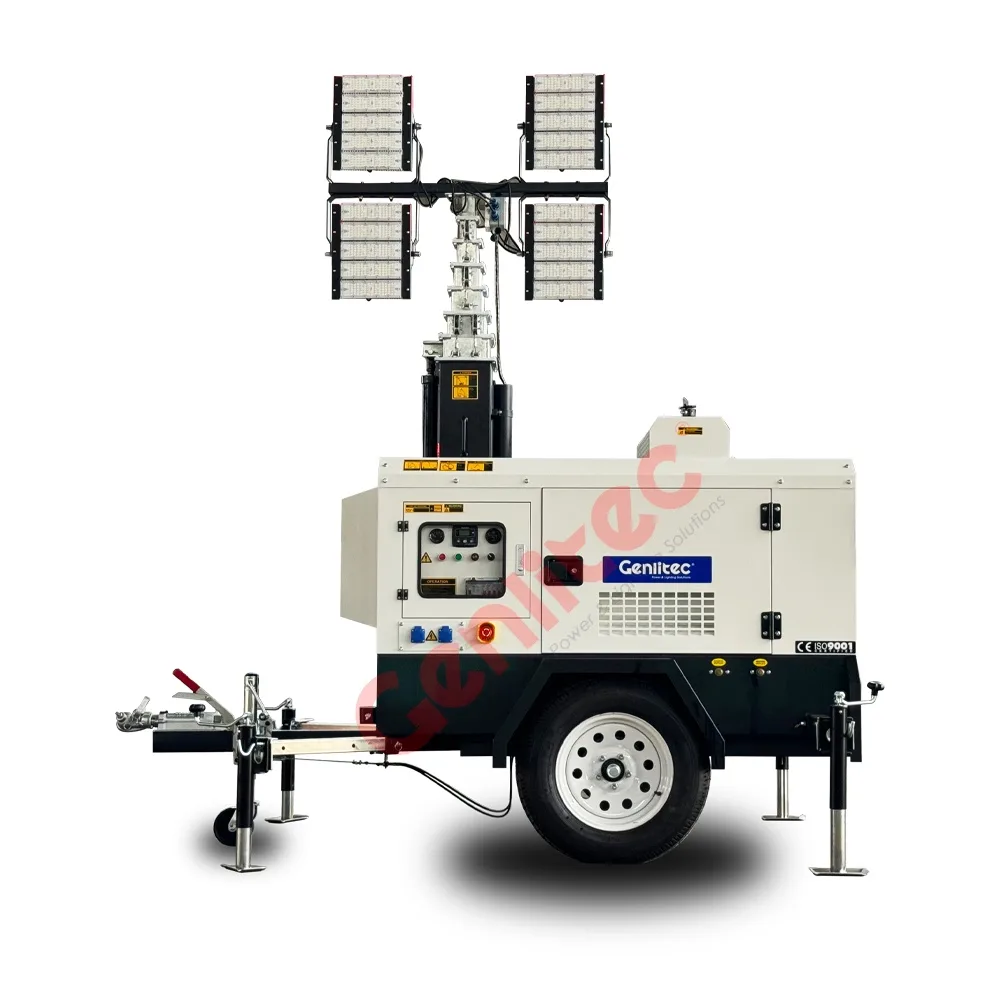

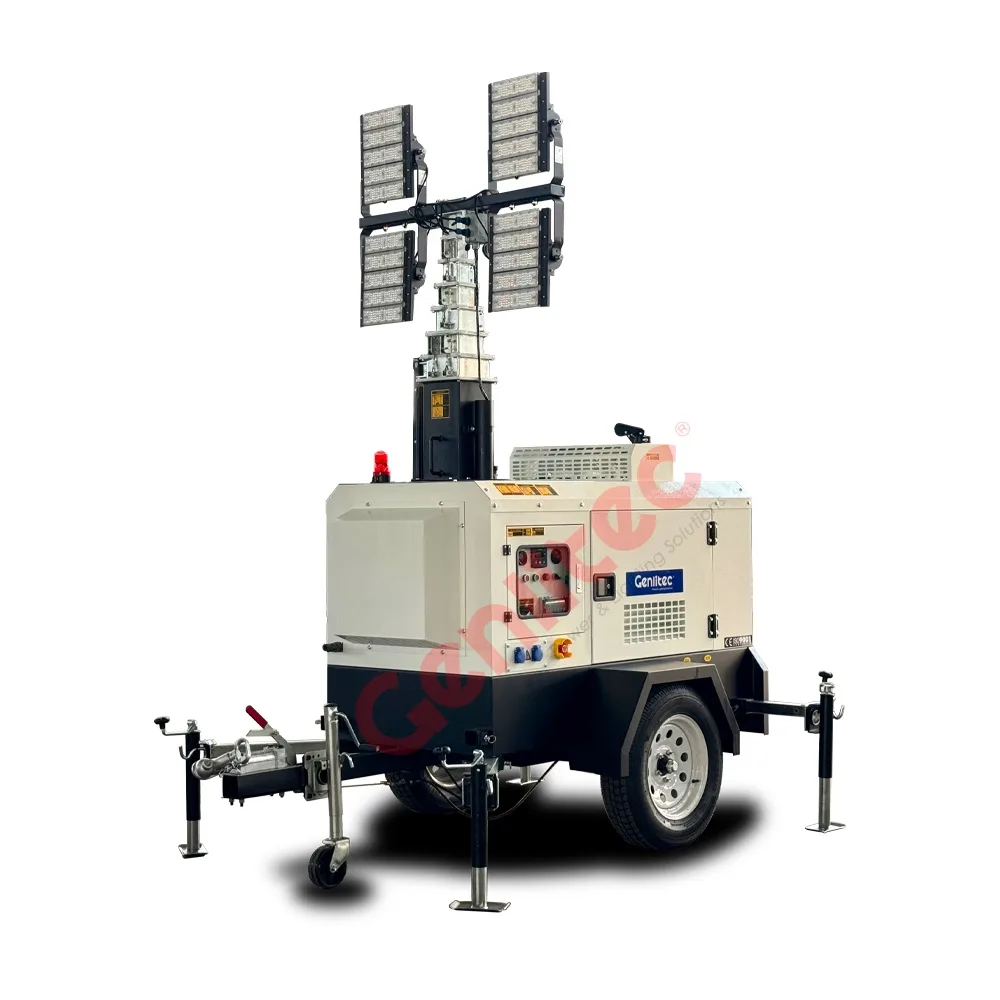

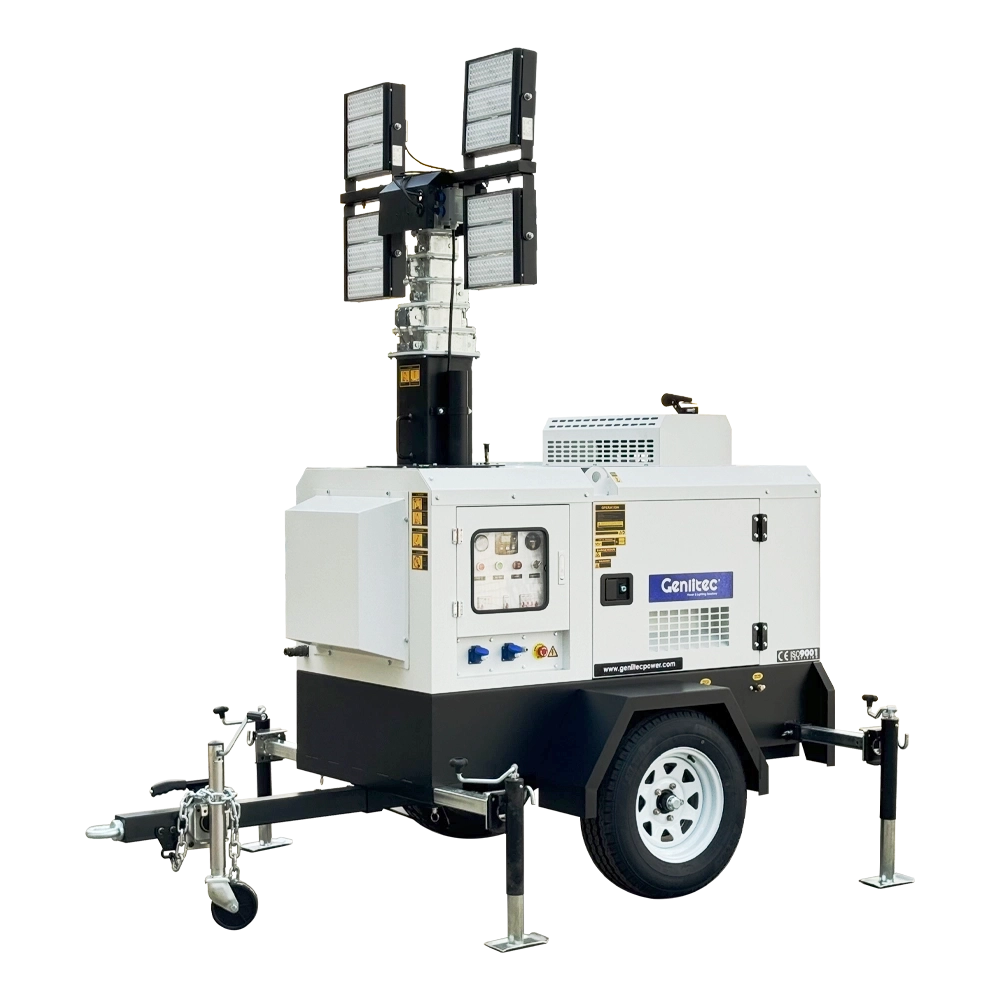

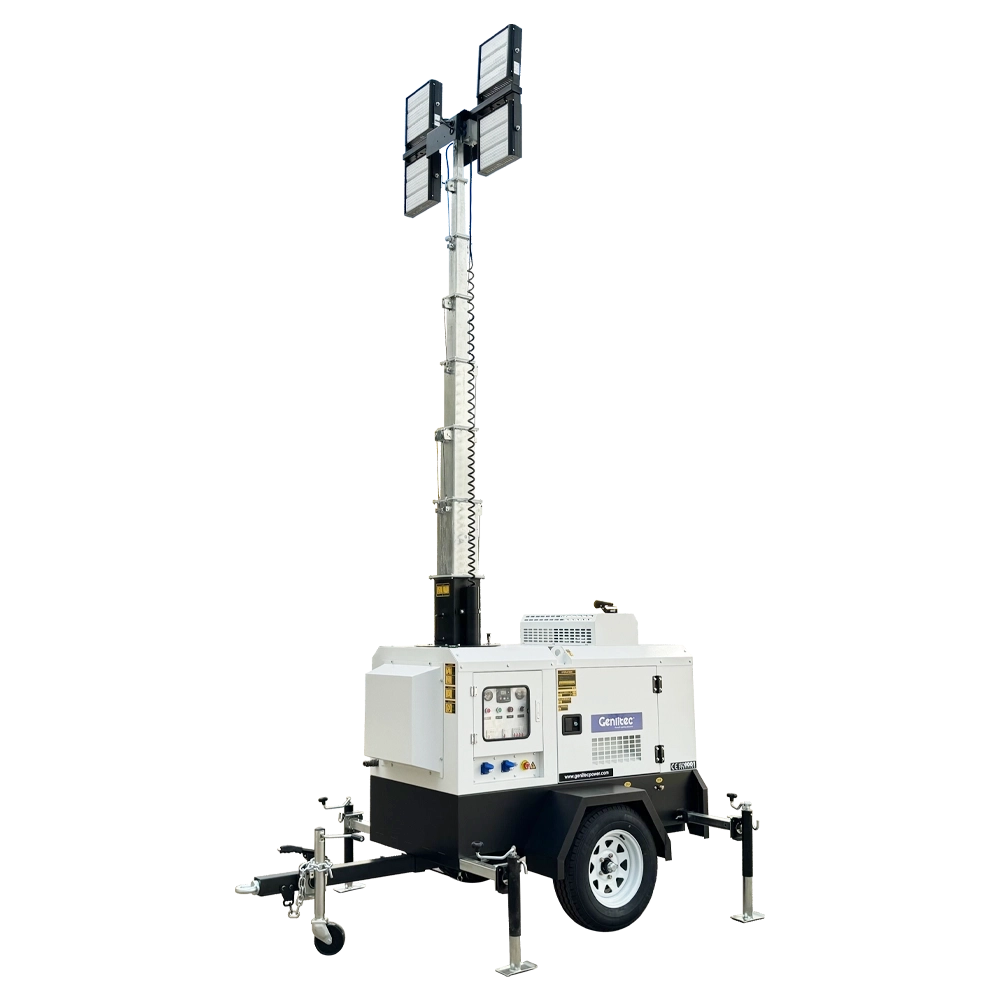

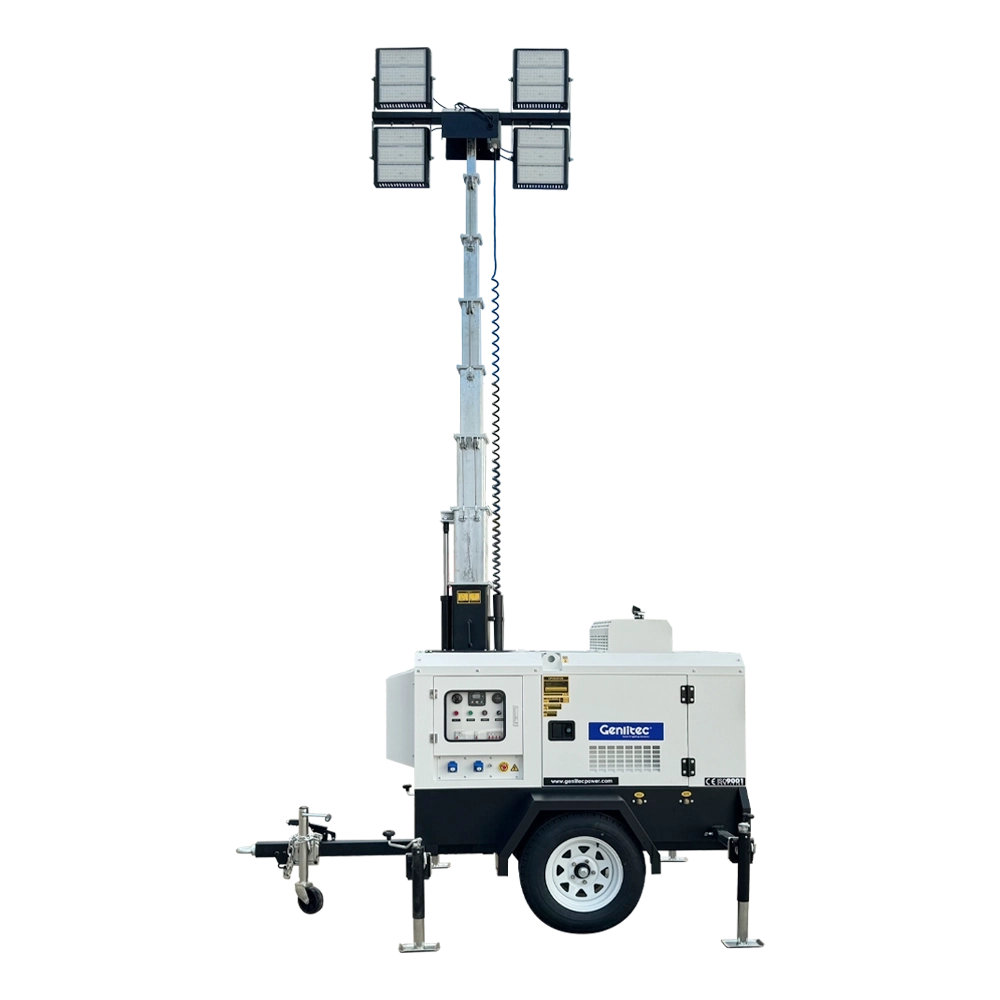

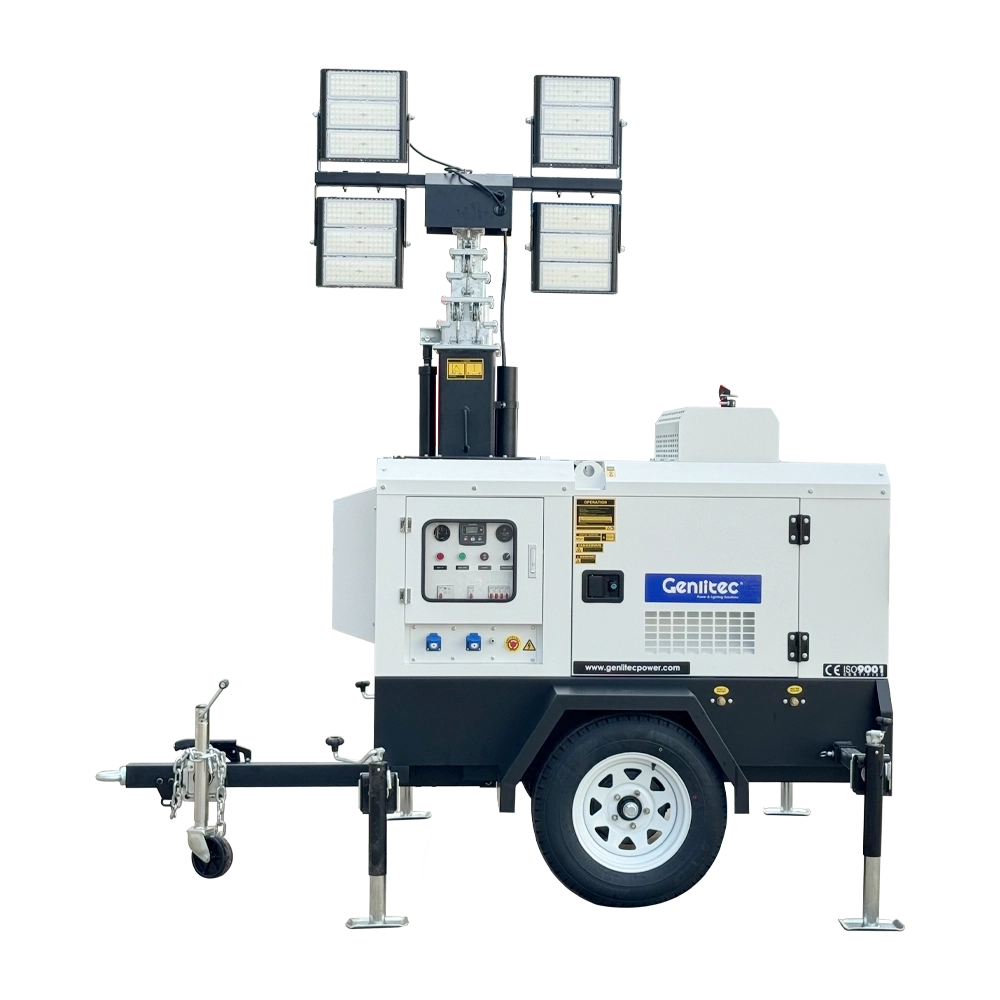

Hydraulic Lifting 4x400W LED YANMAR Light Tower

Hydraulic Lifting 4x400W LED YANMAR Light Tower
  • Hydraulic Lifting 4x400W LED YANMAR Light Tower
  • Hydraulic Lifting 4x400W LED YANMAR Light Tower
  • Hydraulic Lifting 4x400W LED YANMAR Light Tower
  • Hydraulic Lifting 4x400W LED YANMAR Light Tower
  • Hydraulic Lifting 4x400W LED YANMAR Light Tower

Short Description:

The GENLITEC POWER® GLT1600L-8HY LED light towers with a maximum hydraulic lifting mast 8.5 metres. Widely used in mines, oil fields and night lighting. ...


  • Lifting System: 8.5M Hydraulic
  • Power of Lamps: 4x400W LED
  • Total Light Capacity: 240,000 Lumens
  • Engine: YANMAR 3TNV76
  • Generator Power: 6.0KW~7.0KW

Product Details

Product Tags

Product Video

GENLITEC POWER® 8.5M HYDRAULIC 4X400W LED YANMAR GENERATOR LIGHT TOWER FEATURES

○ Brand new original YANMAR 3TNV76 water cooled diesel engine

○ Original STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ 8.5 metres hydraulic lifting mast and 358° mast rotation system

○ Equipped with powerful 4x400W LED floodlights, total 240,000 lumens

○ Rating Single Phase, 50/60Hz, 1500/1800RPM, 1.0 PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Control panel equipped with SMARTGEN HGM1790N digital controller, DELIXI brand main circuit breaker, each light with individual circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ Heavy-duty fabricated steel based frame with 115L fuel tank

○ 12V DC electric start system with free-maintenance lead-acid battery

○ Heavy-duty single axle trailer Type with 14 inch tyres, soundproof and rain-proof design ensure outdoor use

○ Complete engine alarm system

○ CE, ISO 9001:2015 approved


● LIGHT TOWER

Model GLT1600L-8HY
Lifting System 8.5 Metres, Hydraulic Lifting
Mast Rotation System 358° Manual
Total Power of Lights 4 x 400W LED
Frequency 50/60Hz
Voltage 110~240V
Phase Single
Rated Power 6.0KW/50Hz; 7.0KW/60Hz
Trailer Structure Single Axle, 14inch Tyres

● DIESEL ENGINE


Engine Model YANMAR 3TNV76
Cylinder Number 3
Aspiration System Natural
Cooling Method Water Cooled
Combustion System Ball-Type Swirl Chamber
Bore x Stroke 76 x 82 mm
Compression Ratio 19:1
Engine Speed 1500/1800RPM
Displacement 1.116L
Rated Power 8.2KW/1500RPM; 9.8KW/1800RPM
Coolant Capacity 3.4L
Oil Capacity 0.9L (Engine Only)
Governor Type Mechanical
Electric Starting System DC 12V-1.1KW


ALTERNATOR


Number of Phase Single
Rated Power 6~8KW
Frequency 50/60Hz
Power Factor 1.0
Temp. Rise 125K
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

● OPERATION MAST

Max. Height of Mast 8.5 Metres
Lifting System Vertical Type, Hydraulic
Lifting Method Button
Mast Stages 8
Rotation System 358° Manually
Mast Material Galvanization Steel Tube


● LAMPS


Total Power of Lamps 4 x 400W
Lamps Type LED Floodlights
Light Capacity 4 x 60,000 Lumens
Design Lifetime ≥50,000 Hours
Working Temp. -25℃~50℃
Light Coverage 5~7 Acres
Protection Grade IP65

CONTAINER LOADING CAPACITY


20GP CONTAINER Max. 4 Sets
40HQ CONTAINER Max. 8 Sets

CONTROL PANEL


Emergency stop button

Main circuit breaker & individual circuit bearker for lights

Hour meter

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● TRAILER & SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction

○ Heavy-duty single axle trailer with 14'' tyres


WARRANTY

12 months or 1000 working hours, whichever comes first
