9m Manual 4x400W LED Light Tower with Quanchai QC380D Diesel Engine
Short Description
GENLITEC GLT1600L-9MQ is a 9m manual LED light tower powered by a Quanchai engine, ideal for events, airports, municipalities and outdoor lighting.
- ModelGLT1600L-9MQ
- Max. Height9m
- Lifting SystemManual
- Lamps4 x 400W LED
- EngineQUANCHAI QC380D
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GLT1600L-9MQ is a 9-meter manual diesel generator mobile light tower equipped with four 400W LED floodlights. Powered by a QUANCHAI QC380D three-cylinder water-cooled diesel engine, it provides reliable lighting and auxiliary power for construction sites, mining operations, road and highway projects, infrastructure development, outdoor events, and emergency lighting.

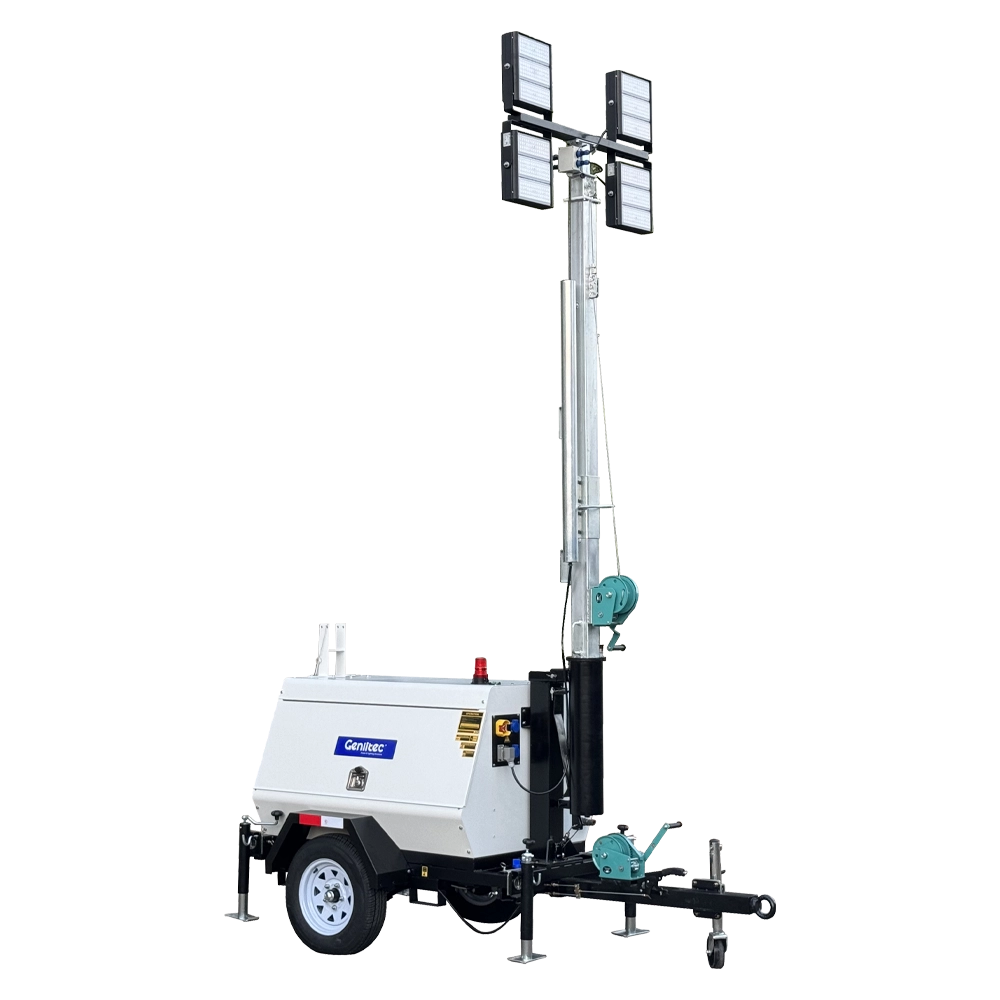

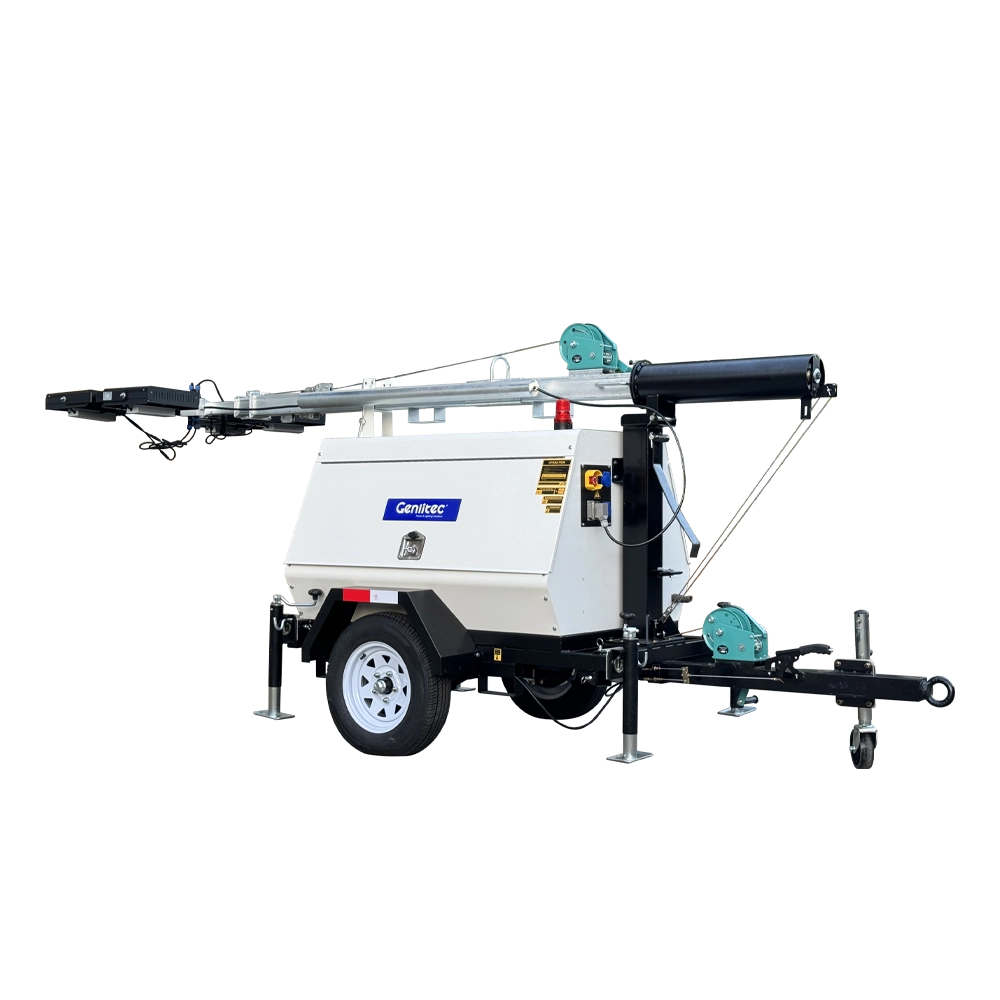

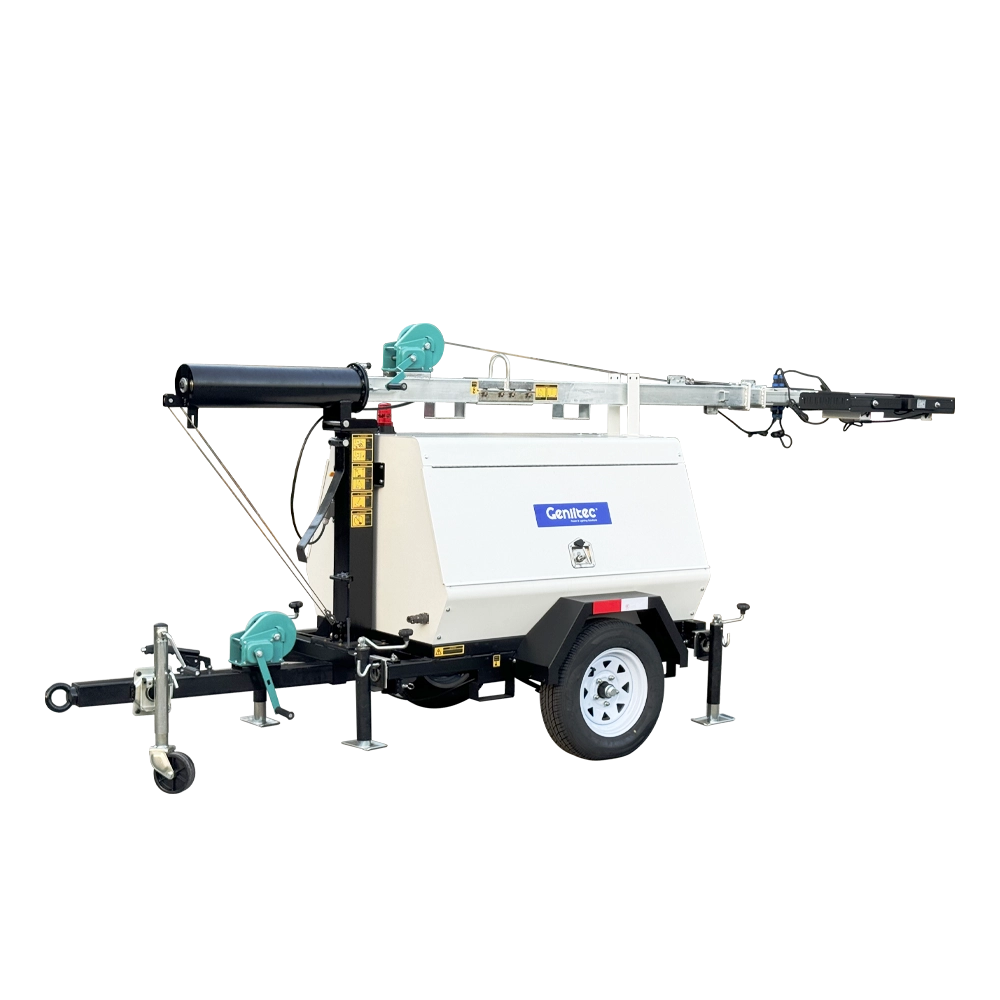

The manual mast extends to a maximum height of 9 meters and uses a self-lock winch lifting system with 358° manual rotation for flexible lighting positioning. The trailer-mounted design allows convenient transportation and rapid deployment, while four high-output LED floodlights provide a total lighting capacity of 240,000 lumens. With a single-axle trailer, 13-inch tyres, IP65 LED floodlights and a reliable QUANCHAI QC380D diesel engine, the GLT1600L-9MQ is designed for demanding outdoor lighting applications.
Light Tower
| Model | GLT1600L-9MQ |
| Lifting System | 9 Metres, Manual Lifting |
| Mast Rotation System | 358° Manual |
| Total Power of Lights | 4 x 400W LED |
| Frequency | 50/60Hz |
| Voltage | 110~240V |
| Phase | Single |
| Rated Power | 7.0KW/50Hz; 8.0KW/60Hz |
| Trailer Structure | Single Axle, 13-inch Tyres |
Diesel Engine
| Engine Model | QUANCHAI QC380D |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Direct Injection |
| Bore x Stroke | 80 x 90 mm |
| Compression Ratio | 18:1 |
| Engine Speed | 1500/1800RPM |
| Displacement | 1.357L |
| Rated Power | 9.0KW/1500RPM; 11.0KW/1800RPM |
| Coolant Capacity | 6.5L |
| Oil Capacity | 4.0L (Engine Only) |
| Governor Type | Mechanical |
| Electric Starting System | DC 12V |
Alternator
| Number of Phase | Single |
| Rated Power | 6~8KW |
| Frequency | 50/60Hz |
| Power Factor | 1.0 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Operation Mast
| Max. Height of Mast | 9 Meters |
| Lifting System | Manual |
| Lifting Method | Self-Lock Winch |
| Mast Stages | 3 |
| Rotation System | 358° Manually |
| Mast Material | Galvanization Steel Tube |
| Winch Type | 2 x 1500 LBS |
LED Floodlights
| Total Power of Lamps | 4 x 400W |
| Lamps Type | LED Floodlights |
| Light Capacity | 4 x 60,000 Lumens |
| Design Lifetime | ≥50,000 Hours |
| Working Temp. | -25°C~50°C |
| Light Coverage | 5~7 Acres |
| Protection Grade | IP65 |
Control Panel
| ○ SMARTGEN HGM1790N digital controller | ○ Emergency stop button |
| ○ Main circuit breaker and individual circuit breakers for lights | ○ Hour meter |
| ○ Manual/Auto start control panel | ○ Fuel level meter |
| ○ Controller power switch | ○ Alarm buzzer |
Trailer and Sound Attenuated Enclosure

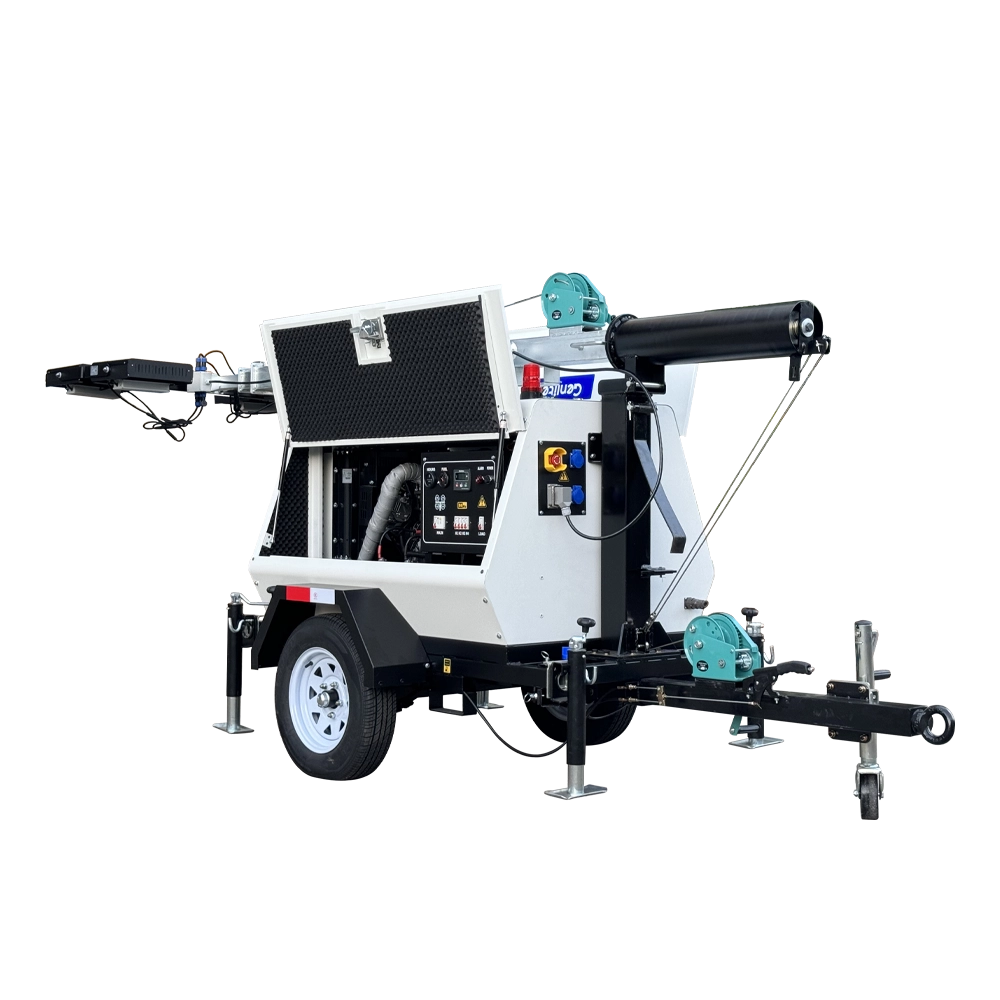

○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Heavy-duty single-axle trailer with 13-inch tyres
○ Fuel tank for extended outdoor operation
Container Loading Capacity
| 20GP CONTAINER | Max. 8 Sets |
| 40HQ CONTAINER | Max. 16 Sets |
Applications
The GLT1600L-9MQ diesel generator mobile light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:
○ Construction sites
○ Mining operations
○ Road and highway projects
○ Railway and infrastructure projects
○ Oil and gas sites
○ Outdoor events and temporary lighting
○ Emergency and disaster-response lighting
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing power generation solutions for customers in construction, mining, telecommunications, infrastructure, industrial, commercial, and other demanding applications. With extensive experience in manufacturing, international sales, engineering support, and customized power solutions, GENLITEC POWER focuses on dependable products and long-term customer service.
Our product range covers diesel generator sets from small portable units to large industrial power systems, as well as mobile lighting towers with different mast heights, lifting systems, engine brands, lighting configurations, control systems, and trailer options. This broad product capability allows GENLITEC POWER to provide suitable solutions for different project requirements and operating environments.
○ Professional manufacturer of diesel generator sets and mobile lighting towers
○ Wide range of power generation and mobile lighting solutions
○ Multiple international engine and alternator brand configurations
○ Experienced export and international project support
○ Engineering support and customized product configurations
○ Quality control, testing and after-sales technical support
Warranty
12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
