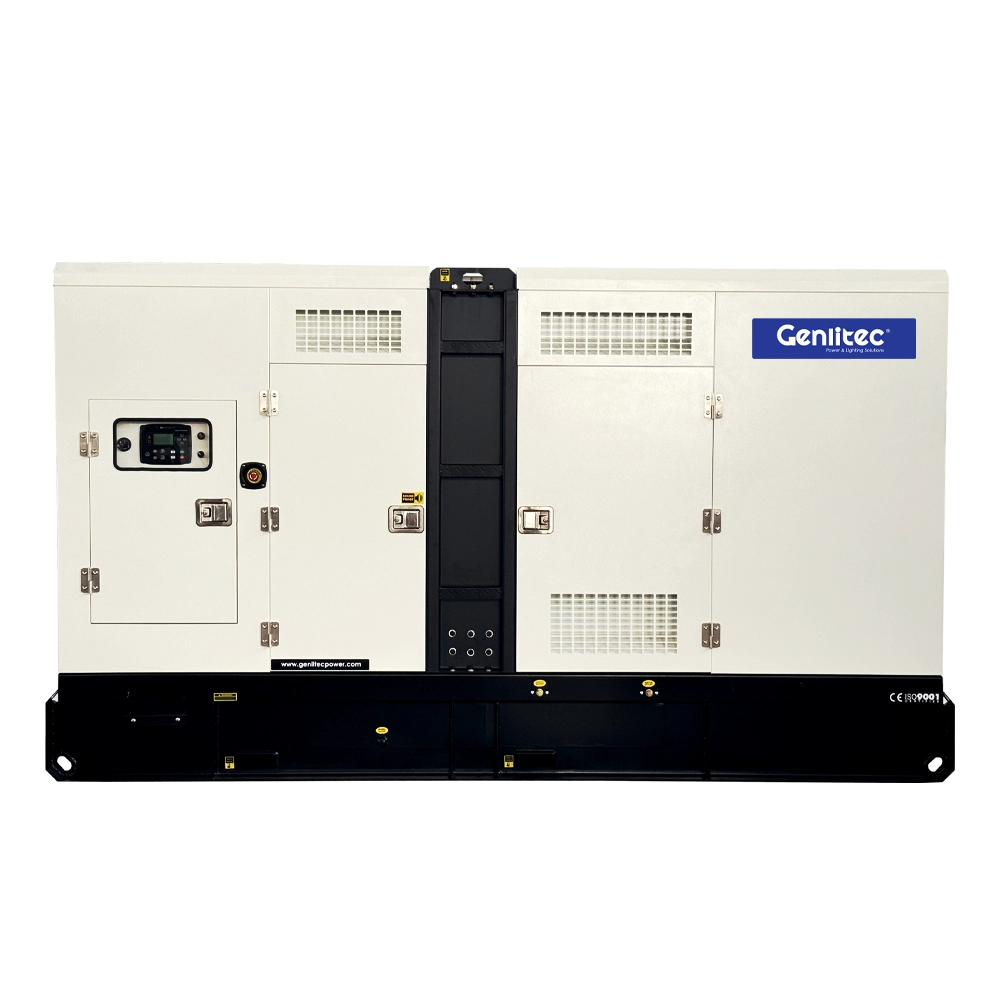

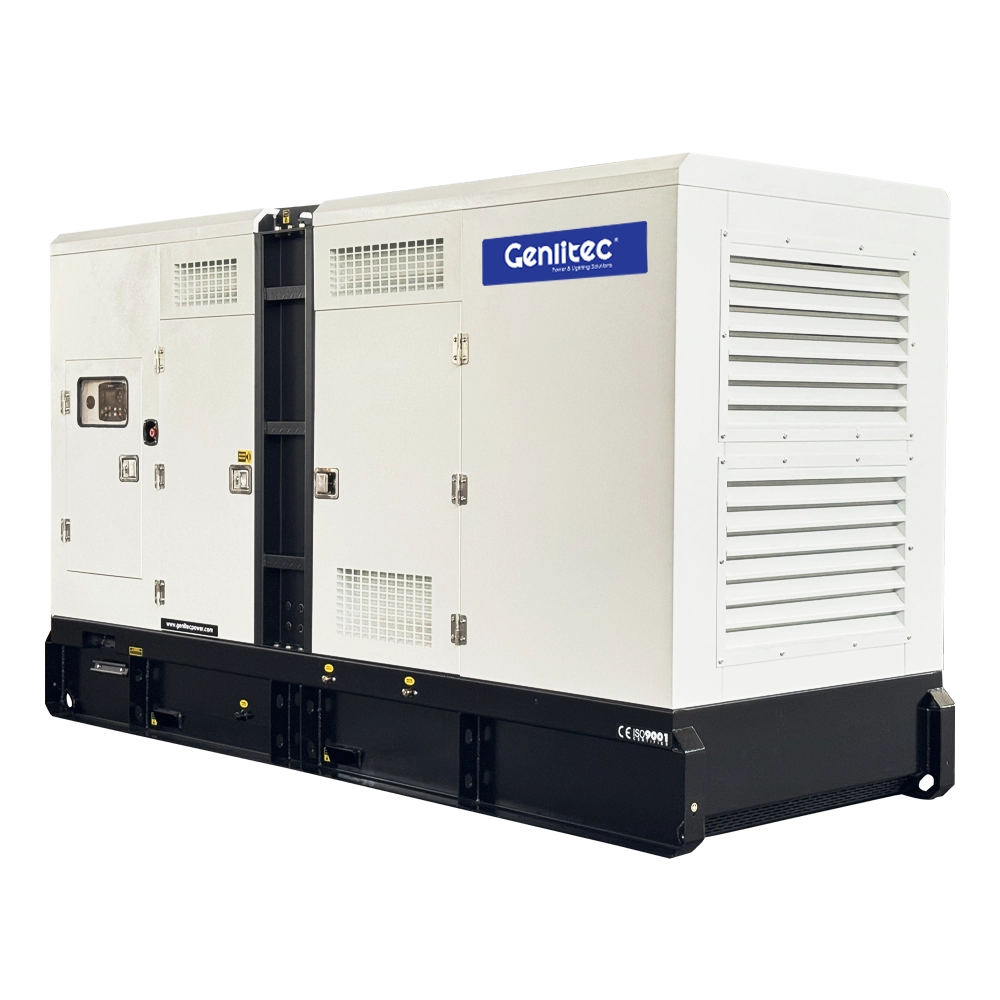

50Hz 160kW 200kVA Diesel Generator with Cummins 6CTAA8.3-G2 Engine
Short Description
GENLITEC POWER GPC200D5/GPC200S5 provides 160kW/200kVA prime power with a Cummins 6CTAA8.3-G2 engine for reliable industrial and commercial applications.
- ModelGPC200D5 | GPC200S5
- Frequency50Hz
- Prime Power160KW/200KVA
- Standby Power176KW/220KVA
- EngineCummins 6CTAA8.3-G2
- Frequency50Hz
- Fuel Consumption (100% Load)45L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC200D5 open type and GPC200S5 silent type diesel generator sets provide 160kW/200kVA prime power and 176kW/220kVA standby power. Powered by a Cummins 6CTAA8.3-G2 six-cylinder water-cooled diesel engine and matched with a brushless copper alternator, these generator sets are designed to deliver stable and dependable power for commercial, industrial, construction, infrastructure and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire output with flexible voltage configurations including 220/380V, 230/400V and 400/415V. The package features a 24V DC electric starting system, electronic engine governor, water-cooled engine system, anti-vibration mountings and digital control options for reliable operation and convenient monitoring.

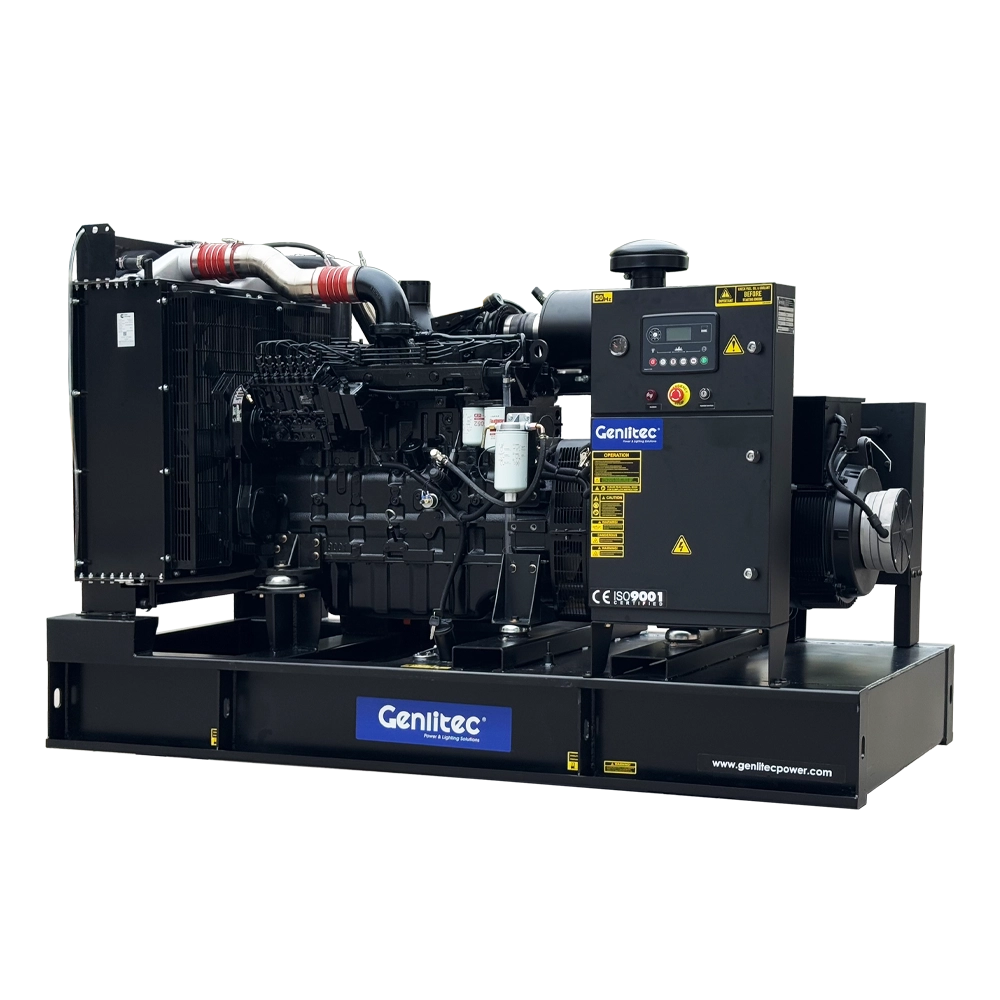

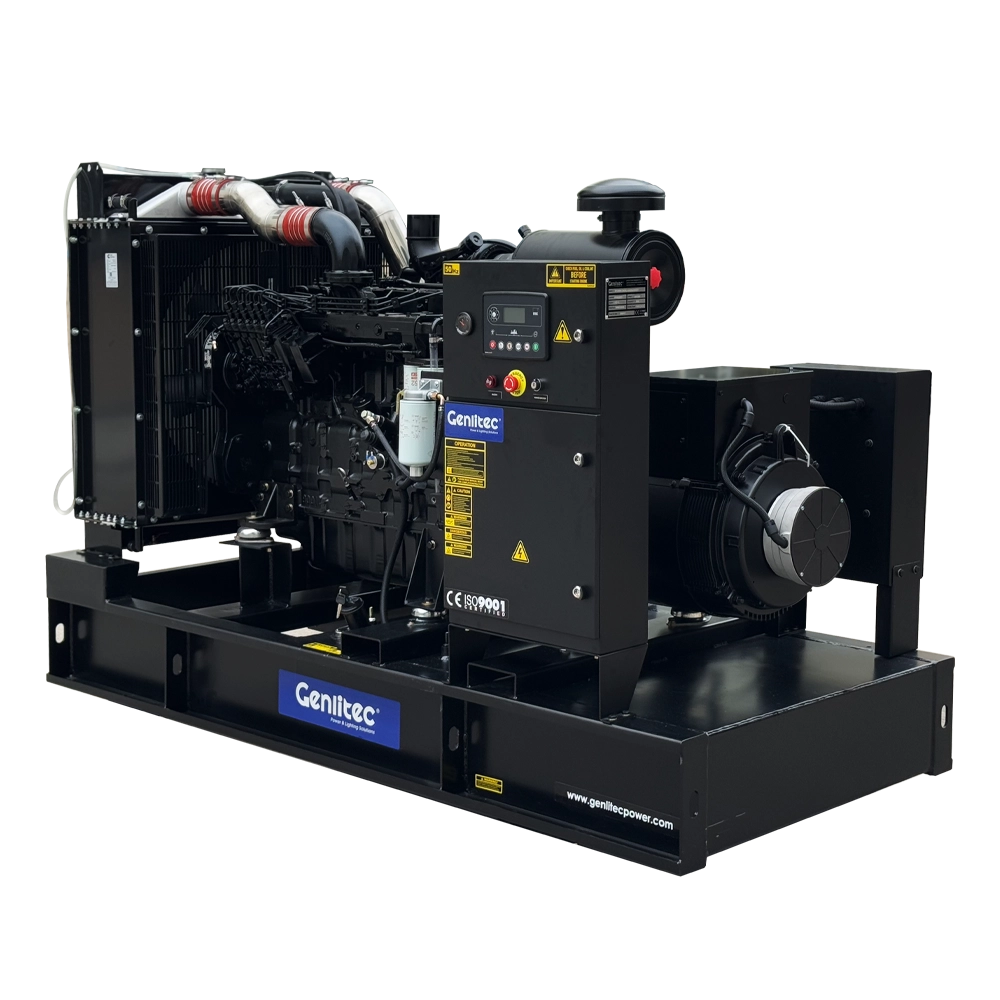

The GPC200D5 open type is suitable for installations where ventilation, service access and easy maintenance are important. The GPC200S5 silent type features a weatherproof sound-attenuated enclosure with an internal exhaust silencer, making it suitable for outdoor installations and applications where reduced operating noise and environmental protection are required.
Generator Set
| Open Type Model | GPC200D5 |
| Silent Type Model | GPC200S5 |
| Prime Power | 160kW/200kVA |
| Standby Power | 176kW/220kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V or 400/415V |
| Rated Speed | 1500RPM |
Diesel Engine
| Engine Model | CUMMINS 6CTAA8.3-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged & Charge Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 18:1 |
| Rated Speed | 1500RPM |
| Displacement | 8.3L |
| Rated Power | 183KW |
| Standby Power | 203KW |
| Fuel System | BYC P7100 |
| Oil Capacity | 24L |
| Coolant Capacity | 40L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Power | 45L/H |
| 75% Prime Power | 34L/H |
| 50% Prime Power | 23L/H |
| 25% Prime Power | 13L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 160KW/200KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC200S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
○ Water-jacket heater
○ Space heater
○ AREM & PMG
○ Remote & Monitoring System
Applications
The GENLITEC POWER 160kW/200kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible configurations, established component suppliers, professional manufacturing capabilities and international project experience, GENLITEC POWER provides practical power solutions for customers in different markets and operating environments.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ Customized power solutions for project requirements
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
