50Hz 220kW 275kVA Diesel Generator with Cummins NTA855-G1A Engine
Short Description
GENLITEC POWER GPC275D5-II/GPC275S5-II delivers 220kW/275kVA prime power with a Cummins NTA855-G1A engine for demanding industrial and commercial.
- ModelGPC275D5-II | GPC275S5-II
- Frequency50Hz
- Prime Power220KW/275KVA
- Standby Power240KW/300KVA
- EngineCummins NTA855-G1A
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)61.3L/H
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GPC275D5-II open type and GPC275S5-II silent type diesel generator sets provide 220kW/275kVA prime power and 240kW/300kVA standby power. Powered by a Cummins NTA855-G1A six-cylinder water-cooled diesel engine and matched with a brushless copper alternator, these generator sets are designed to deliver stable and dependable power for commercial, industrial, construction, infrastructure and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire output with flexible voltage configurations including 220/380V, 230/400V and 240/415V. The package features a 24V DC electric starting system, electronic engine governor, water-cooled engine system, anti-vibration mountings and digital control options for reliable operation and convenient monitoring.

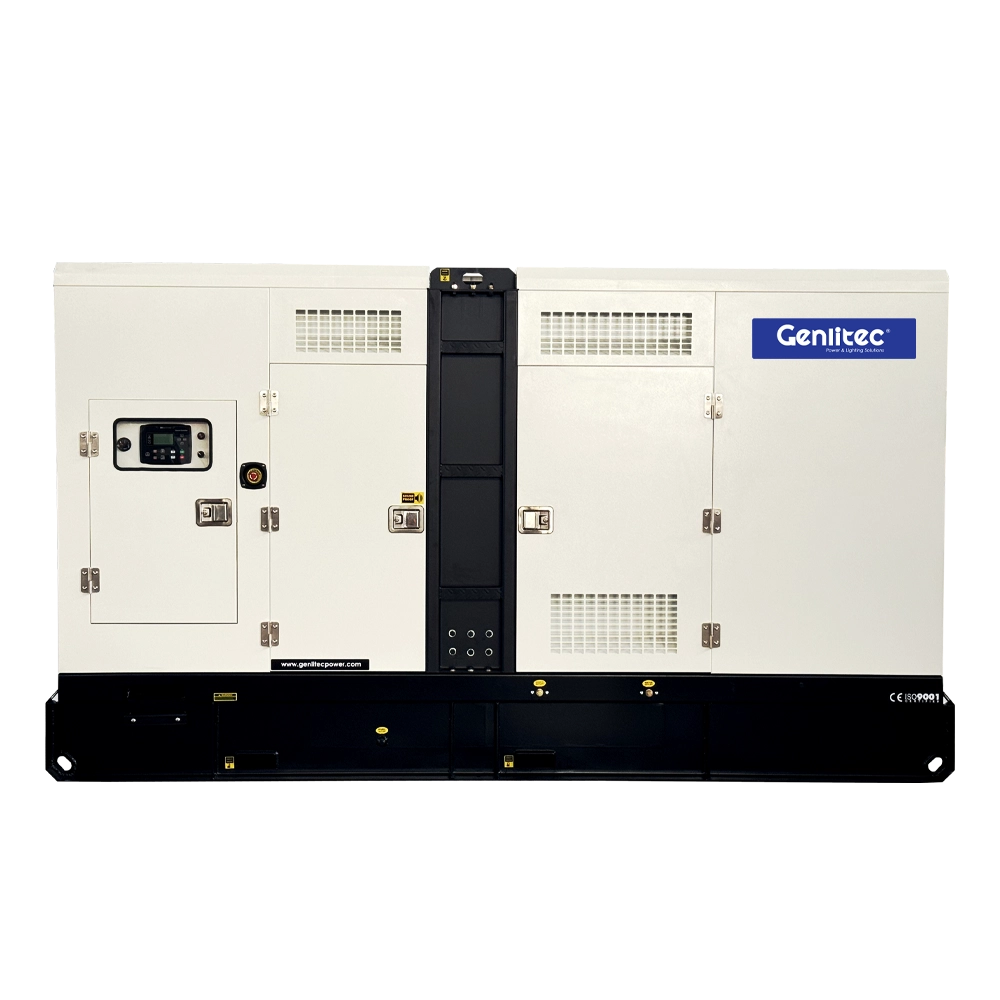

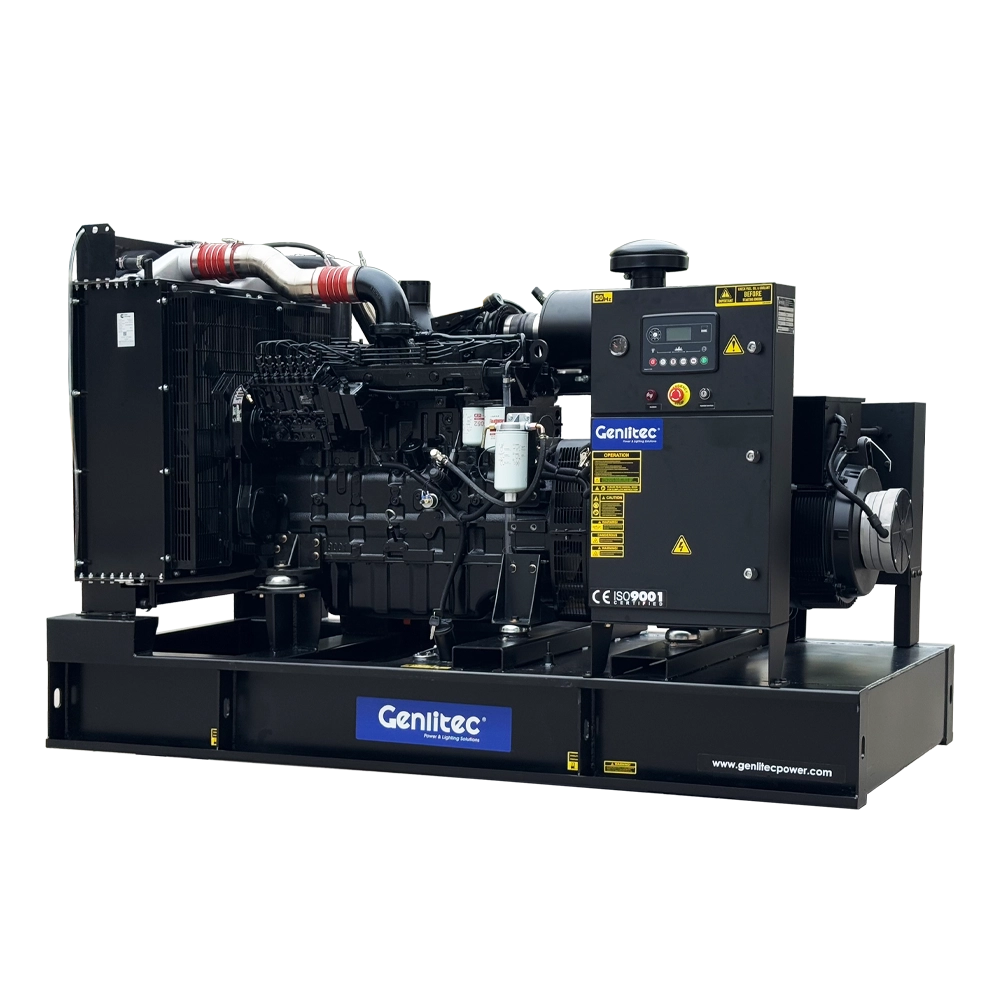

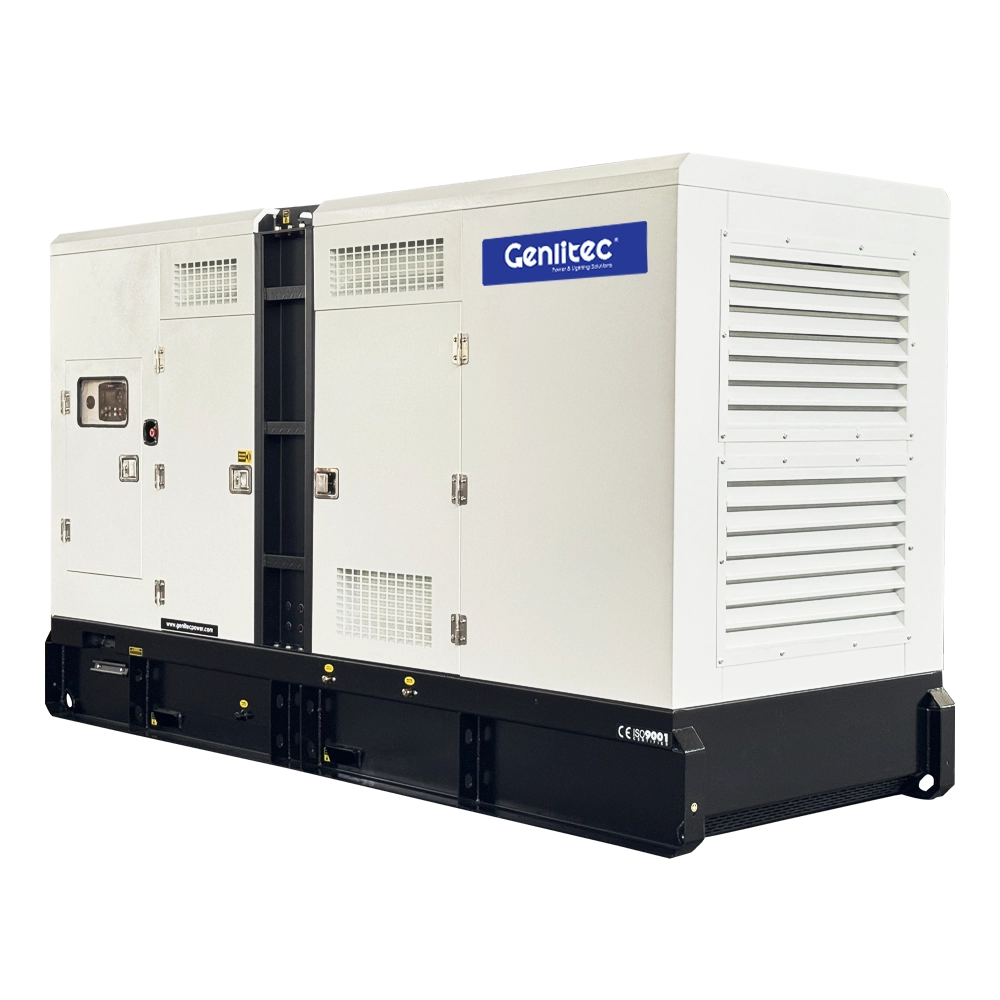

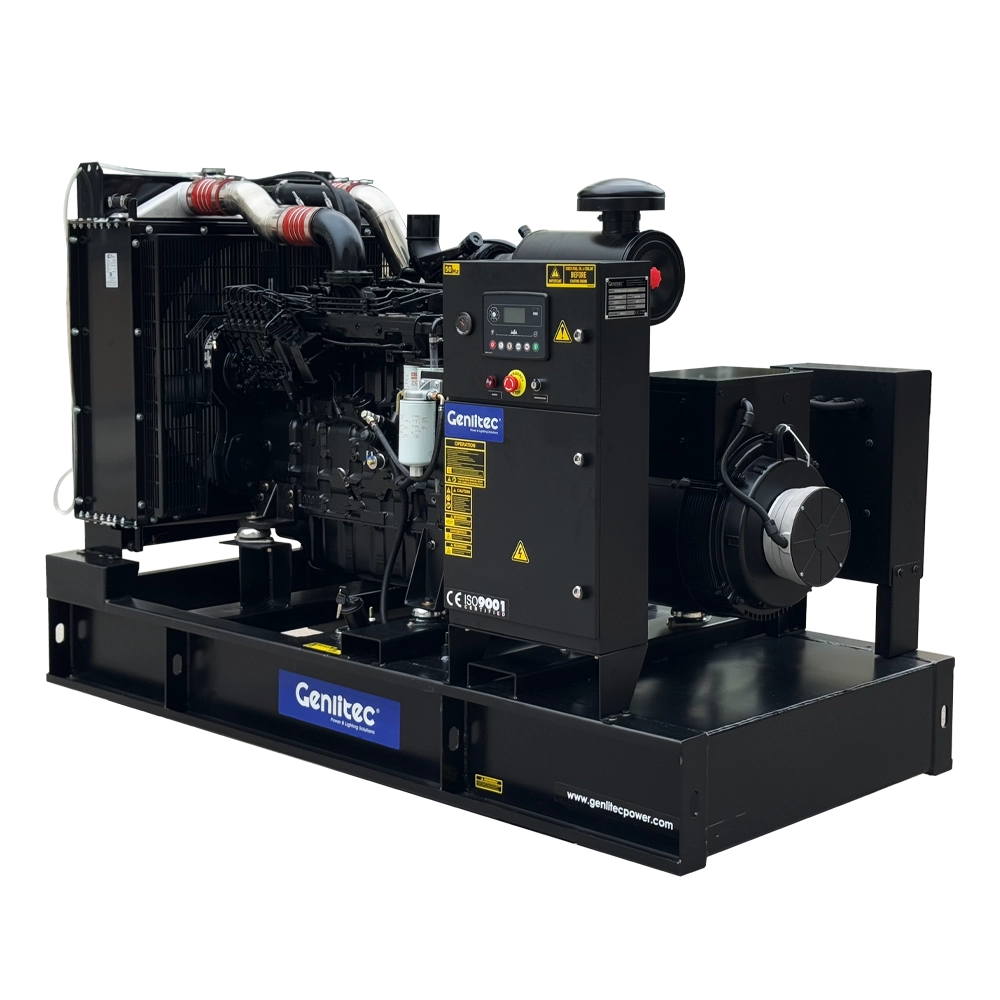

The GPC275D5-II open type is suitable for installations where ventilation, service access and easy maintenance are important. The GPC275S5-II silent type features a weatherproof sound-attenuated enclosure with an internal exhaust silencer, making it suitable for outdoor installations and applications where reduced operating noise and environmental protection are required.
Generator Set
| Open Type Model | GPC275D5-II |
| Silent Type Model | GPC275S5-II |
| Prime Power | 220kW/275kVA |
| Standby Power | 240kW/300kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 420L |
Diesel Engine
| Engine Model | CUMMINS NTA855-G1A |
| Number of Cylinder | 6 |
| Aspiration System | Turbo Charged, Charge Air-Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 16.6:1 |
| Rated Speed | 1500RPM |
| Displacement | 14L |
| Rated Power | 240KW |
| Standby Power | 262KW |
| Fuel System | Direct Injection Cummins PT |
| Oil Capacity | 38.6L |
| Coolant Capacity | 60.6L (with Radiator) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 61.3L/H |
| 75% Prime Load | 46.1L/H |
| 50% Prime Load | 31.4L/H |
| 25% Prime Load | 17.5L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 220KW/275KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC275S5-II silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Double-axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization system
○ Remote & Monitoring System
Applications
The GENLITEC POWER 220kW/275kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible configurations, established component suppliers, professional manufacturing capabilities and international project experience, GENLITEC POWER provides practical power solutions for customers in different markets and operating environments.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ Customized power solutions for project requirements
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
