50Hz 280kW 350kVA Diesel Generator with Cummins NTA855-G4 Engine
Short Description
GENLITEC POWER GPC350D5/GPC350S5 delivers 280kW/350kVA prime power with a Cummins NTA855-G4 engine for reliable industrial, commercial and backup power.
- ModelGPC350S5
- Prime Power (PRP)280kW/350kVA
- Standby Power (ESP)308kW/385kVA
- EngineNTA855-G4
- Fuel consumption (100%)75.3L/H
Product Details
Product Tags
Introduction

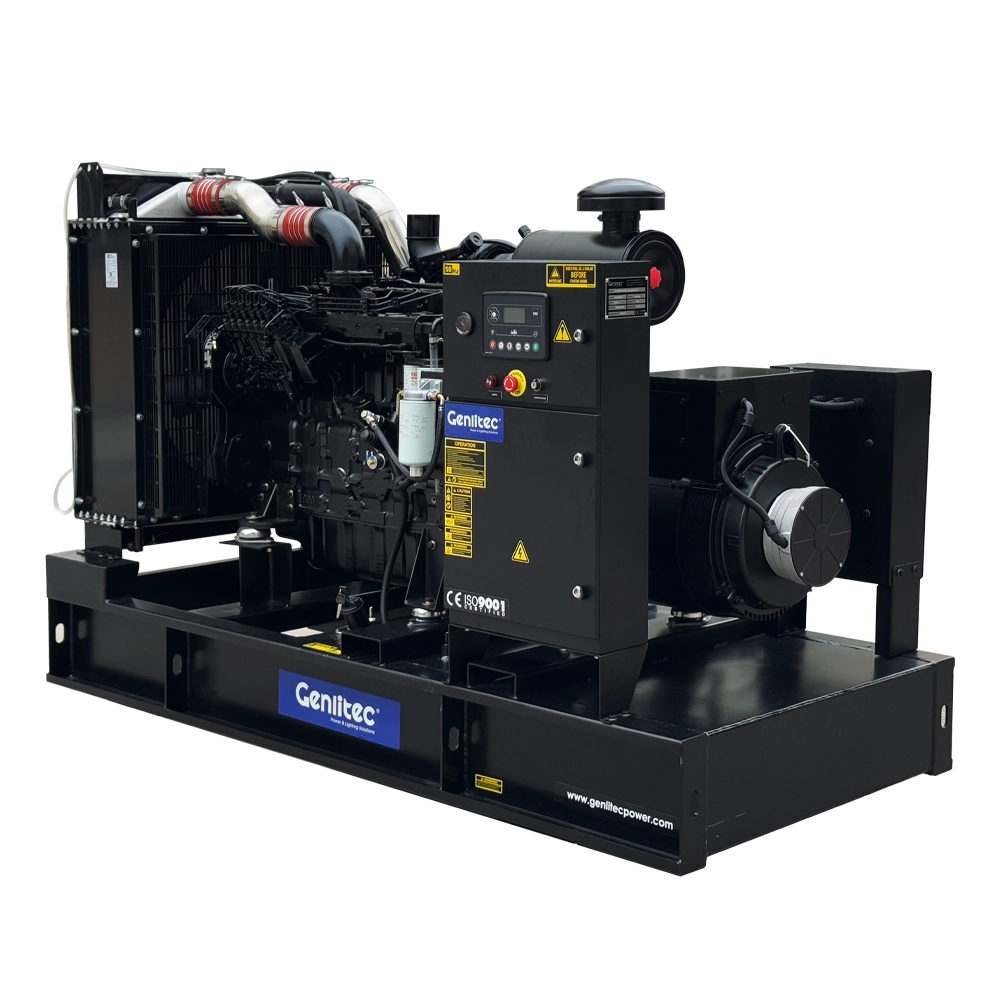

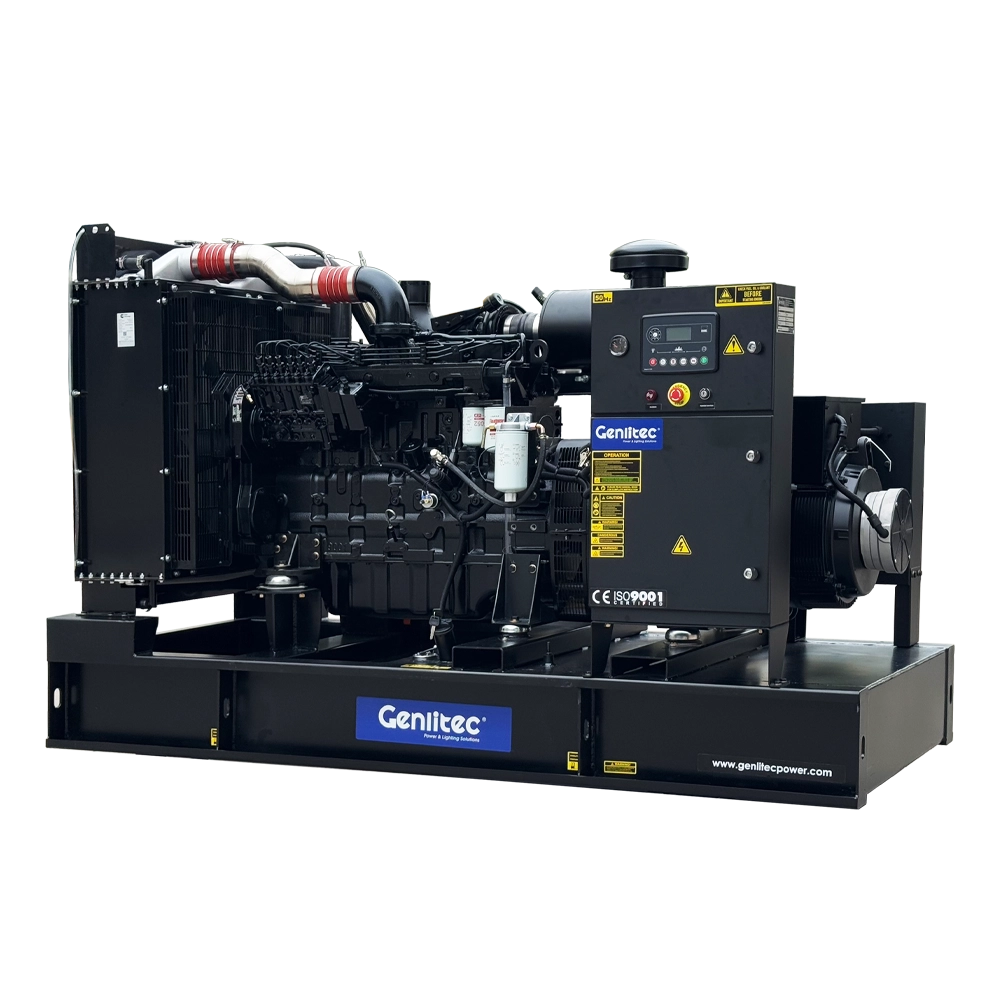

The GENLITEC POWER® GPC350D5 open type and GPC350S5 silent type diesel generator sets deliver 280kW/350kVA prime power and 308kW/385kVA standby power. Powered by the proven CUMMINS NTA855-G4 six-cylinder diesel engine, these generator sets are designed for demanding prime, standby and backup power applications where dependable performance, strong load capability and long-term operating reliability are essential.
The 14-liter Cummins engine features turbocharging with water/air cooling, electronic governing and a Cummins PT fuel system, providing strong power output and stable engine speed under changing loads. With a 1500 RPM operating speed, 50Hz frequency and 3-phase, 4-wire electrical configuration, the GPC350 series is suitable for industrial facilities, construction projects, mining operations, commercial buildings, infrastructure and other critical power applications.

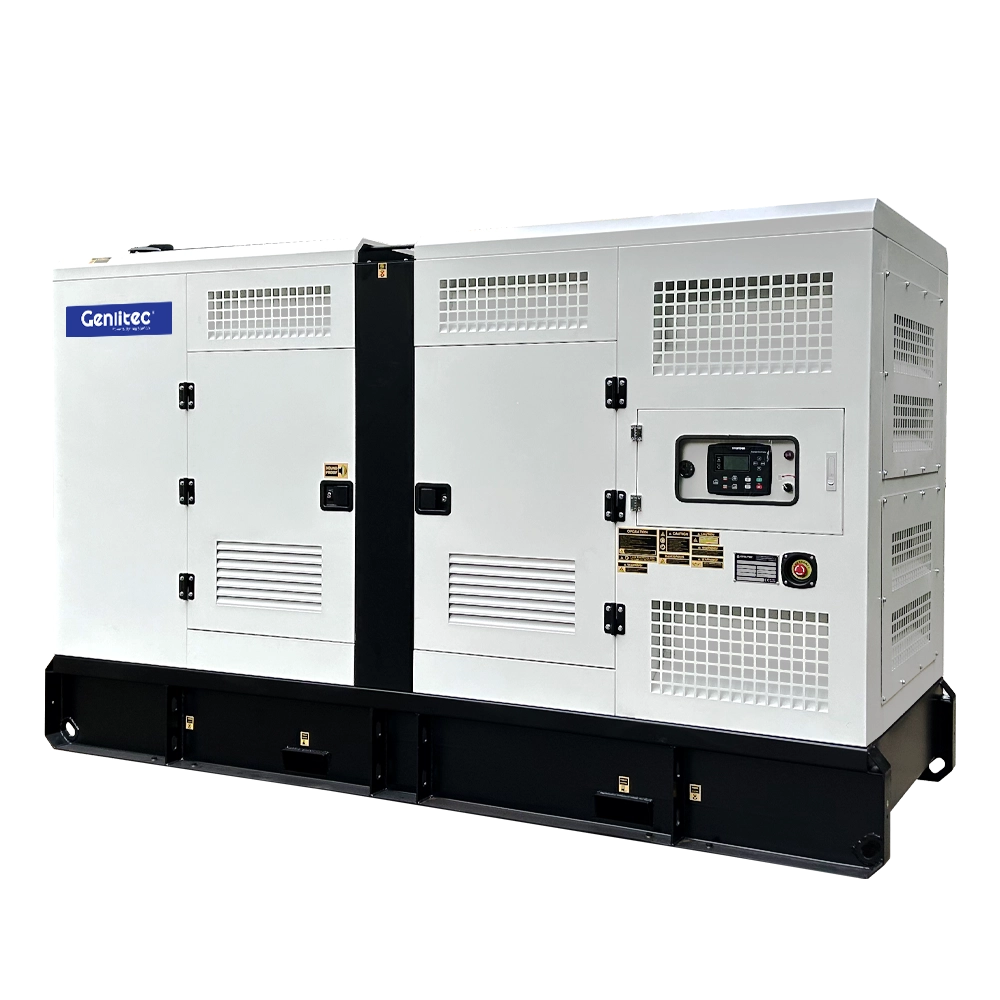

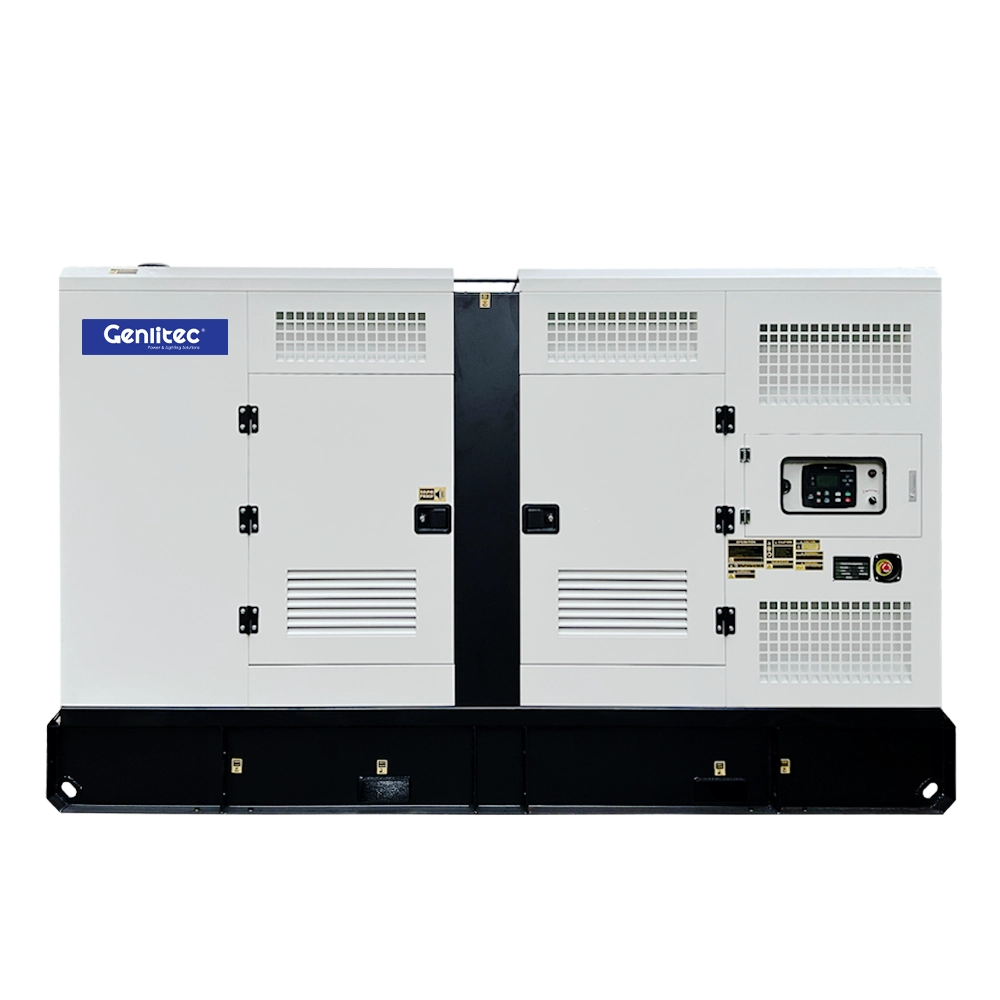

The generator set is equipped with a 350kVA-class alternator featuring H Class insulation, vacuum impregnation, flexible disc coupling, single bearing construction and an AVR voltage regulation system. The 530L fuel tank provides extended operating capability, while the GPC350S5 silent type is equipped with a weatherproof sound-attenuated enclosure for outdoor applications where reduced noise and environmental protection are required.
Generator Set
| Open Type Model | GPC350D5 |
| Silent Type Model | GPC350S5 |
| Prime Power | 280kW/350kVA |
| Standby Power | 308kW/385kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 530L |
Diesel Engine
| Engine Model | CUMMINS NTA855-G4 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Water/Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 140 x 152 mm |
| Compression Ratio | 14:1 |
| Rated Speed | 1500 RPM |
| Displacement | 14L |
| Rated Power | 317KW |
| Standby Power | 351KW |
| Fuel System | PT Pump |
| Oil Capacity | 38.6L |
| Coolant Capacity | 60.6L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 75.3L/H |
| 75% Prime Load | 57.5L/H |
| 50% Prime Load | 39.9L/H |
| 25% Prime Load | 22.2L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 280KW/350KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6 (12 leads for option) |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC350S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Double-axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 280kW/350kVA diesel generator set is designed for demanding prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
The GENLITEC POWER® GPC350 series is built around carefully selected major components to provide dependable performance, stable power output and long service life. The combination of a proven Cummins NTA855-G4 engine, properly matched 350kVA alternator and professional generator set integration makes this model suitable for customers who require more than simply a low-cost power solution.
○ Proven CUMMINS NTA855-G4 14L diesel engine for demanding applications
○ 280kW/350kVA prime power with 308kW/385kVA standby capability
○ Electronic governor for stable engine speed and load response
○ 350kVA-class alternator with H Class insulation and vacuum impregnation
○ Flexible disc coupling and single bearing configuration for reliable mechanical integration
○ 530L fuel tank for extended operating periods between refueling
○ Open and silent type configurations for different installation environments
○ Flexible options including ATS, synchronization and remote monitoring systems
○ Professional manufacturing, quality control and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
