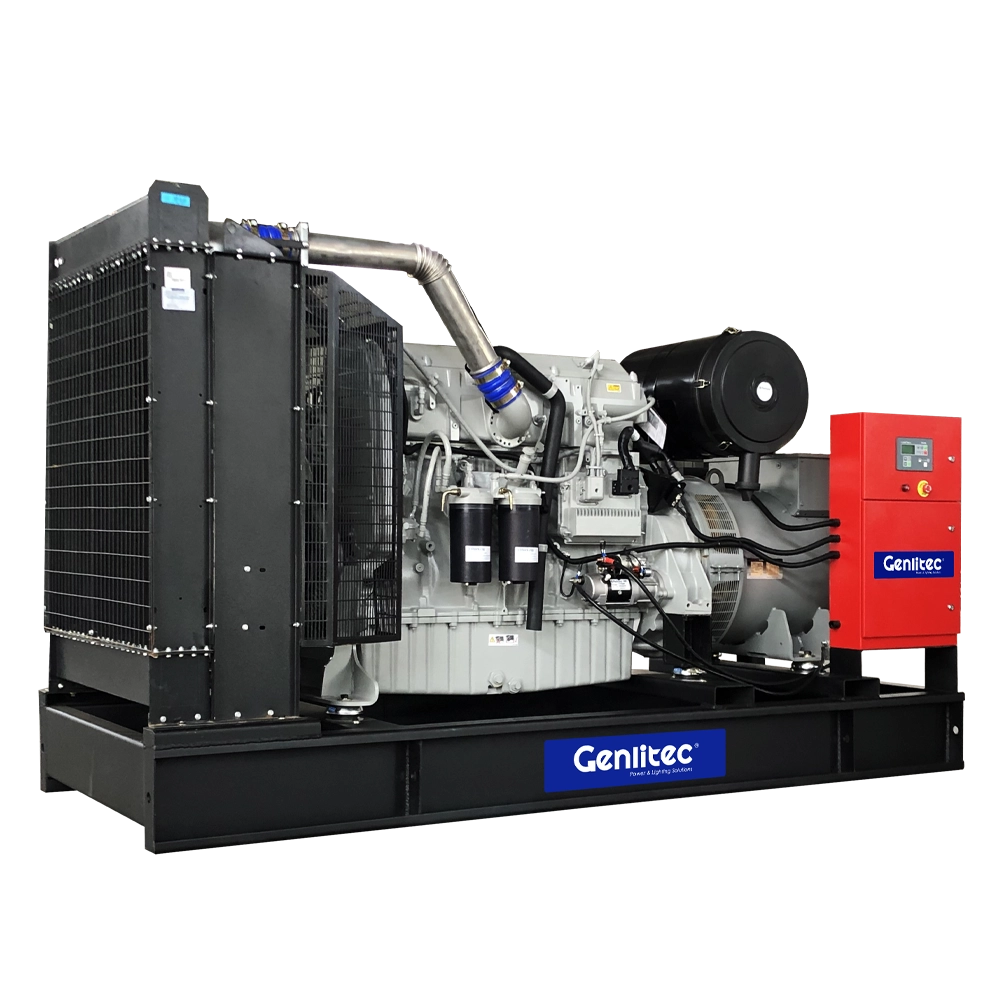

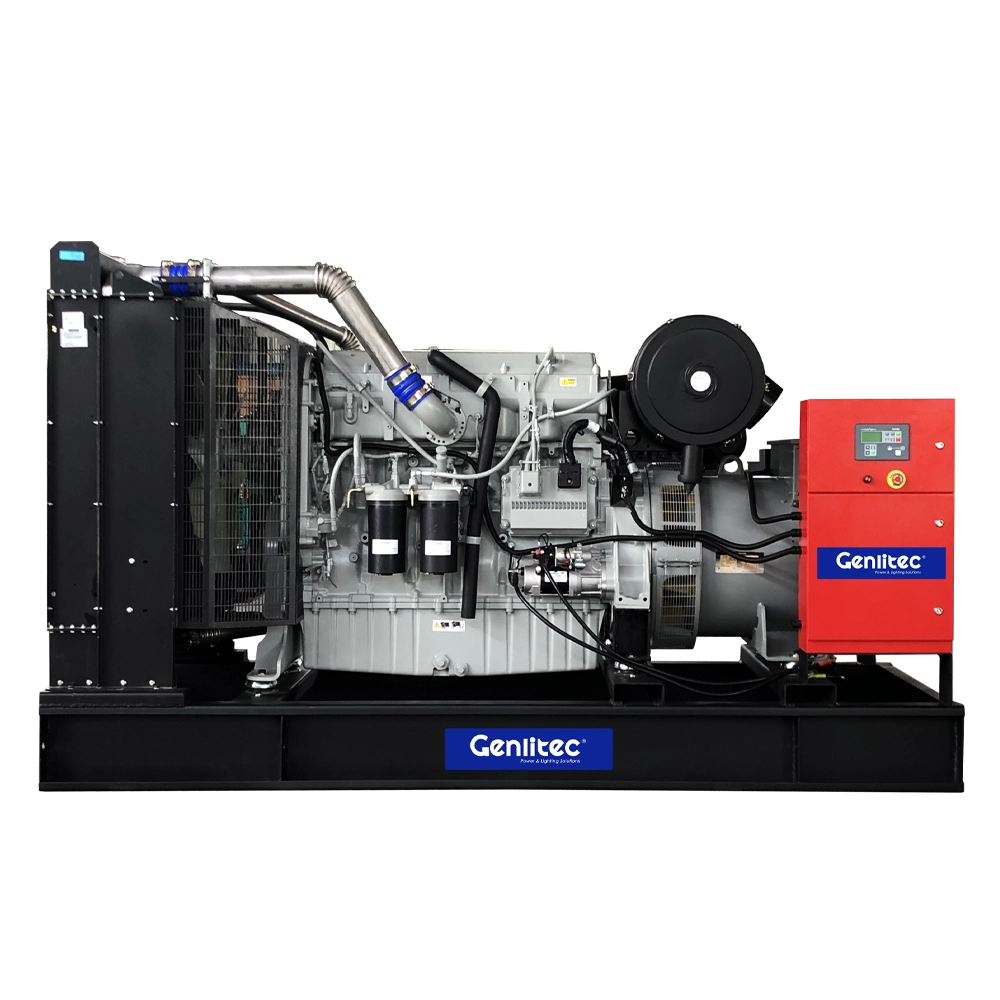

50Hz 240kW 300kVA Diesel Generator with Perkins 1706A-E93TAG1 Engine
Introduction
The GENLITEC POWER GPP300D5-II / GPP300S5-II is a 300 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 240KW/300KVA prime power and 264KW/330KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 1706A-E93TAG1 turbocharged aftercooled diesel engine, the GPP300D5-II / GPP300S5-II combines a 9.29L six-cylinder engine with electronic governing, practical power output and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 450L standard fuel tank is provided, while optional 12-hour, 24-hour fuel tanks, ATS, trailer, remote monitoring system and synchronization system are available for different project requirements. This 240KW/300KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and economical electricity supply is required.
Generator Set
| Open Type Model | GPP300D5-II |
| Silent Type Model | GPP300S5-II |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 240KW/300KVA |
| Standby Power | 264KW/330KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 450L |
Diesel Engine
| Engine Model | Perkins 1706A-E93TAG1 |
| Cylinder Number | 6 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged Aftercooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 115 x 149 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 9.29L |
| Rated Power | 267KW |
| Standby Power | 295KW |
| Combustion System | Direct Injection |
| Oil Capacity | 26-30L |
| Coolant Capacity | 33L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 62.5L/H |
| 75% Prime Load | 47.9L/H |
| 50% Prime Load | 33.7L/H |
| 25% Prime Load | 19.4L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 240KW/300KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP300S5-II silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Double-axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Remote monitoring system
○ Synchronization system
Applications
The GENLITEC POWER 240KW/300KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP300D5-II / GPP300S5-II diesel generator sets combine a Perkins 1706A-E93TAG1 engine with a practical generator set configuration for dependable prime and standby power.
○ Perkins 1706A-E93TAG1 diesel engine for reliable power generation
○ 240KW/300KVA prime power and 264KW/330KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Electronic governor for precise engine speed control
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
