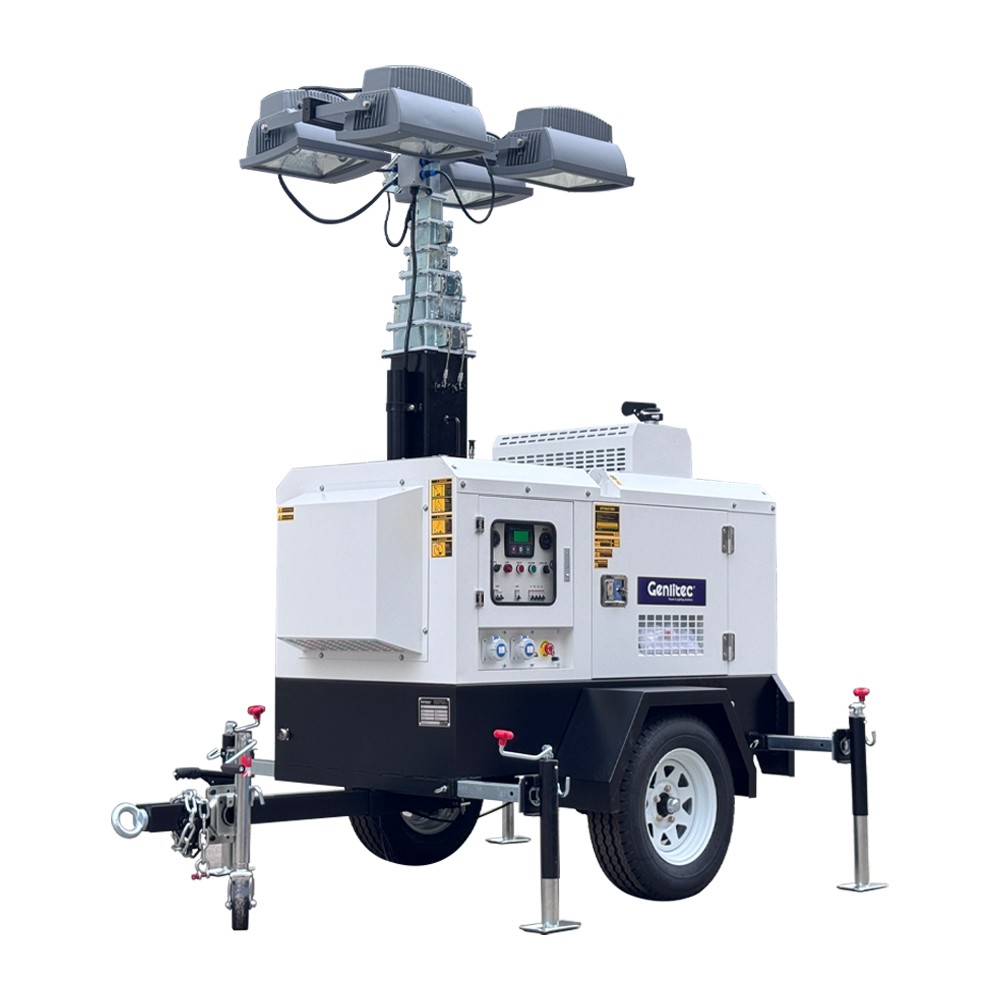

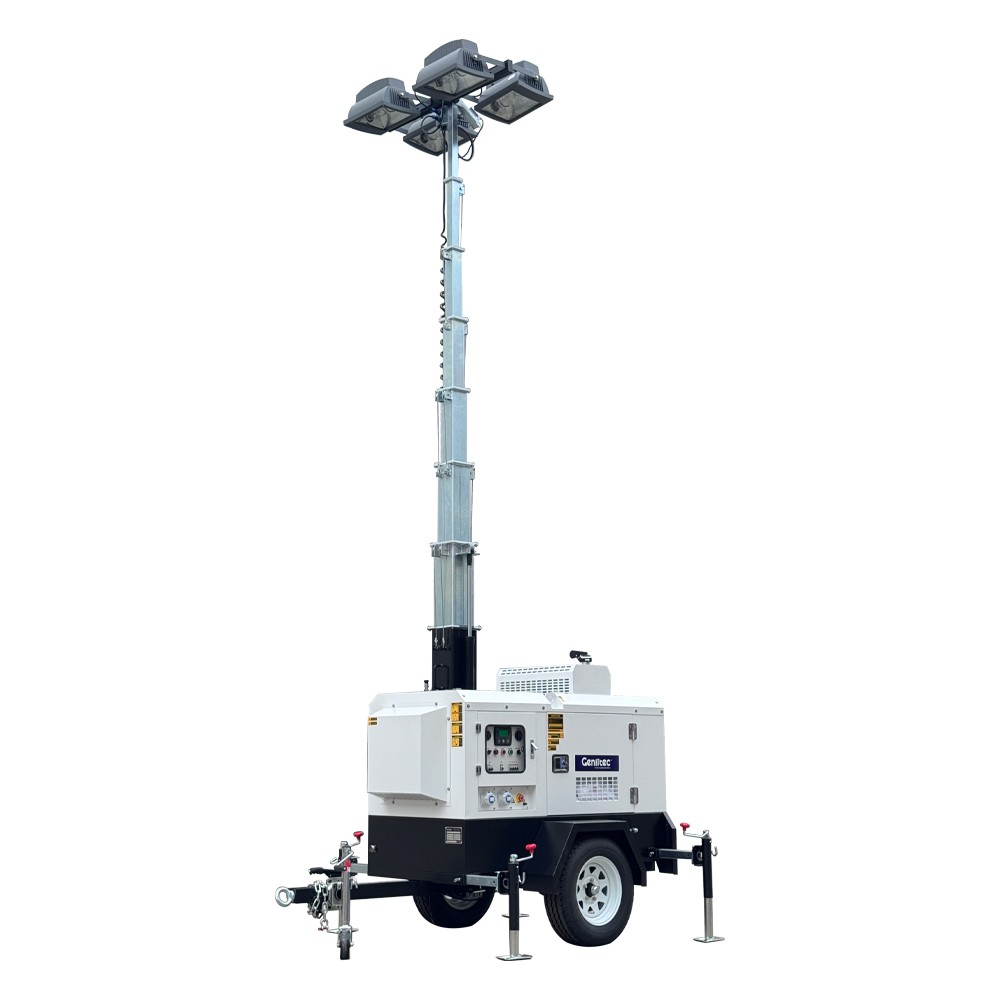

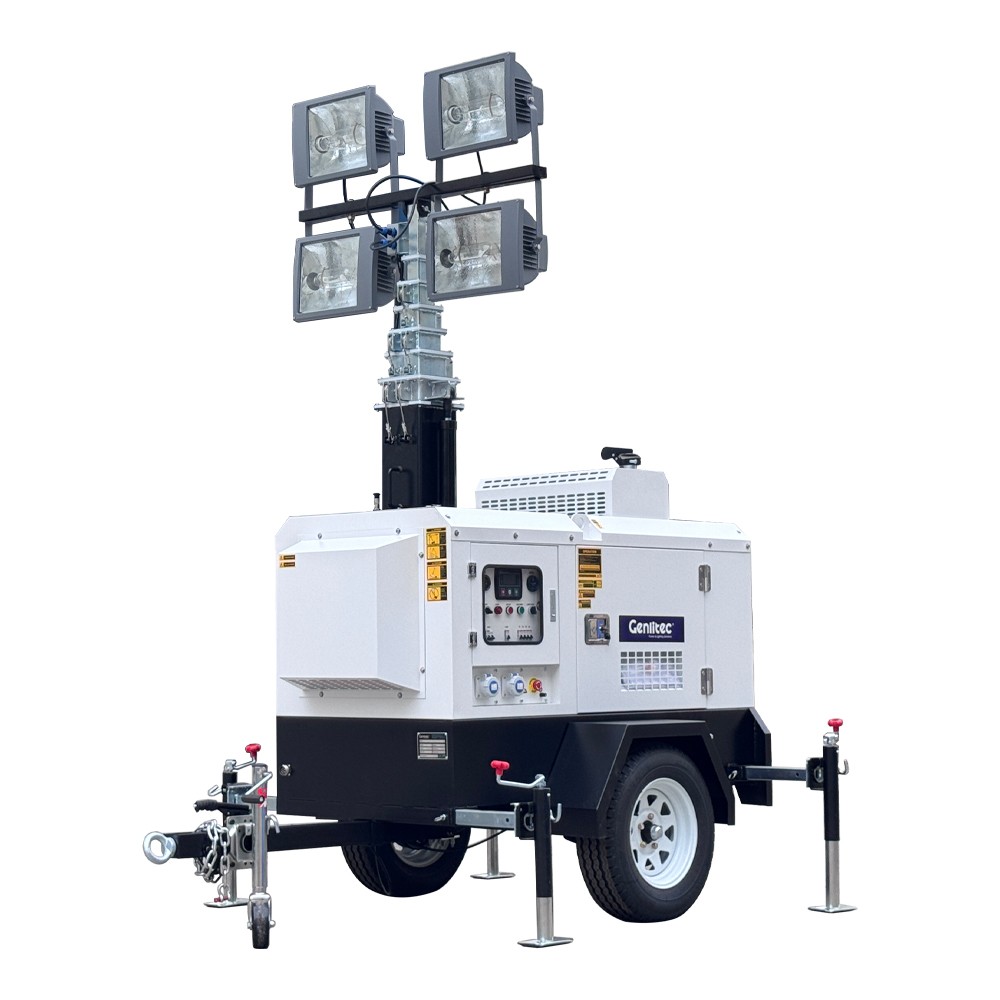

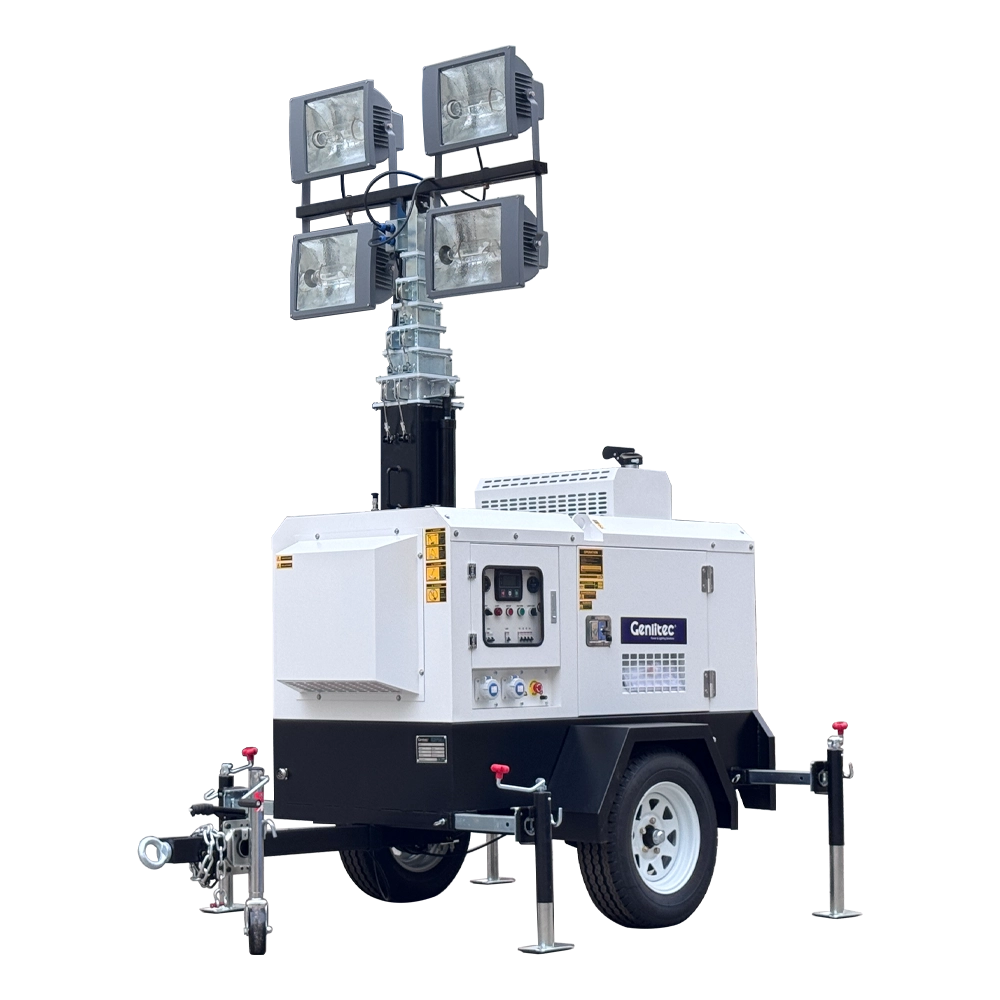

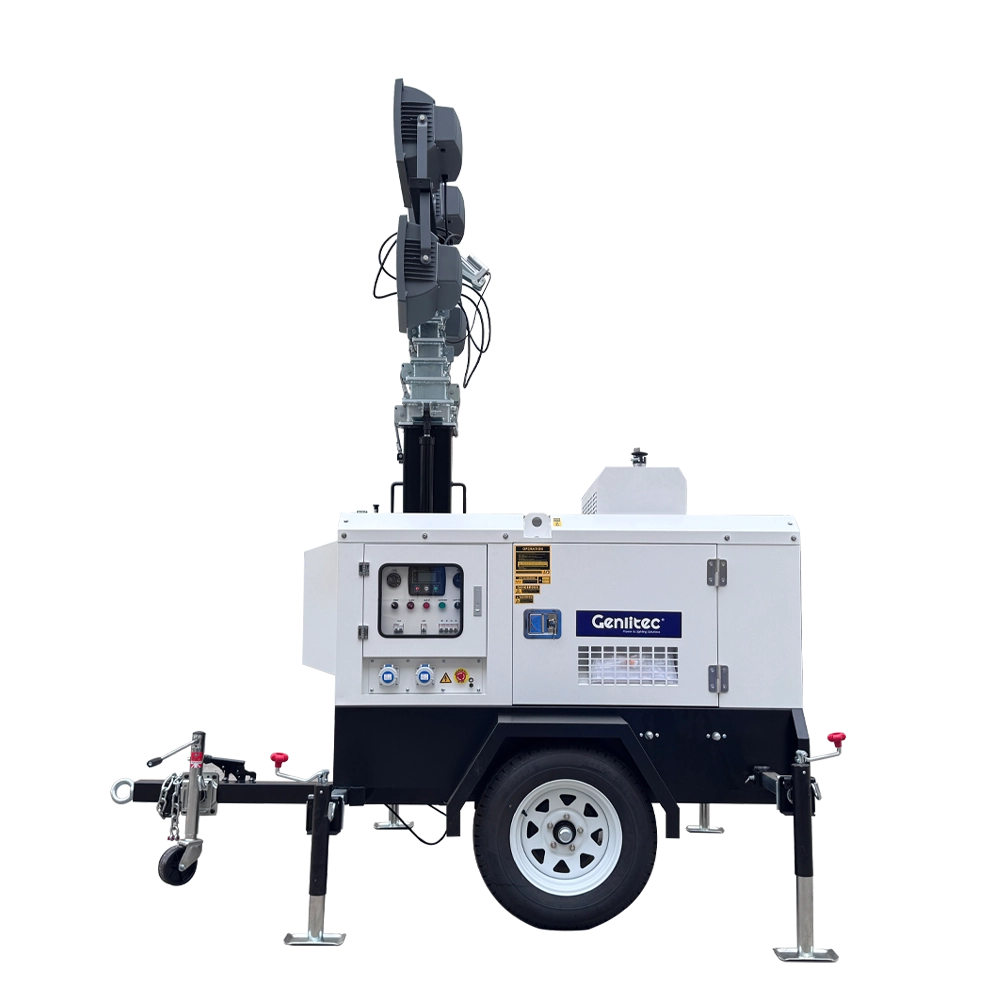

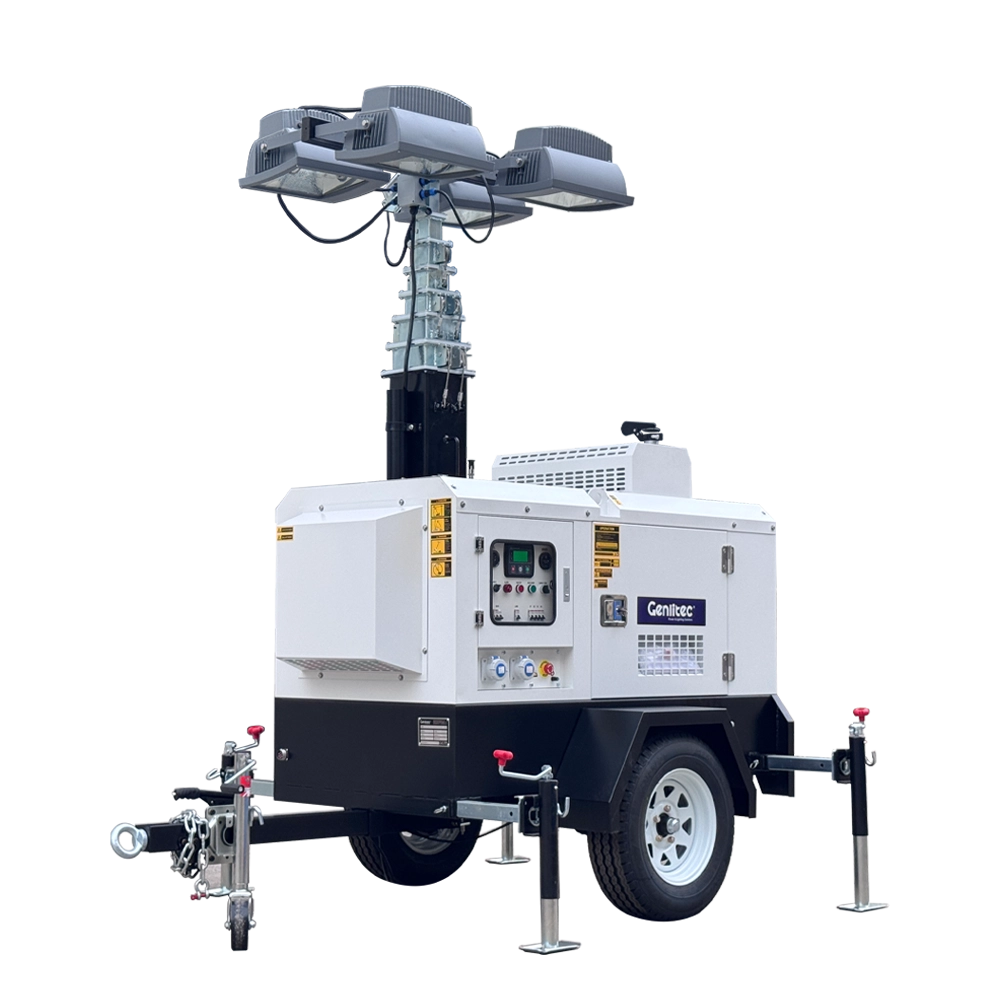

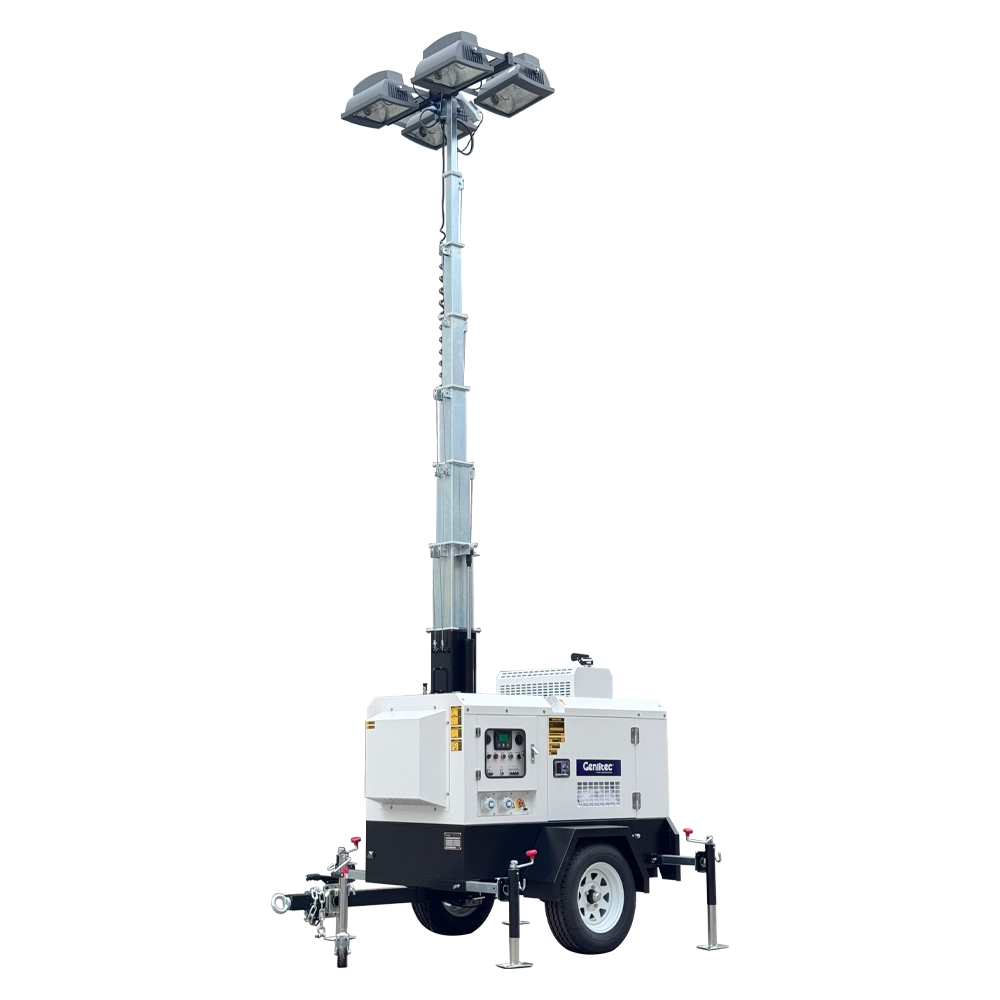

8m Hydraulic 4x1000W Light Tower with Yanmar 3TNV76 Engine
Short Description
GENLITEC GLT4000-8HY 8m hydraulic light tower with 4x1000W metal halide lamps and Yanmar 3TNV76 engine, built for mining and construction.
- ModelGLT4000-8HY
- Lifting System8m Hydraulic
- Power of Lamps4x1000W Metal Halide
- Total Light Capacity300,000 Lumens
- EngineYanmar 3TNV76
- Generator Power7.0kW/50Hz; 8.0kW/60Hz
- HS Code9405499000
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GLT4000-8HY is an 8-meter hydraulic diesel generator mobile light tower equipped with four 1000W metal halide lamps. Powered by a YANMAR 3TNV76 three-cylinder water-cooled diesel engine, it provides powerful and reliable lighting for construction sites, mining operations, road and highway projects, infrastructure development, outdoor events, airports, municipalities, emergency scenes and other demanding outdoor applications.
The vertical hydraulic mast extends to a maximum height of 8 meters and features convenient button-operated lifting with 358° manual rotation for flexible lighting positioning. The trailer-mounted design allows convenient transportation and rapid deployment, while four 1000W metal halide lamps provide a total lighting capacity of 300,000 lumens. With a single-axle trailer, 14-inch tyres, IP65 lamps and a reliable YANMAR 3TNV76 diesel engine, the GLT4000-8HY is designed for demanding temporary lighting applications.
Light Tower
| Model | GLT4000-8HY |
| Lifting System | 8 Meters, Hydraulic Lifting |
| Mast Rotation System | 358° Manual |
| Total Power of Lights | 4 x 1000W Metal Halide Lamps |
| Frequency | 50/60Hz |
| Voltage | 110~240V |
| Phase | Single |
| Rated Power | 7.0KW/50Hz; 8.0KW/60Hz |
| Trailer Structure | Single Axle, 14-inch Tyres |
Diesel Engine
| Engine Model | YANMAR 3TNV76 |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Ball-Type Swirl Chamber |
| Bore x Stroke | 76 x 82 mm |
| Compression Ratio | 19:1 |
| Engine Speed | 1500/1800RPM |
| Displacement | 1.116L |
| Rated Power | 8.2KW/1500RPM; 9.8KW/1800RPM |
| Coolant Capacity | 3.4L |
| Oil Capacity | 0.9L (Engine Only) |
| Governor Type | Mechanical |
| Electric Starting System | DC 12V-1.1KW |
Alternator
| Number of Phase | Single |
| Rated Power | 6~8KW |
| Frequency | 50/60Hz |
| Power Factor | 1.0 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Operation Mast
| Max. Height of Mast | 8 Meters |
| Lifting System | Vertical Type, Hydraulic |
| Lifting Method | Button |
| Mast Stages | 8 |
| Rotation System | 358° Manually |
| Mast Material | Galvanization Steel Tube |
Metal Halide Lamps
| Total Power of Lamps | 4 x 1000W |
| Lamps Type | Metal Halide Lamps |
| Light Capacity | 4 x 75,000 Lumens |
| Design Lifetime | 10,000 Hours |
| Working Temp. | -30°C~40°C |
| Light Coverage | 5~7 Acres |
| Protection Grade | IP65 |
Control Panel
| ○ SMARTGEN HGM1790N digital controller | ○ Emergency stop button |
| ○ Main circuit breaker and individual circuit breakers for lights | ○ Hour meter |
| ○ Manual/Auto start control panel | ○ Fuel level meter |
| ○ Controller power switch | ○ Alarm buzzer |
Trailer and Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Heavy-duty single-axle trailer with 14-inch tyres
○ 115L fuel tank for extended outdoor operation
Container Loading Capacity
| 20GP CONTAINER | Max. 4 Sets |
| 40HQ CONTAINER | Max. 8 Sets |
Applications
The GLT4000-8HY diesel generator mobile light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:
○ Construction sites
○ Mining operations
○ Road and highway projects
○ Railway and infrastructure projects
○ Airports and municipal projects
○ Outdoor events and temporary lighting
○ Emergency and disaster-response lighting
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing power generation solutions for customers in construction, mining, telecommunications, infrastructure, industrial, commercial, and other demanding applications. With extensive experience in manufacturing, international sales, engineering support, and customized power solutions, GENLITEC POWER focuses on dependable products and long-term customer service.
Our product range covers diesel generator sets from small portable units to large industrial power systems, as well as mobile lighting towers with different mast heights, lifting systems, engine brands, lighting configurations, control systems, and trailer options. This broad product capability allows GENLITEC POWER to provide suitable solutions for different project requirements and operating environments.
○ Professional manufacturer of diesel generator sets and mobile lighting towers
○ Wide range of power generation and mobile lighting solutions
○ Multiple international engine and alternator brand configurations
○ Experienced export and international project support
○ Engineering support and customized product configurations
○ Quality control, testing and after-sales technical support
Warranty
12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
