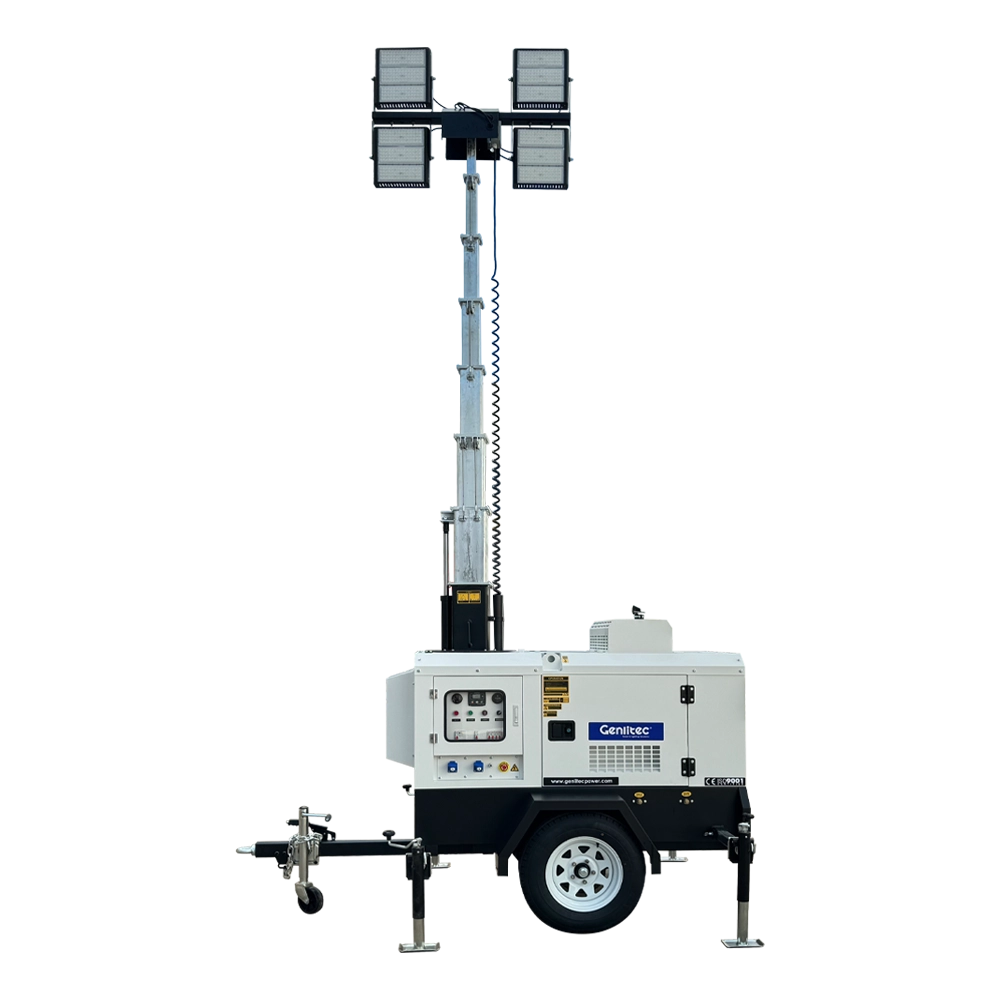

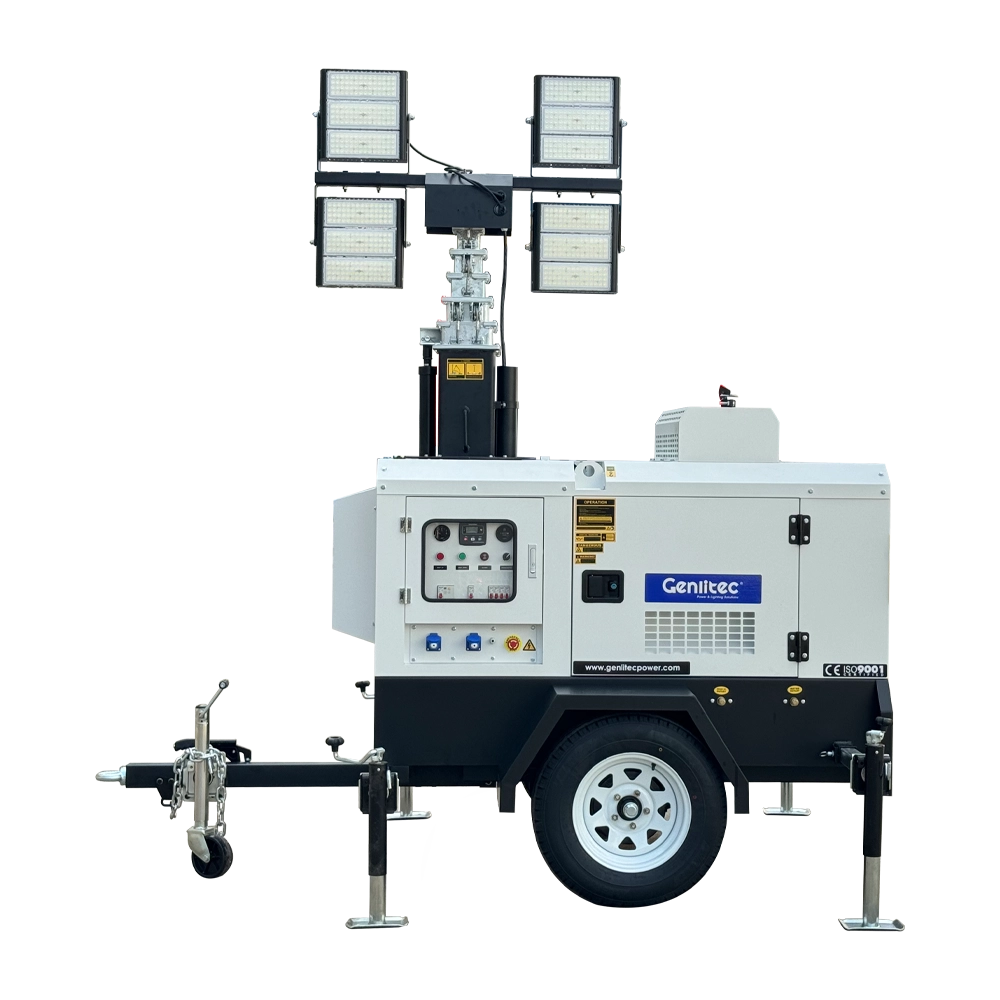

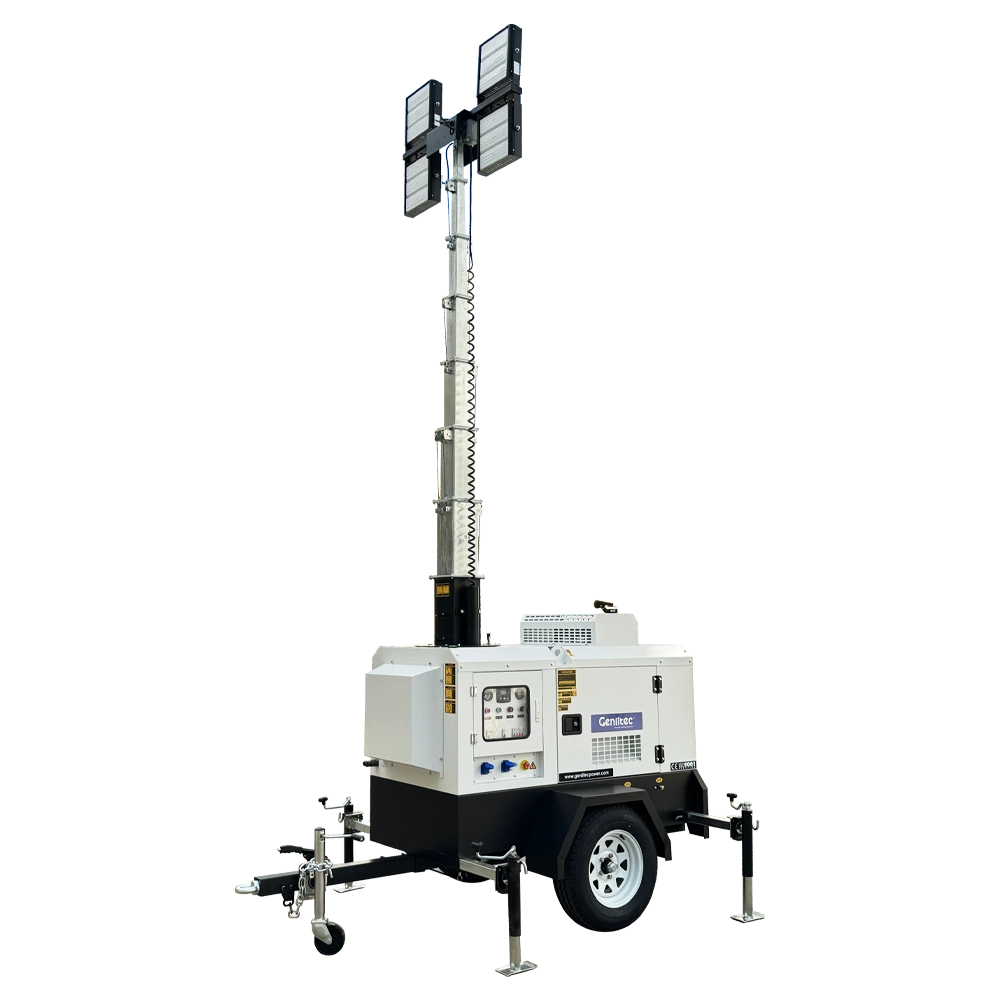

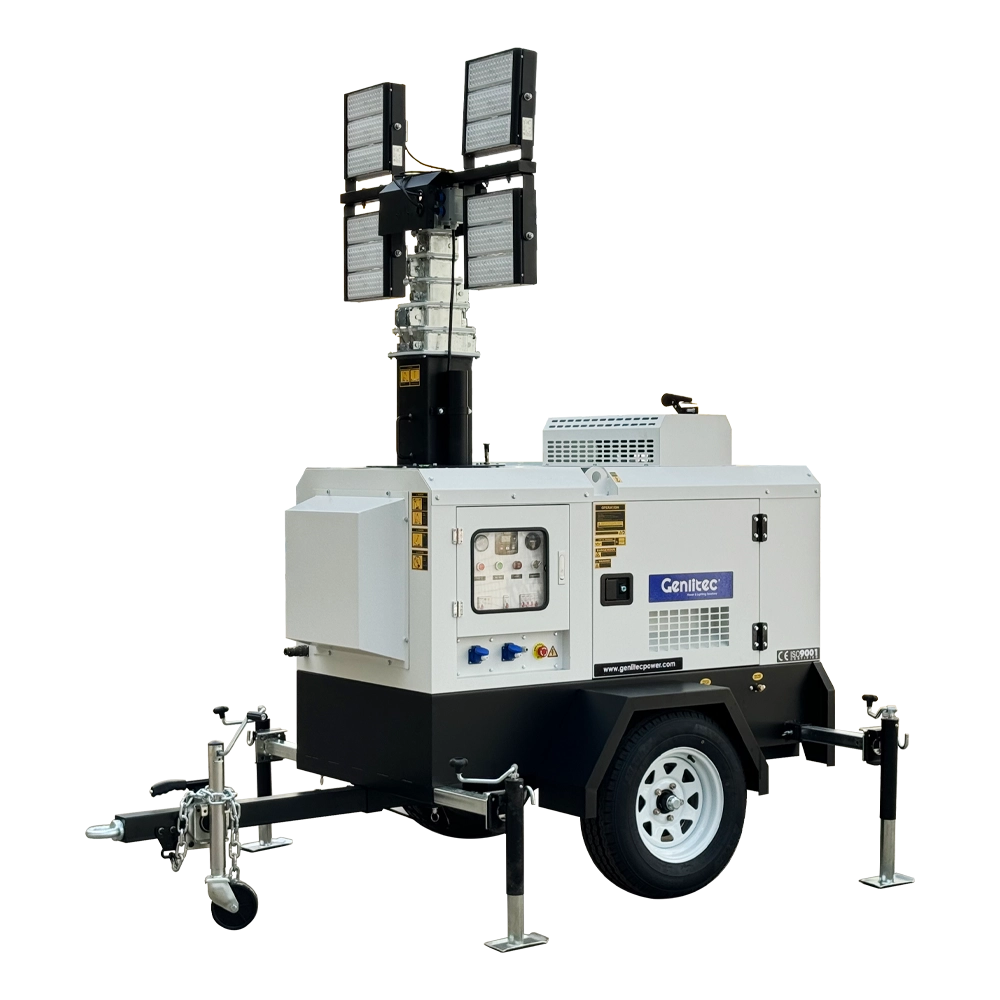

The GENLITEC POWER® GLT1600L-8HR is an 8-meter hydraulic diesel generator light tower equipped with four 400W LED floodlights. Powered by a REHLKO KDW1003 water-cooled diesel engine, it provides reliable auxiliary power and high-intensity illumination for construction sites, mining operations, road and highway projects, infrastructure development, outdoor events, and emergency lighting.

The hydraulic mast extends to a maximum height of 8 meters and provides 358° manual rotation for flexible lighting positioning. The trailer-mounted configuration allows convenient transportation and rapid deployment, while the four high-output LED floodlights deliver bright and consistent illumination with long service life. Designed for demanding outdoor environments, the GLT1600L-8HR combines REHLKO engine performance, efficient LED lighting, hydraulic mast operation, and a heavy-duty trailer structure in one practical mobile lighting solution.

Light Tower

Model	GLT1600L-8HR
Lifting System	8 Meters, Hydraulic Lifting
Mast Rotation System	358° Manual
Total Power of Lights	4 x 400W LED
Frequency	50/60Hz
Voltage	110~240V
Phase	Single
Rated Power	6.0KW/50Hz; 7.0KW/60Hz
Trailer Structure	Single Axle, 14-inch Tyres

Diesel Engine

Engine Model	REHLKO KDW1003
Cylinder Number	3
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	Indirect Injection
Bore x Stroke	75 x 77.6 mm
Compression Ratio	22.8:1
Engine Speed	1500/1800RPM
Displacement	1.028L
Rated Power	8.0KW/1500RPM; 9.0KW/1800RPM
Oil Capacity	2.4L
Governor Type	Centrifugal
Electric Starting System	DC 12V
Emission Standard	EU Stage V / EPA Tier 4 Final

Alternator

Number of Phase	Single
Rated Power	6~8KW
Frequency	50/60Hz
Power Factor	1.0
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40°C
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

Operation Mast

Max. Height of Mast	8 Meters
Lifting System	Vertical Type, Hydraulic
Lifting Method	Button
Mast Stages	8
Rotation System	358° Manually
Mast Material	Galvanized Steel Tube

LED Lamps

Total Power of Lamps	4 x 400W
Lamps Type	LED Floodlights
Light Capacity	4 x 60,000 Lumens
Design Lifetime	≥50,000 Hours
Working Temp.	-25°C~50°C
Light Coverage	5~7 Acres
Protection Grade	IP65

Control Panel

○ SMARTGEN HGM1790N digital controller

○ Emergency stop button

○ Main circuit breaker and individual circuit breakers for lights

○ Hour meter

○ Manual/Auto start control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

Trailer and Sound Attenuated Enclosure

○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer

○ Highly corrosion-resistant construction

○ Heavy-duty single-axle trailer with 14-inch tyres

○ 115L fuel tank for extended outdoor operation

Container Loading Capacity

20GP Container	Max. 4 Sets
40HQ Container	Max. 8 Sets

Applications

The GLT1600L-8HR diesel generator light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:

○ Construction sites

○ Mining operations

○ Road and highway projects

○ Railway and infrastructure projects

○ Oil and gas sites

○ Outdoor events and temporary lighting

○ Emergency and disaster-response lighting

Why Choose GENLITEC POWER

GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing power generation solutions for customers in construction, mining, telecommunications, infrastructure, industrial, commercial, and other demanding applications. With extensive experience in manufacturing, international sales, engineering support, and customized power solutions, GENLITEC POWER focuses on dependable products and long-term customer service.

Our product range covers diesel generator sets from small portable units to large industrial power systems, as well as mobile lighting towers with different mast heights, lifting systems, engine brands, lighting configurations, control systems, and trailer options. This broad product capability allows GENLITEC POWER to provide suitable solutions for different project requirements and operating environments.

○ Professional manufacturer of diesel generator sets and mobile lighting towers

○ Wide range of power generation and mobile lighting solutions

○ Multiple international engine and alternator brand configurations

○ Experienced export and international project support

○ Engineering support and customized product configurations

○ Quality control, testing and after-sales technical support

Warranty

12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy .

Frequently Asked Questions

What is the mast height of the GLT1600L-8HR light tower?

The light tower features an 8-meter hydraulic lifting mast with a 358° manual rotation system.

How many LED lights does this REHLKO light tower have?

It is equipped with four 400W LED floodlights, providing a total lighting capacity of 240,000 lumens.

What diesel engine is used in the GLT1600L-8HR?

The light tower is powered by a REHLKO KDW1003 water-cooled diesel engine. Depending on the engine configuration, the KDW1003 is available with EU Stage V and EPA Tier 4 Final emissions compliance.

Can this light tower be used outdoors?

Yes. The trailer-mounted structure, weatherproof enclosure, hydraulic mast and IP65 LED floodlights make it suitable for outdoor construction, mining, roadwork, infrastructure projects and other temporary lighting applications.
