50Hz 40kW 50kVA Diesel Generator with Cummins 4BTA3.9-G2 Engine
Short Description
GENLITEC POWER 40kW/50kVA diesel generator with Cummins 4BTA3.9-G2 engine, offering reliable power for industrial, commercial and standby applications.
- ModelGPC50D5 | GPC50S5
- Frequency50Hz
- Prime Power40KW/50KVA
- Standby Power44KW/55KVA
- EngineCummins 4BTA3.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GPC50D5 open type and GPC50S5 silent type diesel generator sets provide 40kW/50kVA prime power and 44kW/55kVA standby power. Powered by a Cummins 4BTA3.9-G2 four-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to provide stable and reliable power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The generator package features a 24V DC electric starting system, water-cooled engine, anti-vibration mountings and AVR voltage regulation for dependable operation and stable power output.

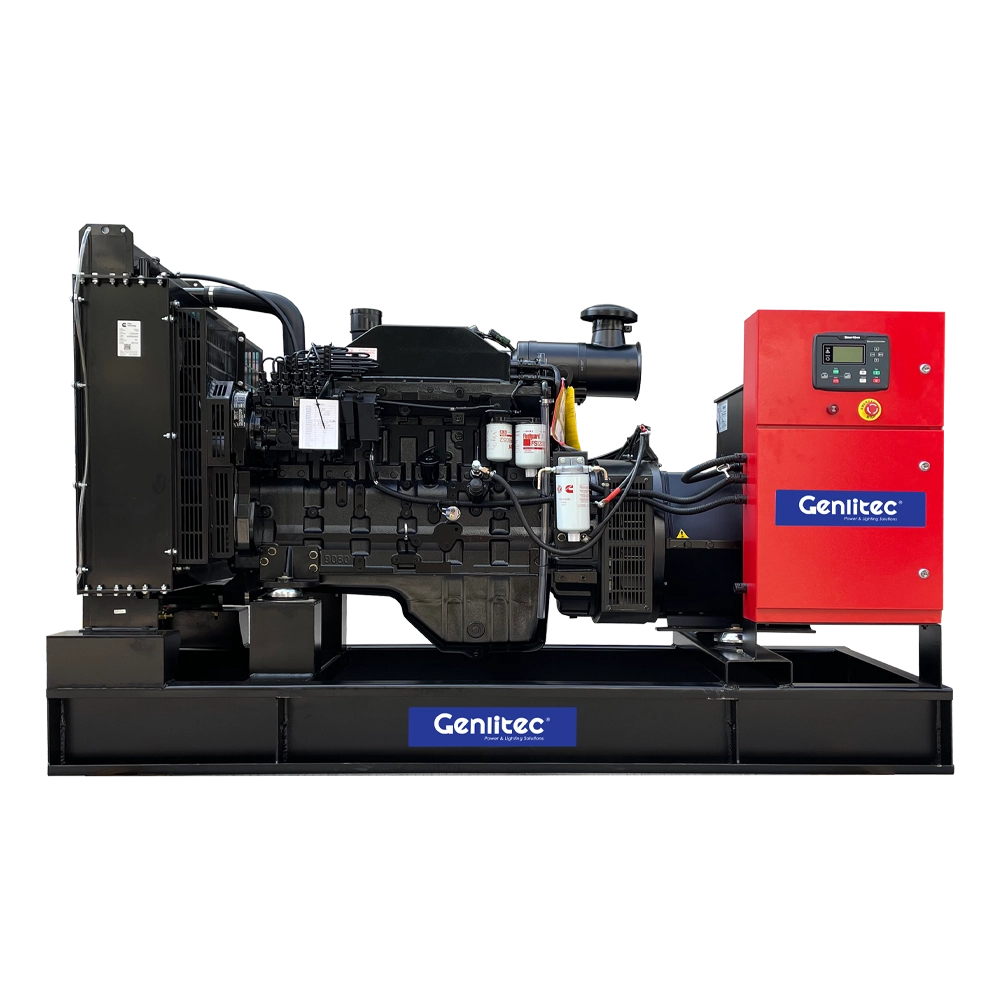

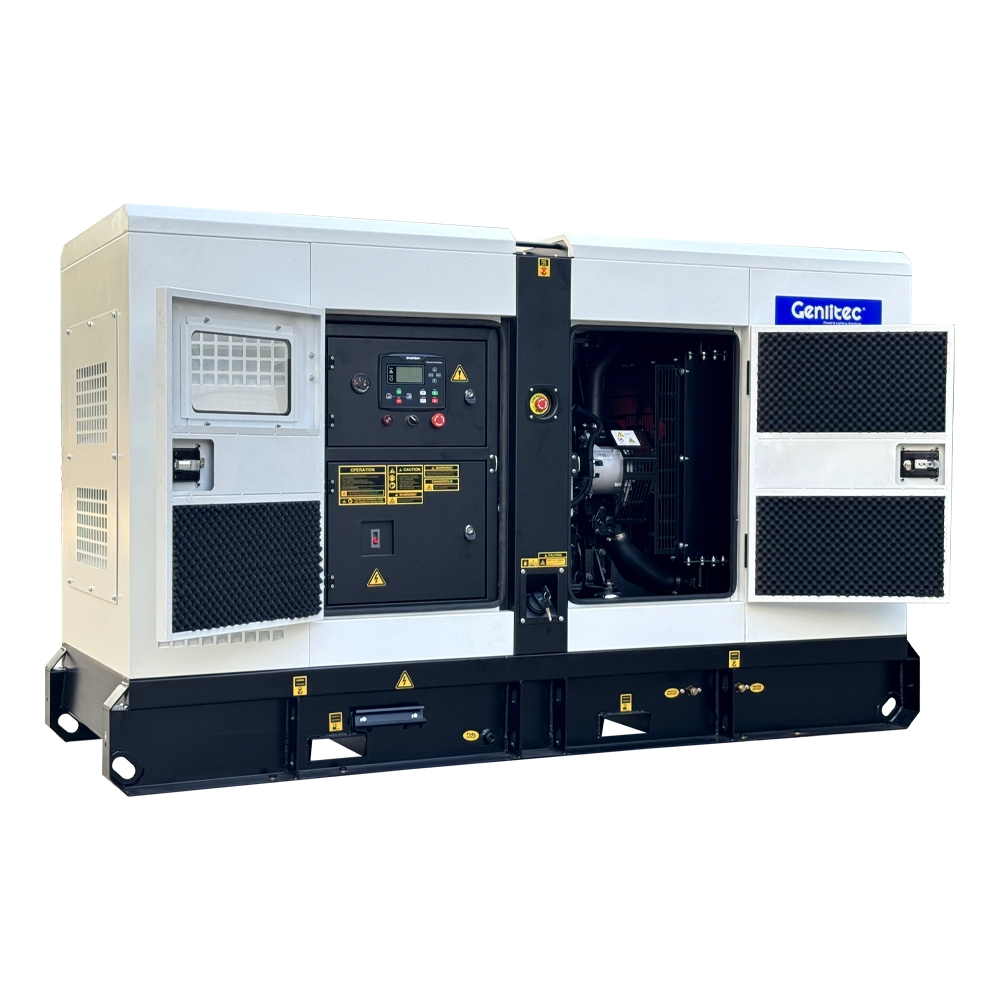

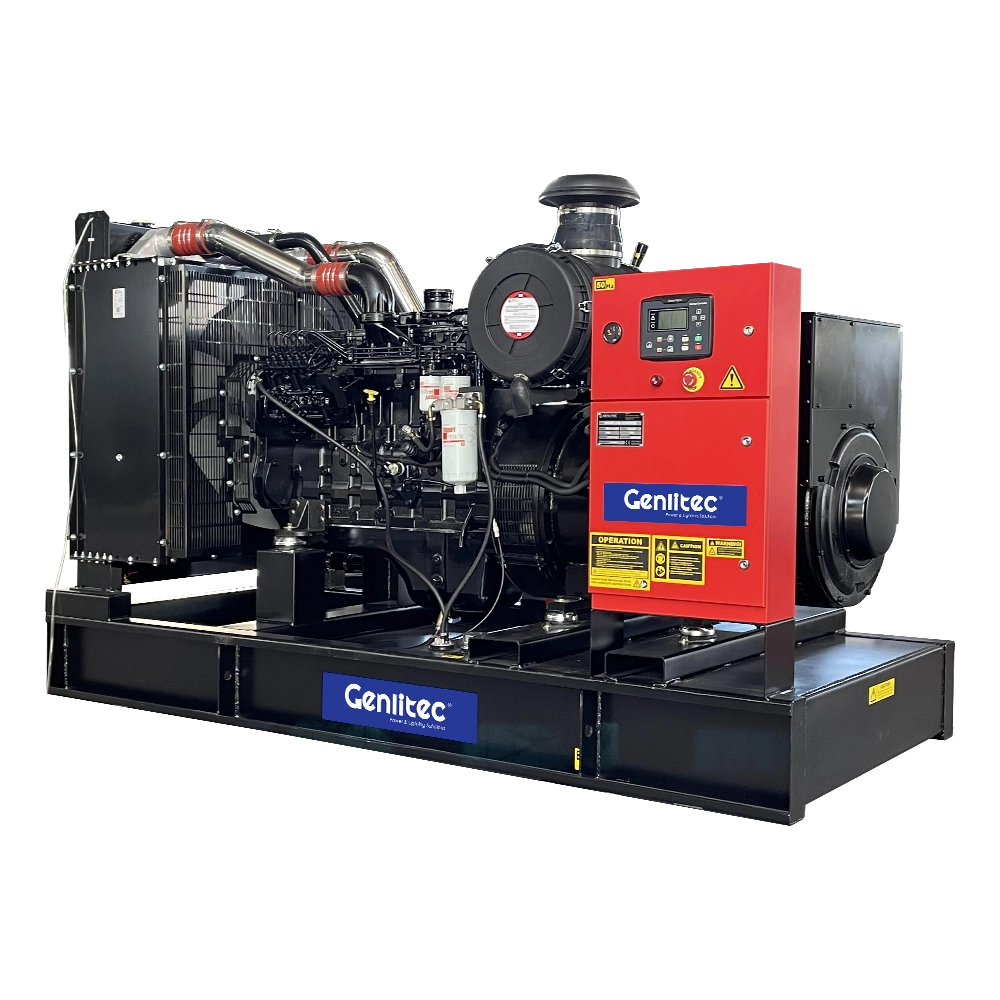

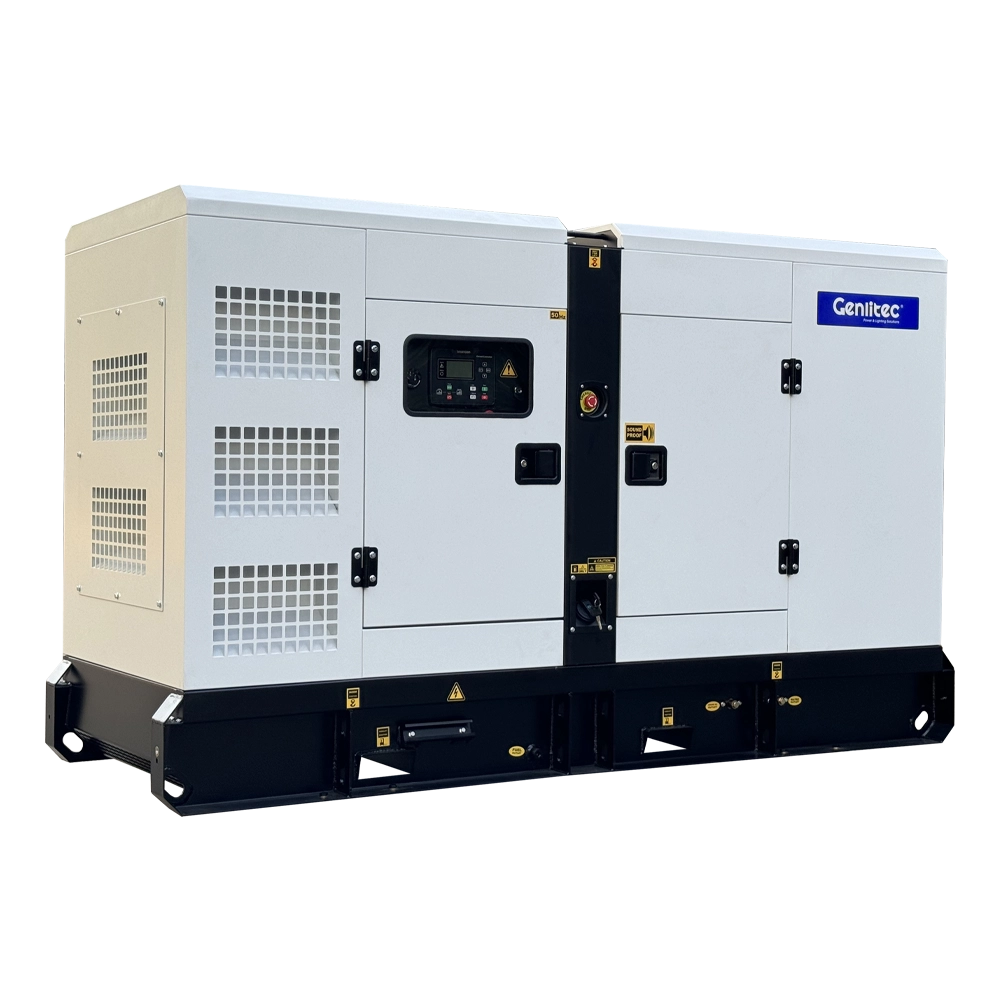

The GPC50D5 open type is suitable for installations where ventilation, inspection and maintenance access are important. The GPC50S5 silent type features a weatherproof sound-attenuated enclosure with internal exhaust silencing, making it suitable for applications where reduced operating noise and outdoor protection are required.
Generator Set
| Open Type Model | GPC50D5 |
| Silent Type Model | GPC50S5 |
| Prime Power | 40kW/50kVA |
| Standby Power | 44kW/55kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 80L |
Diesel Engine
| Engine Model | Cummins 4BTA3.9-G2 |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged, Water/Air Charged |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1500RPM |
| Displacement | 3.9L |
| Rated Power | 50kW |
| Standby Power | 55kW |
| Fuel System | BYC A-Type |
| Oil Capacity | 16.4L |
| Coolant Capacity | 24L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 12.9L/H |
| 75% Prime Load | 10.1L/H |
| 50% Prime Load | 7.0L/H |
| 25% Prime Load | 4.3L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 40kW/50kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPC50S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 40kW/50kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project and export experience, GENLITEC POWER serves customers in different markets with flexible product configurations and practical power solutions.
○ Established manufacturer with extensive generator set and lighting tower experience
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible configurations for different power requirements and applications
○ Professional manufacturing and quality control
○ International export and project experience across multiple markets
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
