50Hz 48kW 60kVA Diesel Generator with Cummins 4BTA3.9-G2 Engine
Short Description
50Hz 48kW/60kVA diesel generator with Cummins 4BTA3.9-G2 engine, designed for reliable industrial, commercial and standby power applications.
- ModelGPC60D5 | GPC60S5
- Prime Power48KW/60KVA
- Standby Power53KW/66KVA
- EngineCummins 4BTA3.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

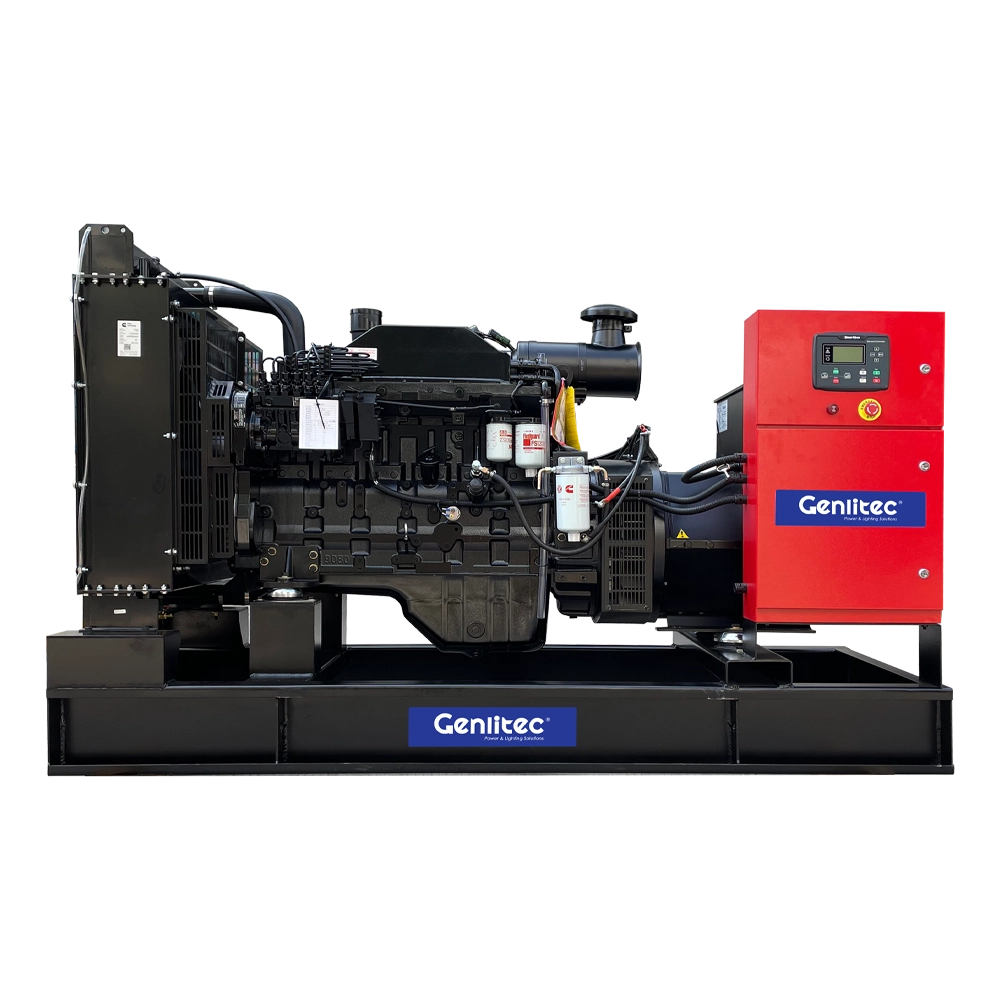

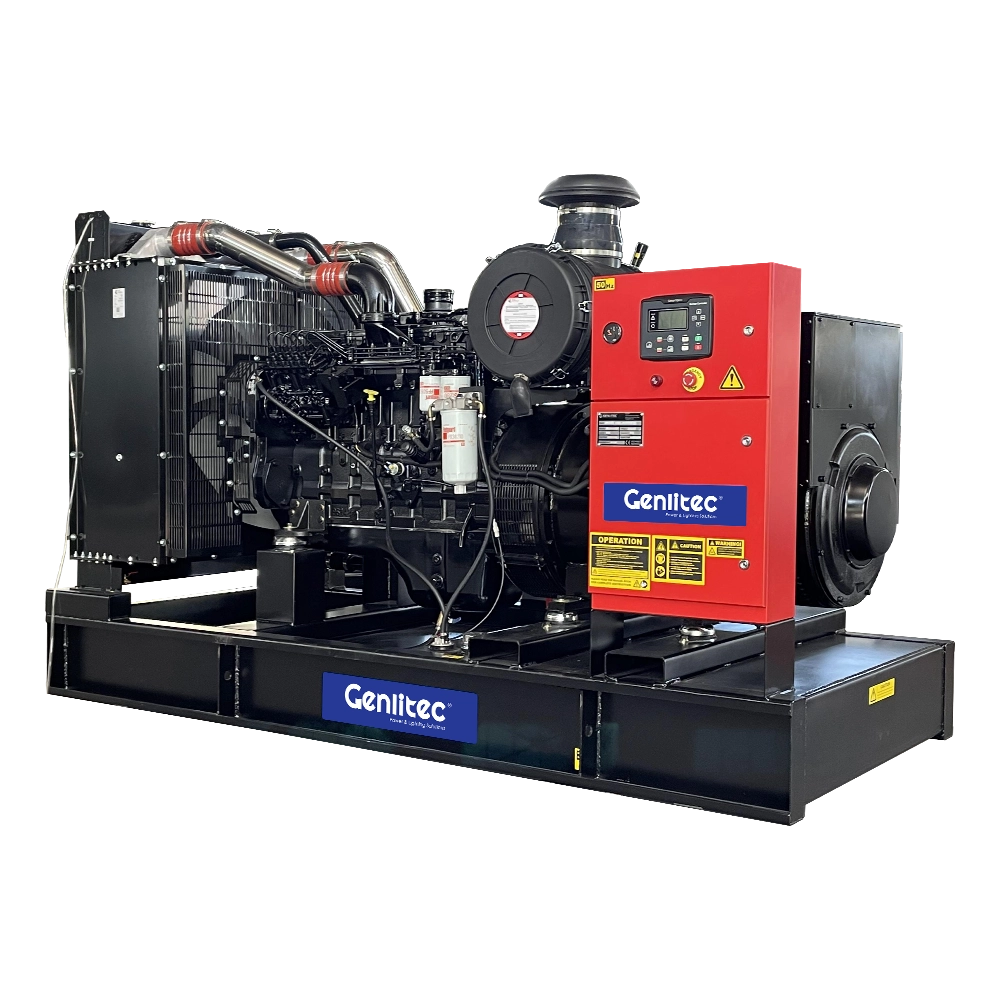

The GENLITEC POWER® GPC60D5 open type and GPC60S5 silent type diesel generator sets provide 48kW/60kVA prime power and 53kW/66kVA standby power. Powered by a Cummins 4BTA3.9-G2 four-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to deliver stable and reliable power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The generator package features a 24V DC electric starting system, electronic engine governor, anti-vibration mountings and a digital control system for dependable operation and convenient monitoring.
Generator Set
| Open Type Model | GPC60D5 |
| Silent Type Model | GPC60S5 |
| Prime Power | 48kW/60kVA |
| Standby Power | 53kW/66kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 100L |
Diesel Engine
| Engine Model | Cummins 4BTA3.9-G2 |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged, After-Cooled |
| Cooling Method | Water Cooled |
| Governor Type | GAC Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1500RPM |
| Displacement | 3.9L |
| Rated Power | 50kW |
| Standby Power | 55kW |
| Fuel System | BYC A-Type |
| Oil Capacity | 16.4L |
| Coolant Capacity | 24L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 13.1L/H |
| 75% Prime Load | 9.8L/H |
| 50% Prime Load | 6.7L/H |
| 25% Prime Load | 3.8L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 50kW/62.5kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

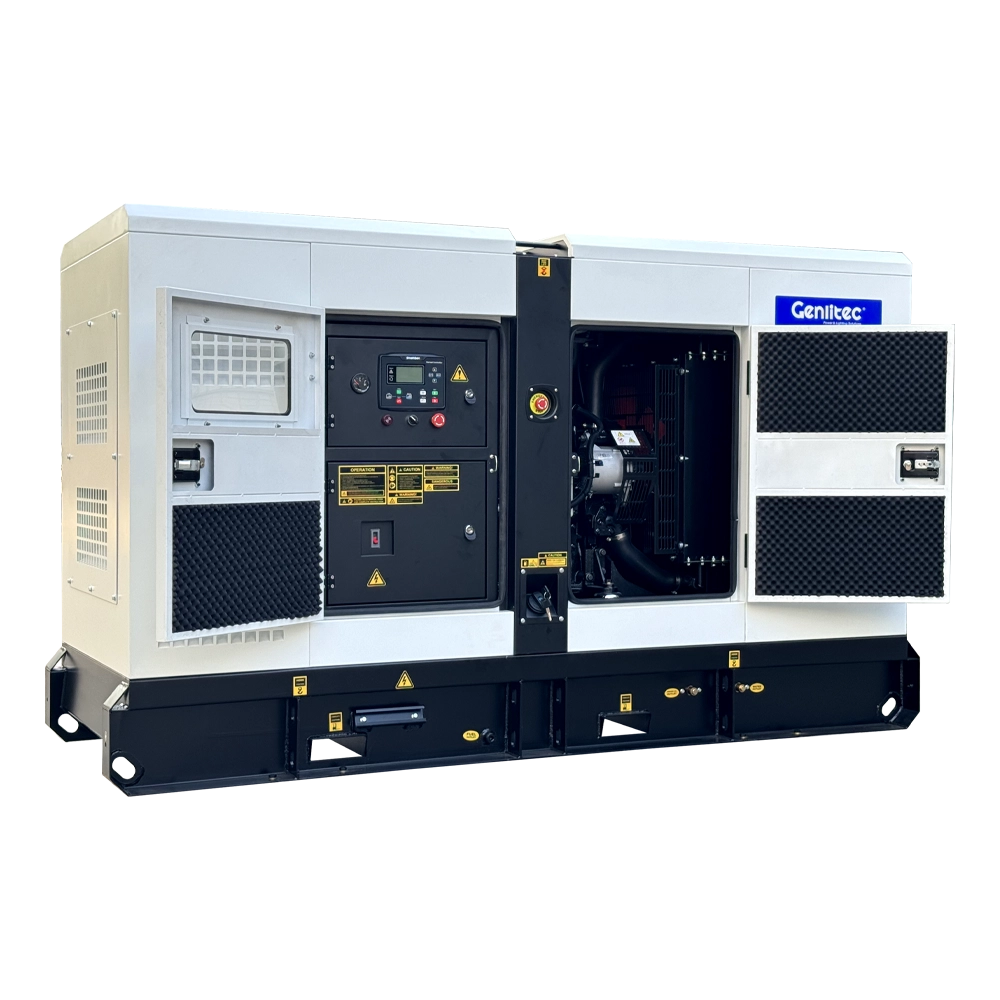

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation

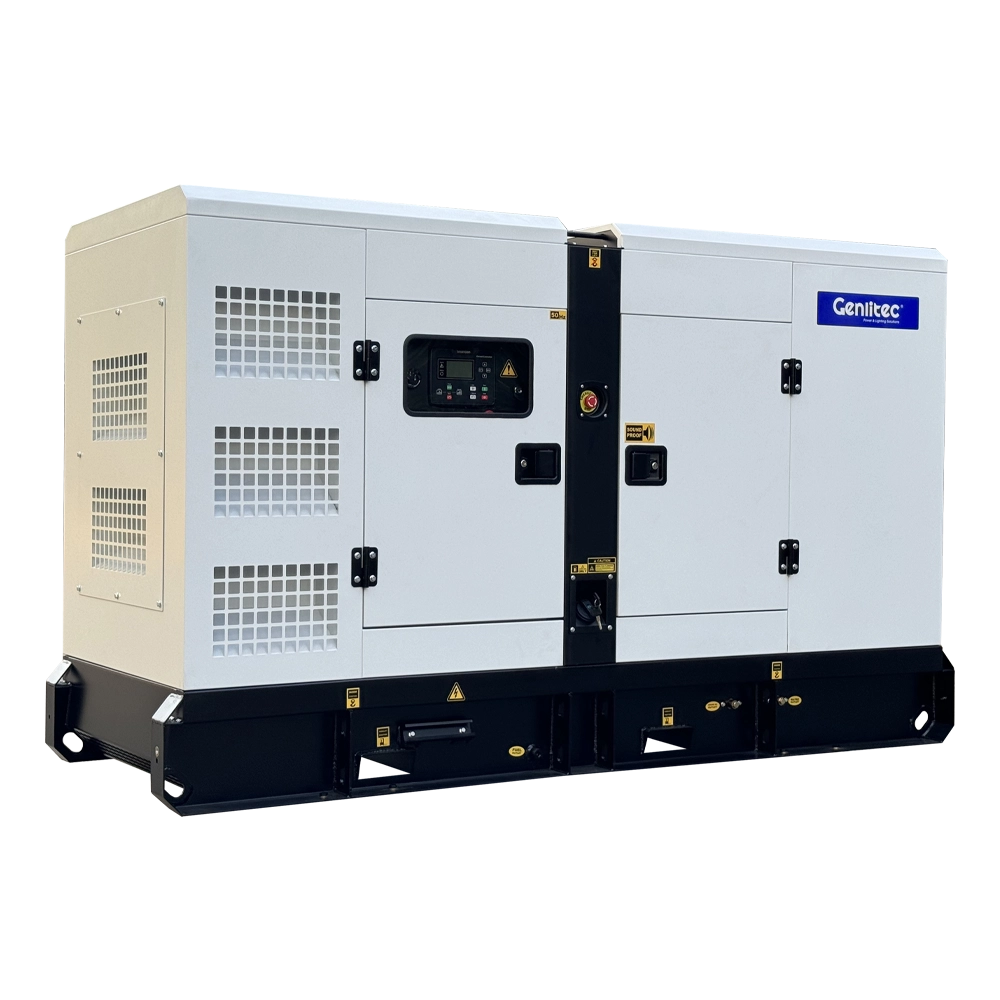

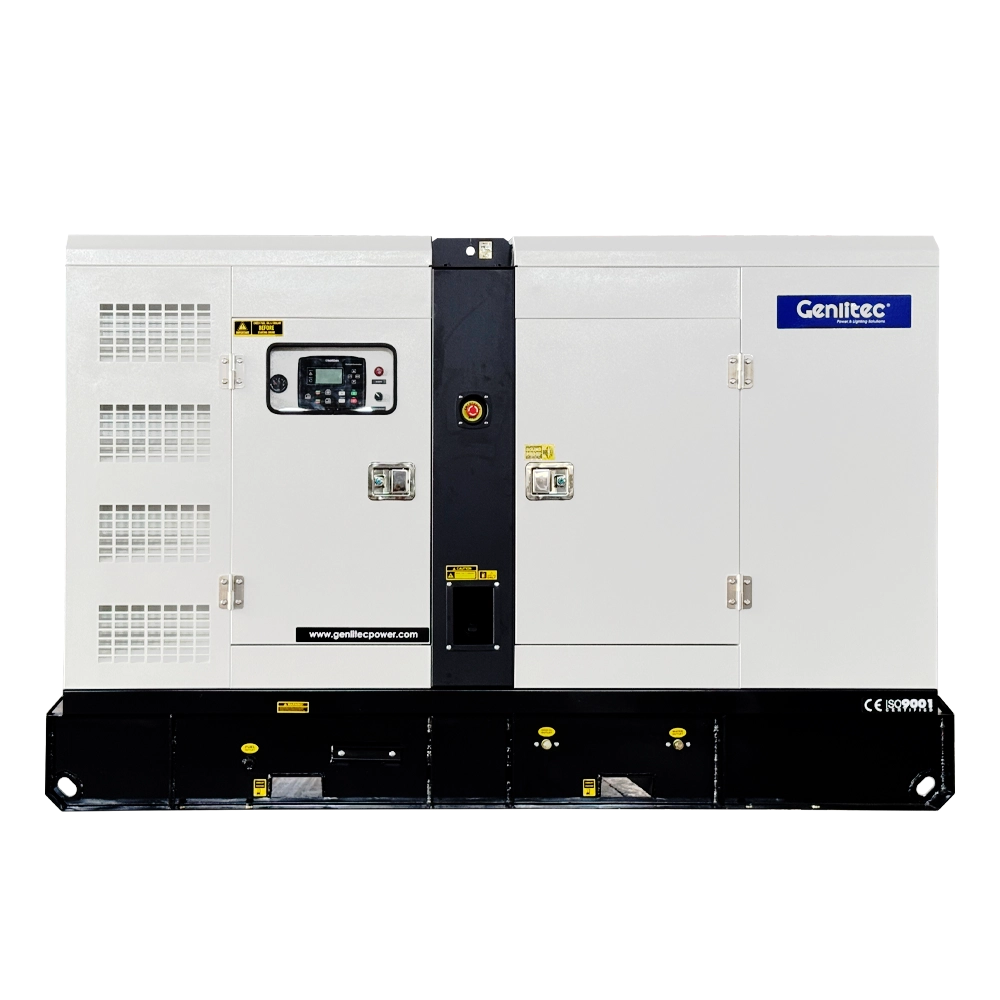

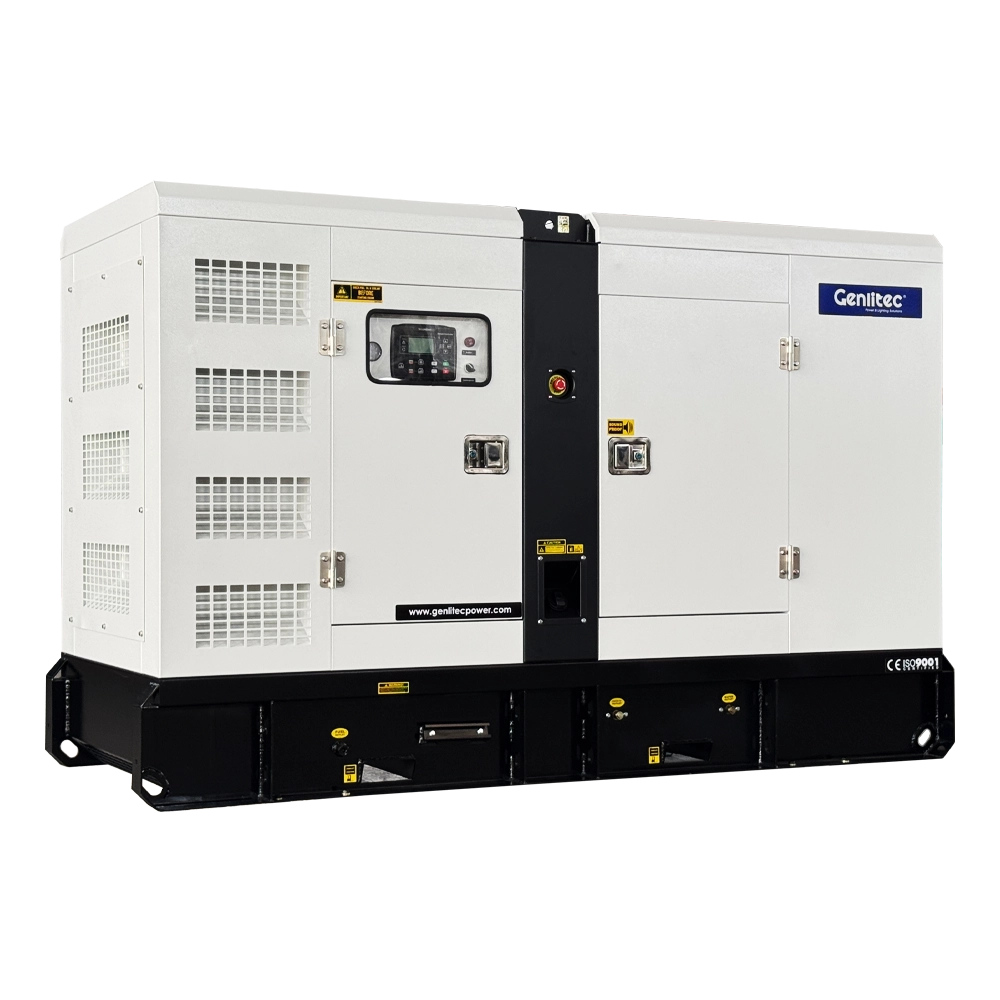

○ Available for GPC60S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 48kW/60kVA diesel generator set is suitable for a variety of prime, standby and backup power requirements, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible product configurations, established component suppliers, professional manufacturing capabilities and international project experience, GENLITEC POWER serves customers and distributors in different markets with practical and dependable power generation solutions.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Generator solutions from compact standby sets to high-power industrial applications
○ Customized configurations for different power, voltage and application requirements
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
