50Hz 460kW 575kVA Diesel Generator with Cummins KTAA19-G6 Engine
Short Description
GENLITEC POWER GPC575D5/GPC575S5 575kVA diesel generator powered by CUMMINS KTAA19-G6, delivering 460kW prime and 520kW standby power.
- ModelGPC575D5 | GPC575S5
- Frequency50Hz
- Prime Power460KW/575KVA
- Standby Power520KW/650KVA
- EngineCummins KTAA19-G6
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)112kg/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC575D5 and GPC575S5 are 575kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 460kW/575kVA for prime power and 520kW/650kVA for standby power at 50Hz and 1500 RPM.
Powered by the Cummins KTAA19-G6 six-cylinder, 19-liter diesel engine, the GPC575 series combines proven heavy-duty engine technology with a 460kW/575kVA generator output. The KTAA19-G6 features a turbocharged and air-to-air cooled air intake system, Cummins PT fuel pump system, electronic governor and water-cooled design. With a rated engine power of 520kW at 1500 RPM, the engine provides sufficient power reserve for demanding generator applications.

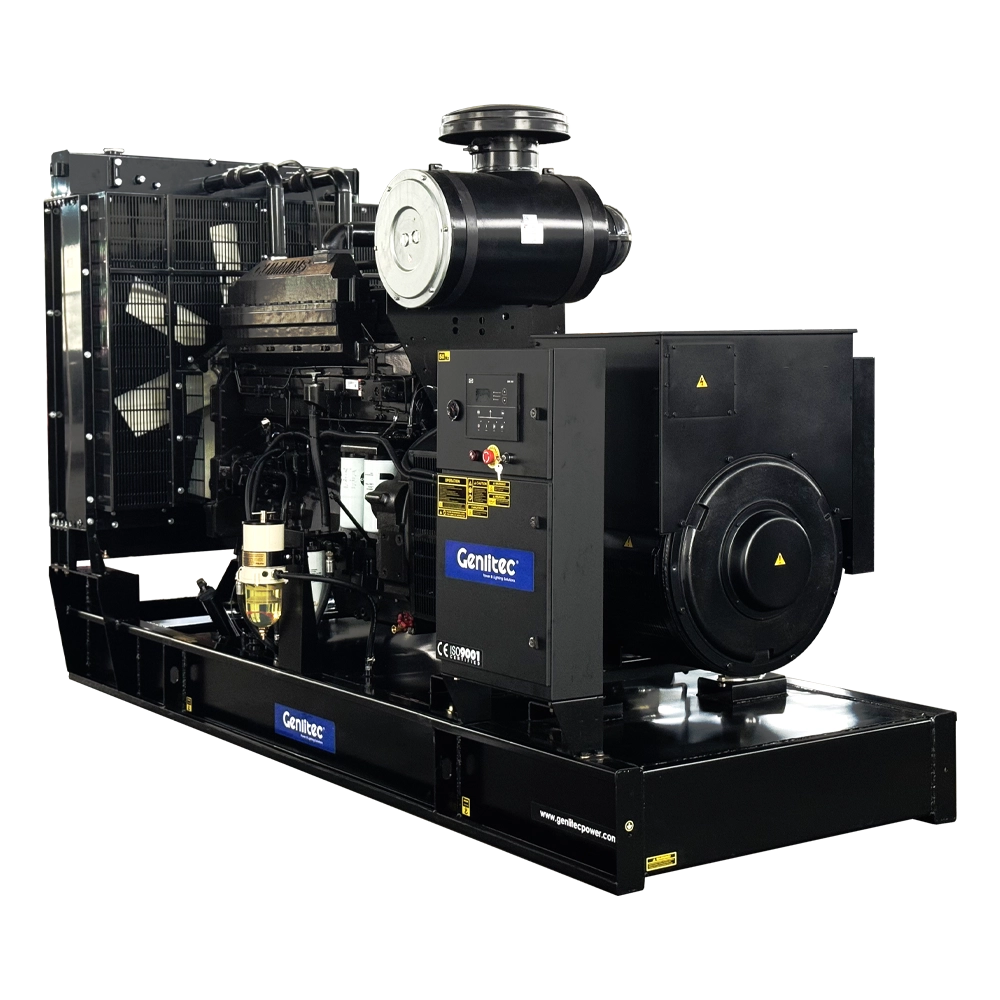

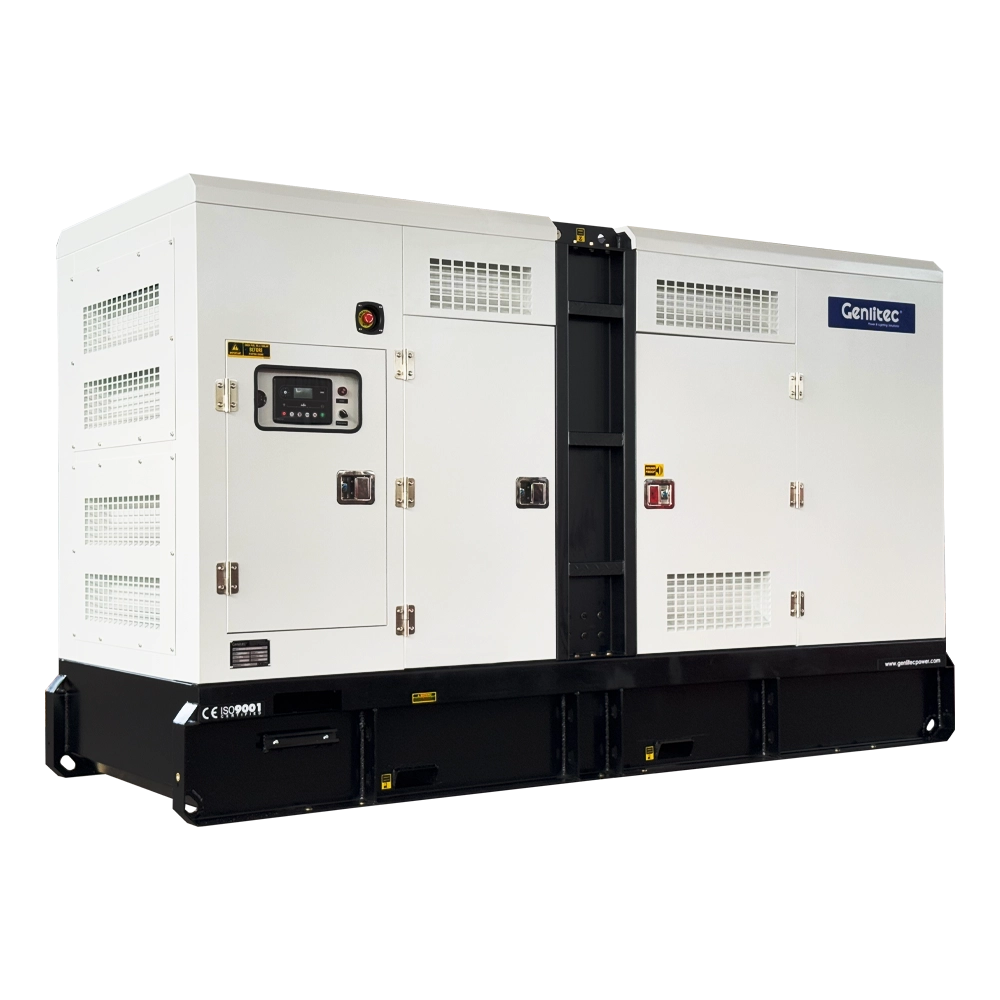

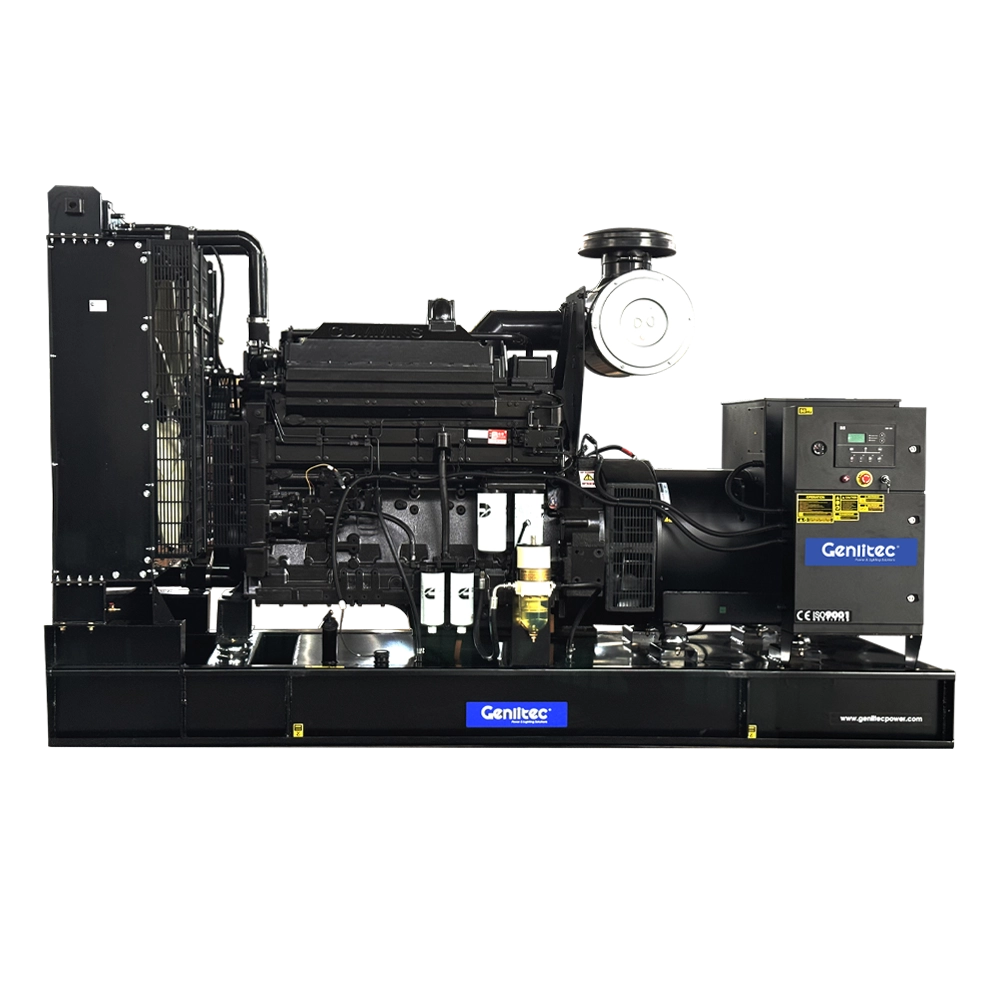

The GPC575 generator set is available in both open and silent configurations. The GPC575D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC575S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. An 870L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.
Generator Set
| Open Type Model | GPC575D5 |
| Silent Type Model | GPC575S5 |
| Prime Power | 460KW/575KVA |
| Standby Power | 520KW/650KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 870L |
Diesel Engine
| Model | CUMMINS KTAA19-G6 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air to Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500RPM |
| Displacement | 19L |
| Rated Power | 520KW |
| Standby Power | 570KW |
| Coolant Capacity | 26.5L (Engine Only) |
| Oil Capacity | 37.9L |
| Fuel System | CUMMINS PT Pump |
| Electric Starting System | DC 24V |
Fuel Consumption (KG/H)
| 100% Prime Load | 112 KG/H |
| 75% Prime Load | 83 KG/H |
| 50% Prime Load | 56 KG/H |
| 25% Prime Load | 32 KG/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 480KW/600KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC575S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 460kW/575kVA Cummins KTAA19-G6 diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to provide reliable diesel generator sets for demanding power applications. The GPC575 series uses the Cummins KTAA19-G6 engine and is configured to deliver 460kW/575kVA prime power with sufficient engine reserve capacity.
○ Genuine Cummins KTAA19-G6 diesel engine configuration
○ 460kW/575kVA prime power and 520kW/650kVA standby power
○ 19L six-cylinder turbocharged and air-to-air cooled diesel engine
○ Cummins PT fuel pump system and electronic governor
○ 520kW rated engine power and 570kW standby engine power
○ 870L fuel tank for extended operating periods
○ High-quality alternator with H Class insulation and IP23 protection
○ Open and silent configurations for different installation requirements
○ ATS, synchronization and remote monitoring options available
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
