50Hz 400kW 500kVA Diesel Generator with Deutz TCD13.0 G2 Engine
Introduction

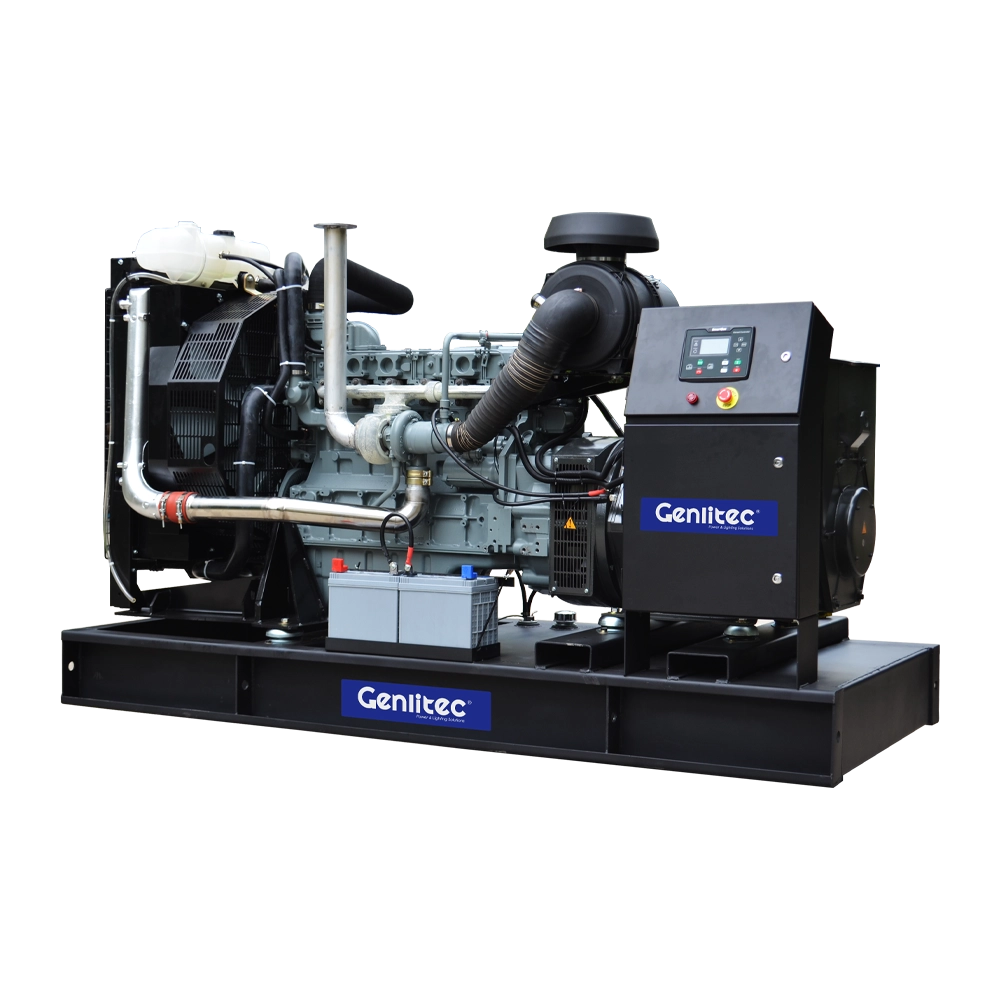

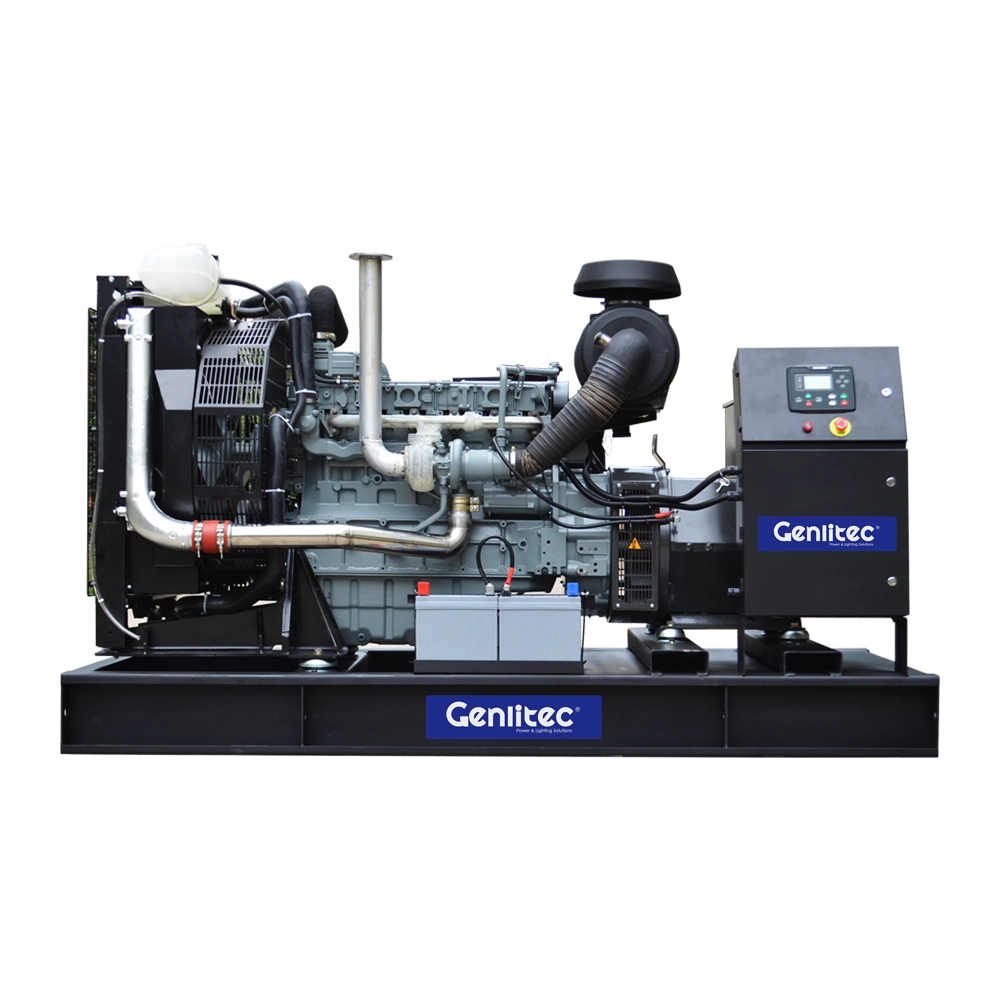

The GENLITEC POWER GPD500D5-I / GPD500S5-I is a 500kVA DEUTZ diesel generator set designed to provide reliable prime, standby and backup power for industrial, commercial and infrastructure applications. Powered by the DEUTZ TCD13.0 G2 diesel engine, this 50Hz generator operates at 1500RPM and delivers 400kW/500kVA prime power and 440kW/550kVA standby power. Equipped with a 750L fuel tank and available in three-phase, four-wire voltage configurations of 220/380V, 230/400V and 240/415V, the GPD500 series offers flexible power solutions for different electrical requirements. The GPD500D5-I open-type diesel generator provides convenient access for maintenance, while the GPD500S5-I silent diesel generator features a sound-attenuated enclosure for noise-sensitive environments and outdoor installations. These DEUTZ-powered generator sets are suitable for factories, commercial buildings, construction sites, agricultural facilities, telecommunications infrastructure and emergency backup power systems.
Generator Set
| Open Type Model | GPD500D5-I |
| Silent Type Model | GPD500S5-I |
| Engine Brand | DEUTZ |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 400kW/500kVA |
| Standby Power | 440kW/550kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 750L |
Diesel Engine
| Engine Brand | DEUTZ |
| Engine Model | TCD13.0 G2 |
| Cylinder Number | 6 |
| Cylinder Arrangement | In-line |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged with Charge Air Cooling (CAC) |
| Cooling Method | Water Cooled |
| Governor Type | Electronic Governor |
| Governor Brand | Bosch |
| Fuel Injection System | Common Rail Direct Injection |
| Bore x Stroke | 131 x 160 mm |
| Compression Ratio | 19:1 |
| Rated Speed | 1500 RPM |
| Displacement | 12.94L |
| Prime Power (Engine) | 440kW @ 1500 RPM |
| Standby Power (Engine) | 470kW @ 1500 RPM |
| Oil Capacity | 30L (Sump) |
| Coolant Capacity | 20L (Engine only; approx. 35L including cooling unit) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 98.74L/H |
| 75% Prime Load | 70.99L/H |
| 50% Prime Load | 47.84L/H |
| 25% Prime Load | N/A |
Alternator
| Number of Phase | 3 |
| Rated Power | 400kW/500kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

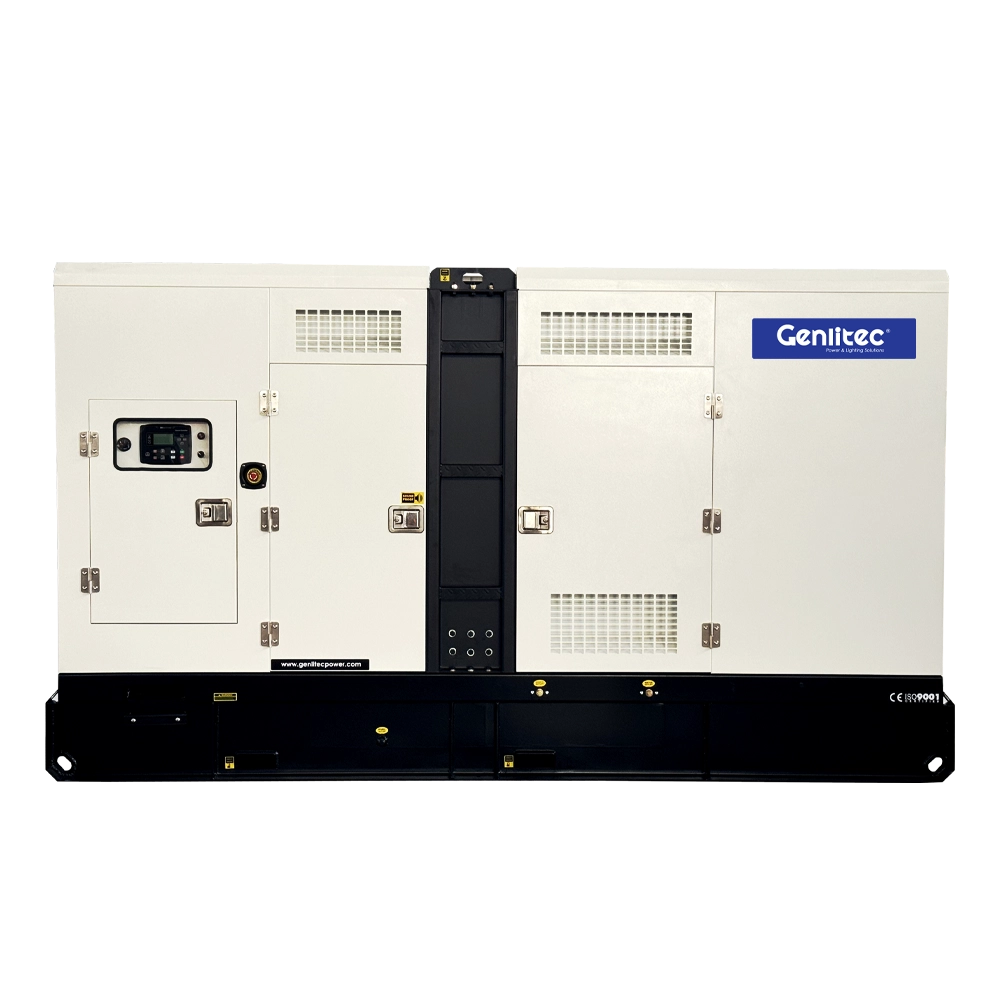

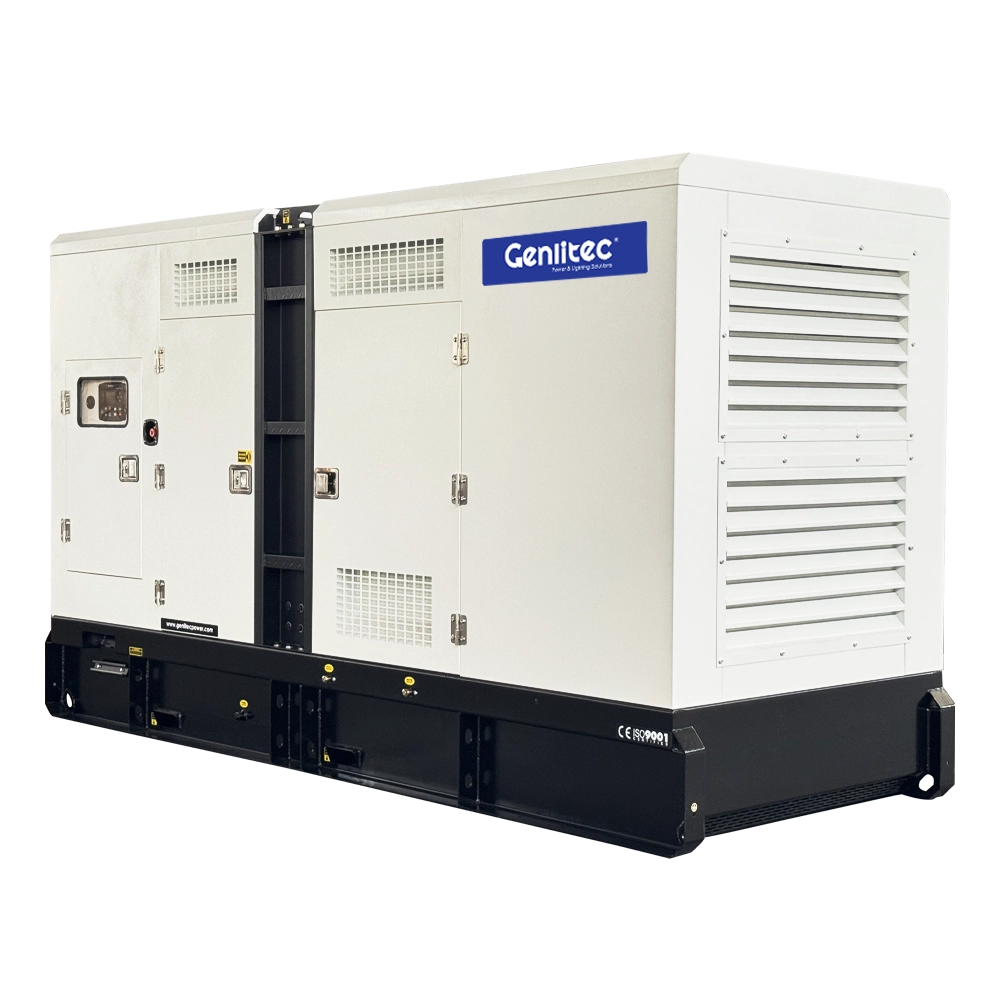

The GPD500S5-I silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide weather protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization system
Applications
The GENLITEC POWER 400kW/500kVA DEUTZ diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
