50Hz 64kW 80kVA Diesel Generator with Cummins 4BTA3.9-G11 Engine
Short Description
64kW/80kVA 50Hz diesel generator with Cummins 4BTA3.9-G11 engine, offering reliable prime and standby power for industrial and commercial applications.
- ModelGPC80D5 | GPC80S5
- Frequency50Hz
- Prime Power64kW/80kVA
- Standby Power70kW/88kVA
- EngineCummins 4BTA3.9-G11
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

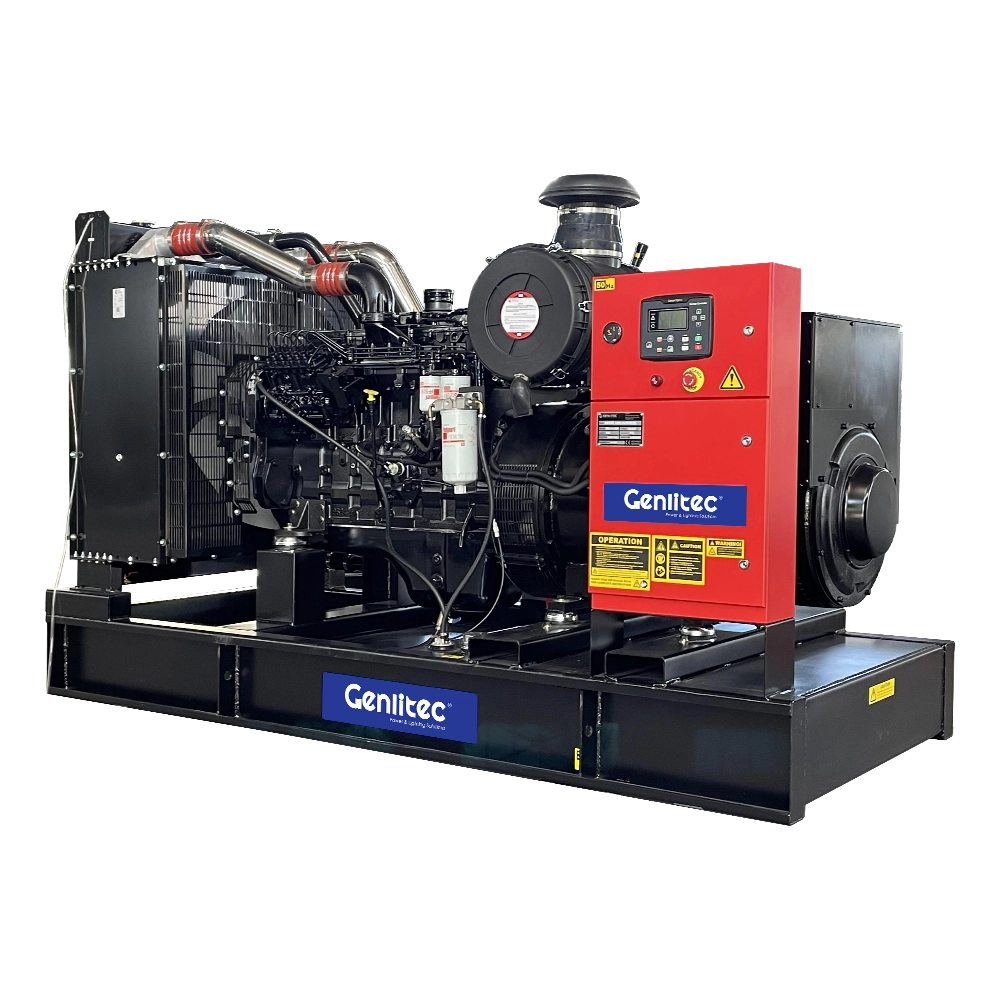

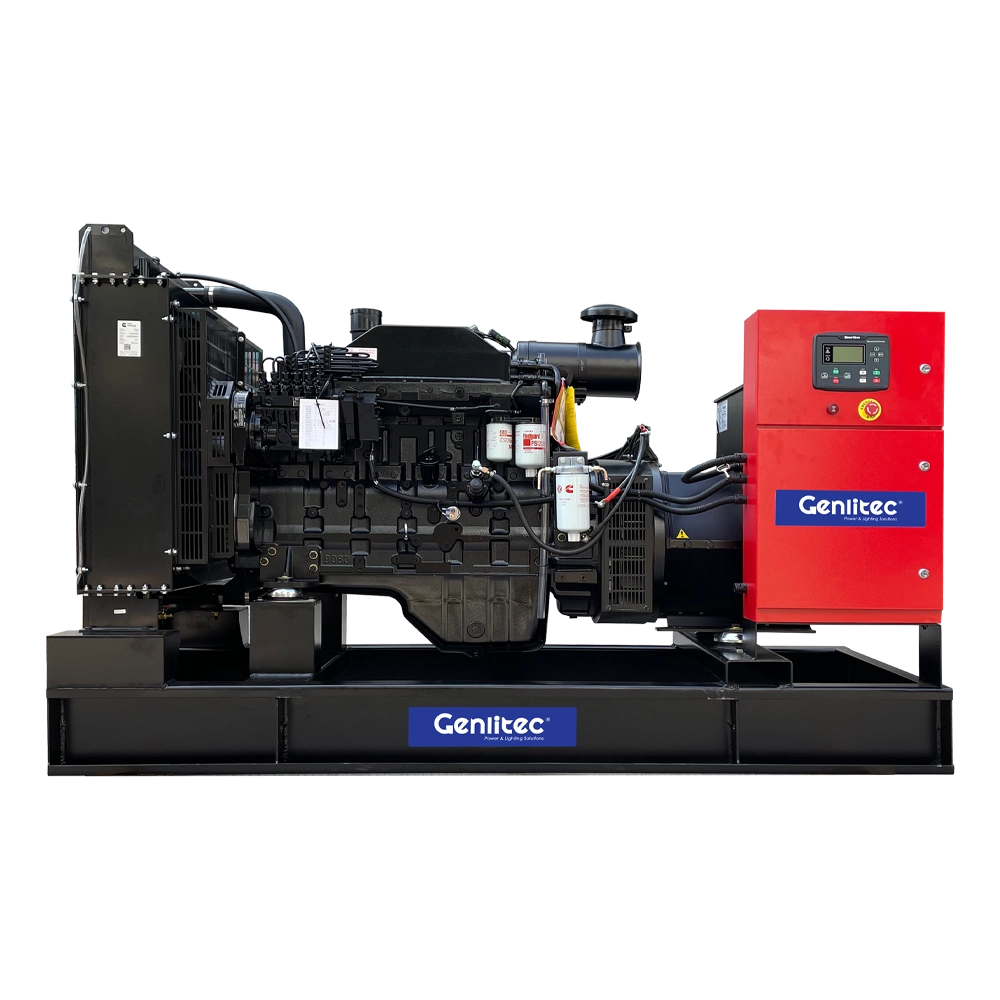

The GENLITEC POWER® GPC80D5 open type and GPC80S5 silent type diesel generator sets provide 64kW/80kVA prime power and 70kW/88kVA standby power. Powered by a Cummins 4BTA3.9-G11 four-cylinder water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to deliver stable and reliable power for commercial, industrial, construction, agricultural and backup applications.

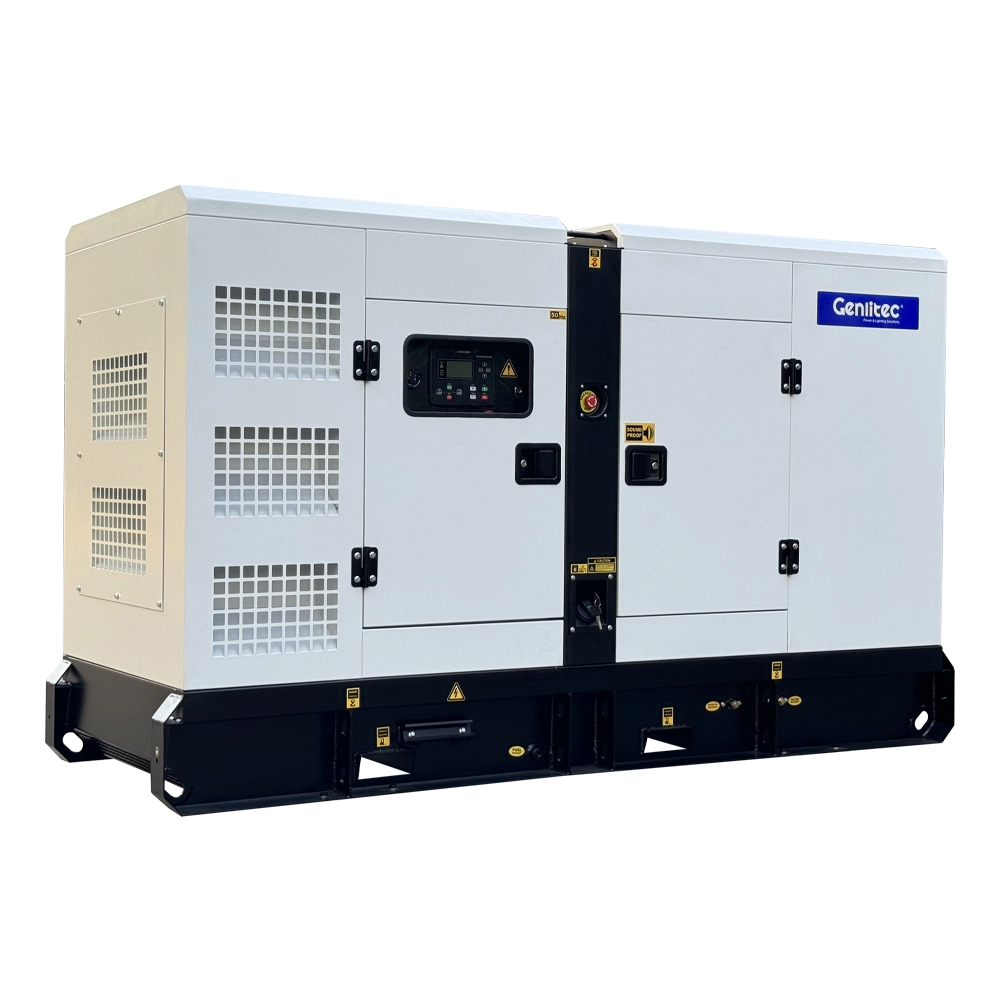

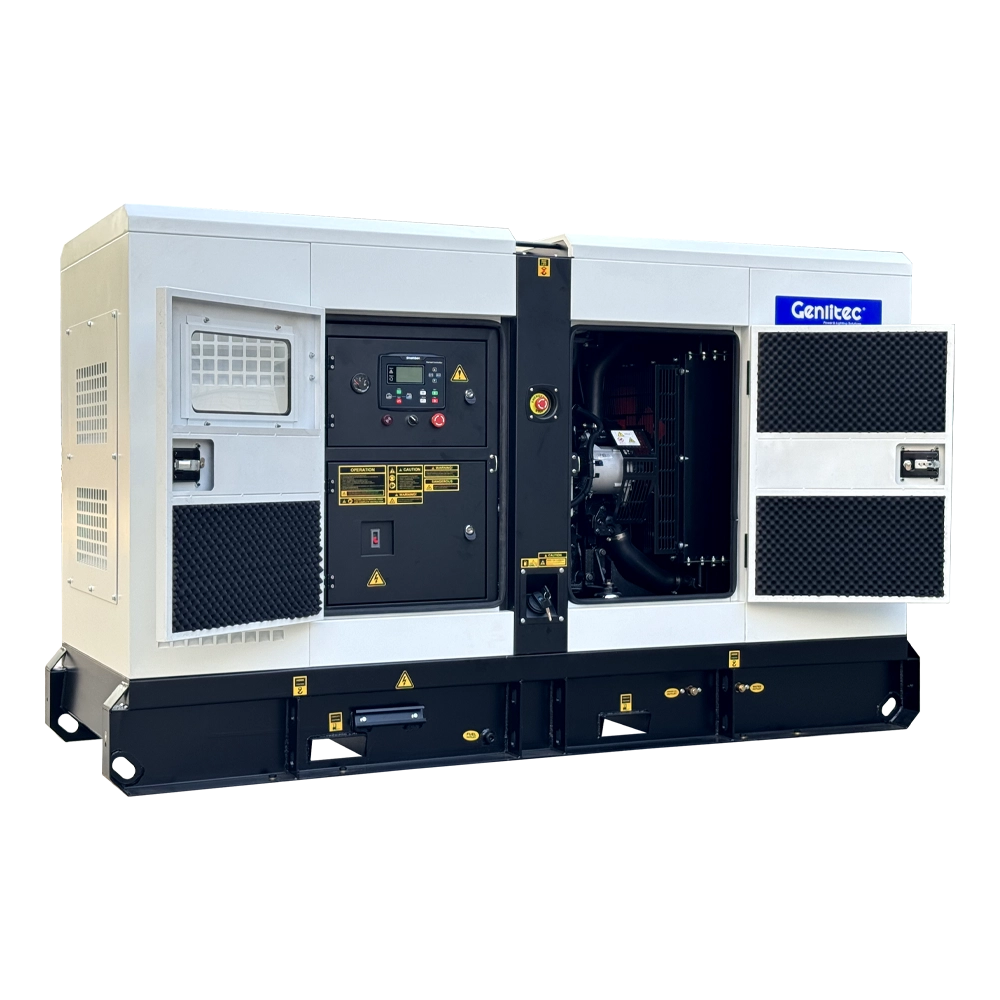

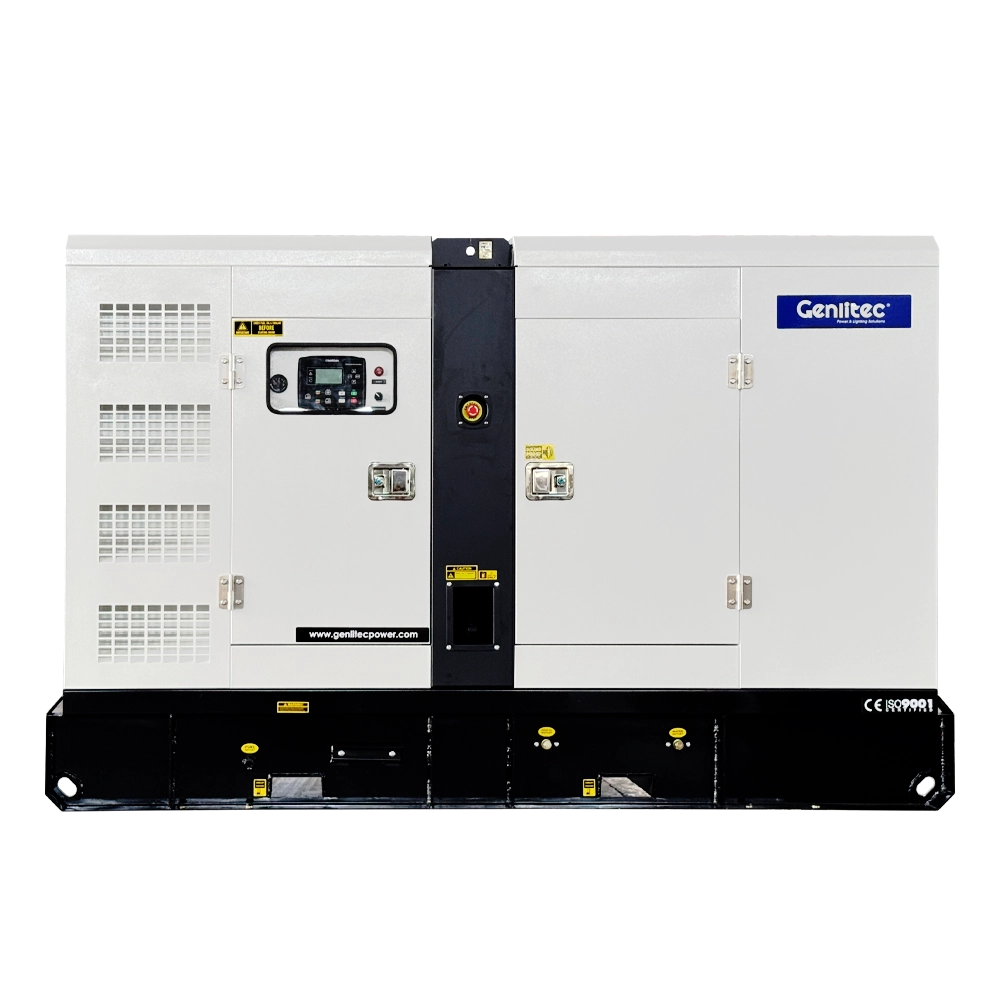

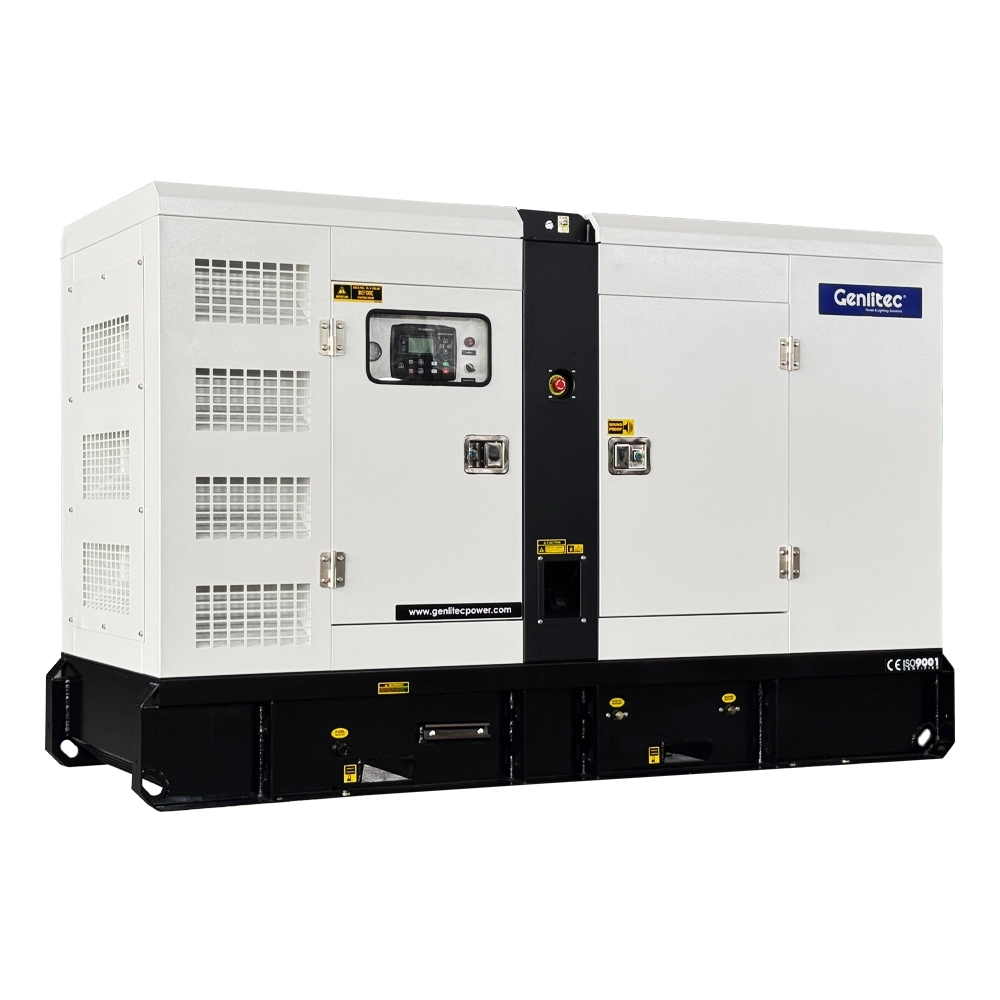

Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with flexible voltage configurations of 220/380V, 230/400V and 240/415V. The package features a 24V DC electric starting system, electronic governor, anti-vibration mountings and generator protection functions for dependable operation and convenient monitoring. The GPC80D5 open type is suitable for installations where ventilation and service access are important, while the GPC80S5 silent type is equipped with a weatherproof sound-attenuated enclosure for applications requiring improved noise control and outdoor protection.
Generator Set
| Open Type Model | GPC80D5 |
| Silent Type Model | GPC80S5 |
| Prime Power | 64kW/80kVA |
| Standby Power | 70kW/88kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500RPM |
| Fuel Tank Capacity | 140L |
Diesel Engine
| Engine Model | Cummins 4BTA3.9-G11 |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged & Aftercooler |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1500RPM |
| Displacement | 3.9L |
| Rated Power | 70kW |
| Standby Power | 80kW |
| Fuel System | BYC PB Pump |
| Oil Capacity | 10.9L |
| Coolant Capacity | 8.3L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 17.6L/H |
| 75% Prime Load | 13.2L/H |
| 50% Prime Load | 9.1L/H |
| 25% Prime Load | 5.3L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 64kW/80kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC80S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 64kW/80kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible product configurations, multiple engine and alternator options, professional manufacturing capabilities and international project experience, GENLITEC POWER provides practical power generation solutions for customers in different markets and operating environments.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible configurations for different power requirements and applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
