50Hz 800kW 1000kVA Diesel Generator with Cummins KTA38-G5 Engine
Short Description
GENLITEC POWER GPC1000D5/GPC1000S5 Cummins diesel generator set powered by original CUMMINS KTA38-G5, with prime power 800KW/1000KVA.
- ModelGPC1000D5 | GPC1000S5
- Frequency50Hz
- Prime Power800KW/1000KVA
- Standby Power880KW/1100KVA
- EngineCummins KTA38-G5
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)178kg/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC1000D5 and GPC1000S5 are 1000kVA Cummins diesel generator sets designed to provide reliable three-phase power for industrial, commercial, construction, mining, infrastructure and standby power applications. The generator sets are rated at 800kW/1000kVA for prime power and 880kW/1100kVA for standby power at 50Hz, with 1500 RPM operation.
Powered by the Cummins KTA38-G5 V-12, 38-liter diesel engine, the GPC1000 series combines high engine capacity with an 800kW/1000kVA alternator output. The Cummins KTA38-G5 features a turbocharged and water/air cooling system, Cummins PT Pump fuel system and EFC electronic governor. At 50Hz and 1500 RPM, the engine provides 880kW rated power and 970kW standby power, providing suitable engine capacity for the rated generator set output.

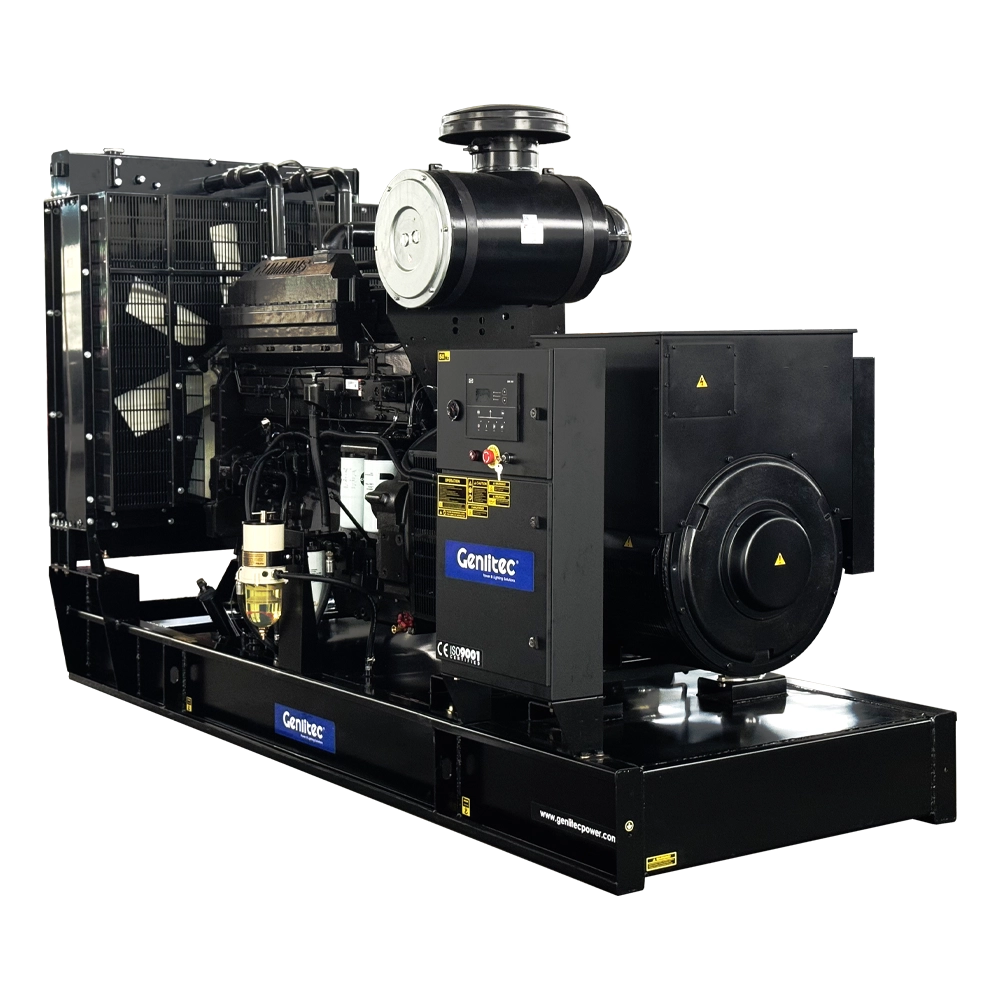

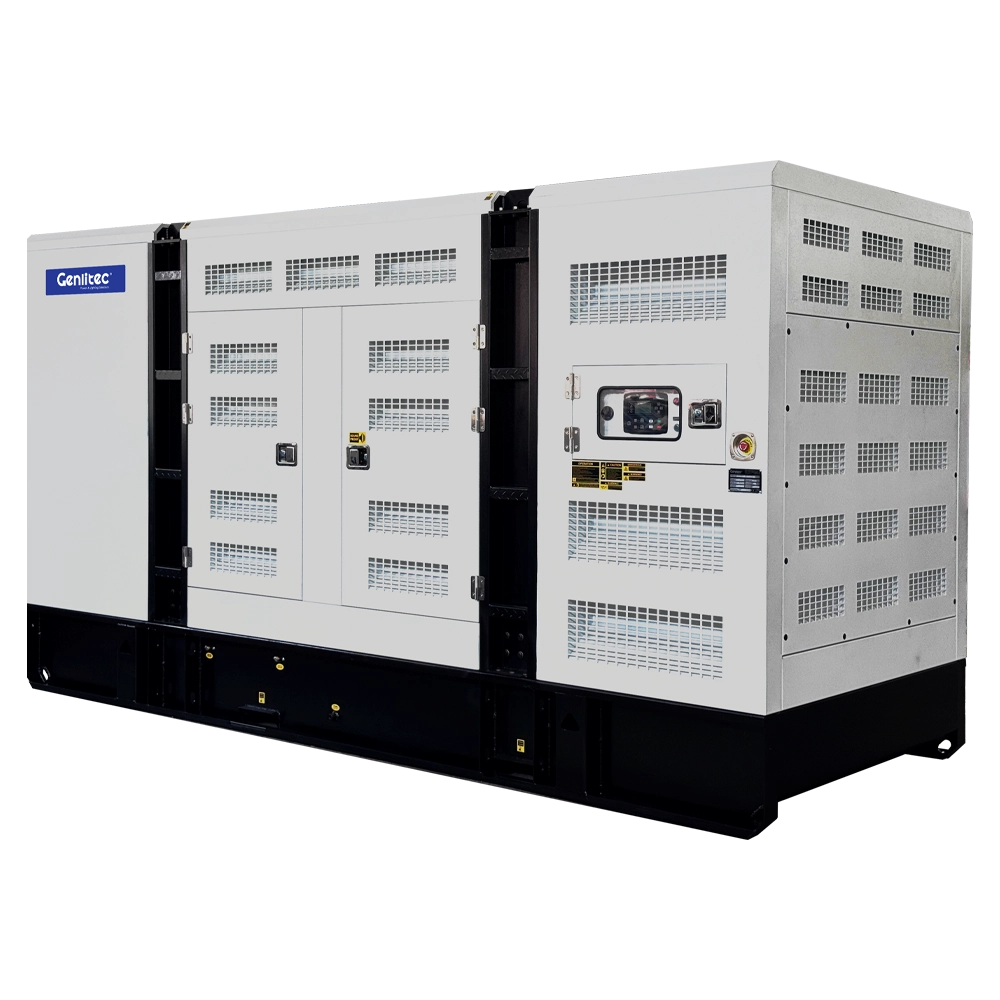

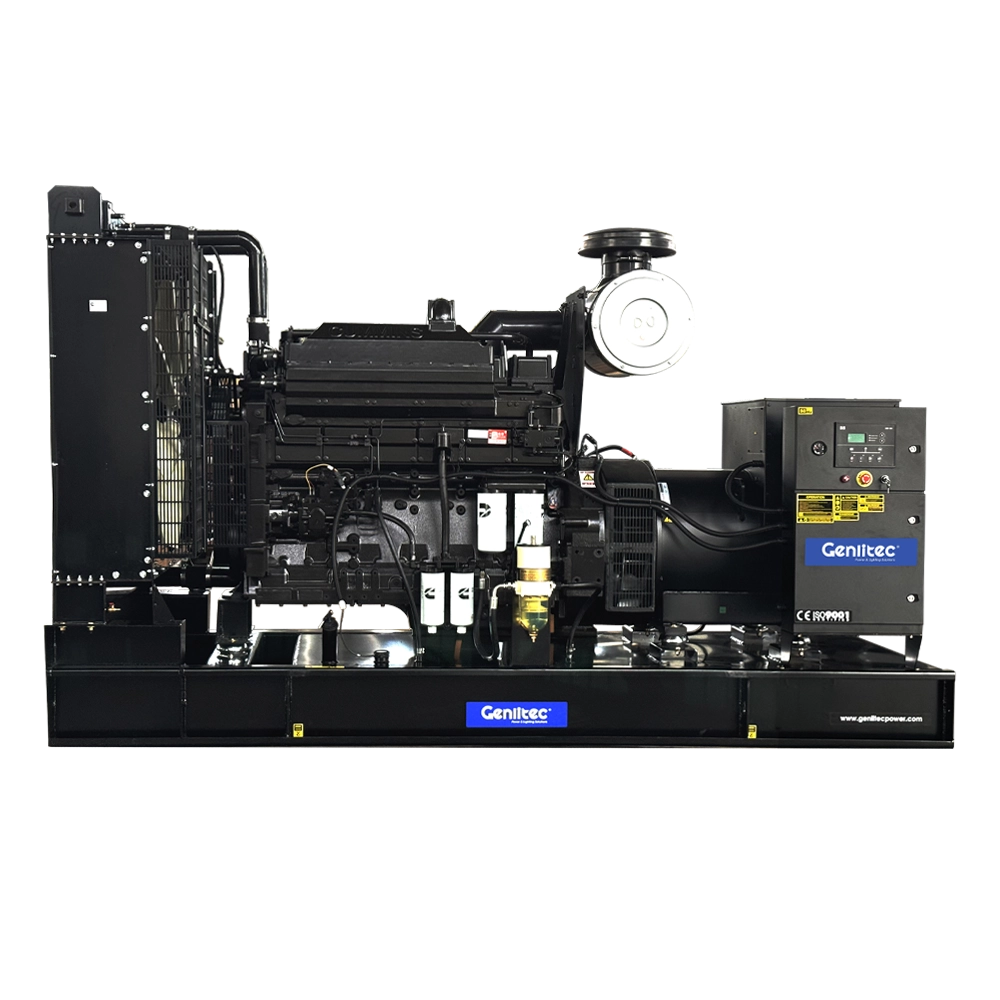

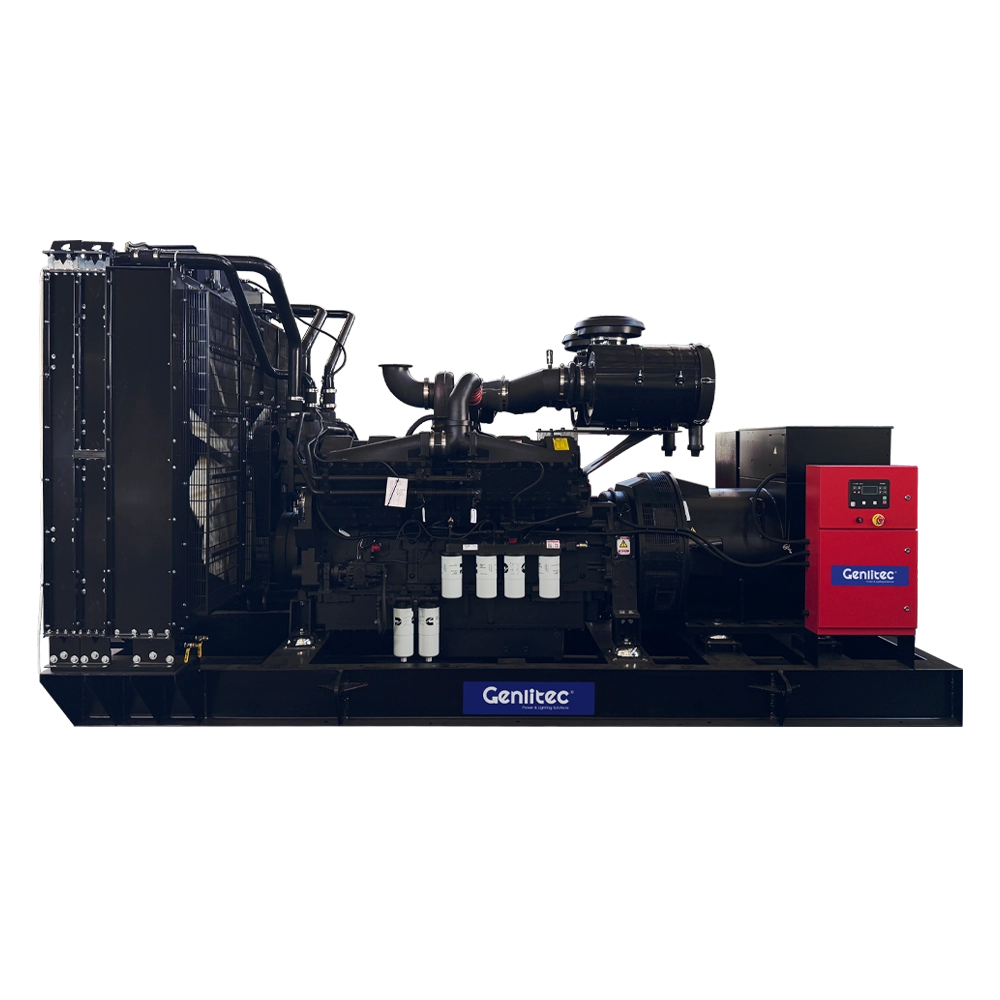

The GPC1000 generator set is available in both open and silent configurations. The GPC1000D5 open type is suitable for generator rooms and installations where easy maintenance and ventilation are required, while the GPC1000S5 silent type features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications. A 1000L fuel tank is provided for extended operating periods, while ATS, synchronization, remote monitoring and other options are available for different project requirements.
Generator Set
| Open Type Model | GPC1000D5 |
| Silent Type Model | GPC1000S5 |
| Prime Power | 800KW/1000KVA |
| Standby Power | 880KW/1100KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | CUMMINS KTA38-G5 |
| Cylinder Number | V-12 |
| Aspiration System | Turbocharged, Water/Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | EFC Electronic |
| Bore x Stroke | 159 x 159 mm |
| Compression Ratio | 13.9:1 |
| Rated Speed | 1500 RPM |
| Displacement | 38L |
| Rated Power | 880KW |
| Standby Power | 970KW |
| Coolant Capacity | 258L |
| Oil Capacity | 135L |
| Fuel System | CUMMINS PT Pump |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 178kg/H |
| 75% Prime Load | 137kg/H |
| 50% Prime Load | 96kg/H |
| 25% Prime Load | 55kg/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 800KW/1000KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC1000S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 20' Containerized canopy
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 800kW/1000kVA Cummins KTA38-G5 diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power equipment and customized power solutions to customers worldwide.
○ Established in 2016 with more than 10 years of experience in power equipment manufacturing and export
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Products supplied to customers in more than 50 countries and regions worldwide
○ Professional engineering team providing customized power solutions for different applications and project requirements
○ Extensive experience with leading engine brands including Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC to meet different performance and application requirements
○ Strict quality control and testing procedures throughout production and assembly
○ Complete power solutions including diesel generator sets, mobile lighting towers, ATS, synchronization and paralleling systems
○ Professional manufacturing, engineering and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
