50Hz 290kW 363kVA Diesel Generator with SDEC SC12E480D2 Engine
Short Description
GENLITEC POWER GSC363D5/GSC363S5 diesel generator set powered by SDEC SC12E480D2, with prime power 290kW/363kVA and standby power 320KW/400KVA.
- ModelGSC363S5
- Prime Power (PRP)290kW/363kVA
- Standby Power (ESP)320KW/400KVA
- EngineSC12E480D2
- Fuel consumption (100%)77.2L/H
Product Details
Product Tags
Introduction
The GENLITEC POWER® GSC363D5 open type and GSC363S5 silent type diesel generator sets provide 300kW/375kVA prime power and 330kW/413kVA standby power. Powered by an SDEC SC12E480D2 six-cylinder, 11.8L water-cooled diesel engine and coupled with a brushless copper alternator, these generator sets are designed to provide stable and dependable power for commercial, industrial, agricultural, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets provide three-phase, four-wire power with a rated voltage range of 380~415V. The generator package features a DC 24V electric starting system, water-cooled engine, electronic governor, turbocharged and air-to-air intercooled aspiration system, anti-vibration mountings and a control panel for reliable operation and convenient monitoring.

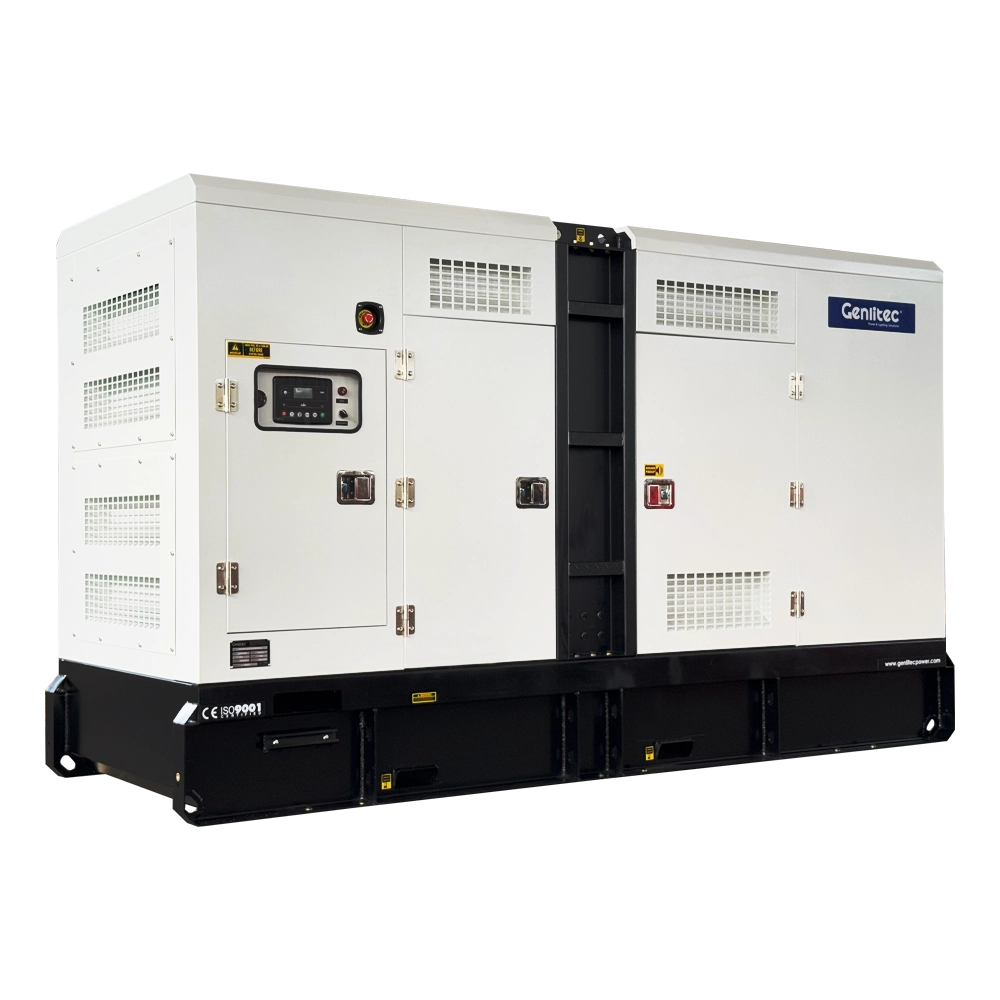

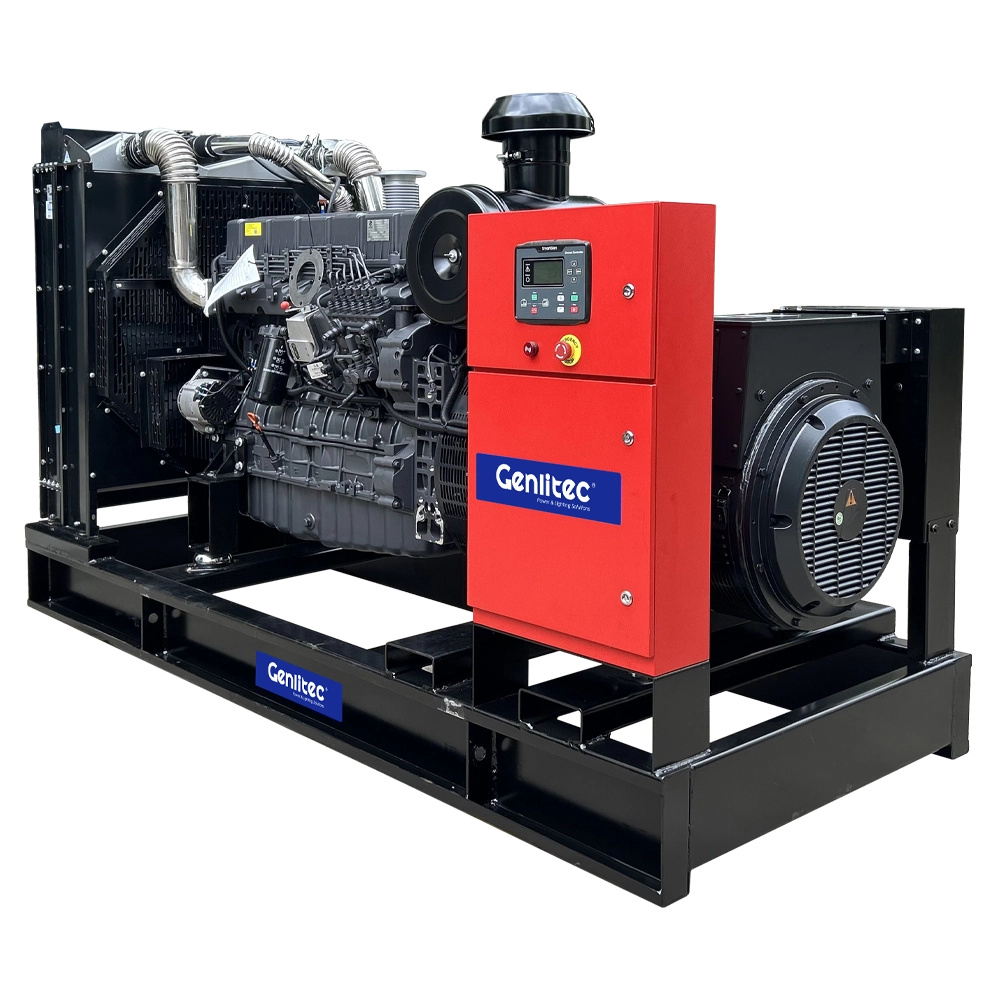

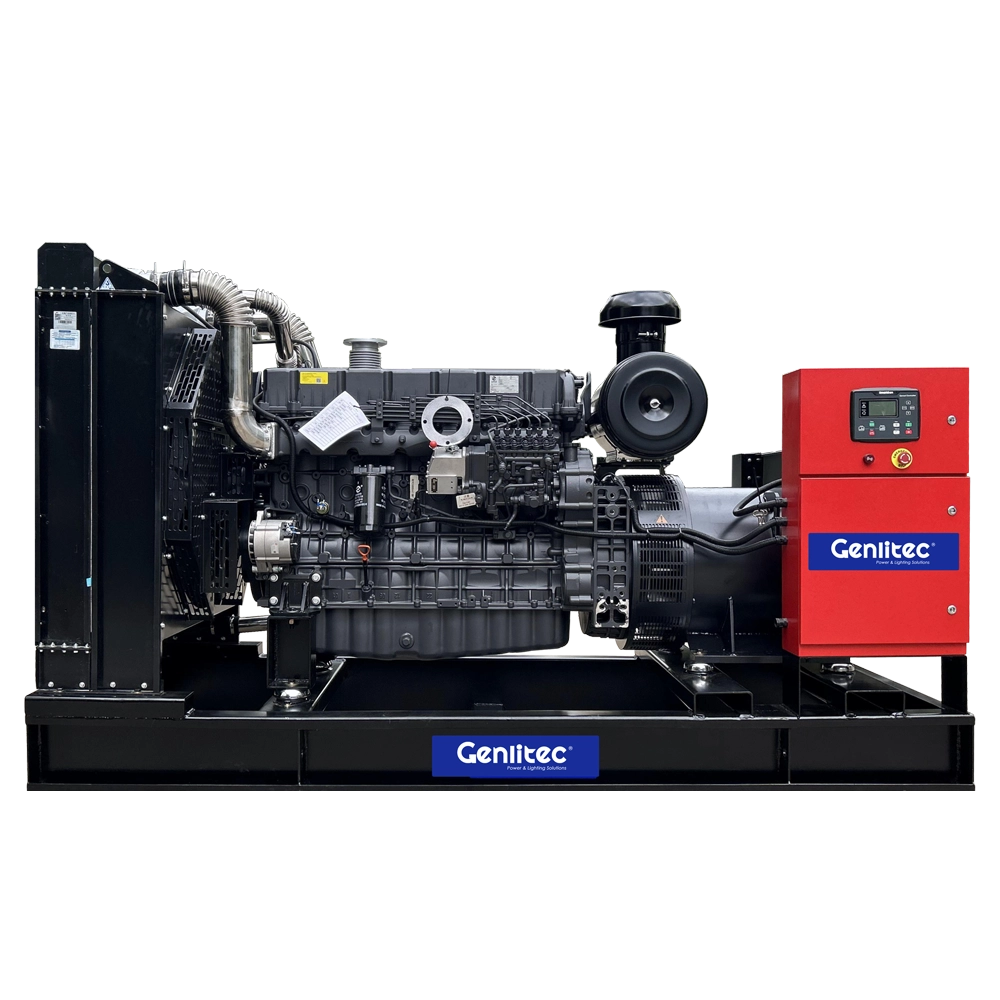

The GSC363D5 open type is suitable for installations where ventilation, service access and convenient maintenance are important. The GSC363S5 silent type can be equipped with a weatherproof sound-attenuated enclosure with an internal exhaust silencer, making it suitable for applications requiring reduced operating noise and improved protection in outdoor environments.
Generator Set
| Open Type Model | GSC363D5 |
| Silent Type Model | GSC363S5 |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/413kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 550L |
Diesel Engine
| Engine Model | SDEC SC12E480D2 |
| Cylinder Number | 6 |
| Cylinder Arrangement | 6 Cylinders in Line |
| Aspiration System | Turbocharged, Air to Air Intercooled |
| Cooling System | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 128 x 153 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1500RPM |
| Displacement | 11.8L |
| Rated Power | 323kW |
| Standby Power | 355kW |
| Coolant Capacity | 23.2L (Engine Only) |
| Oil Capacity | 33~36L |
| Fuel System | Direct Injection |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 77.2L/H |
| 75% Prime Load | 56.5L/H |
| 50% Prime Load | 38.9L/H |
| 25% Prime Load | 22.0L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 300kW/375kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GSC363S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ Remote & monitoring system
○ Synchronization system
Applications
The GENLITEC POWER 300kW/375kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and a flexible product portfolio, GENLITEC POWER supports customers with equipment selection, customized configurations, quality control, export service and technical support.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
