Introduction

The GENLITEC POWER® GPC1250D5-SP and GPC1250S5-SP are 1250kVA Cummins diesel generator sets designed for reliable standby power applications in industrial, commercial, construction, mining, infrastructure and other critical power environments. The generator sets provide 1000kW/1250kVA standby power at 50Hz and 1500 RPM, with three-phase, four-wire electrical output.

Powered by the Cummins KTA38-G9 V-12 diesel engine, the GPC1250 series combines a high-capacity engine with a 1250kVA alternator. The 38-liter engine features turbocharged, water/air cooling, a Cummins PT Pump fuel system and an EFC electronic governor. At 1500 RPM, the KTA38-G9 provides 1089kW standby power, providing suitable engine capacity for the generator set's 1000kW/1250kVA standby rating.

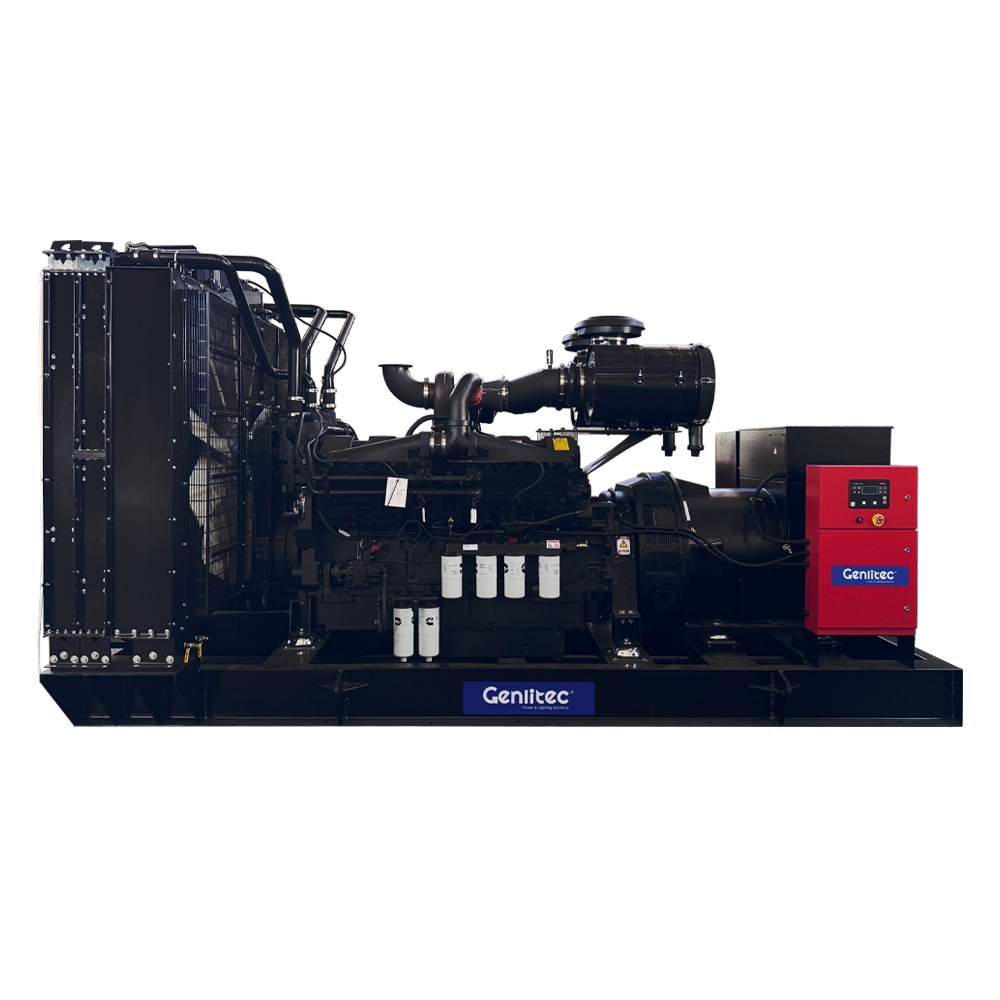

The GPC1250D5-SP is the open type configuration, suitable for dedicated generator rooms and installations where ventilation and convenient maintenance are required. The GPC1250S5-SP is equipped with a sound-attenuated enclosure for outdoor installations and noise-sensitive environments. A 1700L fuel tank supports extended operation, while ATS, synchronization, remote monitoring and other configurations can be provided according to project requirements.

Generator Set

Open Type Model	GPC1250D5-SP
Silent Type Model	GPC1250S5-SP
Prime Power	NA
Standby Power	1000KW/1250KVA
Phase & Wire	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/380V, 230/400V, 240/415V
Fuel Tank Capacity	1000L

Diesel Engine

Engine Model	CUMMINS KTA38-G9
Aspiration System	Turbocharged, Water/Air Cooling
Cooling Method	Water Cooled
Governor Type	EFC Electronic
Bore x Stroke	159 x 159 mm
Compression Ratio	13.9:1
Rated Speed	1500RPM
Displacement	38L
Rated Power	-
Standby Power	1089KW
Coolant Capacity	258L
Oil Capacity	135L
Fuel System	CUMMINS PT Pump
Electric Starting System	DC 24V
Number of Cylinder	12-V

Fuel Consumption

100% Standby Load	256L/H
75% Standby Load	196L/H
50% Standby Load	137L/H
25% Standby Load	79L/H

Alternator

Number of Phase	3
Rated Power	900KW/1125KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	12
Insulation Class	H
Ambient Temp.	40℃
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc
IP Rating	IP23

Control Panel

○ Emergency stop button	○ Main circuit breaker
○ Float battery charger	○ Manual/Auto start control panel
○ Fuel level meter	○ Controller power switch
○ Alarm buzzer

Sound Attenuated Enclosure

○ Weatherproof sound-attenuated enclosure with internal exhaust silencer

○ Corrosion-resistant construction for outdoor installation

○ Available for GPC1250S5 silent type generator set

Options

○ ATS for automatic start and stop when utility power fails or returns

○ 20' Containerized canopy

○ Water-jacket heater

○ Other heaters

○ AREM & PMG

○ Synchronization System

○ Remote & Monitoring System

Applications

The GENLITEC POWER standby 1000kW/1250kVA Cummins KTA38-G9 diesel generator set is suitable for prime and standby power applications where stable and dependable power is required, including:

○ Commercial buildings and office complexes

○ Industrial facilities and manufacturing plants

○ Construction sites and infrastructure projects

○ Mining and heavy-duty applications

○ Telecommunication and remote facilities

○ Data centers and critical power systems

○ Emergency and standby power applications

Why Choose GENLITEC POWER

GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power equipment and customized power solutions to customers worldwide.

○ Established in 2016 with more than 10 years of experience in power equipment manufacturing and export

○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop

○ Annual production capacity of more than 2,500 generator sets

○ Products supplied to customers in more than 50 countries and regions worldwide

○ Professional engineering team providing customized power solutions for different applications and project requirements

○ Extensive experience with leading engine brands including Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai

○ Alternator solutions from Stamford, Leroy Somer and GENLITEC to meet different performance and application requirements

○ Strict quality control and testing procedures throughout production and assembly

○ Complete power solutions including diesel generator sets, mobile lighting towers, ATS, synchronization and paralleling systems

○ Professional manufacturing, engineering and international export experience

For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.

Warranty

GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.

Frequently Asked Questions

1. What is the model of this 1250kVA Cummins diesel generator?

The open type model is GPC1250D5-SP, while the silent type model is GPC1250S5-SP.

2. What is the power output of the GPC1250 generator set?

The generator set is rated at 1000kW/1250kVA for standby power. The prime power rating is NA for this model.

3. Which diesel engine is used in the GPC1250D5-SP and GPC1250S5-SP?

The generator sets are powered by the Cummins KTA38-G9 V-12 diesel engine with a 38-liter displacement, turbocharged and water/air cooling, Cummins PT Pump fuel system and EFC electronic governor.

4. What is the standby power of the Cummins KTA38-G9 engine?

The Cummins KTA38-G9 provides 1089kW standby power at 1500 RPM.

5. What is the fuel tank capacity?

The GPC1250 series is equipped with a 1700L fuel tank for extended operating periods.

6. What is the fuel consumption of the GPC1250 generator set?

The fuel consumption is 256L/H at 100% standby load, 196L/H at 75% standby load, 137L/H at 50% standby load and 79L/H at 25% standby load.

7. What voltage and frequency does the generator set support?

The GPC1250 series operates at 50Hz and supports rated voltages of 220/380V, 230/400V and 240/415V. It uses a three-phase, four-wire configuration.

8. What is the difference between GPC1250D5-SP and GPC1250S5-SP?

The GPC1250D5-SP is the open type generator set, while the GPC1250S5-SP is the silent type with a sound-attenuated enclosure. The silent version is suitable for outdoor and noise-sensitive applications.

9. Can the GPC1250 generator set be equipped with ATS or synchronization systems?

Yes. ATS, synchronization/paralleling, remote monitoring and other optional configurations can be provided according to the specific project requirements.

10. What is the warranty for the GPC1250 series?

GENLITEC POWER provides a standard warranty of 1 year or 1000 working hours, whichever comes first.
