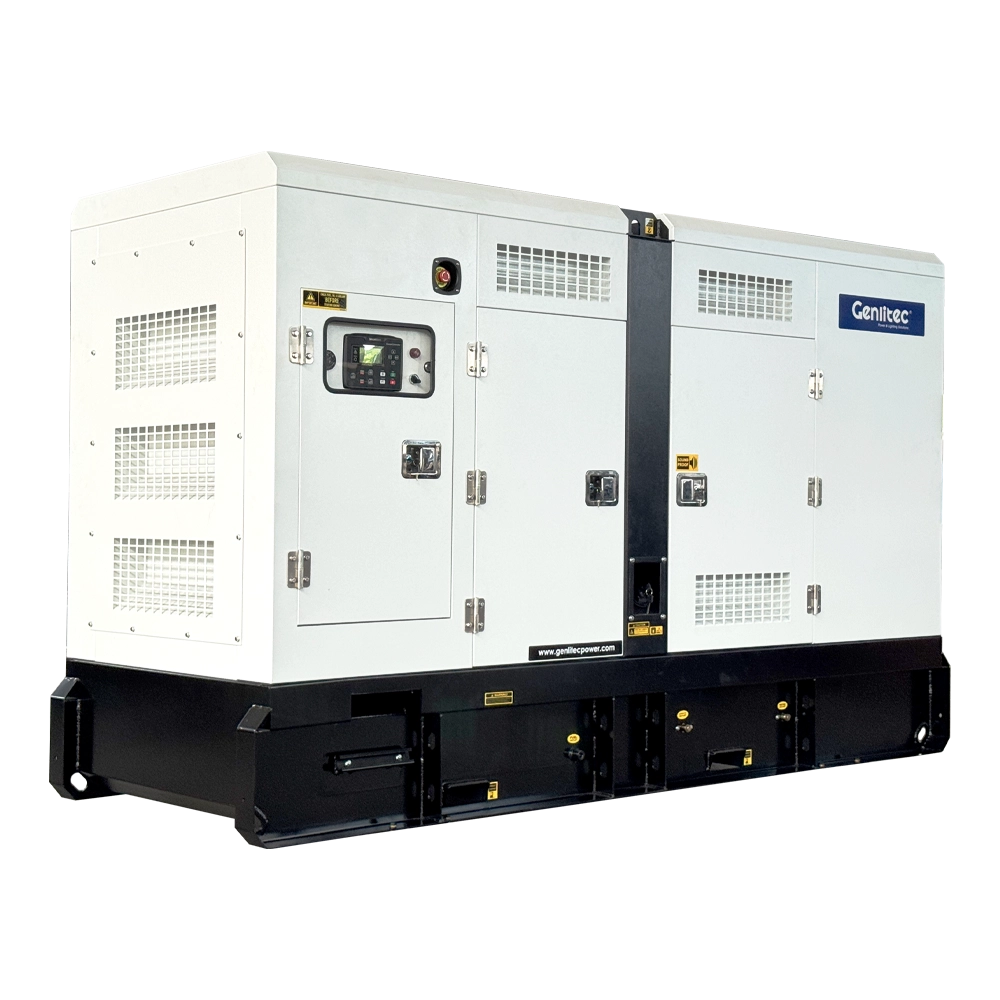

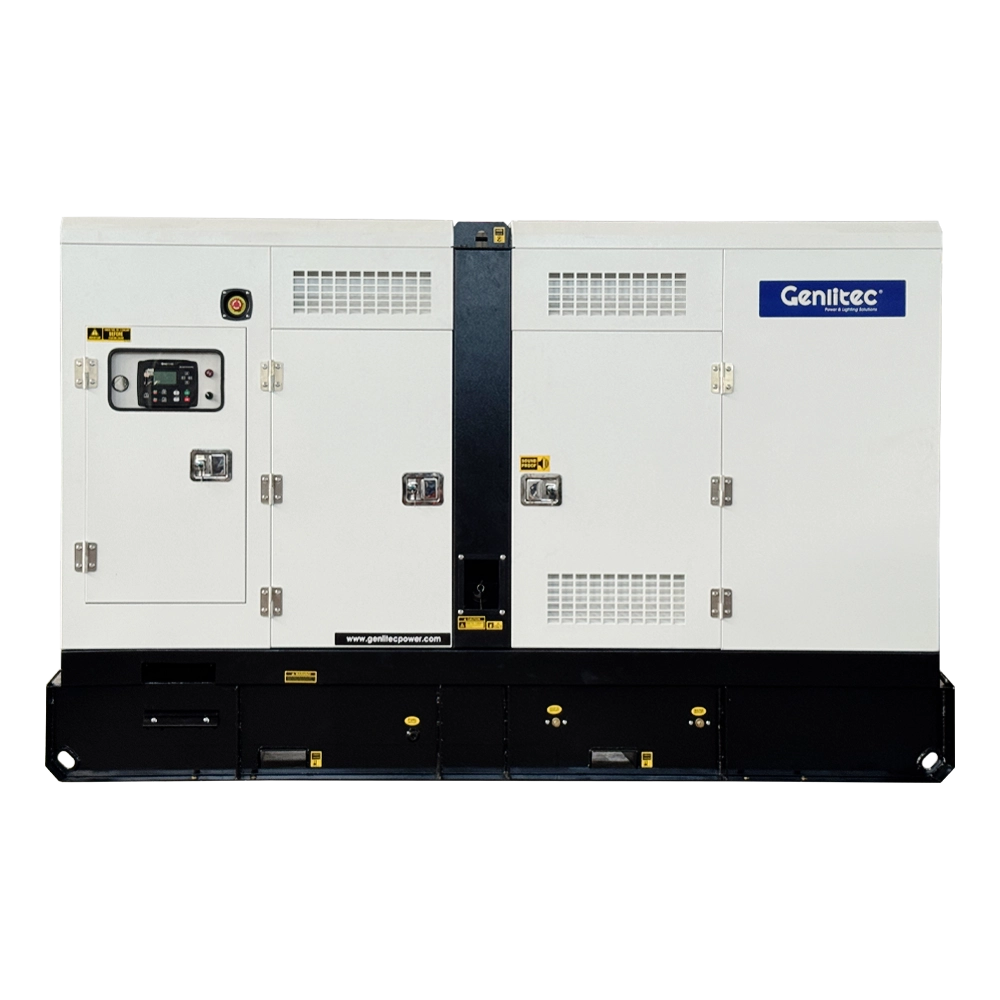

50Hz 80kW 100kVA Diesel Generator with Cummins 6BT5.9-G2 Engine
Short Description
50Hz 80kW/100kVA diesel generator with Cummins 6BT5.9-G2 engine, delivering reliable power for industrial, commercial and construction applications.
- ModelGPC100D5 | GPC100S5
- Frequency50Hz
- Prime Power80KW/100KVA
- Standby Power88KW/110KVA
- EngineCummins 6BT5.9-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GPC100D5 open type and GPC100S5 silent type diesel generator sets provide 80kW/100kVA prime power and 88kW/110kVA standby power. Powered by a Cummins 6BT5.9-G2 six-cylinder diesel engine and coupled with a brushless copper alternator, these generator sets are designed to provide stable and reliable three-phase power for commercial, industrial, construction and backup applications.
Designed for 50Hz operation at 1500RPM, the generator sets support 220/380V, 230/400V and 240/415V voltage configurations. The package features a 24V DC electric starting system, water-cooled engine, electronic governor, anti-vibration mountings and a digital control system for reliable operation and convenient monitoring.
Generator Set
| Open Type Model | GPC100D5 |
| Silent Type Model | GPC100S5 |
| Prime Power | 80KW/100KVA |
| Standby Power | 88KW/110KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
Diesel Engine
| Engine Model | CUMMINS 6BT5.9-G2 |
| Cylinder | 6 In-Line |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 102 x 120 mm |
| Compression Ratio | 17.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 5.9 L |
| Rated Power | 86 KW |
| Fuel System | BYC A-Type |
| Oil Capacity | 16.4 L |
| Coolant Capacity | 27 L |
| Starter Motor Capacity | DC 24V-40A |
Fuel Consumption
| 100% Prime Load | 22 L/H |
| 75% Prime Load | 17 L/H |
| 50% Prime Load | 11 L/H |
| 25% Prime Load | 7 L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 80KW/100KVA |
| Frequency | 50 Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Type | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 80kW/100kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial buildings and office facilities
○ Industrial and manufacturing facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency, standby and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers in construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With flexible product configurations and international project experience, GENLITEC POWER supports customers from product selection and customization to production, testing, delivery and after-sales service.
○ Professional manufacturer of diesel generator sets and mobile lighting towers
○ Multiple engine, alternator and controller brand options
○ Flexible configurations for different power requirements and applications
○ Customized generator solutions for international projects
○ Professional manufacturing, testing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
