Short Description:

GENLITEC POWER® GPC113D6 (open type), GPC113S6 (silent type) powered by original CUMMINS diesel engine 6BT5.9-G2, with prime power 90kw/113kva and standby power 100kw/125kva....


  • Model: GPC113D6 | GPC113S6
  • Engine: CUMMINS 6BT5.9-G2
  • Prime Power: 90KW/113KVA
  • Standby Power: 100KW/125KVA
  • Delivery Time: 15~30 Days

Product Details

Product Tags

Product Video


GENLITEC POWER® 90KW/113KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6BT5.9-G2 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 190~480V, 3-Phase, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC113D6
Silent Type Model GPC113S6
Prime Power 90KW/113KVA
Standby Power 100KW/125KVA
Phase & Wires 3 Phase, 4 Wires
Power Factor 0.8
Frequency 60Hz
Rated Voltage 110/190V; 120/208V; 127/220V; 254/440V; 277/480V
Fuel Tank Capacity 170L

● DIESEL ENGINE


Engine Model CUMMINS 6BT5.9-G2
Cylinder Number 6
Aspiration System Turbocharged
Cooling Method Water Cooling
Governor Type Electronic
Bore x Stroke 102 x 120 mm
Compression Ratio 17.3:1
Rated Speed 1800 RPM
Displacement 5.9L
Rated Power 100KW
Standby Power 110KW
Fuel System BYC A-Type
Oil Capacity 16.4L
Coolant Capacity 7.9L
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 22L/H
75% Prime Load 17L/H
50% Prime Load 11L/H
25% Prime Load 7L/H

ALTERNATOR


Number of Phase 3
Rated Power 90KW/113KVA
Frequency 60Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 6/12
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

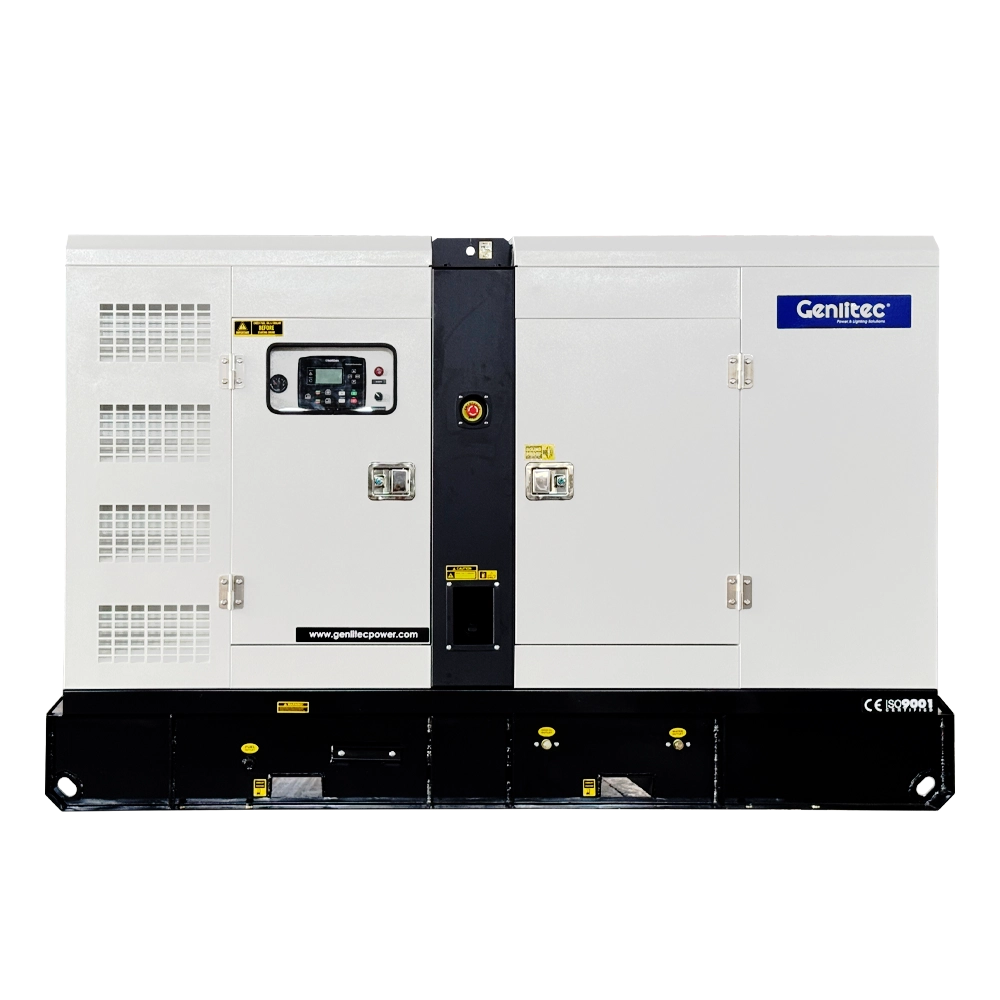

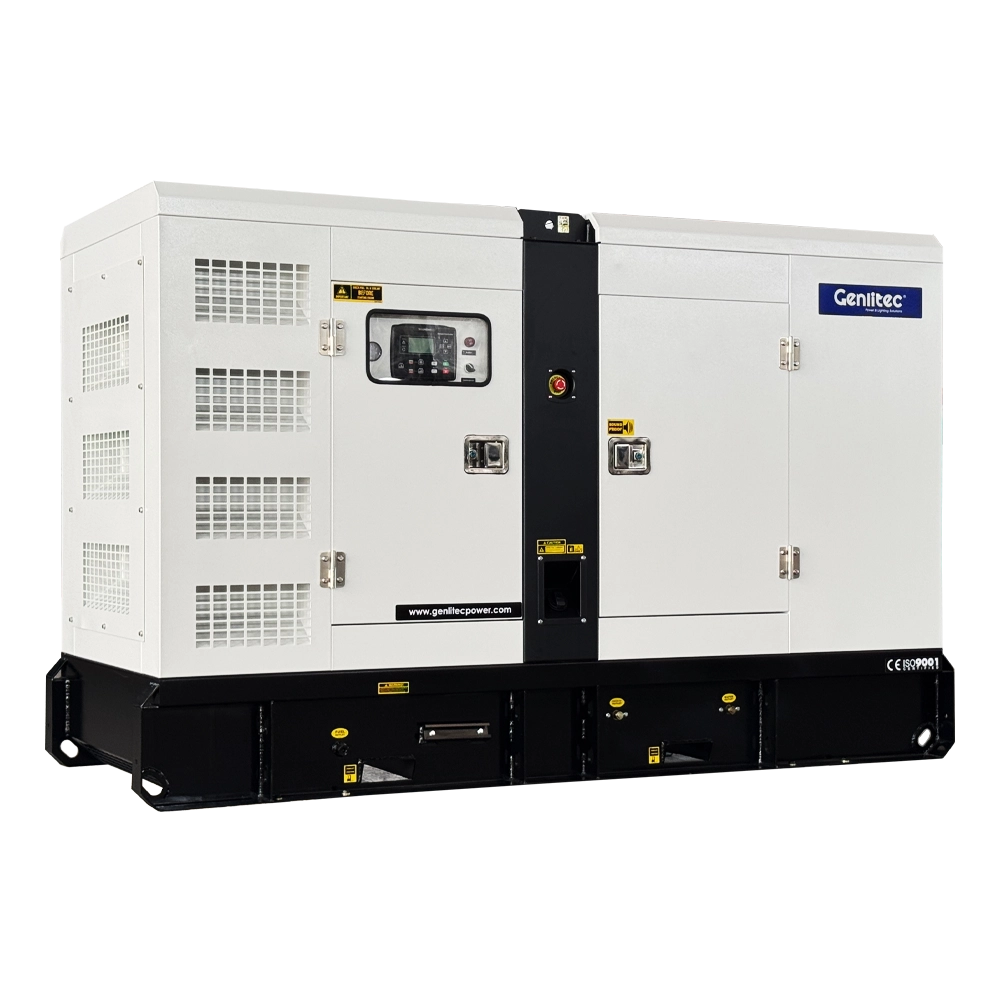

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first

OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
