50Hz 44kW 55kVA Diesel Generator with Yanmar 4TNV106T-GGE Diesel Engine
Short Description
GENLITEC POWER GYM55D5/GYM55S5 diesel generator sets powered by original YANMAR 4TNV106T-GGE, with prime power 44KW/55KVA and standby power 48KW/60KVA.
- ModelGYM55S5
- Prime Power (PRP)44kW/55kVA
- Standby Power (ESP)48kW/60kVA
- Engine4TNV106T-GGE
- Fuel consumption (100%)13.35L/H
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER GYM55D5 / GYM55S5 is a 50Hz diesel generator set with 44kW/55kVA prime power and 48kW/60kVA standby power. It is powered by a YANMAR 4TNV106T-GGE four-cylinder turbocharged, water-cooled diesel engine, providing reliable power for commercial, industrial, construction and standby applications.
The generator set operates at 1500 RPM with a 3-phase, 4-wire configuration and supports rated voltages of 220/380V, 230/400V and 240/415V. The GYM55D5 is the open type version, while the GYM55S5 is equipped with a sound-attenuated enclosure for applications requiring reduced noise levels.
Generator Set
| Open Type Model | GYM55D5 |
| Silent Type Model | GYM55S5 |
| Prime Power | 44KW/55KVA |
| Standby Power | 48KW/60KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 85L |
Diesel Engine
| Engine Model | YANMAR 4TNV106T-GGE |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 106 x 125 mm |
| Compression Ratio | 18.9:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.412L |
| Rated Power | 51.5KW |
| Standby Power | 56.8KW |
| Fuel System | Direct Injection |
| Oil Capacity | 14L |
| Coolant Capacity | 6L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 13.35L/H |
| 75% Prime Load | 10.0L/H |
| 50% Prime Load | 6.7L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 45KW/56KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure

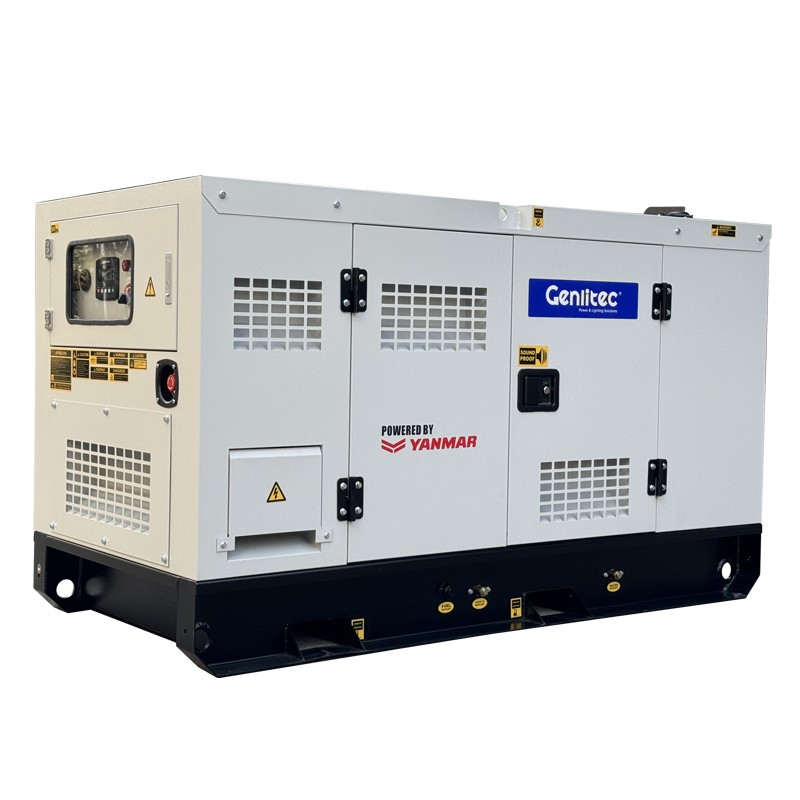

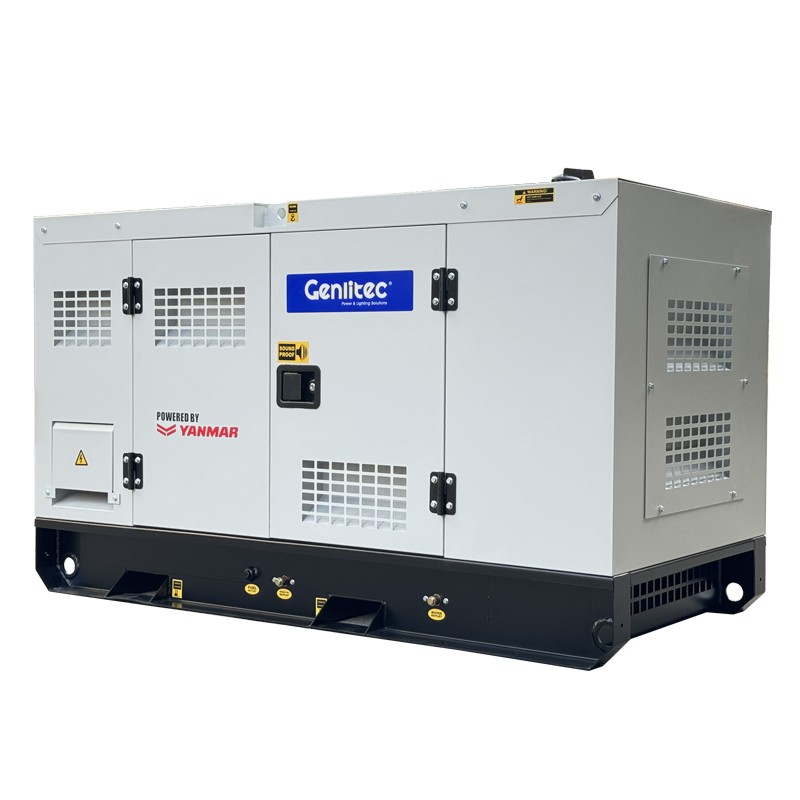

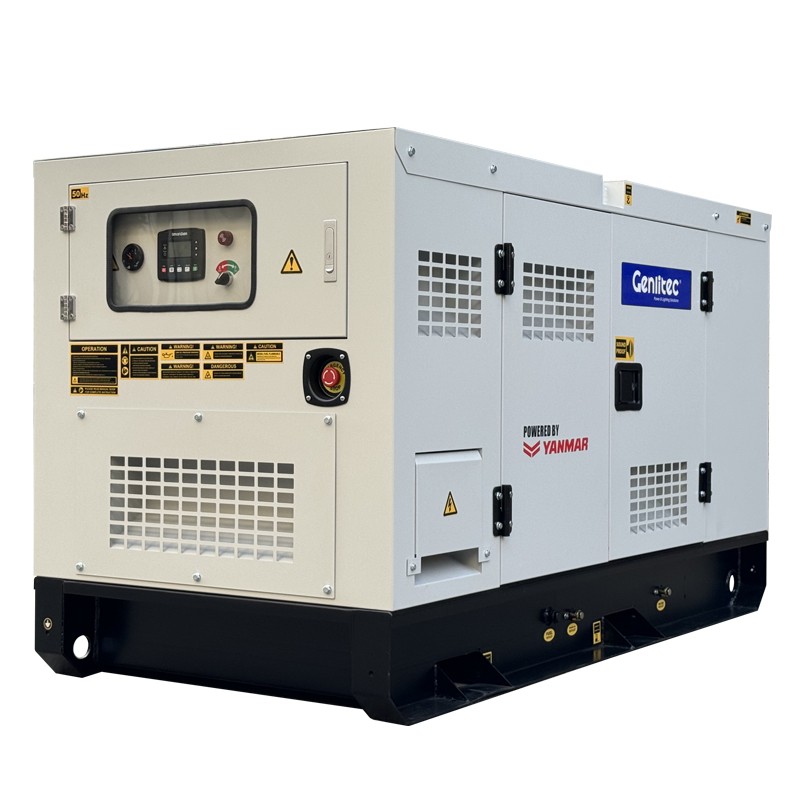

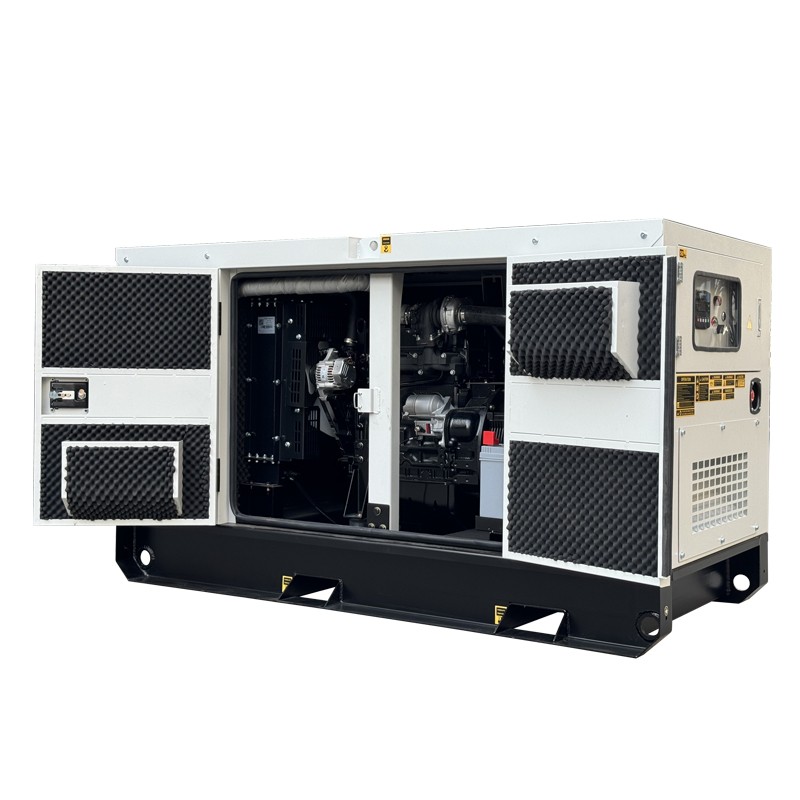

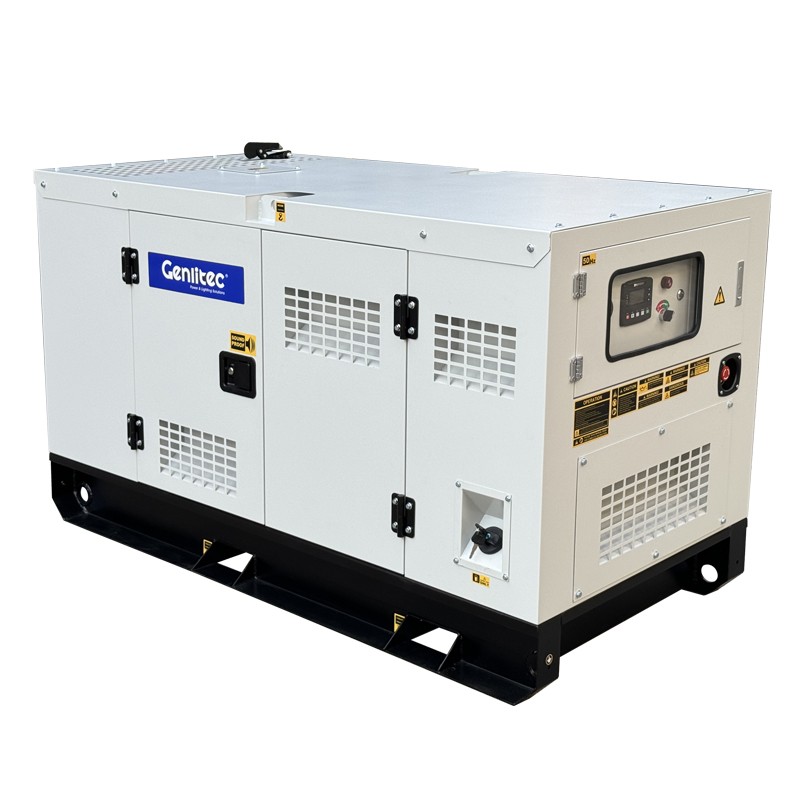

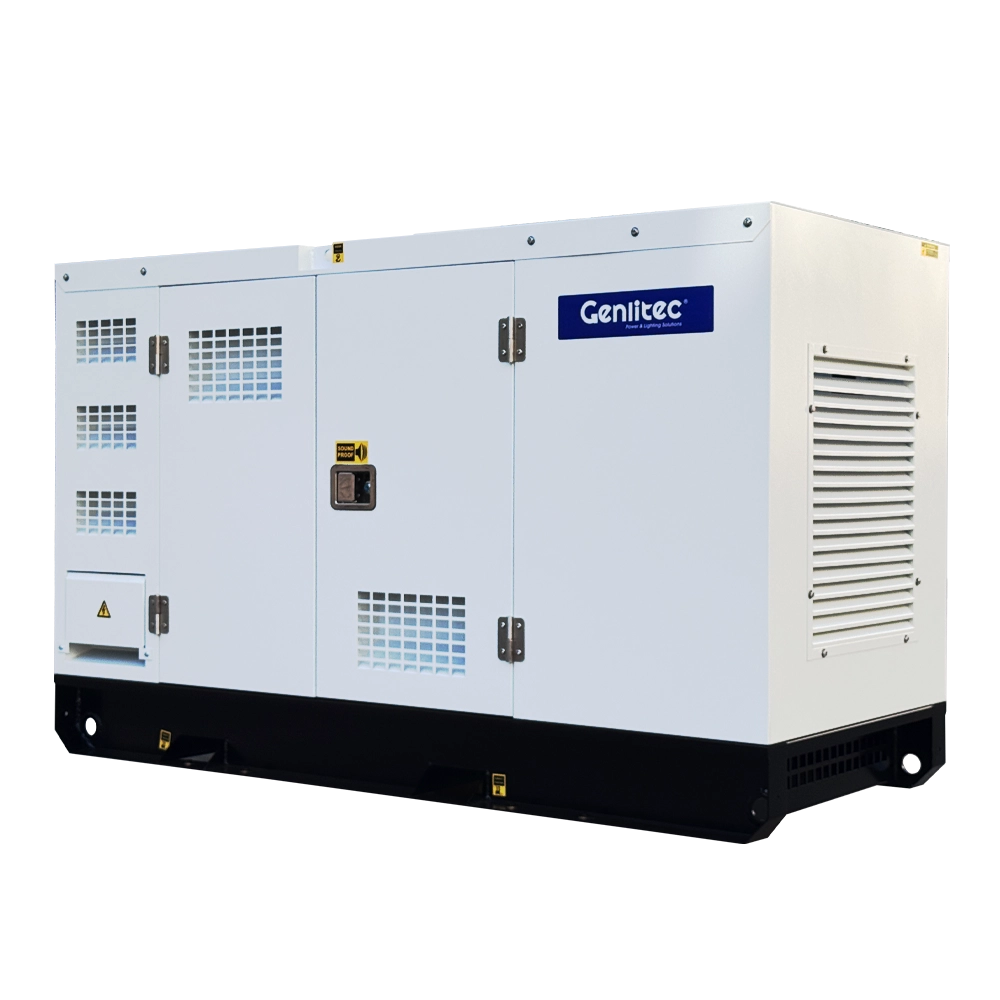

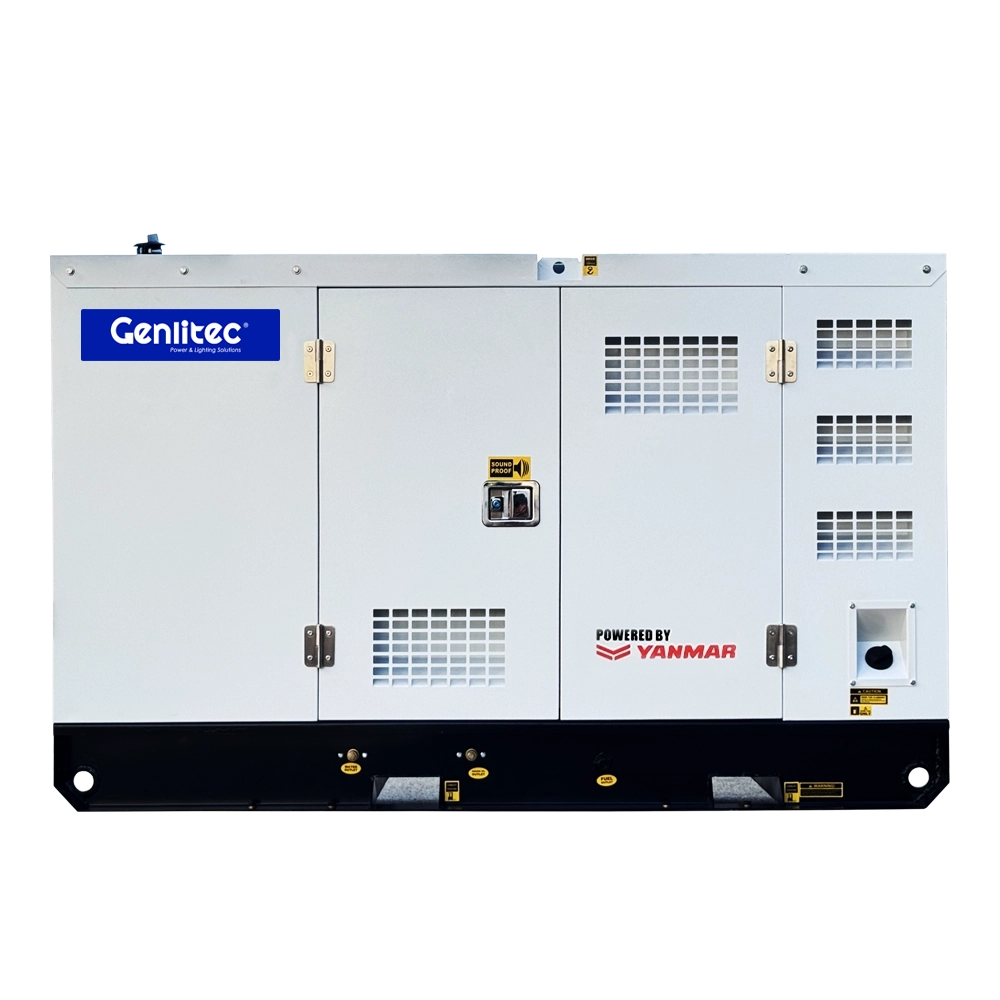

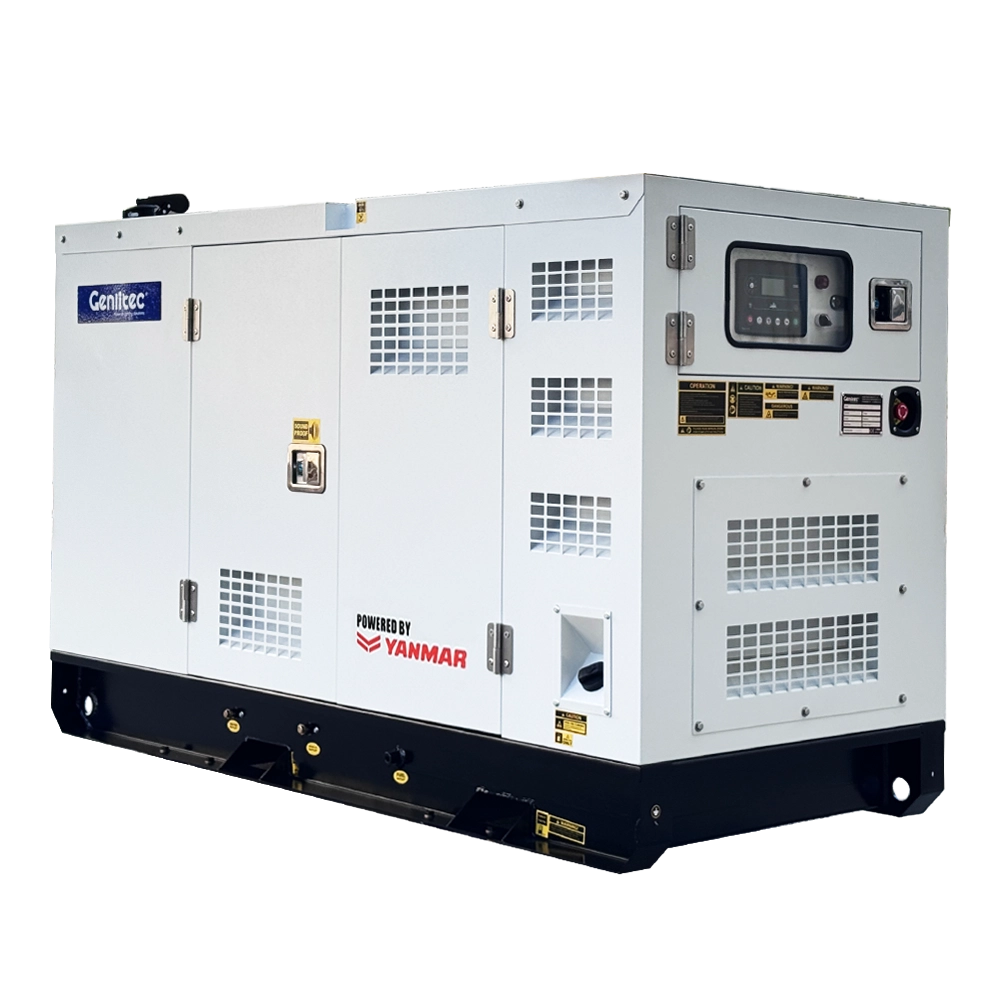

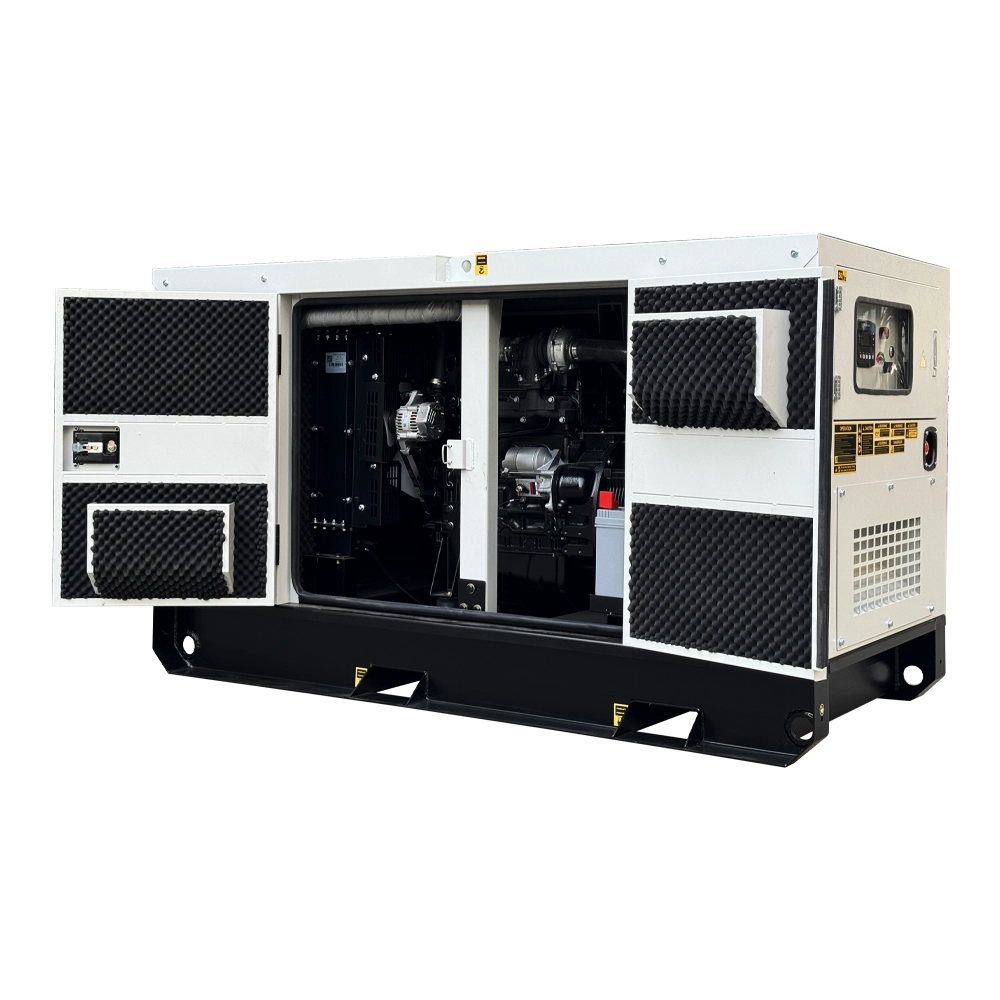

The GYM55S5 silent type generator set is equipped with a sound-attenuated enclosure designed for outdoor applications and reduced noise operation.
○ Corrosion-resistant construction for outdoor installation
○ Available for GYM55S5 silent type generator set
Options
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GYM55D5 / GYM55S5 diesel generator set is suitable for a wide range of power generation applications, including:
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and a flexible product portfolio, GENLITEC POWER supports customers with equipment selection, customized configurations, quality control, export service and technical support.
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
Frequently Asked Questions
Q: What is the prime power of the GYM55D5 / GYM55S5?
A: The generator set provides 44KW/55KVA prime power and 48KW/60KVA standby power.
Q: Which diesel engine is used in the GYM55D5 / GYM55S5?
A: The generator set is powered by a YANMAR 4TNV106T-GGE four-cylinder turbocharged diesel engine.
Q: What frequency does the GYM55D5 / GYM55S5 operate at?
A: The generator set operates at 50Hz and a rated speed of 1500 RPM.
Q: What rated voltages are available?
A: The generator set supports 220/380V, 230/400V and 240/415V configurations.
Q: Is the generator set suitable for three-phase applications?
A: Yes. The GYM55D5 / GYM55S5 is configured as a 3-phase, 4-wire generator set with a 0.8 power factor.
Q: What is the fuel consumption at prime load?
A: Fuel consumption is approximately 13.35L/H at 100% prime load, 10.0L/H at 75% load and 6.7L/H at 50% load.
Q: What is the fuel tank capacity?
A: The standard fuel tank capacity is 85 liters.
Q: What is the difference between GYM55D5 and GYM55S5?
A: GYM55D5 is the open type model, while GYM55S5 is the silent type model with a sound-attenuated enclosure for reduced noise operation.
Q: Can an ATS be installed with the generator set?
A: Yes. An ATS can be supplied as an option for automatic generator starting when utility power fails and stopping when utility power returns.
Q: What warranty is provided for the generator set?
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
