50Hz 48kW 60kVA Diesel Generator with Perkins 1103A-33TG2 Engine
Introduction

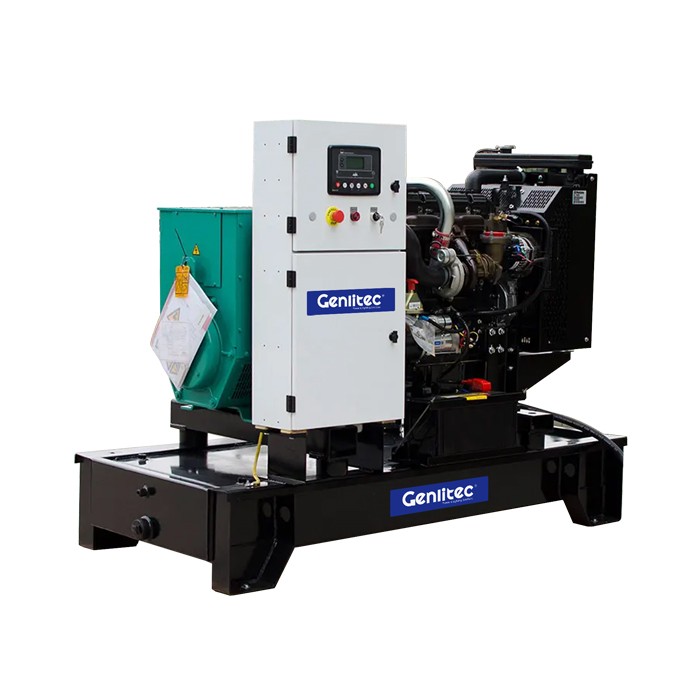

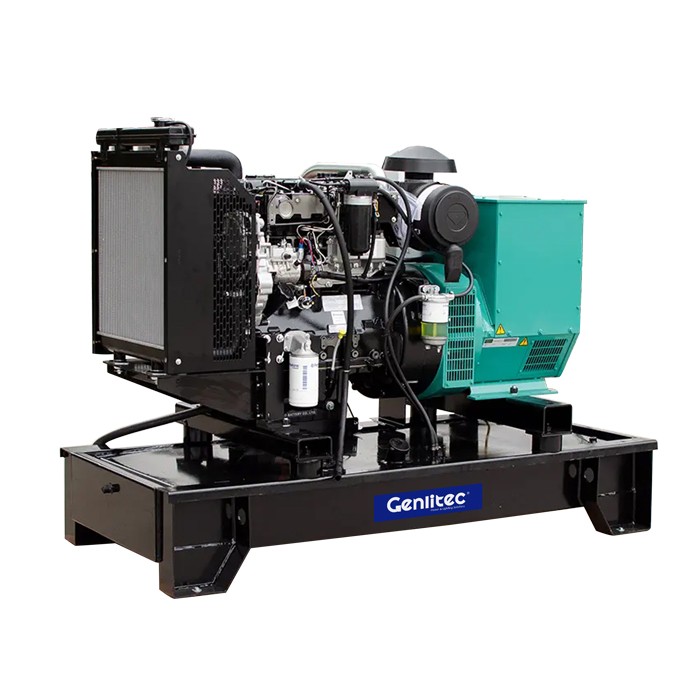

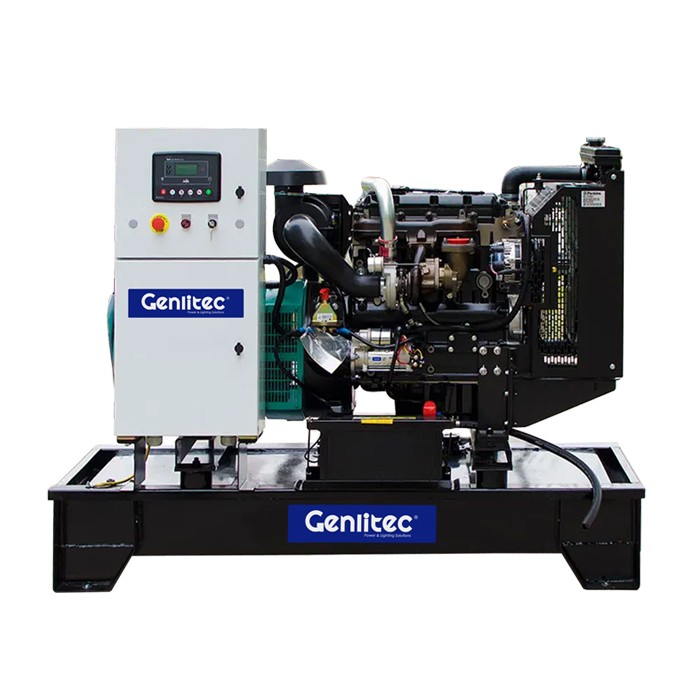

The GENLITEC POWER GPP60D5 / GPP60S5 is a 60 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 48KW/60KVA prime power and 53KW/66KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 1103A-33TG2 turbocharged diesel engine, the GPP60D5 / GPP60S5 combines a compact 3.3L engine with practical power output and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 100L standard fuel tank is provided, while optional 12-hour, 24-hour and 48-hour fuel tanks, ATS, trailer, remote monitoring system and power sockets are available for different project requirements. This 48KW/60KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and economical electricity supply is required.
Generator Set
| Open Type Model | GPP60D5 |
| Silent Type Model | GPP60S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 48KW/60KVA |
| Standby Power | 53KW/66KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 100L |
Diesel Engine
| Engine Model | Perkins 1103A-33TG2 |
| Cylinder Number | 3 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 17.25:1 |
| Rated Speed | 1500 RPM |
| Displacement | 3.3L |
| Prime Power | 55KW/1500 RPM |
| Standby Power | 60.5KW/1500 RPM |
| Fuel System | Direct Injection |
| Oil Capacity | 7.9L |
| Coolant Capacity | 10.2L |
| Electric Starting System | DC 12V |
Fuel Consumption
| Standby Power | 15.9L/H |
| 100% Prime Load | 14.6L/H |
| 75% Prime Load | 10.8L/H |
| 50% Prime Load | 7.56L/H |
| 25% Prime Load | 4.20L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 48KW/60KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

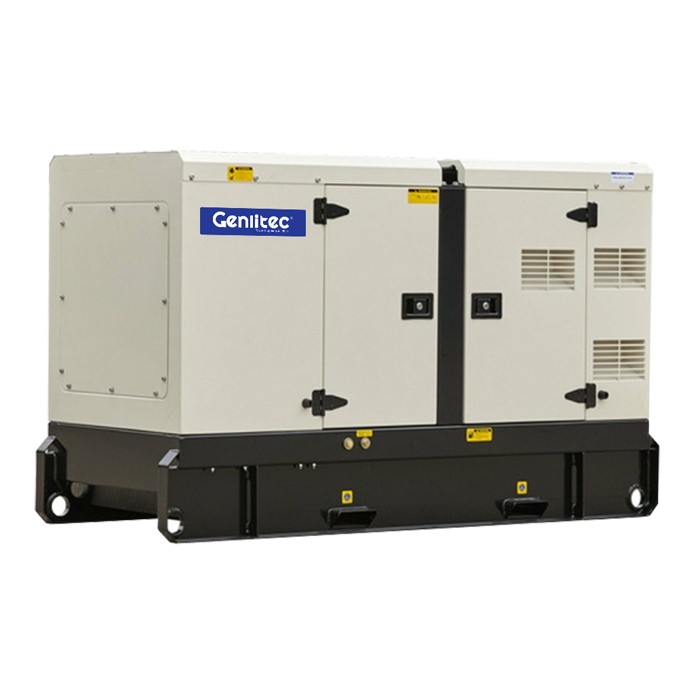

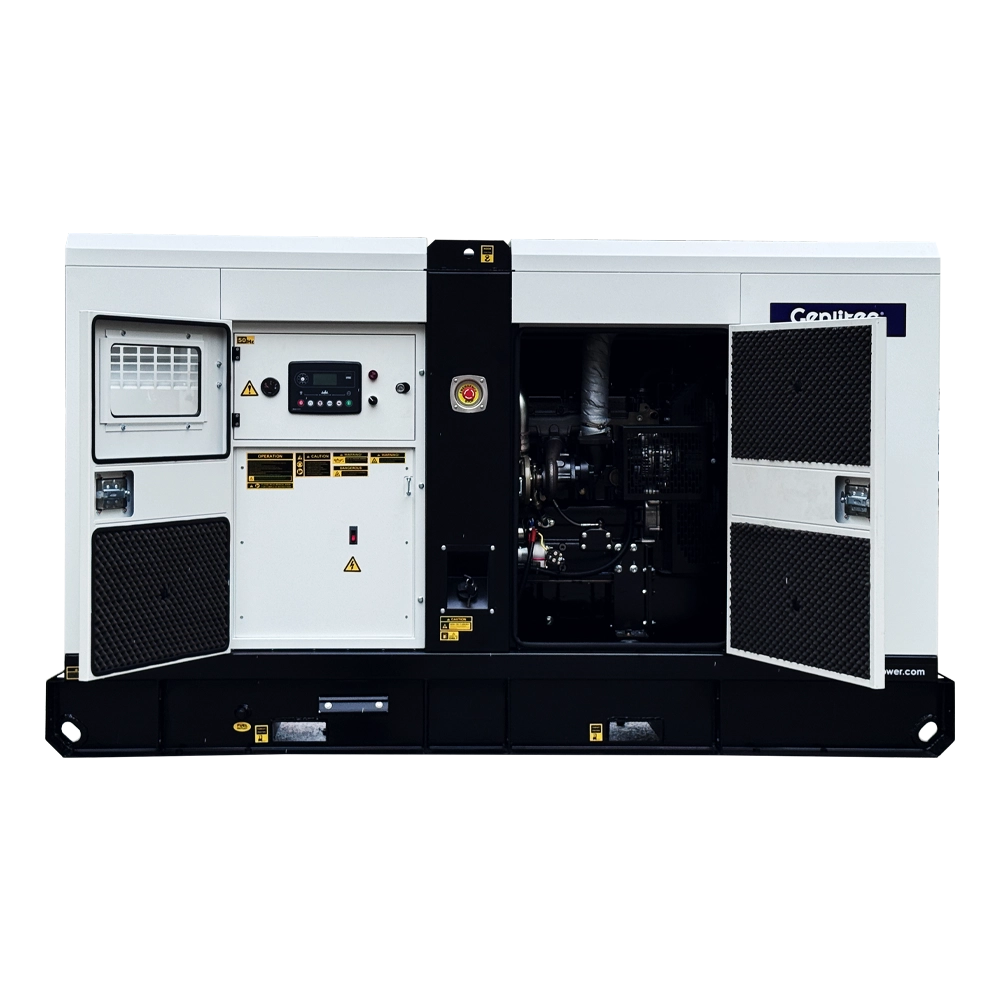

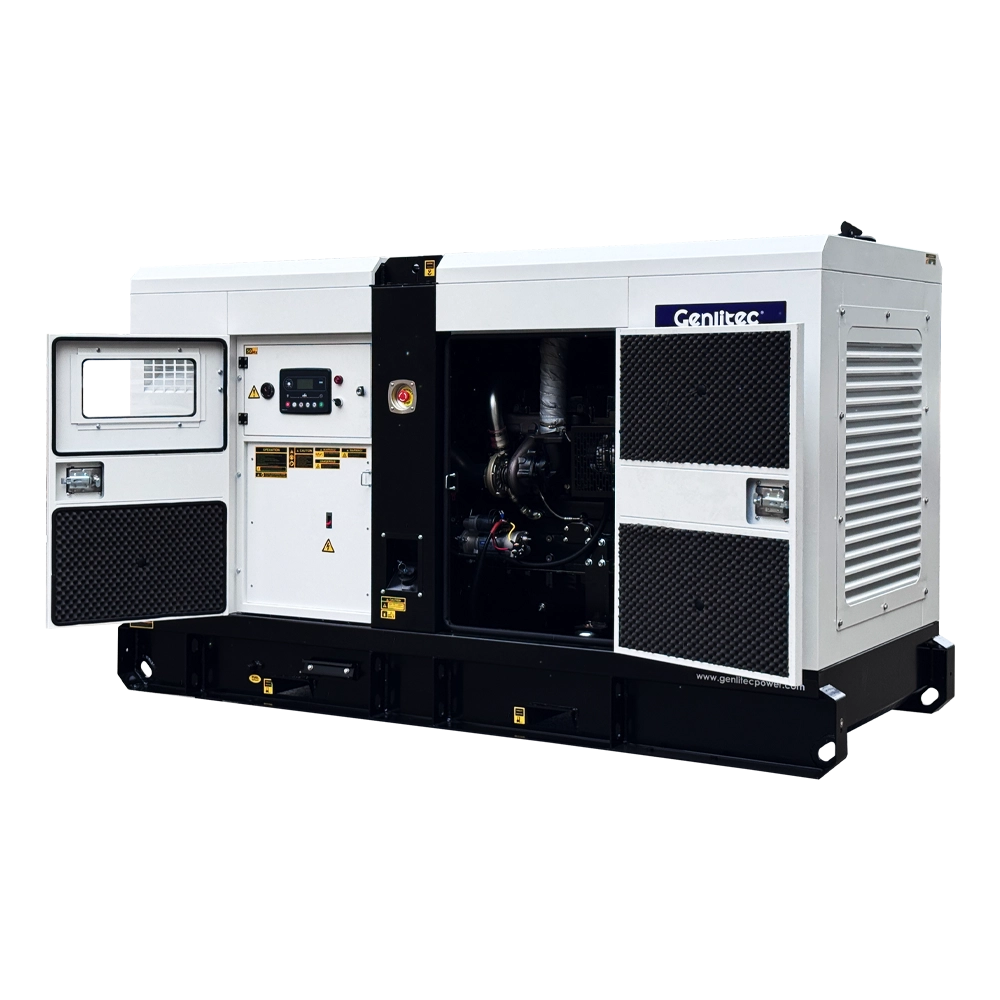

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP60S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Remote monitoring system
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 48KW/60KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP60D5 / GPP60S5 diesel generator sets combine a Perkins 1103A-33TG2 engine with a practical generator set configuration for dependable prime and standby power.
○ Perkins 1103A-33TG2 diesel engine for reliable power generation
○ 48KW/60KVA prime power and 53KW/66KVA standby power
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
