60Hz 180kW 225kVA Diesel Generator with Cummins 6CTAA8.3-G2 Engine
Short Description
GENLITEC POWER GPC225D6 / GPC225S6 diesel generator powered by Cummins engine 6CTAA8.3-G2, with prime power 180kW/225kVA and standby power 200kW/250kVA.
- ModelGPC225S6
- Prime Power (PRP)180kW/225kVA
- Standby Power (ESP)200kW/250kVA
- Engine6CTAA8.3-G2
- Fuel Consumption (100%)49L/H
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GPC225D6 open type and GPC225S6 silent type diesel generator sets deliver 180kW/225kVA prime power and 200kW/250kVA standby power. Powered by a reliable DCEC CUMMINS 6CTAA8.3-G2 six-cylinder, turbocharged and air-air intercooled diesel engine and matched with a brushless copper alternator, these generator sets provide stable and dependable power for commercial, industrial, construction and standby applications.

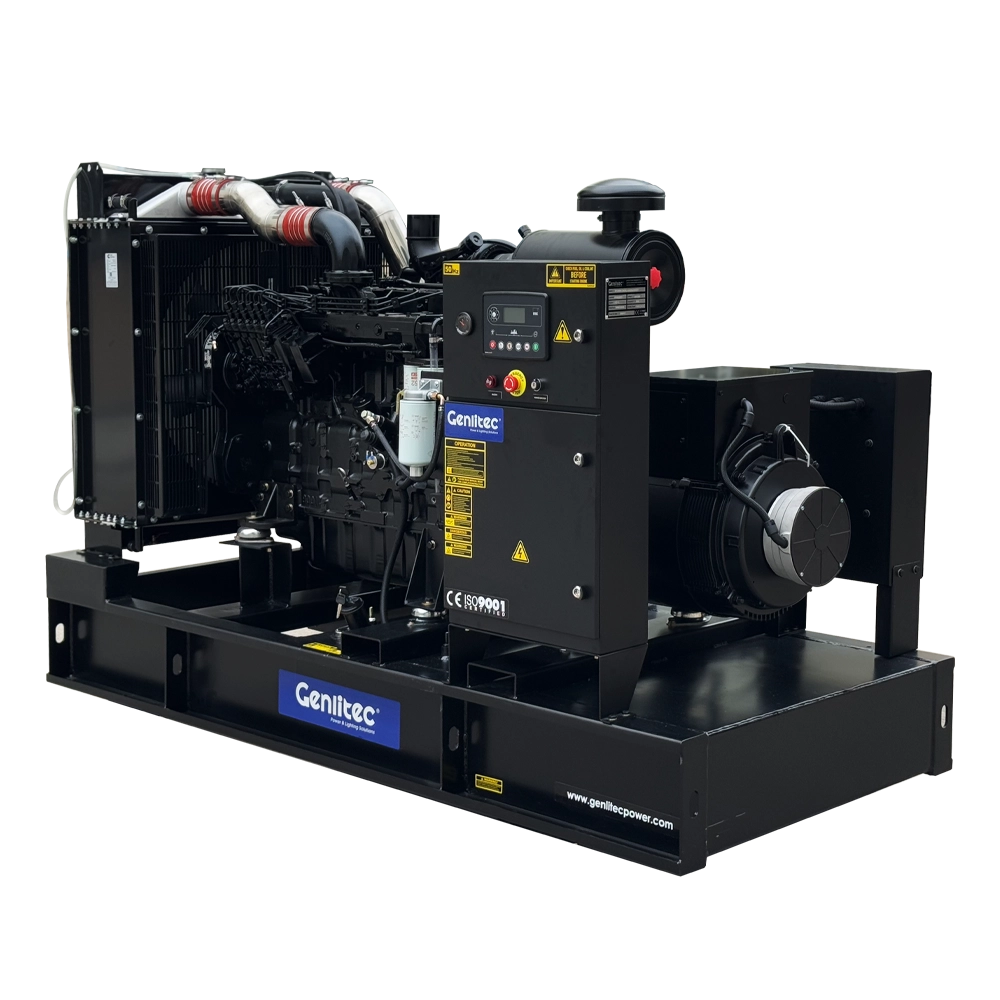

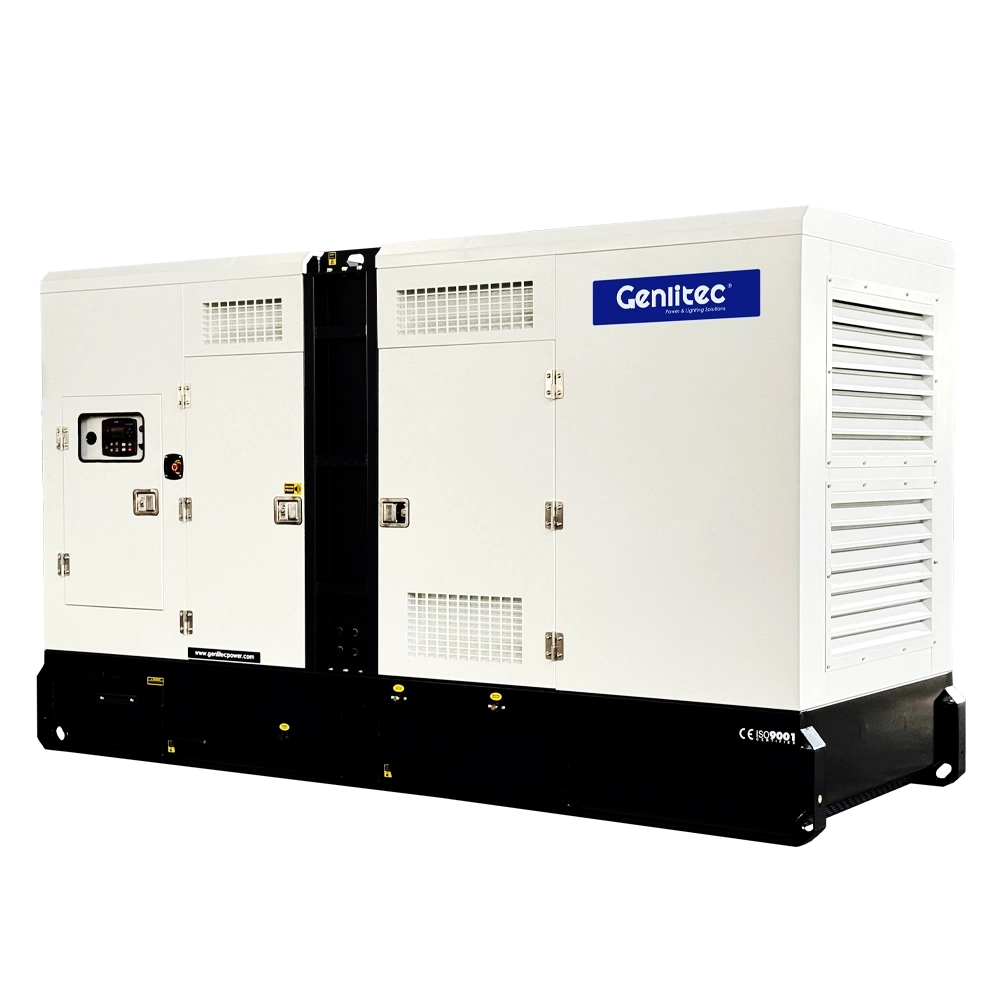

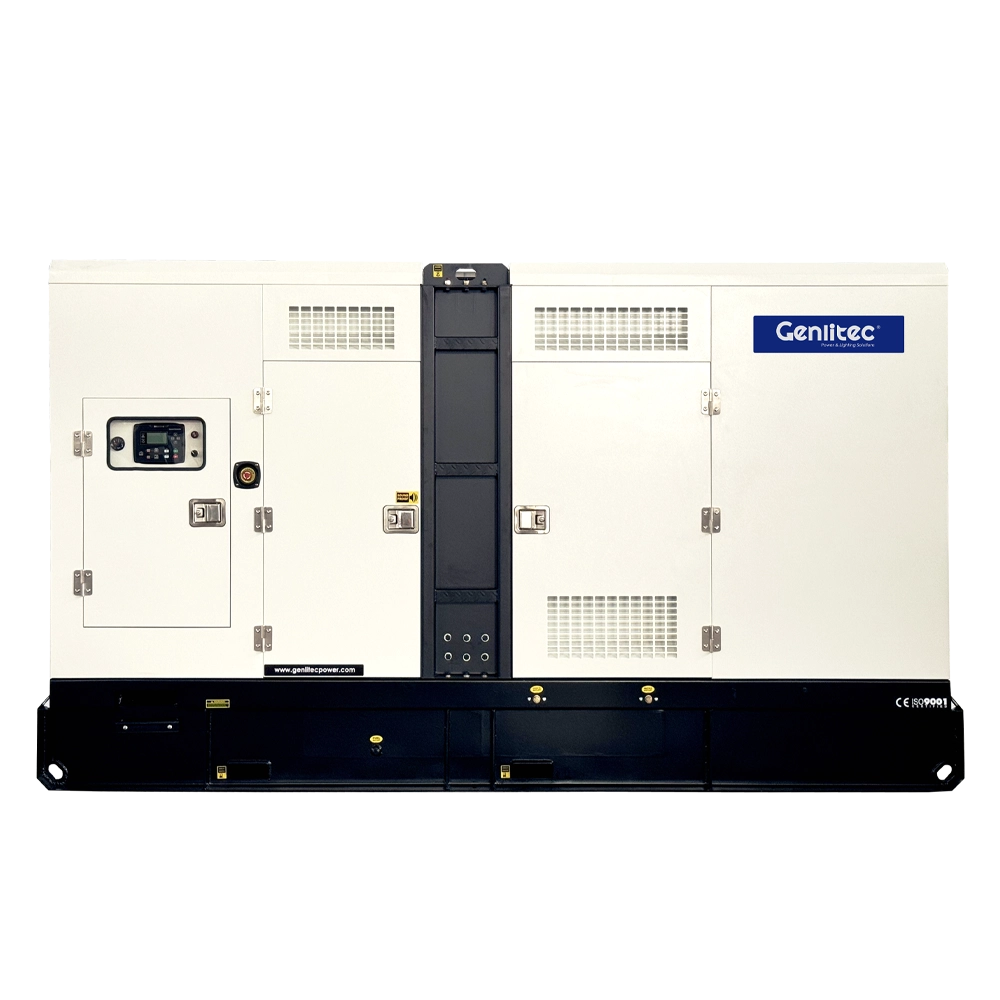

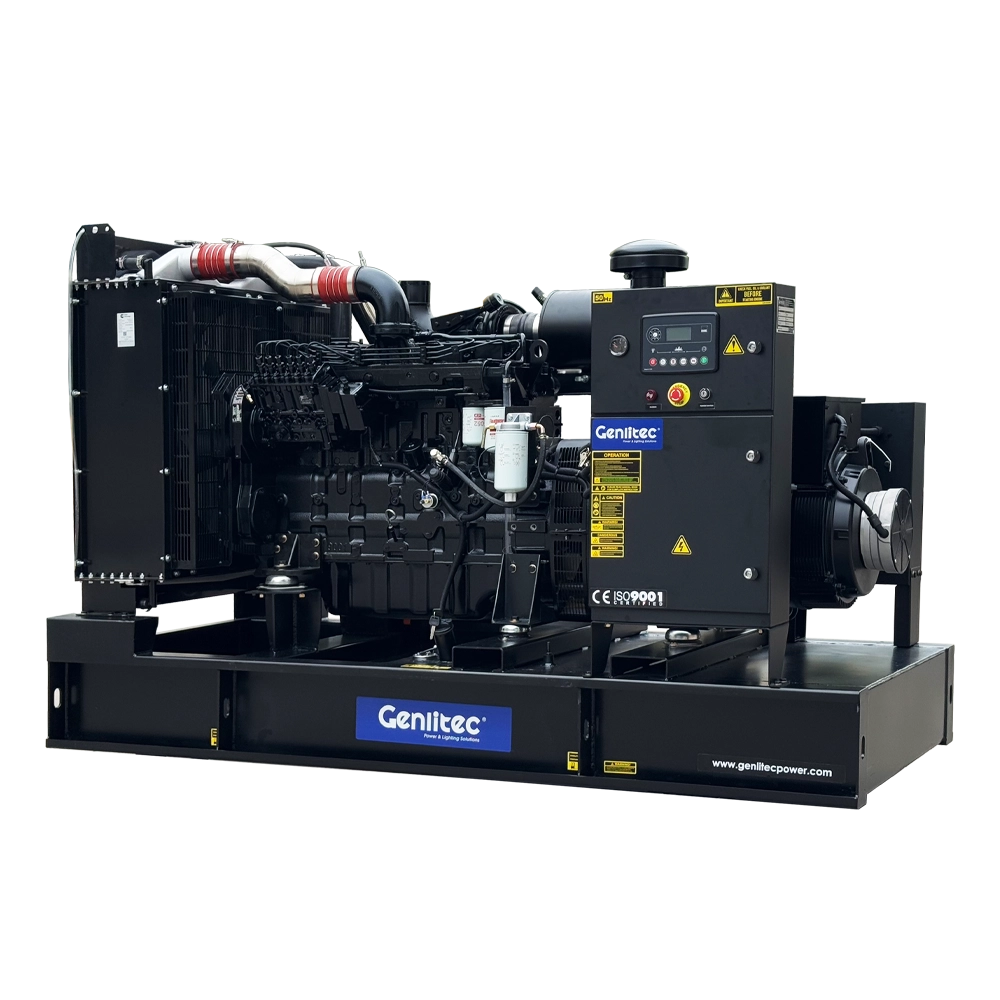

Designed for 60Hz operation at 1800RPM, the generator sets provide three-phase, four-wire output with voltage options including 120/208V, 127/220V, 220/380V and 254/440V. The GPC225S6 silent type features a weatherproof sound-attenuated enclosure with internal exhaust silencer, while the GPC225D6 open type provides convenient access for installation, inspection and maintenance. Optional ATS, trailer, extended fuel tank and power sockets are available according to application requirements.
Generator Set
| Open Type Model | GPC225D6 |
| Silent Type Model | GPC225S6 |
| Prime Power | 180kW/225kVA |
| Standby Power | 200kW/250kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V, 127/220V, 220/380V, 254/440V |
| Rated Speed | 1800RPM |
| Fuel Tank Capacity | 340L |
Diesel Engine
| Engine Model | DCEC CUMMINS 6CTAA8.3-G2 |
| Cylinder Number | 6 |
| Cylinder Arrangement | 6 Cylinders in Line |
| Engine Type | 4-Stroke, Water-Cooled Diesel |
| Aspiration System | Turbocharged and Air-Air Intercooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Fuel System | BYC P7100 Pump / Electronic Governor |
| Bore x Stroke | 114 x 135 mm |
| Compression Ratio | 17.3:1 |
| Rated Speed | 1800RPM |
| Displacement | 8.3L |
| Prime Power | 190kW @ 1800RPM |
| Standby Power | 210kW @ 1800RPM |
| Oil Capacity | 23.8L |
| Coolant Capacity | 12.0L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 49L/H |
| 75% Prime Load | 37L/H |
| 50% Prime Load | 25L/H |
| 25% Prime Load | 15L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 196kW/245kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPC225S6 silent type generator set
Options
○ ATS panel for automatic start and stop when utility power fails or returns
○ Double-axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Remote Monitoring System
○ Water-jacket heater
○ Space heater
○ PMG & AREP
Applications
The GENLITEC POWER 180kW/225kVA diesel generator set is suitable for a wide range of standby, backup and prime power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
