60Hz 52kW 65kVA Diesel Generator with Yanmar 4TNV106T-GGE Diesel Engine
Introduction
The GENLITEC POWER® GYM65D6 open type and GYM65S6 silent type diesel generator sets provide 52kW/65kVA prime power and 57kW/72kVA standby power. Powered by a YANMAR 4TNV106T-GGE four-cylinder, water-cooled diesel engine with turbocharging, mechanical governor and direct injection, these 65kVA diesel generator sets are designed to provide stable and dependable power for commercial, industrial, construction, agricultural, telecommunications and backup power applications.
Designed for 60Hz operation at 1800RPM, the GYM65D6 and GYM65S6 provide three-phase, four-wire power with rated voltage configurations of 120/208V, 127/220V, 220/380V and 254/440V. The generator package features a DC 12V electric starting system, a 100L fuel tank, water cooling and a control panel for reliable operation and convenient monitoring.

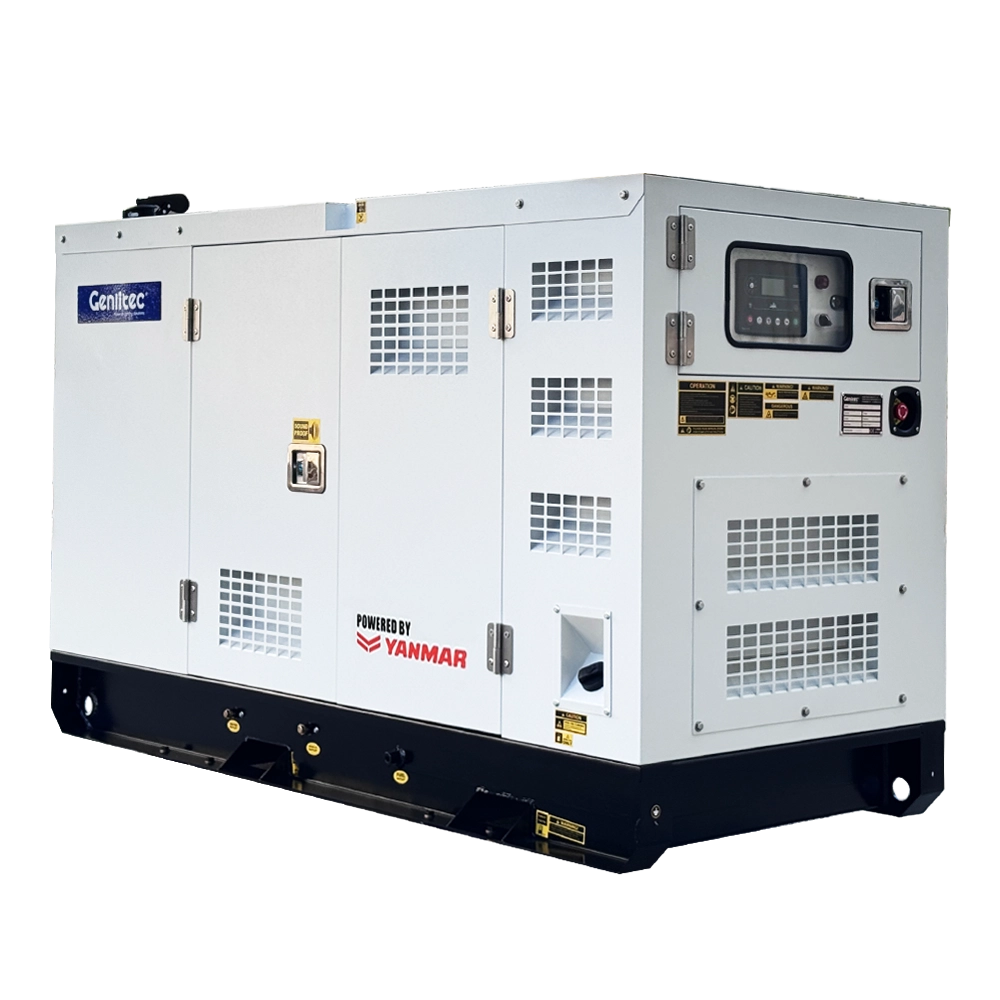

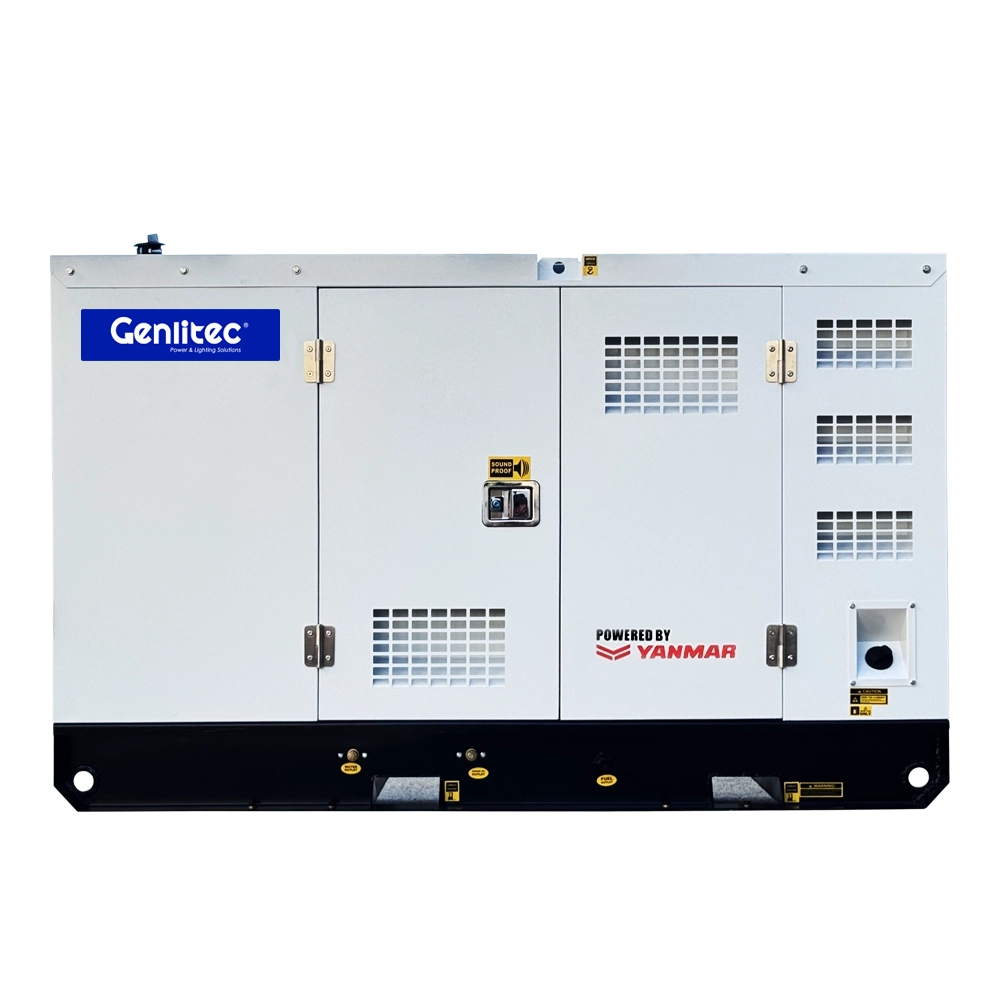

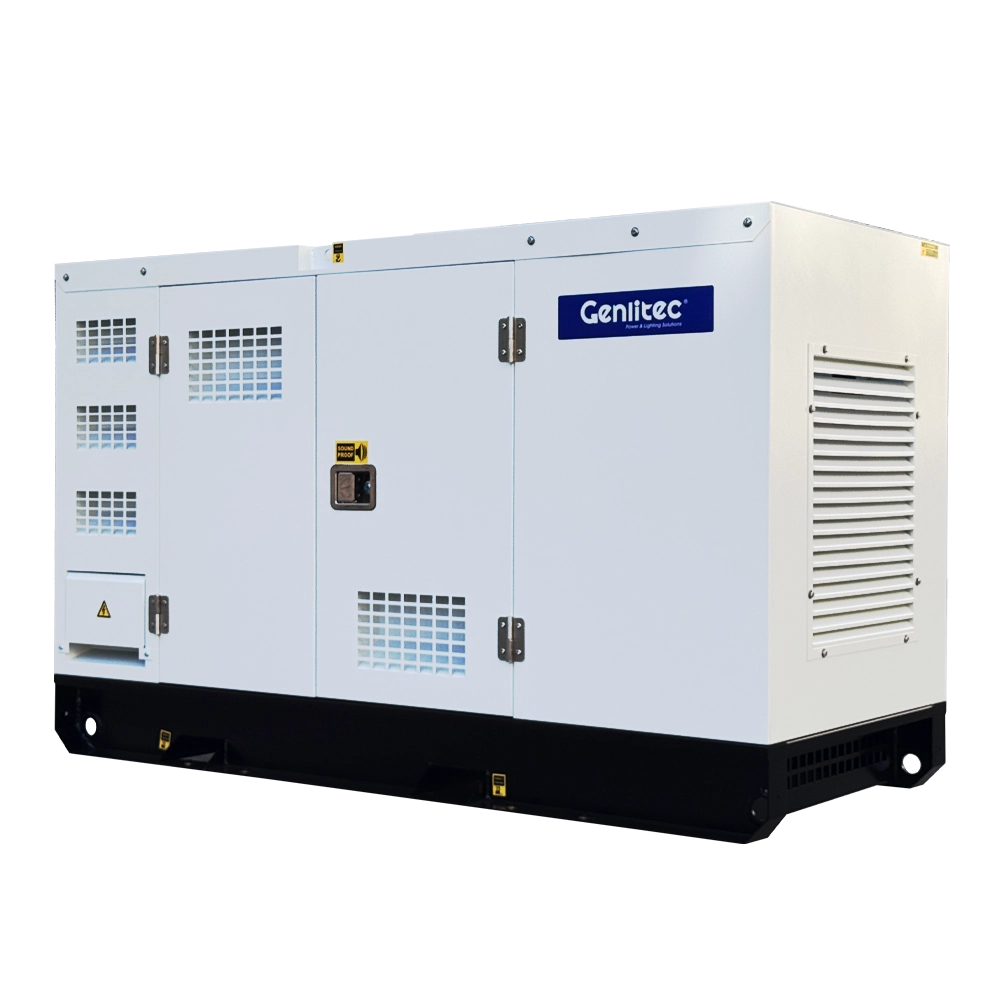

The GYM65D6 open type diesel generator is suitable for installations where ventilation, service access and convenient maintenance are important. The GYM65S6 silent type diesel generator can be supplied with a weatherproof sound-attenuated enclosure and internal exhaust silencer, making it suitable for outdoor and noise-sensitive applications requiring reliable prime or standby power.
Generator Set
| Open Type Model | GYM65D6 |
| Silent Type Model | GYM65S6 |
| Prime Power | 52KW/65KVA |
| Standby Power | 57KW/72KVA |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V; 127/220V; 220/380V; 254/440V |
| Rated Speed | 1800 RPM |
| Fuel Tank Capacity | 100L |
Diesel Engine
| Engine Model | YANMAR 4TNV106T-GGE |
| Cylinder Number | 4 |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 106 x 125 mm |
| Compression Ratio | 18.9:1 |
| Rated Speed | 1500 RPM |
| Displacement | 4.412L |
| Rated Power | 60.9KW |
| Standby Power | 66.9KW |
| Fuel System | Direct Injection |
| Oil Capacity | 14L |
| Coolant Capacity | 6L |
| Electric Starting System | DC 12V |
Fuel Consumption
| Load | Fuel Consumption |
| 100% Prime Load | 15.97L/H |
| 75% Prime Load | 11.98L/H |
| 50% Prime Load | 8L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 54KW/67.5KVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GYM65S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 52kW/65kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ YANMAR diesel engine for reliable and efficient power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
