Introduction
GENLITEC POWER GSC75D6 and GSC75S6 diesel generator sets deliver 60kW/75kVA prime power and 66kW/83kVA standby power, powered by the reliable SDEC 4ZT4.1-G21 diesel engine and a 60.8kW/76kVA alternator. They are designed for industrial, commercial, construction, agricultural and standby power applications.
Designed for 60Hz operation at 1800RPM, the generator sets feature 3-phase, 4-wire output and support 120/208V, 127/220V, 220/380V and 254/440V voltage configurations. The SDEC 4ZT4.1-G21 engine features turbocharged aspiration, electronic speed governing, direct injection and water cooling for stable operation under demanding working conditions.

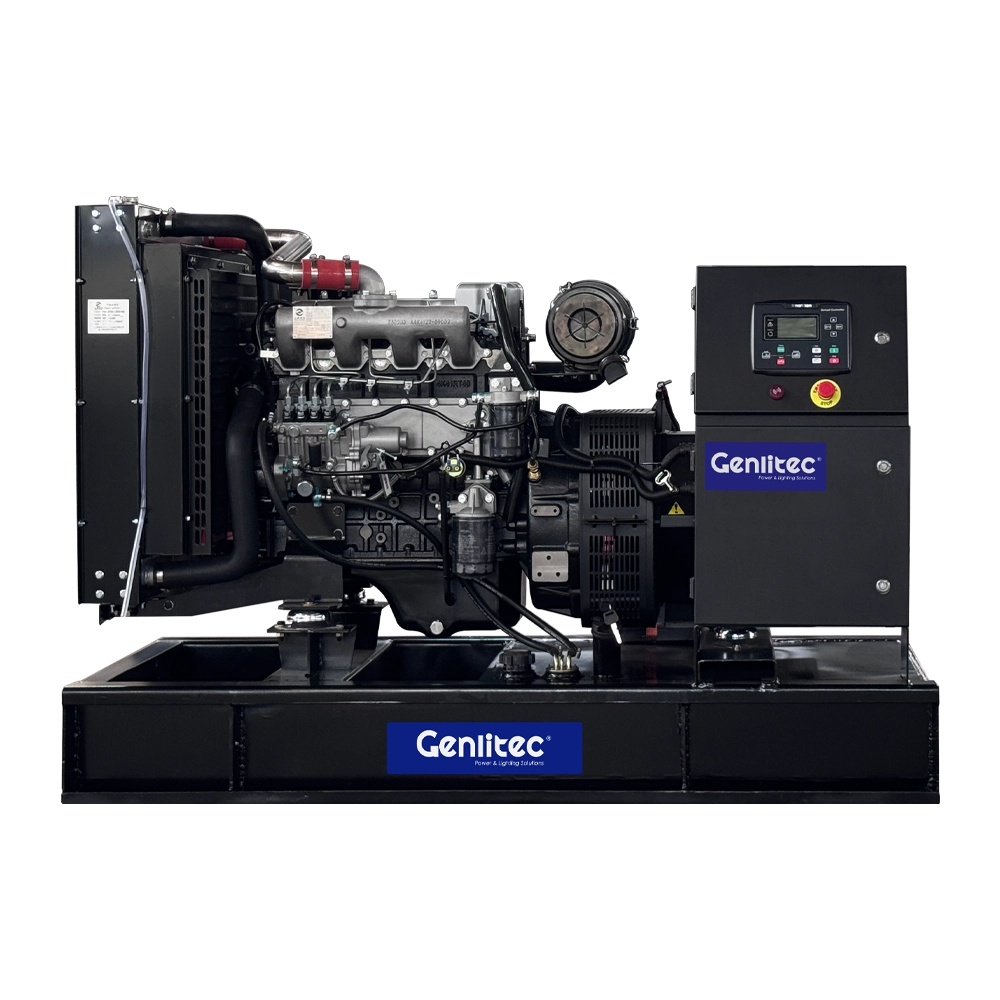

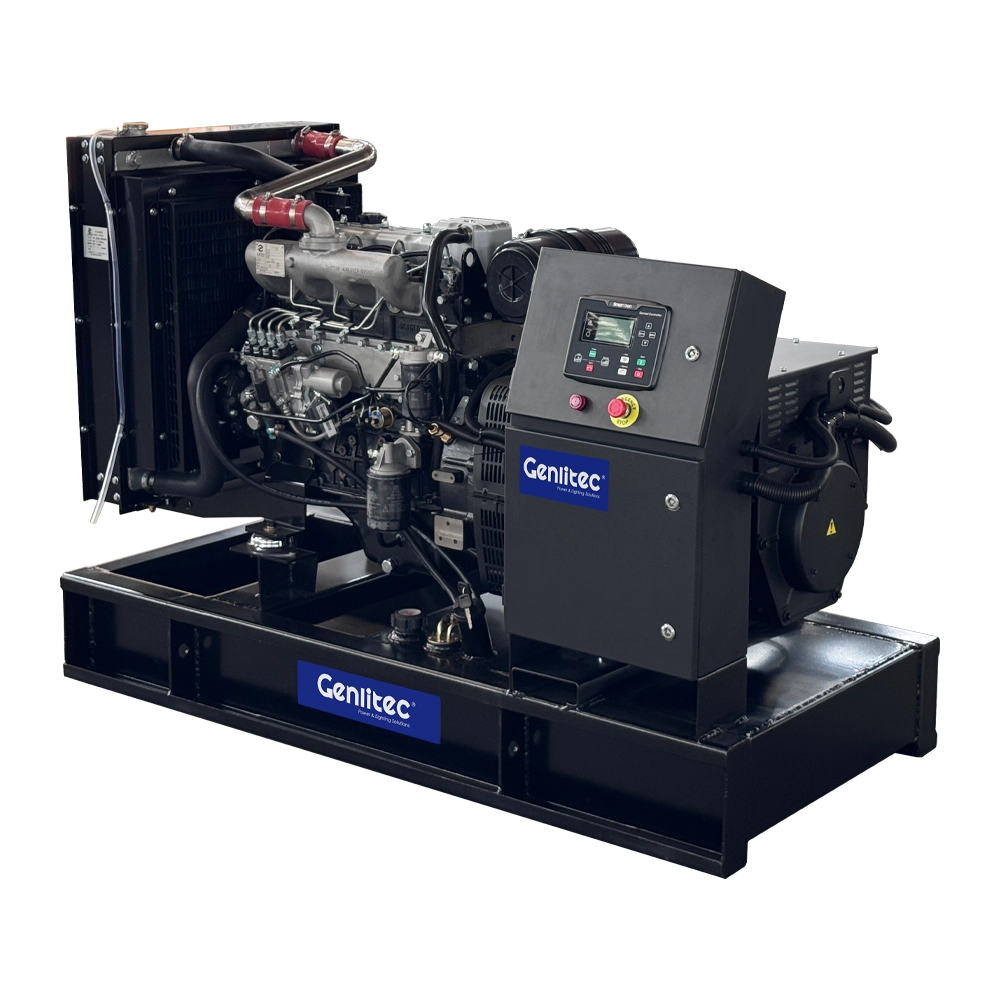

GSC75D6 is the open type configuration for applications where installation space and ventilation are available, while GSC75S6 features a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications.
Generator Set
|
Open Type Model
|
GSC75D6
|
|
Silent Type Model
|
GSC75S6
|
|
Prime Power
|
60kW/75kVA
|
|
Standby Power
|
66kW/83kVA
|
|
Phase & Wire
|
3 Phase, 4 Wires
|
|
Power Factor
|
0.8
|
|
Frequency
|
60Hz
|
|
Rated Speed
|
1800RPM
|
|
Rated Voltage
|
120/208V, 127/220V, 220/380V, 254/440V
|
|
Fuel Tank Capacity
|
115L
|
Diesel Engine
|
Engine Model
|
SDEC 4ZT4.1-G21
|
|
Cylinder Number
|
4
|
|
Aspiration System
|
Turbocharged
|
|
Cooling Method
|
Water Cooled
|
|
Governor Type
|
Electronic
|
|
Bore x Stroke
|
105 x 118 mm
|
|
Compression Ratio
|
18:1
|
|
Rated Speed
|
1800RPM
|
|
Displacement
|
4.1L
|
|
Rated Power
|
70kW
|
|
Standby Power
|
77kW
|
|
Fuel System
|
Direct Injection
|
|
Oil Capacity
|
10L
|
|
Coolant Capacity
|
4.1L (Engine Only)
|
|
Electric Starting System
|
DC 12V
|
Fuel Consumption
|
100% Prime Load
|
19.1L/H
|
|
75% Prime Load
|
14.4L/H
|
|
50% Prime Load
|
10.0L/H
|
|
25% Prime Load
|
6.1L/H
|
Alternator
|
Number of Phase
|
3
|
|
Rated Power
|
60.8kW/76kVA
|
|
Frequency
|
60Hz
|
|
Power Factor
|
0.8
|
|
Poles
|
4
|
|
Temp. Rise
|
125K
|
|
Terminals
|
6/12
|
|
Insulation Class
|
H
|
|
Ambient Temp.
|
40°C
|
|
IP Rating
|
IP23
|
|
Excitation System
|
Self-Excited
|
|
Bearing
|
Single Bearing
|
|
Coating
|
Vacuum Impregnation
|
|
Voltage Regulator
|
A.V.R
|
|
Coupling
|
Flexible Disc
|
Control Panel
|
○ Emergency stop button
|
○ Main circuit breaker
|
|
○ Float battery charger
|
○ Manual/Auto start control panel
|
|
○ Fuel level meter
|
○ Controller power switch
|
|
○ Alarm buzzer
|
|
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GSC75S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
○ Remote & monitoring system
Applications
The GENLITEC POWER 60kW/75kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and a flexible product portfolio, GENLITEC POWER supports customers with equipment selection, customized configurations, quality control, export service and technical support.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
Frequently Asked Questions
Q: What is the rated power of the GSC75D6 and GSC75S6 generator sets?
A: The GSC75D6 and GSC75S6 provide 60kW/75kVA prime power and 66kW/83kVA standby power.
Q: Which diesel engine is used in the GSC75D6 and GSC75S6?
A: The generator sets are powered by the SDEC 4ZT4.1-G21 4-cylinder, 4.1L turbocharged diesel engine with electronic speed governing, rated at 70kW prime power and 77kW standby power at 1800RPM.
Q: What voltage configurations are available?
A: The available voltage configurations include 120/208V, 127/220V, 220/380V and 254/440V, with 3-phase, 4-wire output at 60Hz.
Q: What is the difference between the open and silent type generator sets?
A: The GSC75D6 is an open type generator set, while the GSC75S6 is equipped with a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive applications.
Q: Can an ATS be supplied with the GSC75D6 and GSC75S6?
A: Yes. An ATS can be supplied as an optional accessory for automatic generator start and stop when utility power fails or returns.
Q: What is the warranty period?
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
