50Hz 600kW 750kVA Diesel Generator with Perkins 2806A-E18TTAG5 Engine
Introduction

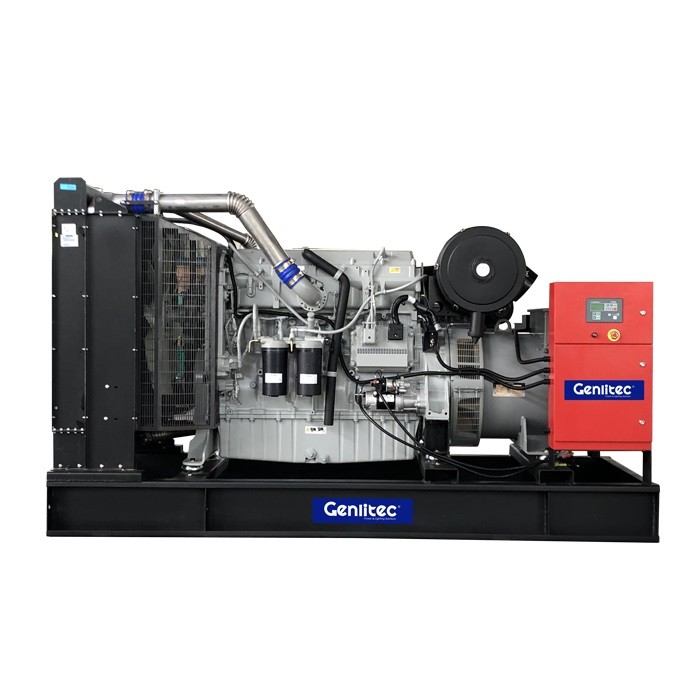

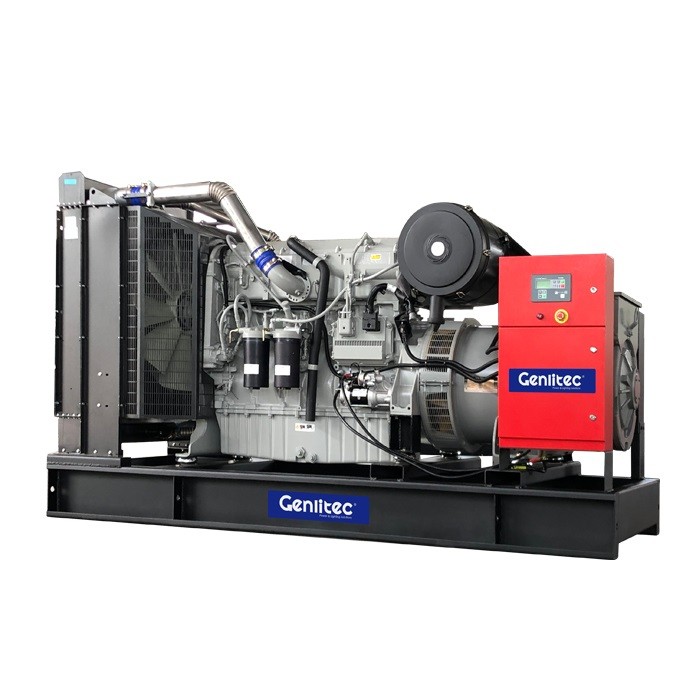

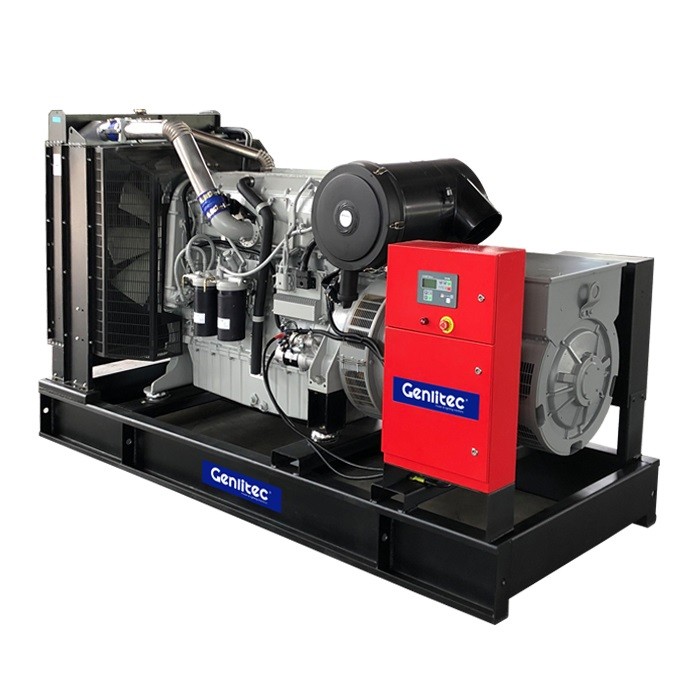

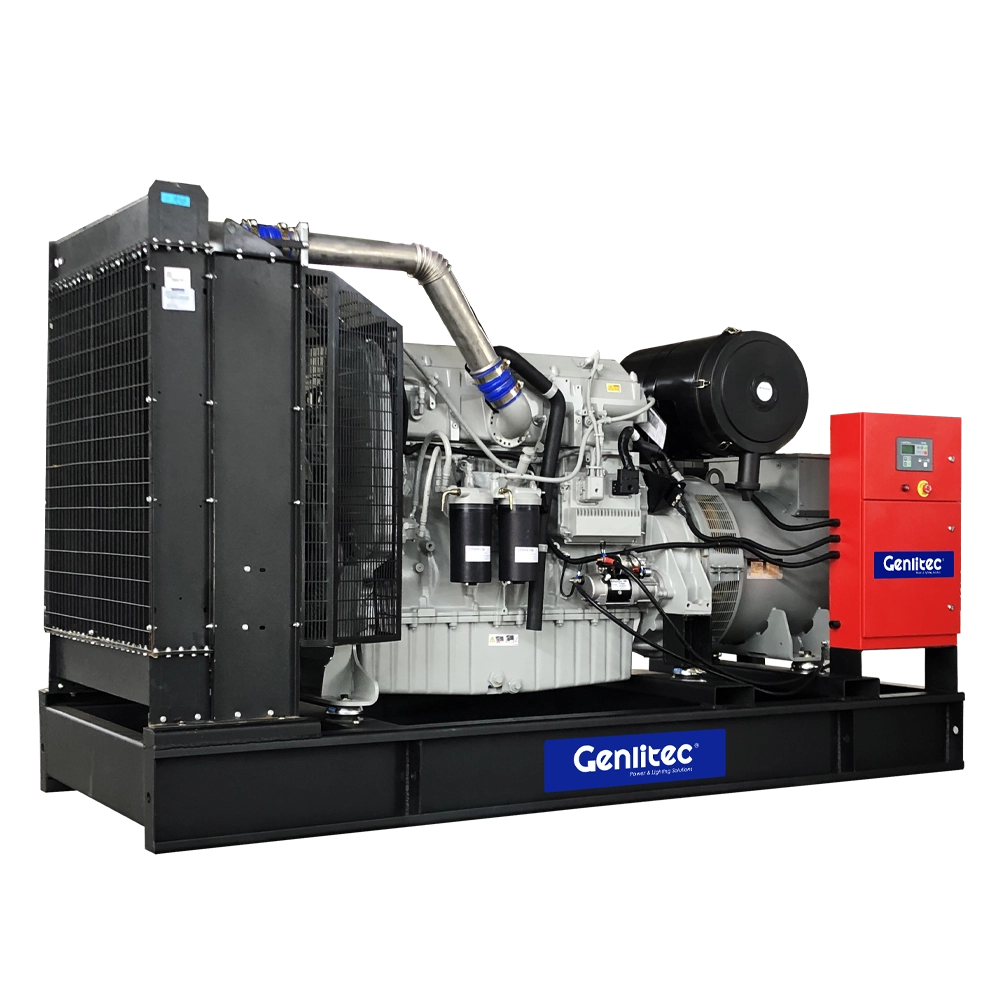

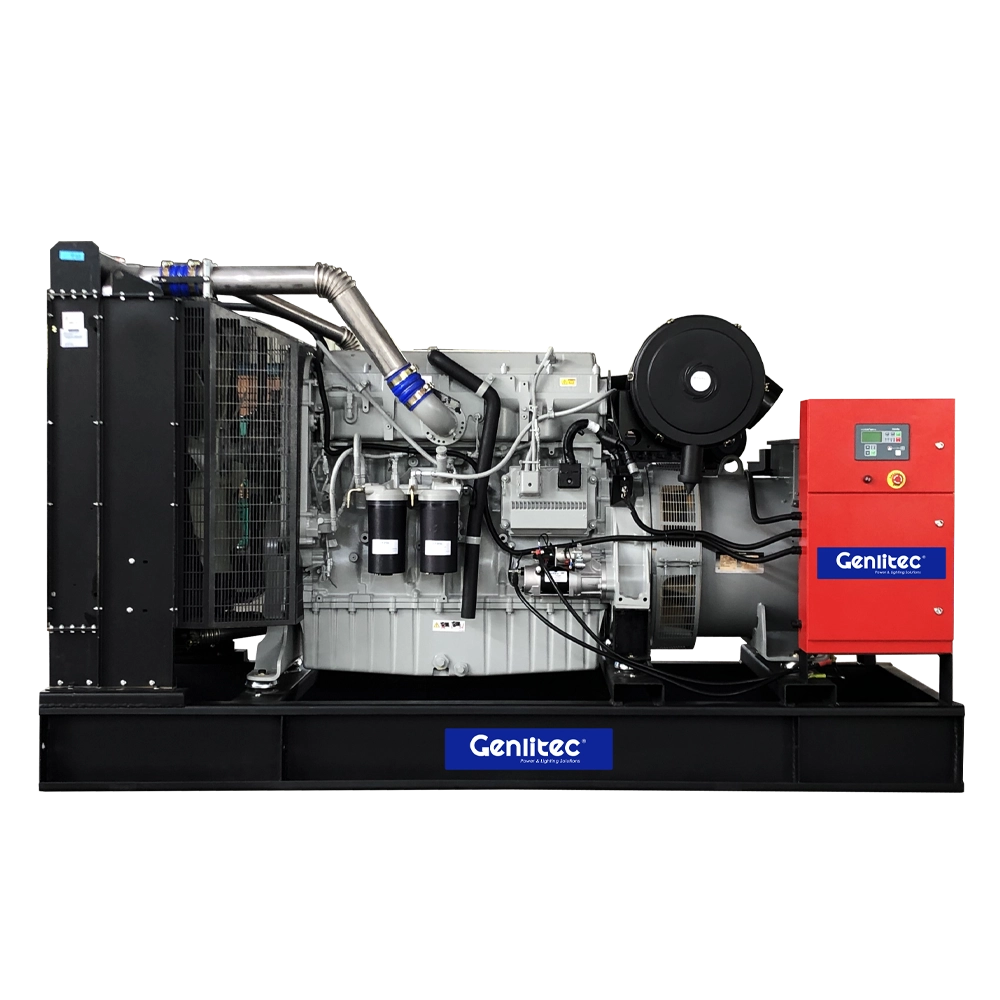

The GENLITEC POWER GPP750D5-I / GPP750S5-I is a 750 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 600KW/750KVA prime power and 660KW/825KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 2806A-E18TTAG5 turbocharged and air-to-air charge cooled diesel engine, the GPP750D5-I / GPP750S5-I combines an 18.1L six-cylinder engine with electronic engine control, high power density and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 1000L standard fuel tank is provided, while optional ATS, synchronization, remote monitoring, heaters and other accessories are available for different project requirements. This 600KW/750KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable electricity supply is required.
Generator Set
| Open Type Model | GPP750D5-I |
| Silent Type Model | GPP750S5-I |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 600KW/750KVA |
| Standby Power | 660KW/825KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | Perkins 2806A-E18TTAG5 |
| Cylinder Number | 6 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Parallel Turbocharged and Air-to-Air Charge Cooled |
| Cooling Method | Liquid Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 145 x 183 mm |
| Compression Ratio | 14:1 |
| Rated Speed | 1500 RPM |
| Displacement | 18.1L |
| Gross Engine Power - Prime | 671KW |
| Gross Engine Power - Standby | 739KW |
| Net Engine Power - Prime | 646KW |
| Net Engine Power - Standby | 714KW |
| Combustion System | Direct Injection |
| Coolant Capacity | 110L |
| Oil Capacity | 68L |
| Electric Starting System | DC 24V |
Fuel Consumption
| Standby Power | 180L/H |
| 100% Prime Load | 162L/H |
| 75% Prime Load | 118L/H |
| 50% Prime Load | 80L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 600KW/750KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

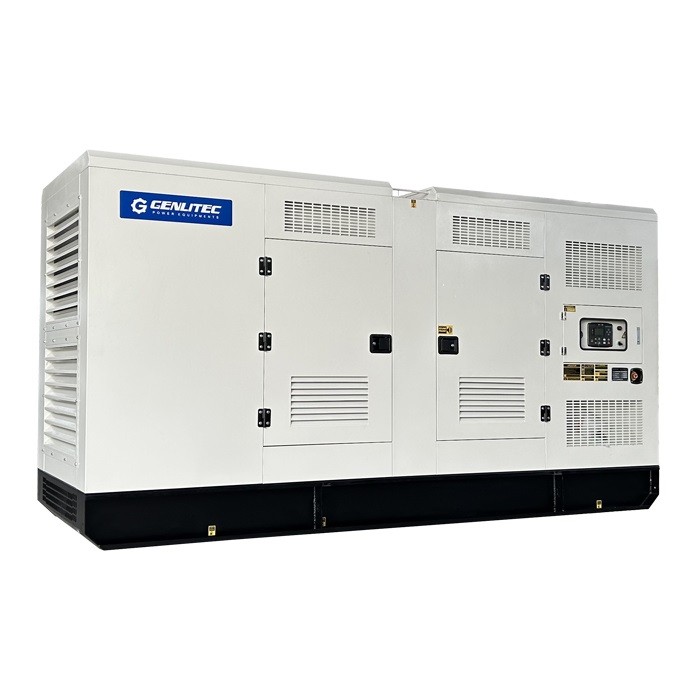

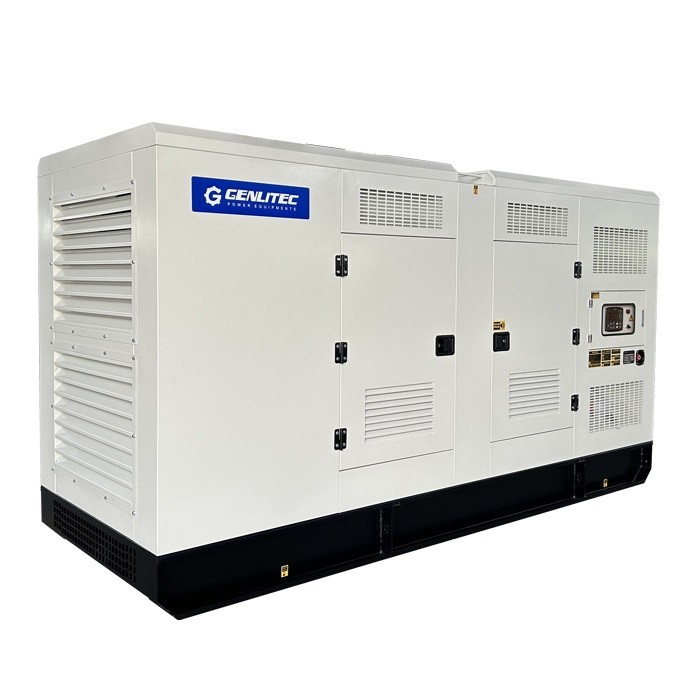

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP750S5-I silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
Applications
The GENLITEC POWER 600KW/750KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP750D5-I / GPP750S5-I diesel generator sets combine a Perkins 2806A-E18TTAG5 engine with a 600KW/750KVA generator set configuration for dependable prime and standby power.
○ Perkins 2806A-E18TTAG5 diesel engine for reliable high-power generation
○ 600KW/750KVA prime power and 660KW/825KVA standby power
○ 600KW/750KVA alternator configuration
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Electronic engine control for precise engine speed and performance management
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
