60Hz 300kW 375kVA Diesel Generator with Cummins 6ZTAA13-G3 Engine
Short Description
GENLITEC POWER GPC375D6 / GPC375S6 diesel generator powered by Cummins 6ZTAA13-G3, with prime power 300kW/375kVA and standby power 330kW/413kVA.
- ModelGPC375S6
- Prime Power (PRP)300kW/375kVA
- Standby Power (ESP)330kW/413kVA
- Engine6ZTAA13-G3
- Fuel Consumption (100%)81L/H
Product Details
Product Tags
Video
Introduction

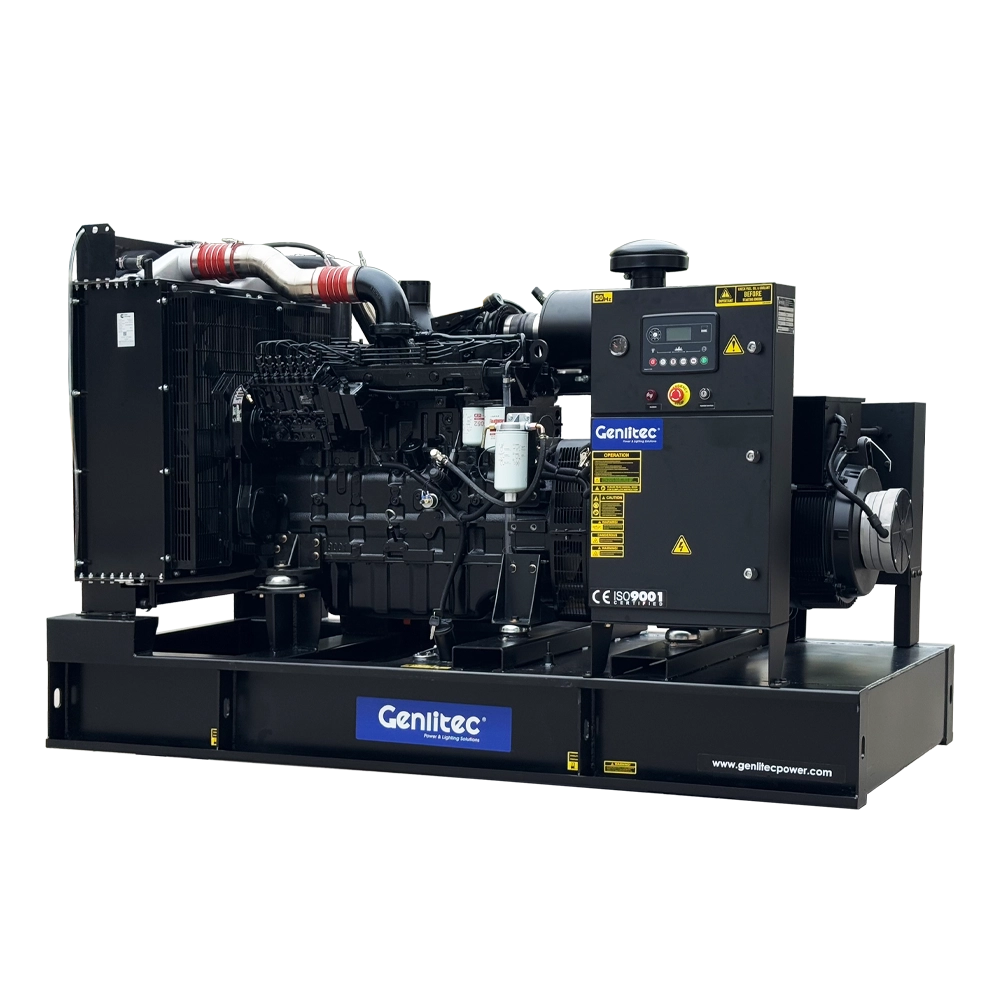

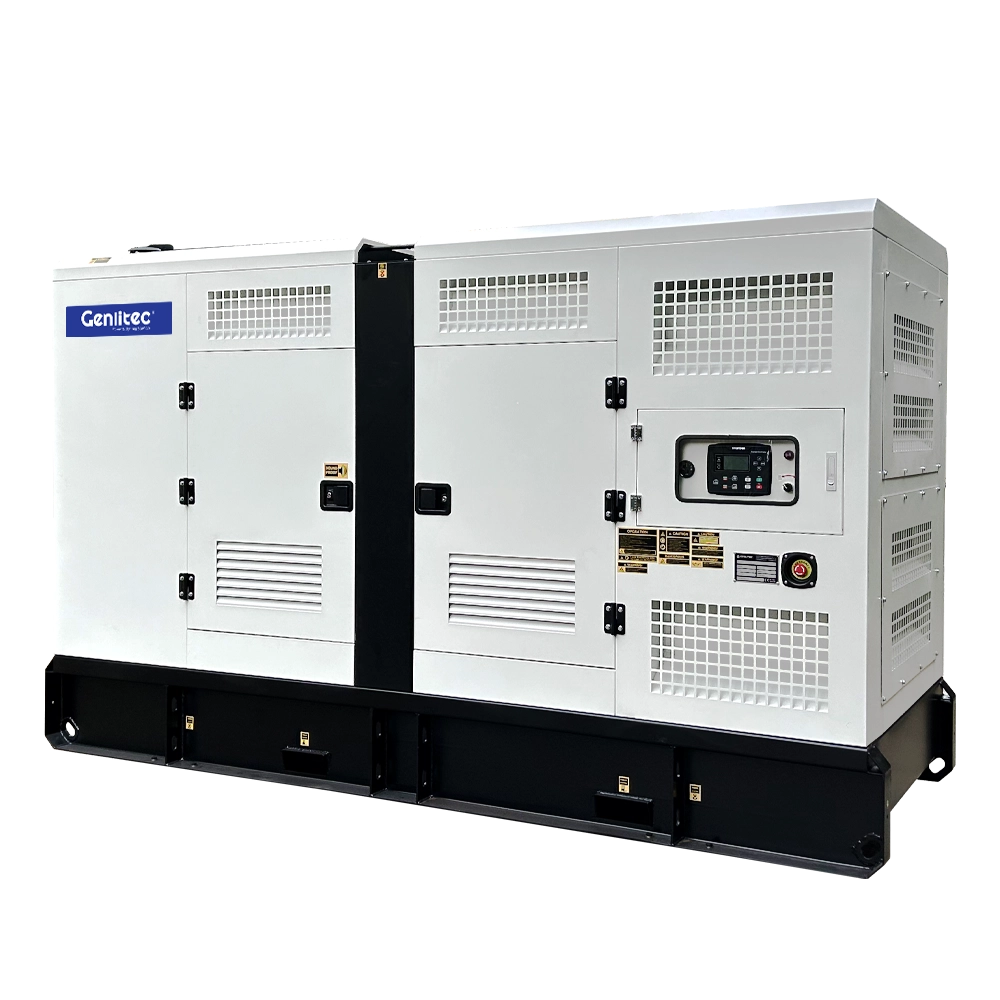

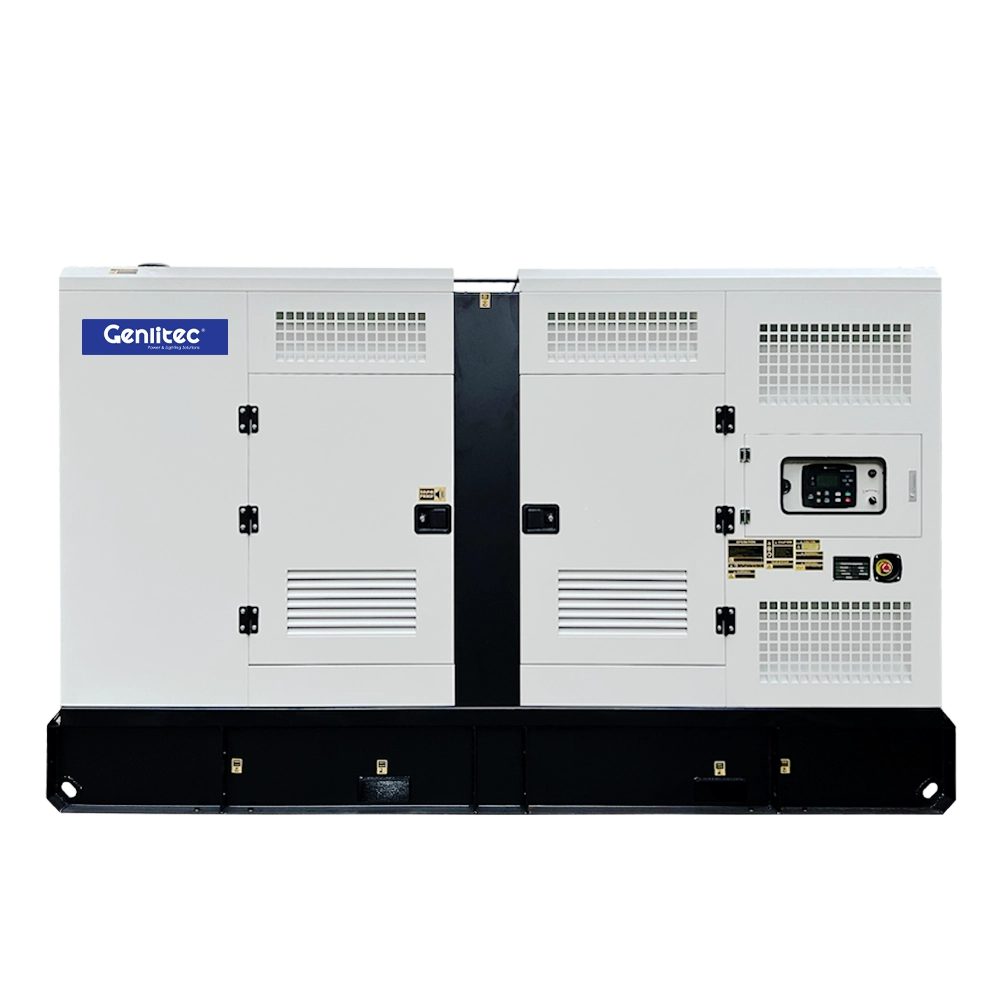

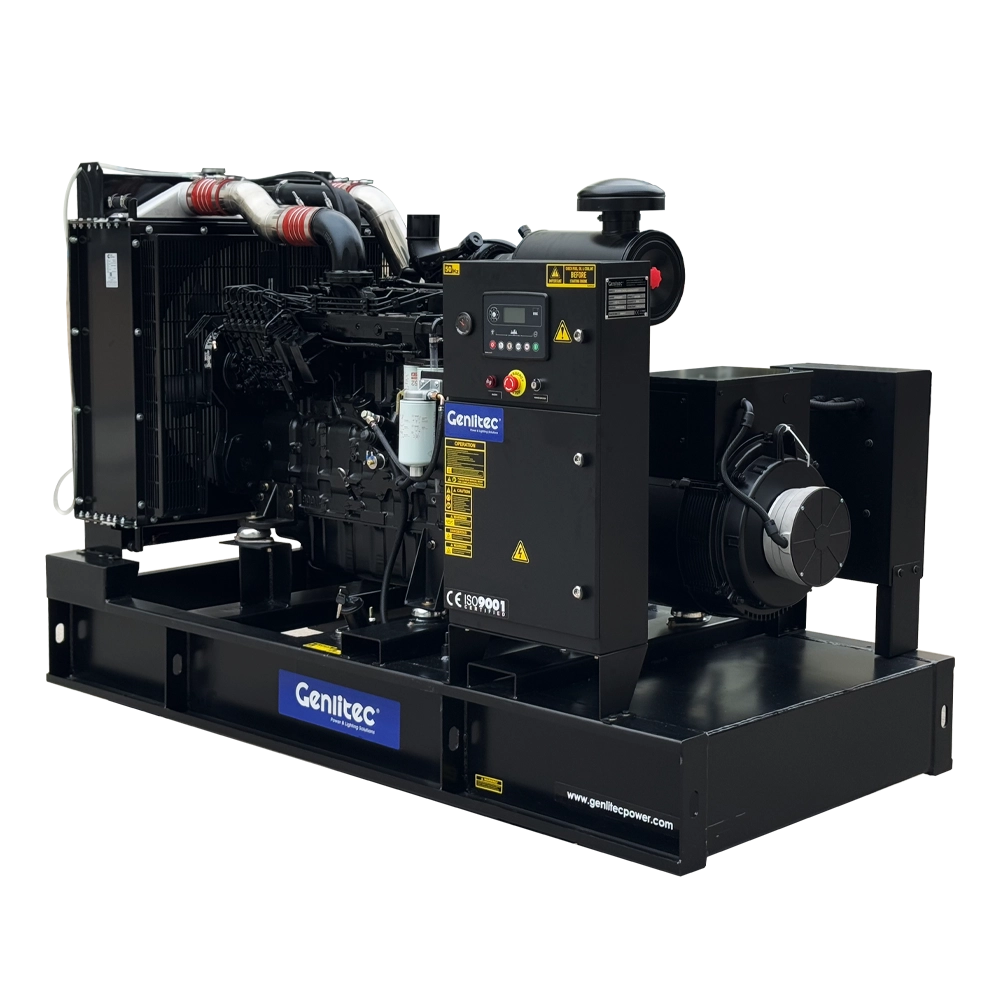

The GENLITEC POWER® GPC375D6 open type and GPC375S6 silent type diesel generator sets deliver 300kW/375kVA prime power and 330kW/413kVA standby power. Powered by a reliable DCEC CUMMINS 6ZTAA13-G3 six-cylinder, 13L turbocharged and air-to-air aftercooled diesel engine and matched with a brushless copper alternator, these generator sets provide stable and dependable power for commercial, industrial, construction and standby applications.
Designed for 60Hz operation at 1800RPM, the generator sets provide three-phase, four-wire output with voltage options including 120/208V, 127/220V, 220/380V and 254/440V. The GPC375S6 silent type features a weatherproof sound-attenuated enclosure with internal exhaust silencer, while the GPC375D6 open type provides convenient access for installation, inspection and maintenance. Optional ATS, synchronization system, extended fuel tank and power sockets are available according to application requirements.
Generator Set
| Open Type Model | GPC375D6 |
| Silent Type Model | GPC375S6 |
| Prime Power | 300kW/375kVA |
| Standby Power | 330kW/413kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V, 127/220V, 220/380V, 254/440V |
| Rated Speed | 1800RPM |
| Fuel Tank Capacity | 570L |
Diesel Engine

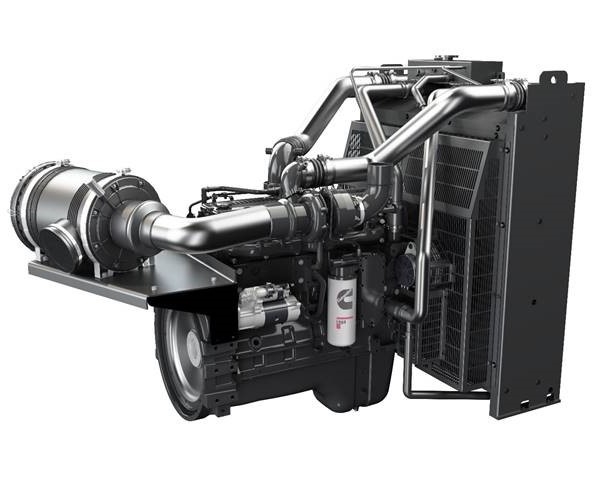

| Engine Model | DCEC CUMMINS 6ZTAA13-G3 |
| Cylinder Number | 6 |
| Cylinder Arrangement | 6 Cylinders in Line |
| Engine Type | 4-Stroke, Water-Cooled Diesel |
| Aspiration System | Turbocharged and Air-to-Air Aftercooled |
| Cooling Method | Water Cooled |
| Governor Type | GAC Electronic |
| Fuel System | BYC PD Pump / GAC Electronic Governor |
| Bore x Stroke | 130 x 163 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1800RPM |
| Displacement | 13L |
| Prime Power | 340kW @ 1800RPM |
| Standby Power | 380kW @ 1800RPM |
| Oil Capacity | 45.42L |
| Coolant Capacity | 23.1L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 81.0L/H |
| 75% Prime Load | 59.2L/H |
| 50% Prime Load | 40.1L/H |
| 25% Prime Load | 23.5L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 300kW/375kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPC375S6 silent type generator set
Options
○ ATS panel for automatic start and stop when utility power fails or returns
○ Synchronization system
○ 12-hour fuel tank
○ Remote Monitoring System
○ Water-jacket heater
○ Space heater
○ PMG & AREP
Applications
The GENLITEC POWER 300kW/375kVA diesel generator set is suitable for a wide range of standby, backup and prime power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
