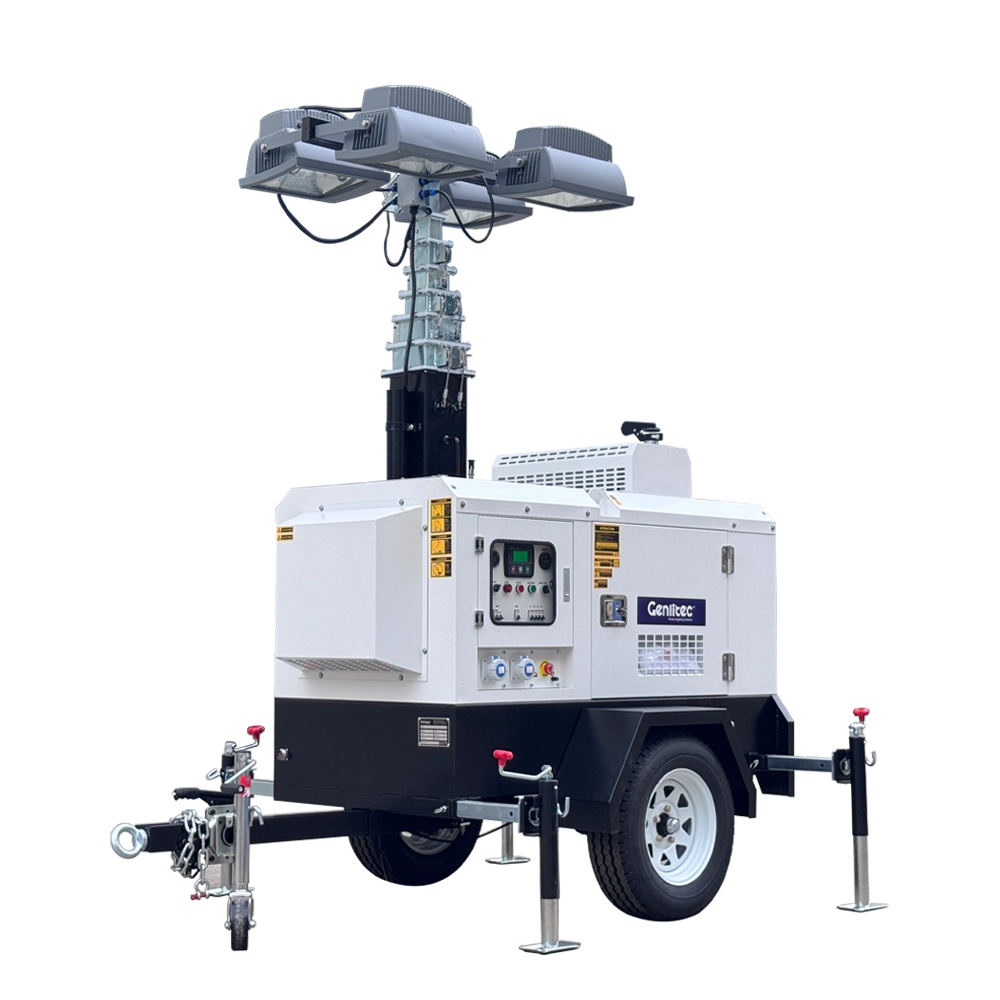

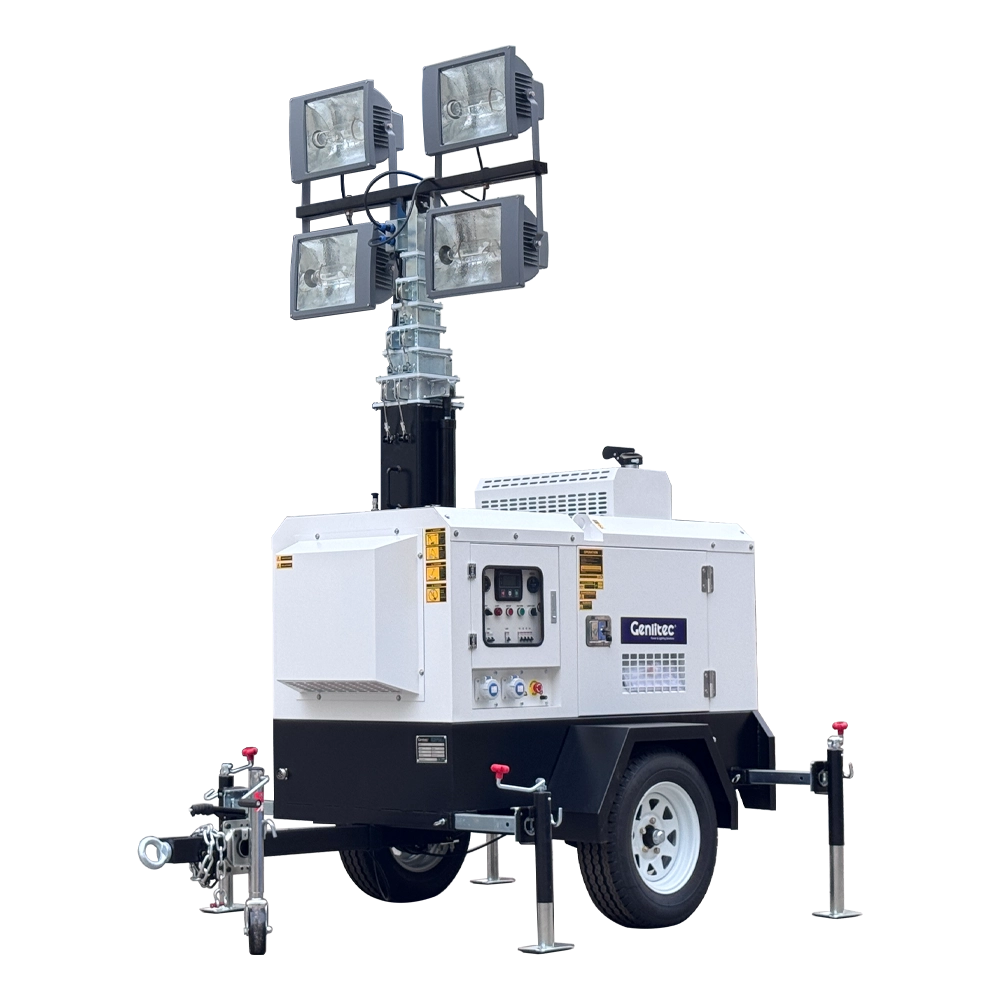

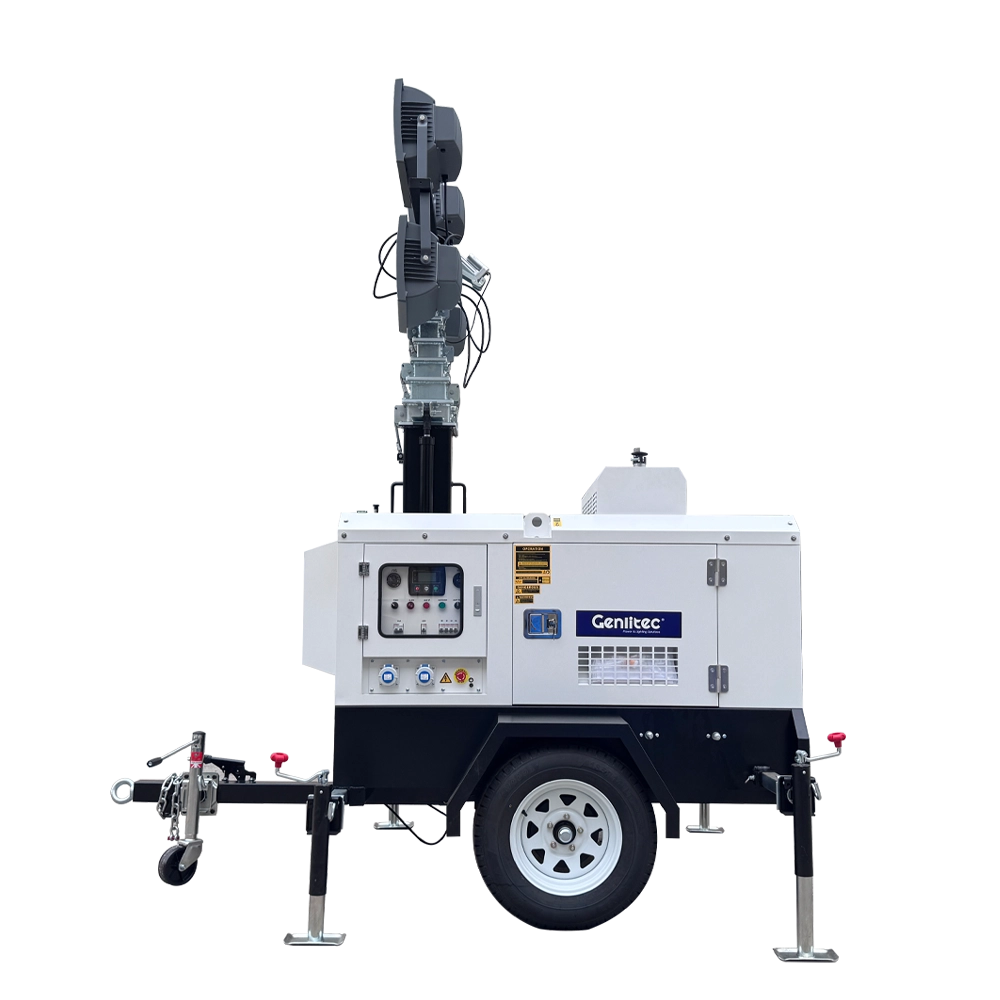

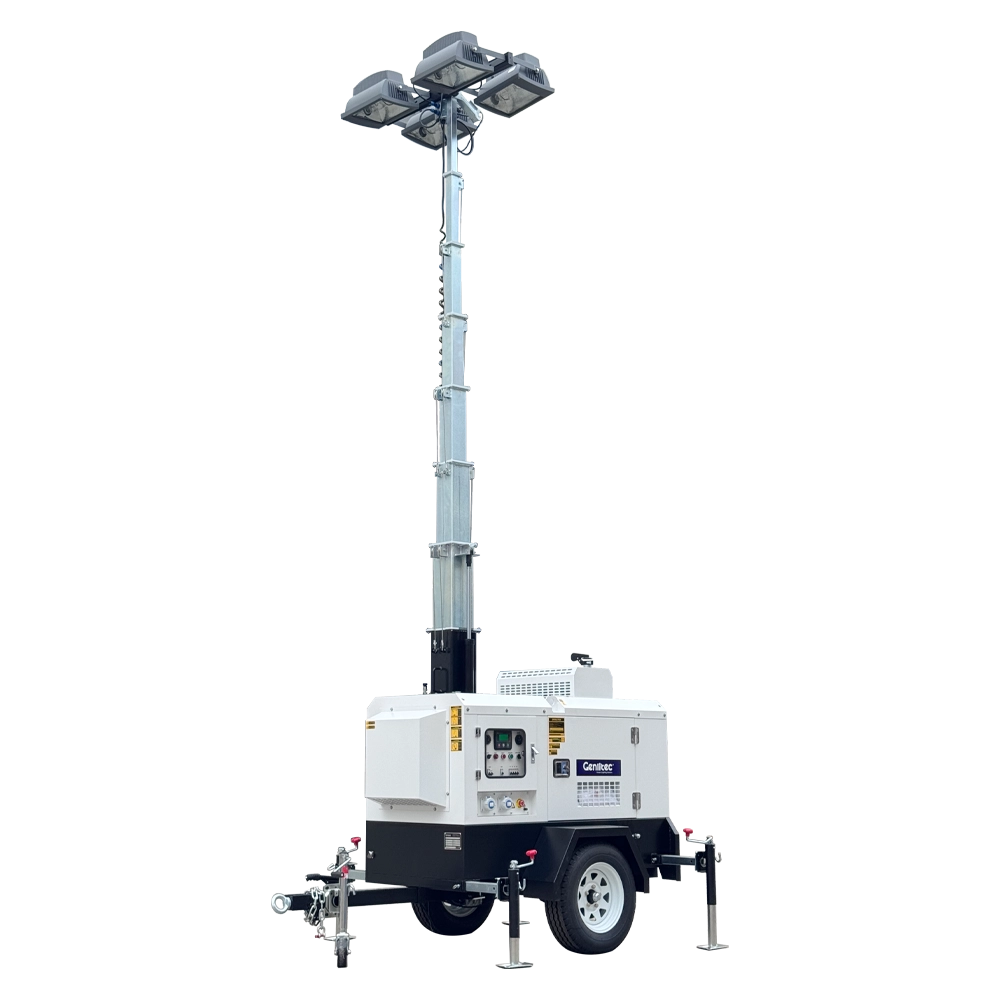

The GENLITEC POWER® GLT4000-8HK is an 8-meter hydraulic diesel generator light tower equipped with four 1000W metal halide lamps. Powered by a KUBOTA D1105-E2BG water-cooled diesel engine, it provides high-intensity lighting and reliable auxiliary power for construction sites, mining operations, road and highway projects, oil and gas sites, infrastructure development and other demanding outdoor applications.

The vertical hydraulic mast extends to a maximum height of 8 meters and features 358° manual rotation for flexible lighting positioning. Four 1000W metal halide lamps provide up to 300,000 lumens of total light output, while the heavy-duty single-axle trailer allows convenient transportation and rapid deployment. With a weatherproof sound-attenuated enclosure, 115L fuel tank and reliable KUBOTA engine, the GLT4000-8HK is designed for continuous outdoor operation in demanding working environments.

Light Tower

Model	GLT4000-8HK
Lifting System	8 Meters, Hydraulic Lifting
Mast Rotation System	358° Manual
Total Power of Lights	4 x 1000W Metal Halide Lamps
Frequency	50/60Hz
Voltage	110~240V
Phase	Single
Rated Power	6.7KW/50Hz; 7.3KW/60Hz
Trailer Structure	Single Axle, 14-inch Tyres

Diesel Engine

Engine Model	KUBOTA D1105-E2BG
Cylinder Number	3
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	Spherical Type (E-TVCS)
Bore x Stroke	78 x 78.4 mm
Compression Ratio	24:1
Engine Speed	1500/1800 RPM
Displacement	1.123L
Rated Power	8.4KW/1500RPM; 10.1KW/1800RPM
Coolant Capacity	-
Oil Capacity	5.1L
Governor Type	Mechanical
Electric Starting System	DC 12V

Alternator

Number of Phase	Single
Rated Power	6~8KW
Frequency	50/60Hz
Power Factor	1.0
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40°C
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

Operation Mast

Max. Height of Mast	8 Meters
Lifting System	Vertical Type, Hydraulic Lifting
Lifting Method	Button
Mast Stages	8
Rotation System	358° Manually
Mast Material	Galvanization Steel Tube

Metal Halide Lamps

Total Power of Lamps	4 x 1000W
Lamps Type	Metal Halide Lamps
Light Capacity	4 x 75,000 Lumens
Design Lifetime	10,000 Hours
Working Temp.	-30°C~40°C
Light Coverage	5~7 Acres
Protection Grade	IP65

Control Panel

○ SMARTGEN HGM1790N digital controller

○ Emergency stop button

○ DELIXI main circuit breaker and individual circuit breakers for lights

○ Hour meter

○ Manual/Auto start control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

Trailer and Sound Attenuated Enclosure

○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer

○ Highly corrosion-resistant construction

○ Heavy-duty single-axle trailer with 14-inch tyres

○ 115L fuel tank for extended outdoor operation

Container Loading Capacity

20GP Container	Max. 4 Sets
40HQ Container	Max. 8 Sets

Applications

The GLT4000-8HK mobile diesel light tower is designed for high-intensity temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:

○ Construction sites

○ Mining operations

○ Road and highway projects

○ Railway and infrastructure projects

○ Oil and gas sites

○ Outdoor events and temporary lighting

○ Emergency and disaster-response lighting

Why Choose GENLITEC POWER

GENLITEC POWER is a professional manufacturer and exporter specializing in mobile lighting towers and diesel generator sets. With extensive experience in manufacturing and international export, GENLITEC POWER supplies mobile lighting towers to customers and distributors in different markets worldwide. Our lighting tower range covers hydraulic and manual lifting systems, different mast heights, metal halide and LED lighting configurations, multiple diesel engine brands and customized power options.

As a specialized lighting tower manufacturer, GENLITEC POWER focuses on practical design, reliable components, stable performance and export-ready construction. Our engineering and production capabilities allow us to customize lighting towers according to different voltage, frequency, engine, lighting, trailer and environmental requirements.

○ Professional manufacturer and exporter of mobile lighting towers

○ Extensive experience in international lighting tower projects

○ Multiple mast heights, lifting systems and lighting configurations

○ KUBOTA and other international diesel engine options

○ Customized solutions for construction, mining, oil and gas and infrastructure projects

○ Quality control, factory testing and international technical support

Warranty

12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.

Frequently Asked Questions

Q: What is the mast height of the GLT4000-8HK light tower?

A: The GLT4000-8HK features an 8-meter vertical hydraulic lifting mast with a 358° manual rotation system, allowing the lighting direction to be adjusted according to site requirements.

Q: What type of lamps does the GLT4000-8HK use?

A: The light tower is equipped with four 1000W metal halide lamps, with each lamp providing up to 75,000 lumens and a total lighting capacity of up to 300,000 lumens.

Q: What diesel engine is used in the GLT4000-8HK?

A: The GLT4000-8HK is powered by a KUBOTA D1105-E2BG three-cylinder water-cooled diesel engine with a mechanical governor and DC 12V electric starting system.

Q: What is the generator power of the GLT4000-8HK?

A: The GLT4000-8HK provides 6.7kW rated power at 50Hz and 7.3kW rated power at 60Hz, with single-phase output and a power factor of 1.0.

Q: What is the fuel tank capacity of the GLT4000-8HK?

A: The GLT4000-8HK is equipped with a 115L fuel tank designed to support extended outdoor operation and reduce the need for frequent refueling.

Q: Where can the GLT4000-8HK be used?

A: It is suitable for construction, mining, roadwork, railway and infrastructure projects, oil and gas operations, outdoor events, emergency lighting and other temporary outdoor lighting applications.

Q: Can the GLT4000-8HK be customized?

A: Yes. GENLITEC POWER can provide customized lighting tower configurations according to different engine brands, alternators, voltage, frequency, lighting systems, trailer requirements and operating environments.
