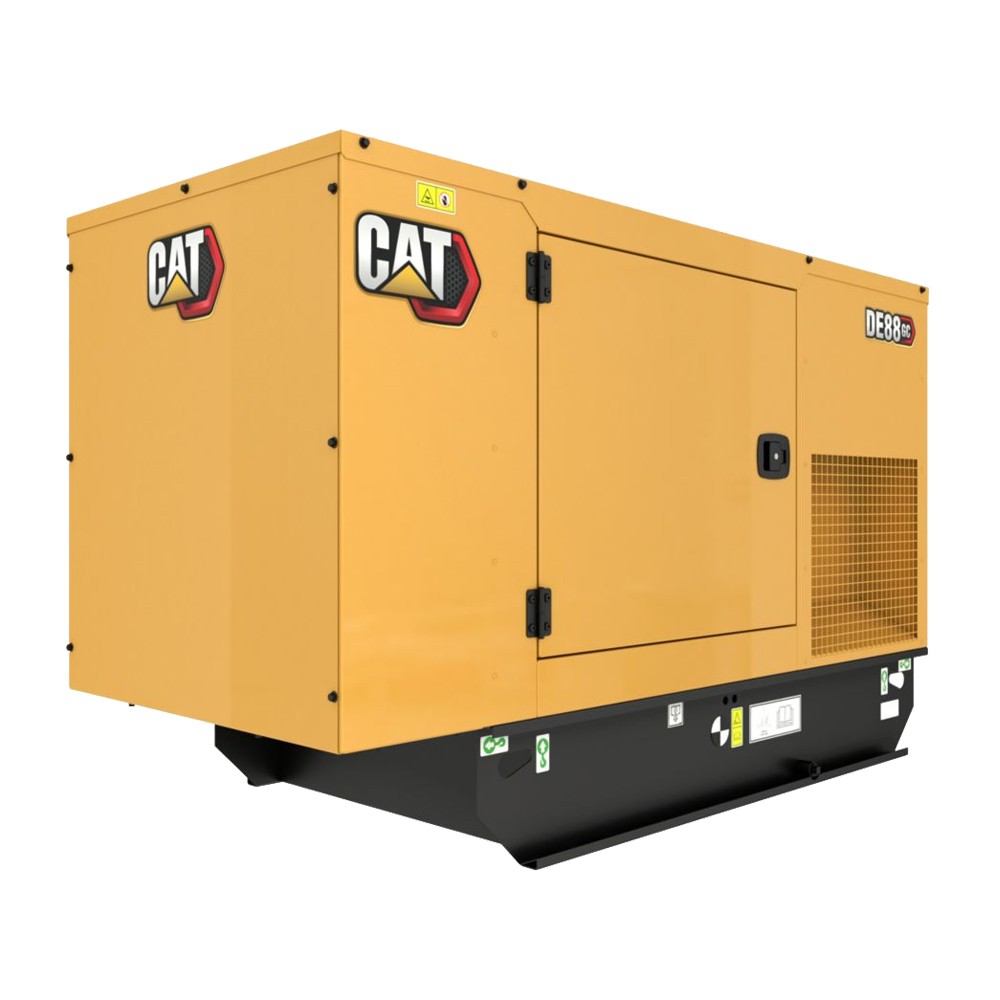

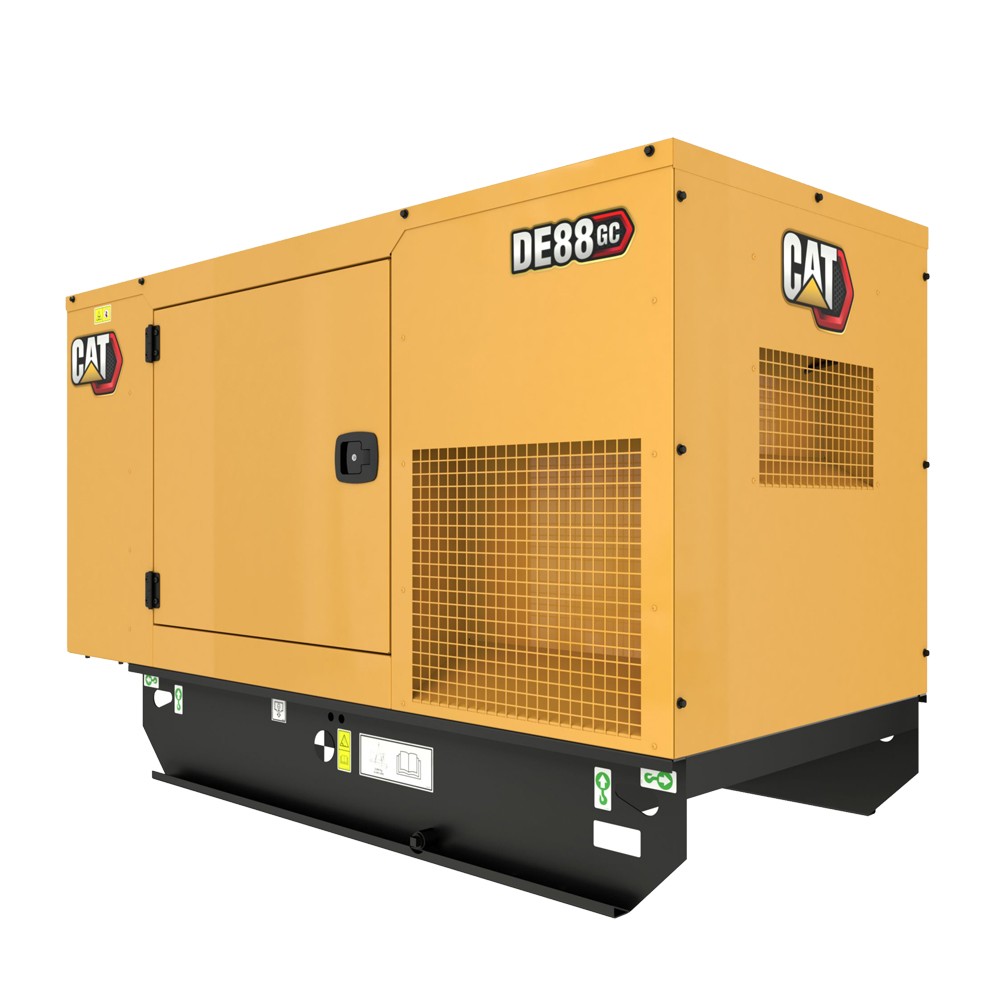

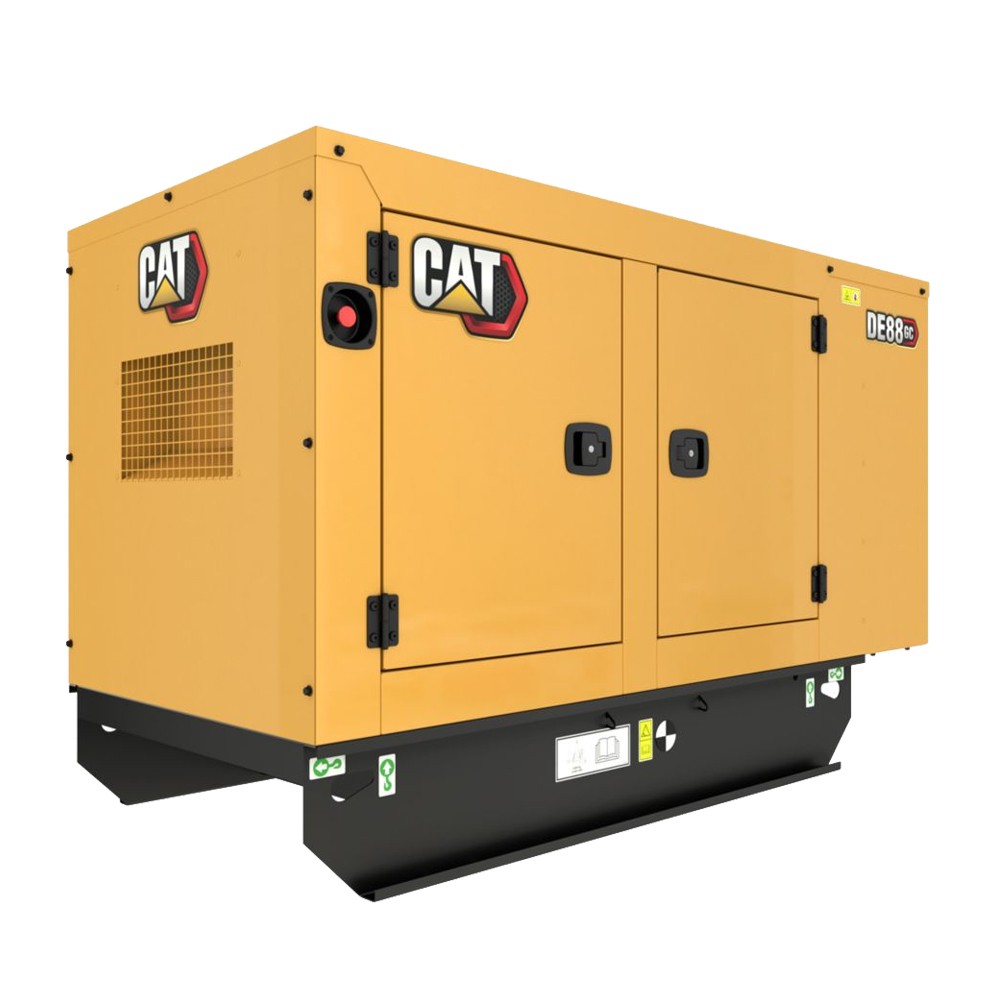

DE88GC Standby 88KVA Caterpillar Diesel Generator
Short Description
Producing 88 kVA of reliable power at 50 Hz, the CATERPILLAR DE88 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- ModelCATERPILLAR DE88GC
- Prime Power (PRP)N/A
- Standby Power (ESP)70.4kW/88kVA
- EngineC4.4
- Fuel consumption (100%)20.4L/H
Product Details
Product Tags
Video
Introduction
The Caterpillar DE88 GC diesel generator set provides 88kVA/70.4kW standby power for commercial, industrial, construction, agricultural and backup power applications. Designed for 50Hz operation, the generator set delivers stable three-phase power with a 380~415V rated voltage and 0.8 power factor.
Powered by a Caterpillar C4.4 inline four-cylinder, four-stroke diesel engine, the DE88 GC features turbocharged induction, inline fuel injection and a mechanical governor. The generator set is equipped with a CATERPILLAR GCCP1.1 control panel, ABB main circuit breaker and a weatherproof sound attenuated enclosure with an internal exhaust silencer.
Generator Set
| Genset Model | Caterpillar DE88 GC |
| Standby Power | 88kVA/70.4kW |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Rated Voltage | 380~415V |
Diesel Engine
| Engine Model | Caterpillar C4.4 Inline 4-Stroke Diesel |
| Bore x Stroke | 105 x 127 mm |
| Displacement | 4.4L |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Fuel Injection System | Inline |
| Governor Type | Mechanical |
Fuel Consumption
| 100% Load with Fan | 20.4L/H |
| 75% Load with Fan | 15.2L/H |
| 50% Load with Fan | 10.5L/H |
Control Panel
| ○ Emergency stop button | ○ ABB brand main circuit breaker |
| ○ CATERPILLAR GCCP1.1 control panel |
Sound Attenuated Enclosure
○ Fully weatherproof sound attenuated enclosure with internal exhaust silencer
○ Highly corrosion resistant construction
Applications
The Caterpillar DE88 GC 88kVA diesel generator set is suitable for a wide range of standby and backup power applications, including:
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Agricultural facilities
○ Telecommunication facilities
○ Emergency and backup power applications
Why Choose GENLITEC POWER
GENLITEC POWER provides diesel generator sets and mobile lighting towers for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. We offer flexible configurations, international engine and alternator brands, customized power solutions, technical support and after-sales service.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Customized power solutions for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
