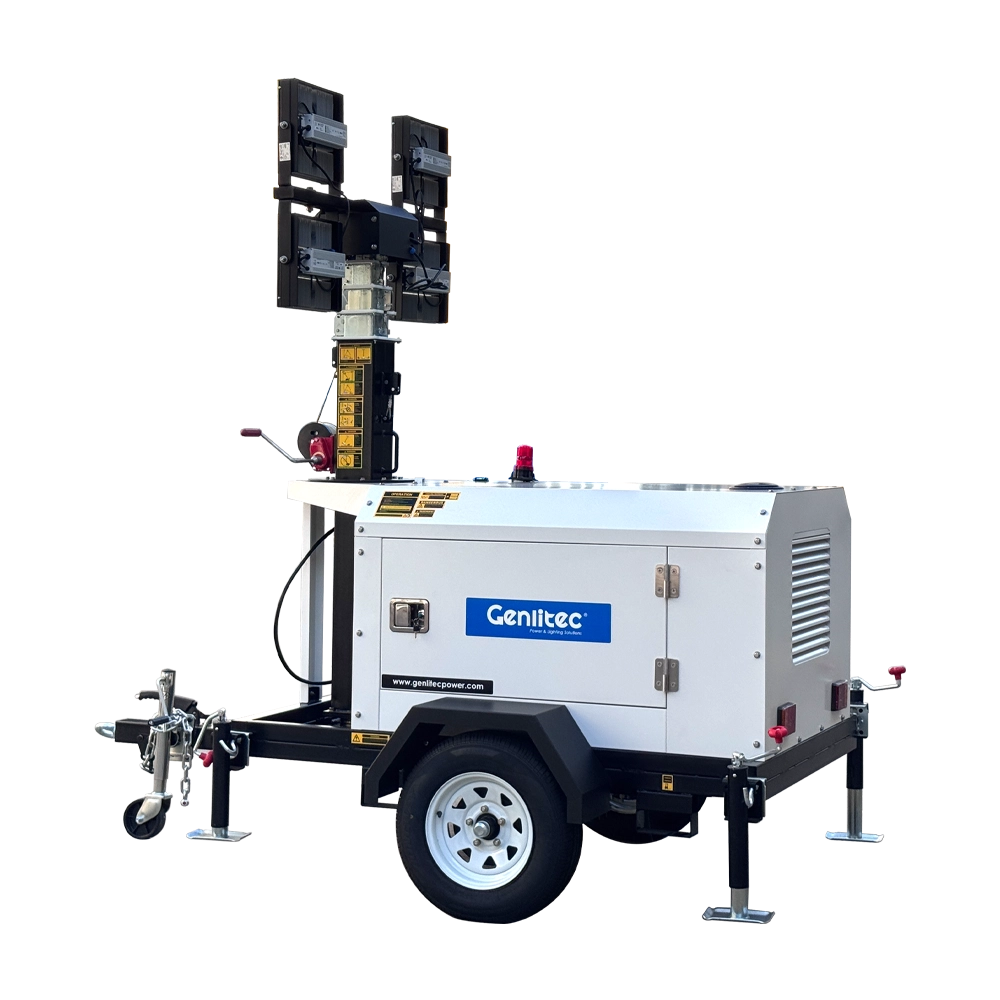

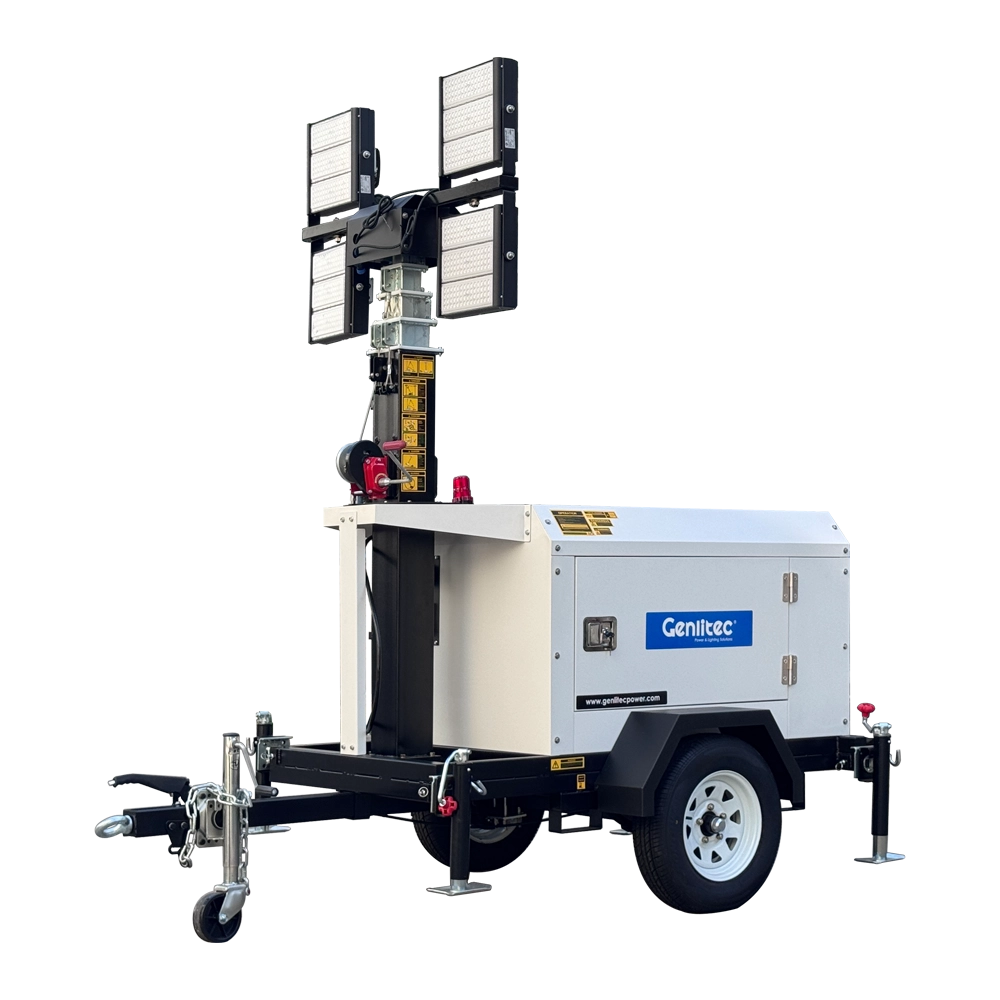

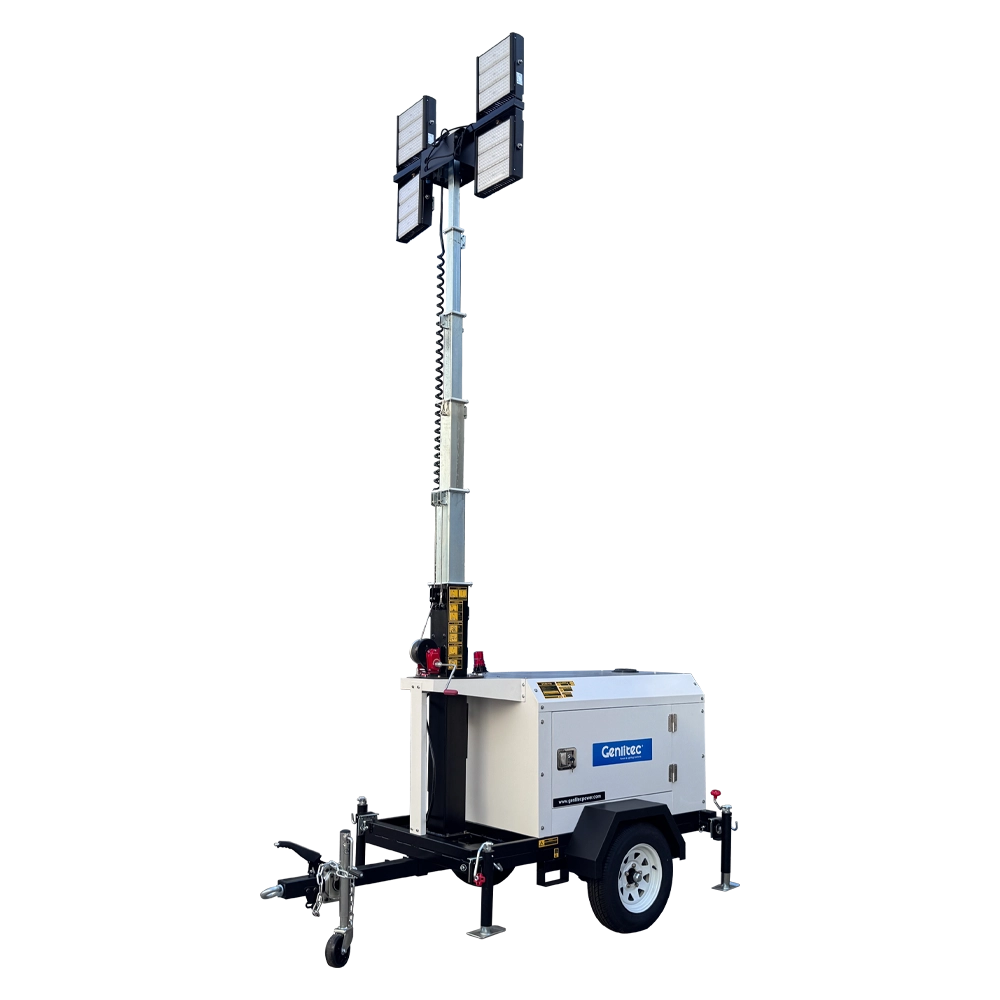

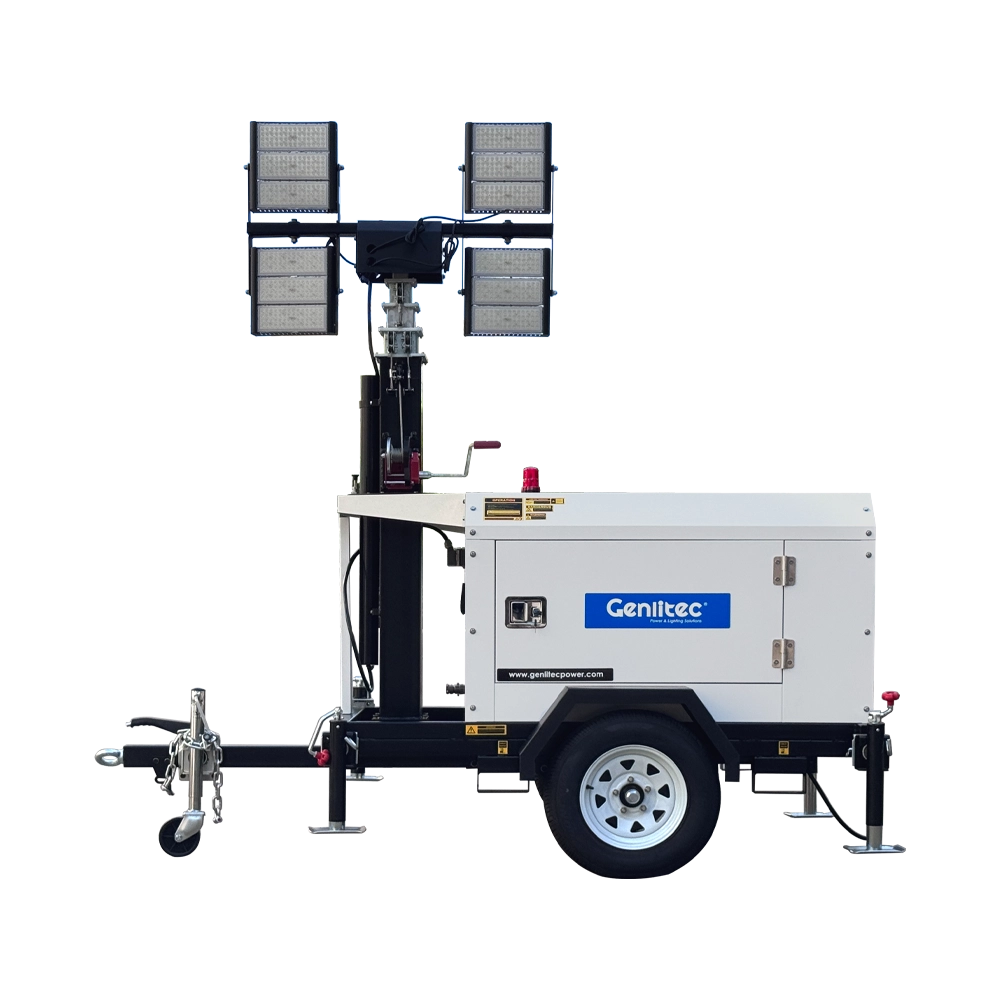

7M Vertical Manual 4x400W LED KUBOTA Light Tower

7M Vertical Manual 4x400W LED KUBOTA Light Tower
  • 7M Vertical Manual 4x400W LED KUBOTA Light Tower
  • 7M Vertical Manual 4x400W LED KUBOTA Light Tower
  • 7M Vertical Manual 4x400W LED KUBOTA Light Tower
  • 7M Vertical Manual 4x400W LED KUBOTA Light Tower

Short Description:

The GENLITEC POWER® GLT1600L-7VMK LED light towers is one of the best-selling LED mobile light towers in the world, with a maximum vertical manual lifting mast 7 metres. Widely used in mines, oil fields and night lighting. ...


  • Lifting System: 7 Metres Vertical Manual
  • Power of Lamps: 4x400W LED
  • Total Light Capacity: 240,000 Lumens
  • Engine: KUBOTA D1105-BG
  • Generator Power: 6.7KW

Product Details

Product Tags

Product Video

GENLITEC POWER® 7M VERTICAL MANUAL 4X400W LED KUBOTA GENERATOR LIGHT TOWER FEATURES

○ Brand new original KUBOTA D1105-BG water cooled diesel engine

○ Original STAMFORD or GENLITEC POWER® single bearing 100% copper brushless alternator

○ 7 metres vertical type manual lifting mast and 358° mast rotation system

○ Equipped with powerful 4x400W LED floodlights, total 240,000 lumens

○ Rating Single Phase, 50/60Hz, 1500/1800RPM, 1.0 PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Control panel equipped with SMARTGEN HGM1790N digital controller, DELIXI brand main circuit breaker, each light with individual circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ Heavy-duty fabricated steel based frame with 100L fuel tank

○ 12V DC electric start system with free-maintenance lead-acid battery

○ Heavy-duty single axle trailer Type with 13 inch tyres, soundproof and rain-proof design ensure outdoor use

○ Complete engine alarm system

○ CE, ISO 9001:2015 approved


● LIGHT TOWER

Model GLT1600L-7VMK
Lifting System 7 Metres, Vertical Type Manual Lifting
Mast Rotation System 358° Manual
Total Power of Lights 4 x 400W LED
Frequency 50/60Hz
Voltage 110~240V
Phase Single
Rated Power 6.7KW/50Hz; 7.3KW/60Hz
Trailer Structure Single Axle, 13inch Tyres

● DIESEL ENGINE


Engine Model KUBOTA D1105-BG
Cylinder Number 3
Aspiration System Natural
Cooling Method Water Cooled
Combustion System Spherical Type, E-TVCS
Bore x Stroke 78 x 78.4 mm
Compression Ratio 22:1
Engine Speed 1500/1800RPM
Displacement 1.123L
Rated Power 8.4KW/1500RPM; 10.1KW/1800RPM
Fuel Injection Pump BOSCH Type PFR MD Pump
Oil Capacity 5.1L
Governor Type Mechanical
Electric Starting System DC 12V-1.0KW


ALTERNATOR


Number of Phase Single
Rated Power 6~8KW
Frequency 50/60Hz
Power Factor 1.0
Temp. Rise 125K
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

● OPERATION MAST

Max. Height of Mast 7 Metres
Lifting System Vertical Type, Manual
Lifting Method Self-Lock Winch
Mast Stages 6
Rotation System 358° Manually
Mast Material Galvanization Steel Tube
Winch Type 1 x 1800 LBS

● LAMPS


Total Power of Lamps 4 x 400W
Lamps Type LED Floodlights
Light Capacity 4 x 60,000 Lumens
Design Lifetime ≥50,000 Hours
Working Temp. -25℃~50℃
Light Coverage 5~7 Acres
Protection Grade IP65

CONTAINER LOADING CAPACITY


20GP CONTAINER Max. 6 Sets
40HQ CONTAINER Max. 12 Sets

CONTROL PANEL

Emergency stop button

Main circuit breaker & individual circuit bearker for lights

Hour meter

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● TRAILER & SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction

○ Heavy-duty single axle trailer with 13'' tyres


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

○ 4x350 LED floodlights

○ SMARTGEN automatic lighting controller ALC404 (Sunrise & Sunset Start/Stop Fuction)
