P275-5 FG Wilson 275kVA Diesel Generator
● P275-5 FG Wilson 275kVA Diesel Generator

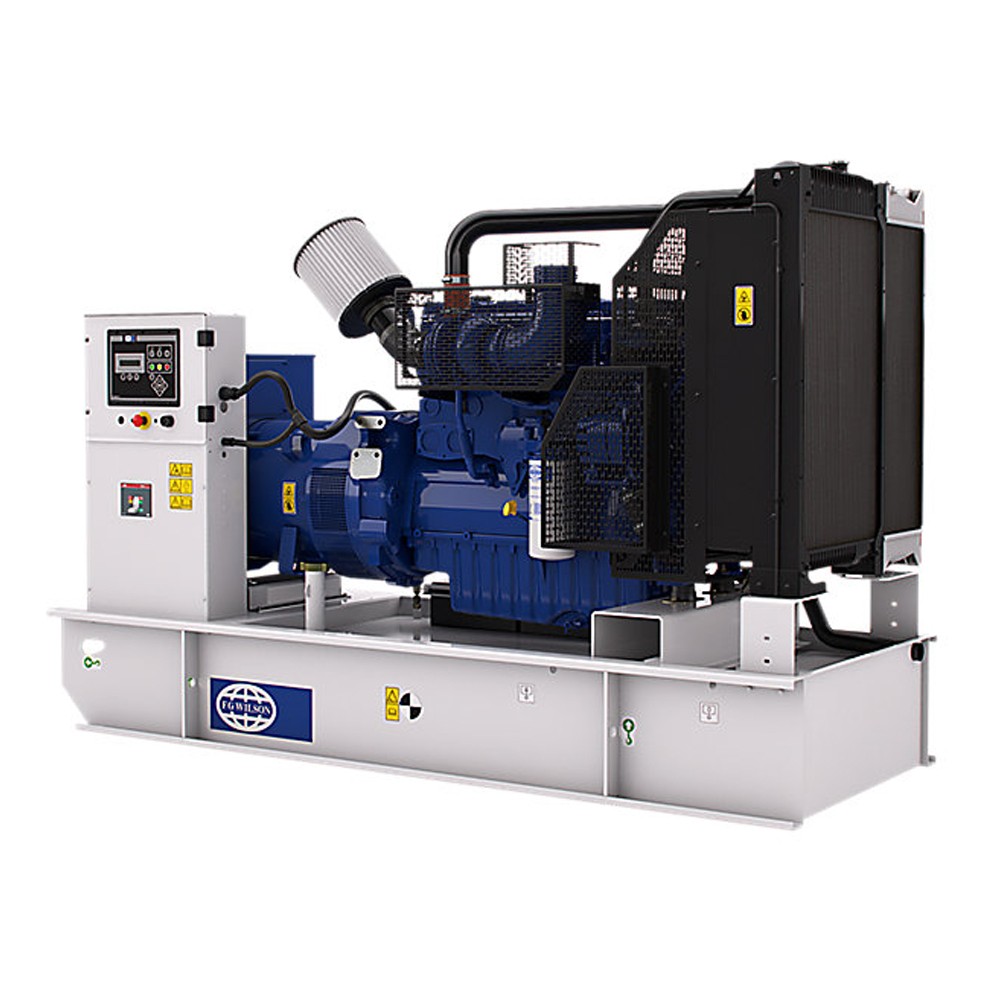

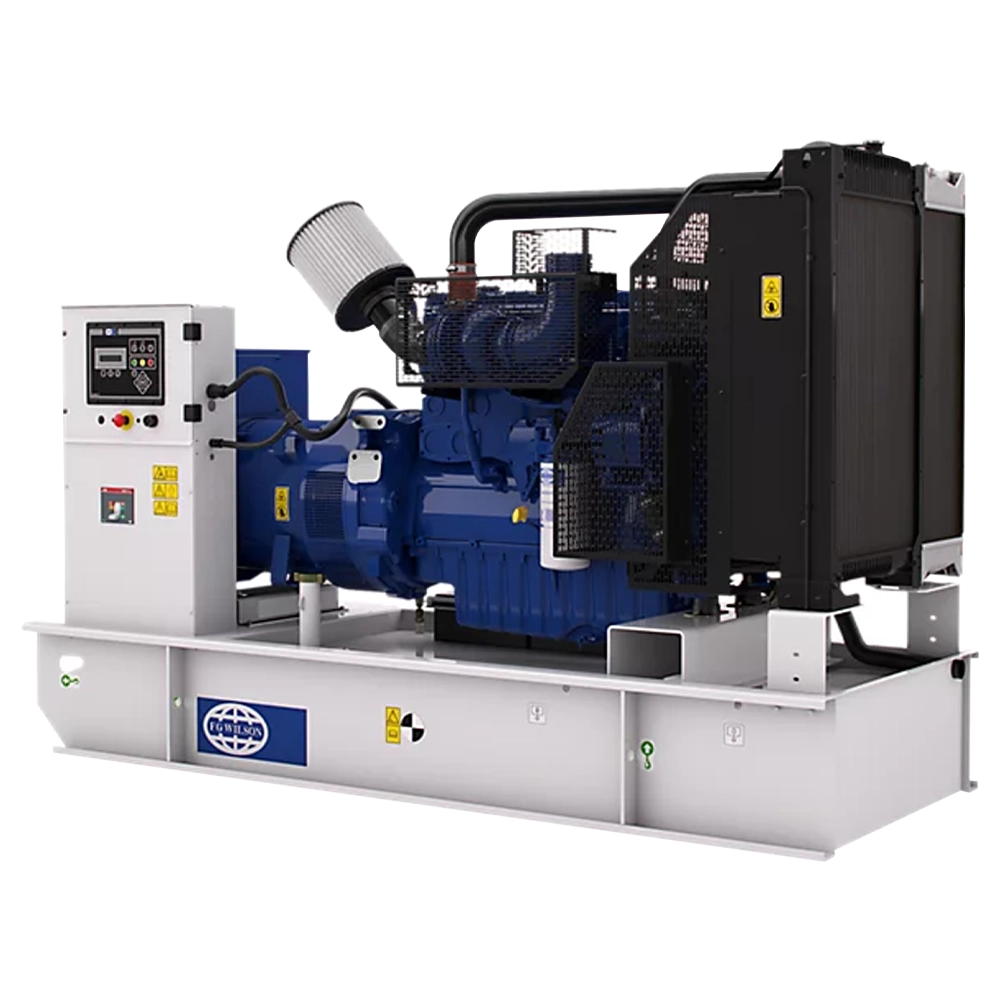

○ Brand new original FG Wilson P275-5 diesel generator set
○ Reliable, rugged and durable designed PERKINS 1506A-E88TAG3 diesel engine
○ Rating 380/400/415V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, H insulation class
○ Original radiator with engine driven fan mounted on the based frame
○ Set mounted control panel equipped with DSE7410 digital controller
○ Original ABB brand main circuit breaker
○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings
○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger
○ Industrial silencers with flexible connects and elbow
○ Complete engine alarm system
● RATINGS AND PERFORMANCE DATA
Genset Model
FG Wilson P275-5
Frequency
50Hz
Prime Power
250KVA/200KW
Standby Power
275KVA/220KW
Engine
Perkins 1506A-E88TAG3
Alternator
Leroy Somer LL5114H
Control Panel
DSE7410
Fuel Tank Capacity
528 Litres
● DIESEL ENGINE
Engine Model
Perkins 1506A-E88TAG3
No. of Cylinder
6
Bore x Stroke
112 x 149mm
Induction
Turbocharged Air to Air Charge Cooled
Governor Type
Electronic
Displacement
8.8L
Voltage
24V
● FUEL CONSUMPTION
110% Load
59.2L/H
100% Load
53.8L/H
75% Load
40.9L/H
50% Load
29.4L/H
● CONTROL PANEL
○ Emergency stop button
○ ABB brand Main circuit breaker
○ DSE7410 control panel
● SOUND ATTENUATED ENCLOSURE

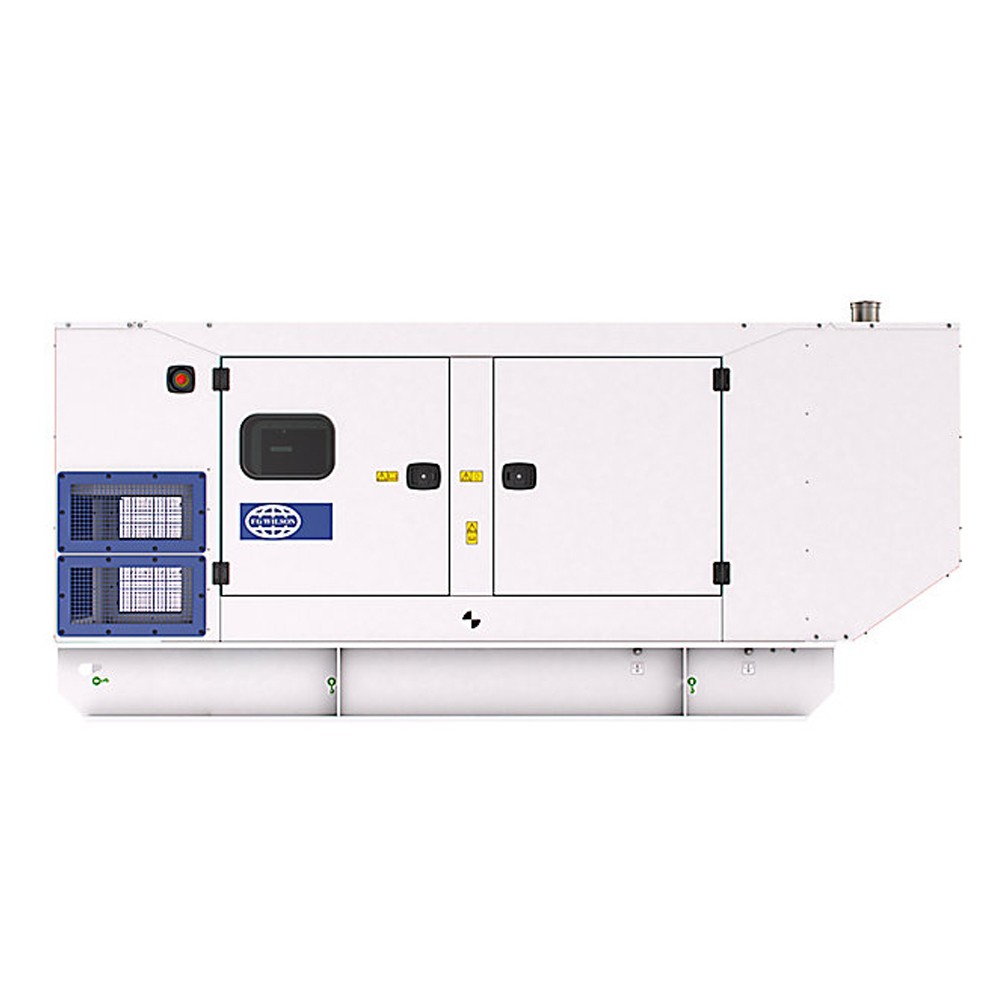

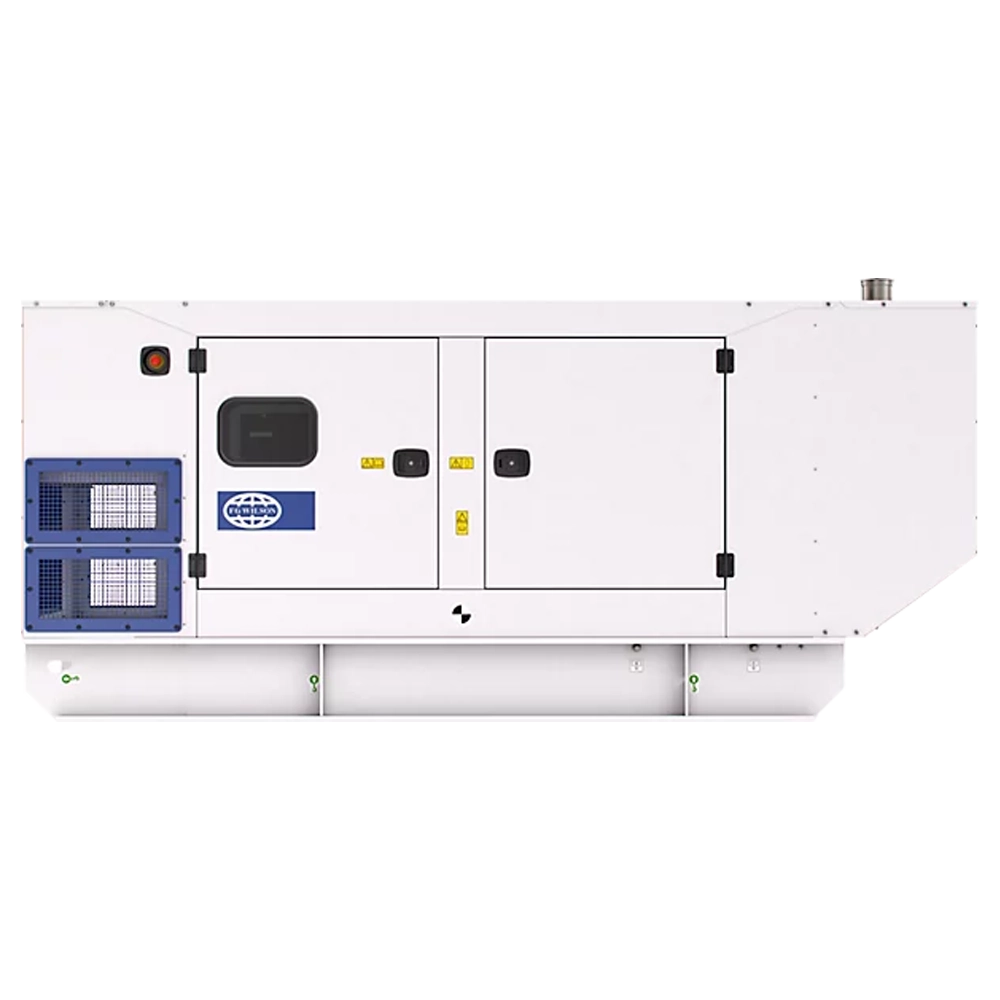

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
○ Highly Corrosion Resistant Construction
● WARRANTY
○ 12 months or 1000 working hours, whichever comes first
