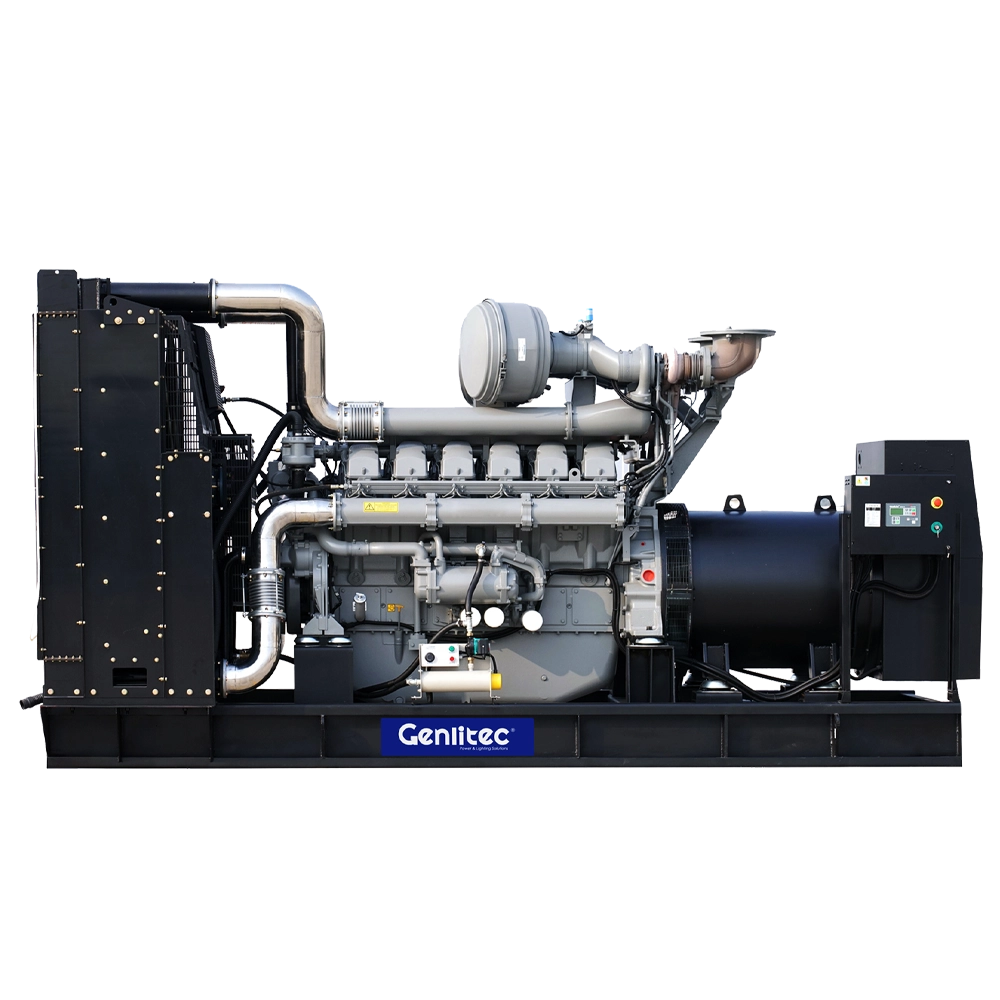

50Hz 800kW 1000kVA Diesel Generator with Perkins 4008TAG2A Engine
Introduction
The GENLITEC POWER GPP1000D5 / GPP1000S5 is a 1000 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 800KW/1000KVA prime power and 880KW/1100KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.
Powered by a Perkins 4008TAG2A turbocharged and air-to-air charge cooled diesel engine, the GPP1000D5 / GPP1000S5 combines a 30.56L eight-cylinder engine with electronic engine governing, high power density and efficient fuel consumption. The generator set is available in both open type and silent type versions, with rated voltage options of 220/380V, 230/400V and 240/415V. A 1000L standard fuel tank is provided, while optional ATS panel, synchronization system, remote monitoring system and other accessories are available for different project requirements. This 800KW/1000KVA Perkins diesel generator is suitable for prime power, emergency standby power and backup power applications where reliable and efficient electricity supply is required.
Generator Set
| Open Type Model | GPP1000D5 |
| Silent Type Model | GPP1000S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 800KW/1000KVA |
| Standby Power | 880KW/1100KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 1000L |
Diesel Engine
| Engine Model | Perkins 4008TAG2A |
| Cylinder Number | 8 |
| Cylinder Arrangement | Vertical In-line |
| Cycle | 4 Stroke |
| Aspiration System | Turbocharged and Air-to-Air Charge Cooled |
| Cooling Method | Liquid Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1500 RPM |
| Displacement | 30.56L |
| Engine Power - Prime | 899KW Gross / 861KW Net |
| Engine Power - Standby | 985KW Gross / 947KW Net |
| Combustion System | Direct Injection |
| Coolant Capacity | Approximately 162L |
| Oil Capacity | Approximately 153L |
| Electric Starting System | DC 24V |
Fuel Consumption
| Standby Power Rating | 240L/H |
| 100% Prime Load | 215L/H |
| Baseload Power Rating | N/A |
| 75% Prime Load | 162L/H |
| 50% Prime Load | 111L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 800KW/1000KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPP1000S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
○ 20GP ISO containerized canopy with CSC certification for international transportation
Applications
The GENLITEC POWER 800KW/1000KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP1000D5 / GPP1000S5 diesel generator sets combine a Perkins 4008TAG2A engine with a high-power generator set configuration for dependable prime and standby power.
○ Perkins 4008TAG2A diesel engine for reliable high-power generation
○ 800KW/1000KVA prime power and 880KW/1100KVA standby power
○ 30.56L eight-cylinder engine with turbocharged and air-to-air charge cooled induction
○ 800KW/1000KVA alternator for high-power generator applications
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Electronic engine governing for precise engine speed and performance management
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
