50Hz 320kW 400kVA Diesel Generator with Cummins 6ZTAA13-G2 Engine
Short Description
GENLITEC POWER® GPC400D5/GPC400S5 diesel generator set with original CUMMINS 6ZTAA13-G2, 320KW/400KVA prime and 352KW/440KVA standby power.
- ModelGPC400D5 | GPC400S5
- Frequencyf50Hz
- Prime Power320KW/400KVA
- Standby Power352KW/440KVA
- EngineCummins 6ZTAA13-G2
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)89.1L/H
- MOQ1 Set
Product Details
Product Tags
Video
Introduction

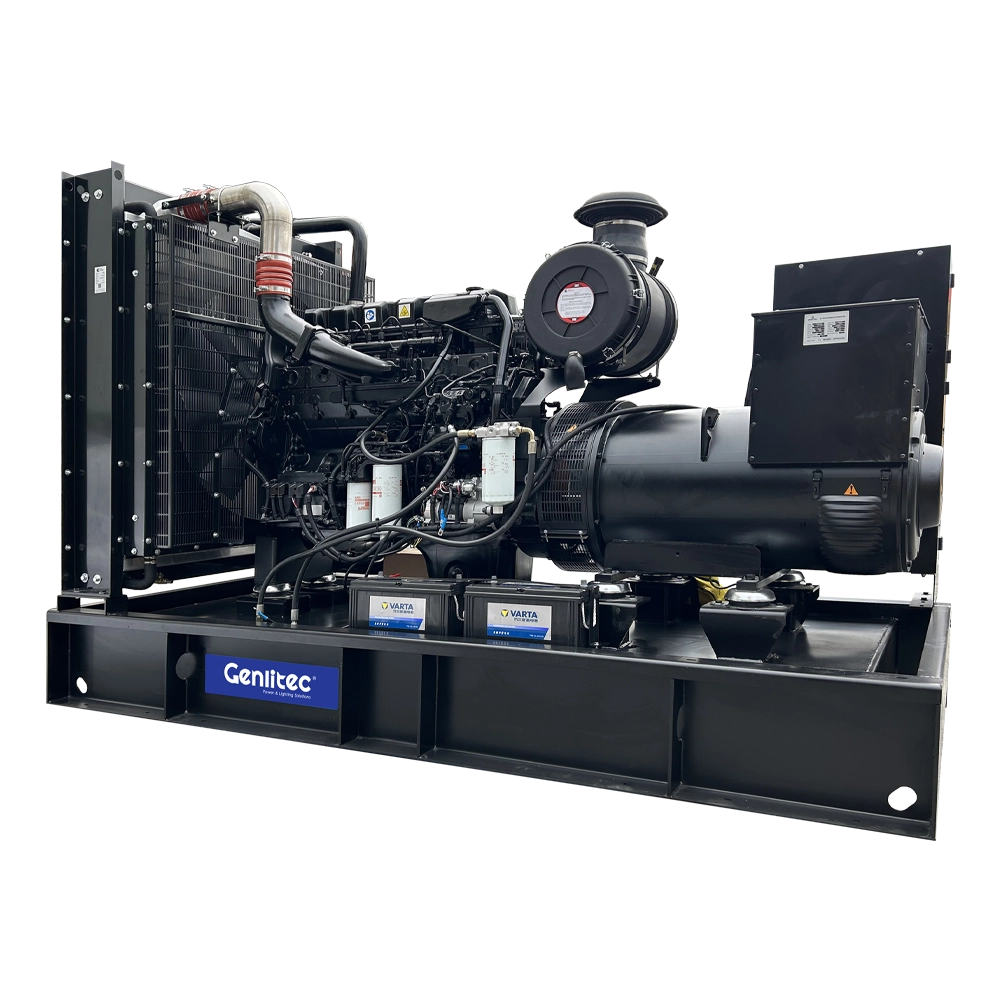

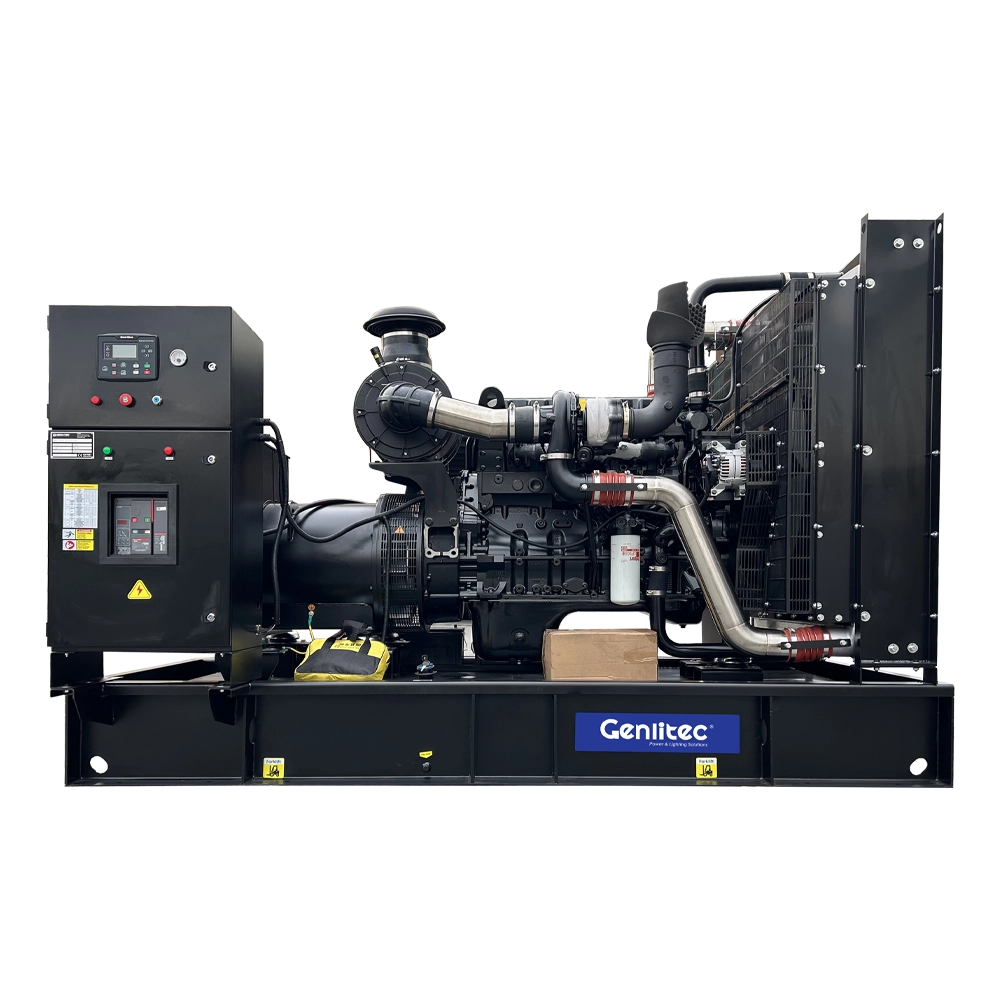

The GENLITEC POWER® GPC400D5 open type and GPC400S5 silent type diesel generator sets deliver 320kW/400kVA prime power and 352kW/440kVA standby power. Powered by a Cummins 6ZTAA13-G2 six-cylinder diesel engine and matched with a brushless copper alternator, this 400kVA generator set is designed for demanding industrial, commercial, construction, mining, infrastructure and standby power applications.
The Cummins 6ZTAA13-G2 engine features a 13L displacement, turbocharged air-to-air charge air cooling, electronic governor and 1500 RPM operating speed, providing strong power output and stable engine speed under changing loads. The 24V DC electric starting system and water-cooled design support dependable operation in demanding working environments.
With a 600L fuel tank, flexible voltage configurations of 220/380V, 230/400V and 240/415V, and a 320kW/400kVA alternator rated for 40℃ ambient temperature, the GPC400 series provides a practical balance of power, durability and operating flexibility. The GPC400D5 open type is suitable for generator rooms and applications requiring convenient service access, while the GPC400S5 silent type uses a weatherproof sound-attenuated enclosure for outdoor and noise-sensitive installations.
Generator Set
| Open Type Model | GPC400D5 |
| Silent Type Model | GPC400S5 |
| Prime Power | 320KW/400KVA |
| Standby Power | 352KW/440KVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 600L |
Diesel Engine
| Engine Model | CUMMINS 6ZTAA13-G2 |
| Cylinder Number | 6 |
| Aspiration System | Turbocharged, Air to Air Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 130 x 163 mm |
| Compression Ratio | 17:1 |
| Rated Speed | 1500 RPM |
| Displacement | 13L |
| Rated Power | 390KW |
| Standby Power | 415KW |
| Fuel Pump | BYC PD Pump |
| Oil Capacity | 45.42L |
| Coolant Capacity | 23.1L (Engine Only) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 89.1L/H |
| 75% Prime Load | 65.1L/H |
| 50% Prime Load | 43.2L/H |
| 25% Prime Load | 23.6L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 320KW/400KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

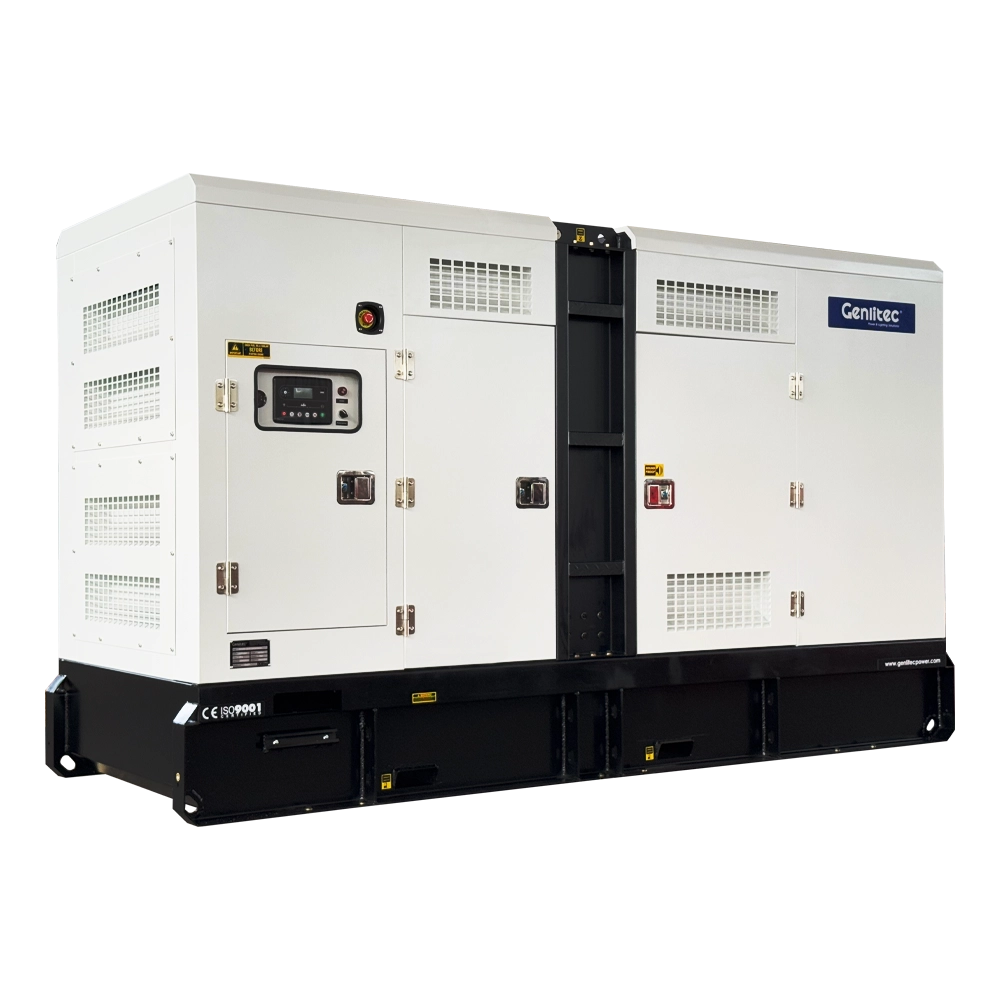

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GPC400S5 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Water-jacket heater
○ Other heaters
○ AREM & PMG
○ Synchronization System
○ Remote & Monitoring System
Applications
The GENLITEC POWER 320kW/400kVA diesel generator set is suitable for demanding prime, standby and backup power applications, including:
○ Commercial buildings and office complexes
○ Industrial facilities and manufacturing plants
○ Construction sites and infrastructure projects
○ Mining and heavy-duty applications
○ Telecommunication and remote facilities
○ Data centers and critical power systems
○ Emergency and standby power applications
Why Choose GENLITEC POWER
GENLITEC POWER combines established engine technology, carefully selected generator components and professional assembly to deliver dependable power generation equipment for demanding applications. The GPC400 series is configured around the Cummins 6ZTAA13-G2 engine, a high-output 13L six-cylinder diesel engine designed for reliable continuous operation and strong load response.
○ Genuine Cummins 6ZTAA13-G2 diesel engine configuration
○ 320kW/400kVA prime power for demanding applications
○ 13L six-cylinder engine with turbocharged air-to-air charge air cooling
○ Electronic governor for stable speed and reliable frequency control
○ 600L standard fuel tank for extended operating periods
○ High-quality alternator with H Class insulation and IP23 protection
○ Open and silent type configurations for different installation environments
○ ATS, synchronization and remote monitoring options available
○ Professional manufacturing, testing and international export experience
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
