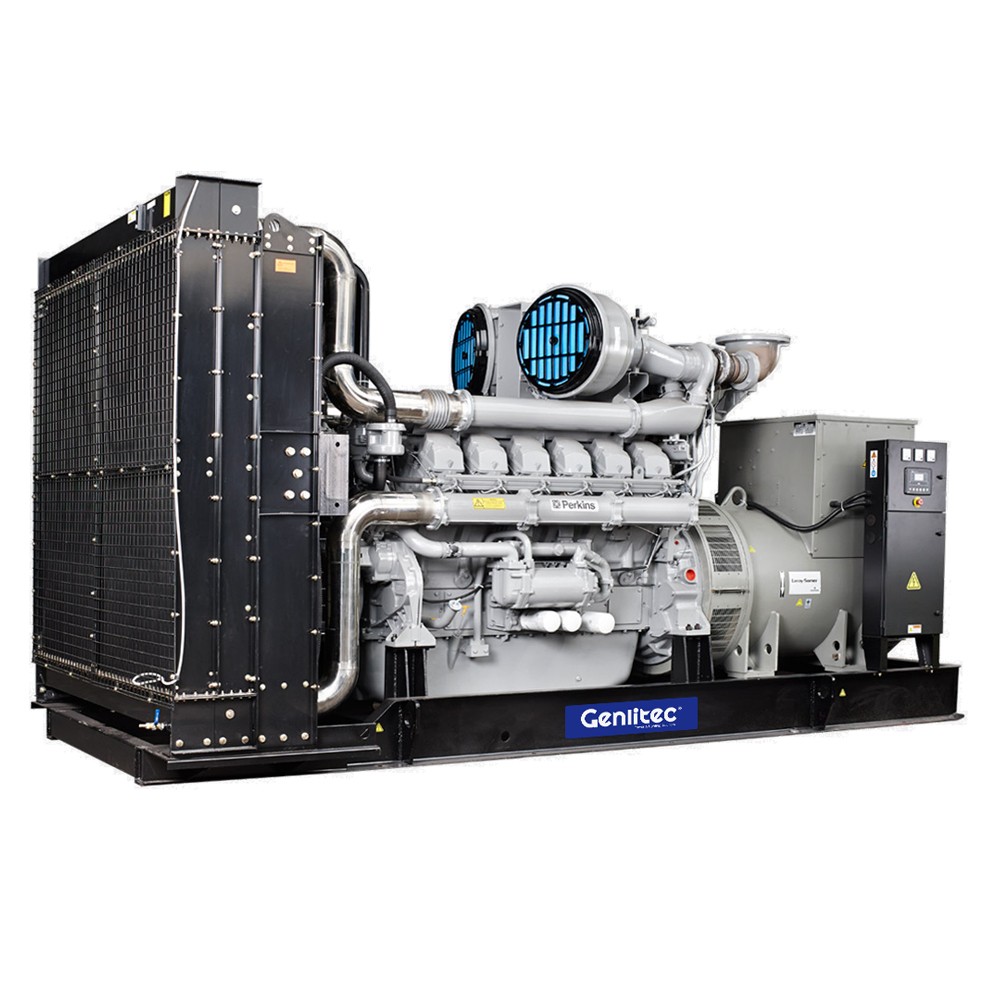

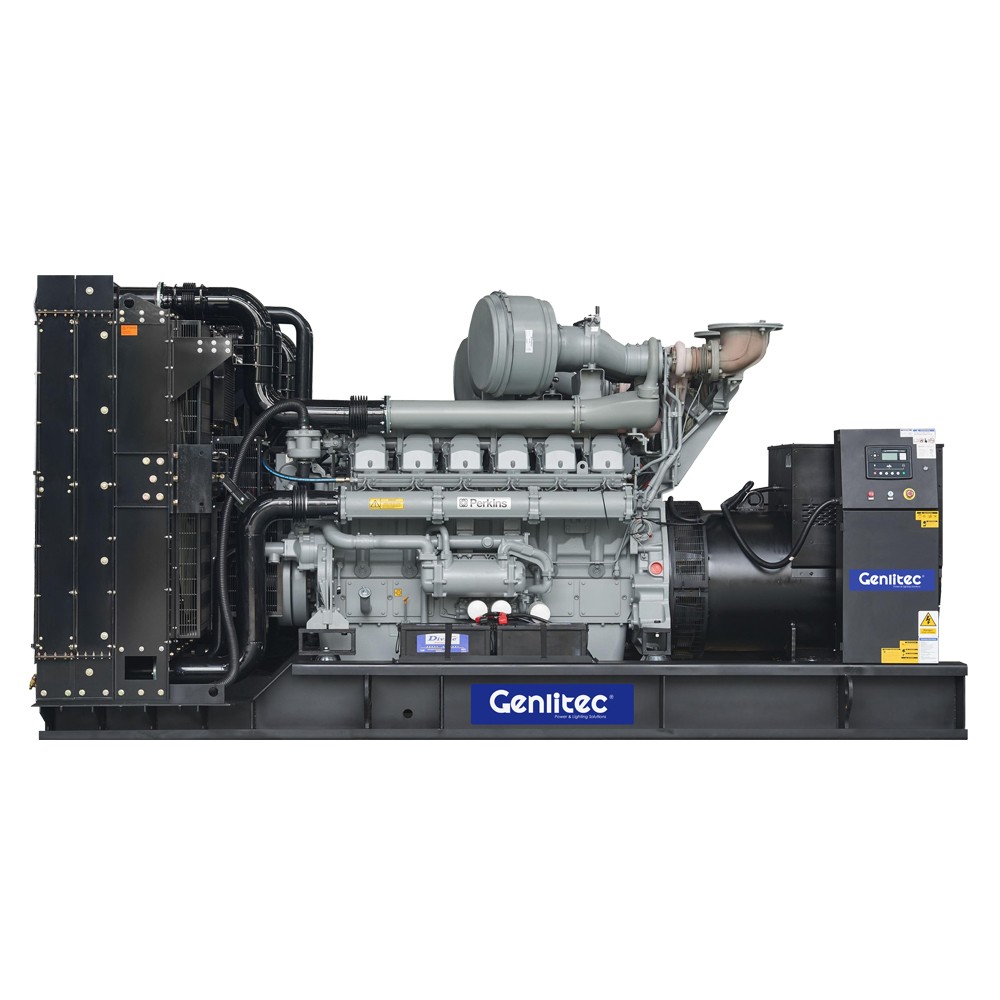

1000KW/1250KVA PERKINS DIESEL GENERATOR SET SPECIFICATIONS

• Standby Power: 1200KW/1500KVA
• Prime Power: 1080KW/1350KVA
• Frequency: 60Hz
• Speed: 1800 RPM
• Voltage: 110/190V (120/208V, 127/220V or 254/440V available according to different countries)
• Fuel Tank Capacity: 8~10 hours continuous running

ENGINE

• Powered by: PERKINS
• Engine Model: 4012-46TWG3A

ALTERNATOR

• Alternator Model: GENLITEC S404G1000 (STAMFORD & LEROY SOMER alternators for options)
• High Efficiency
• IP23 Protection

CONTROL PANEL

• Emergency stop button
• Main circuit breaker
• Float baterry charger
• Manual/Autostart control panel
• Fuel level meter
• Controller power switch
• Alarm buzzer

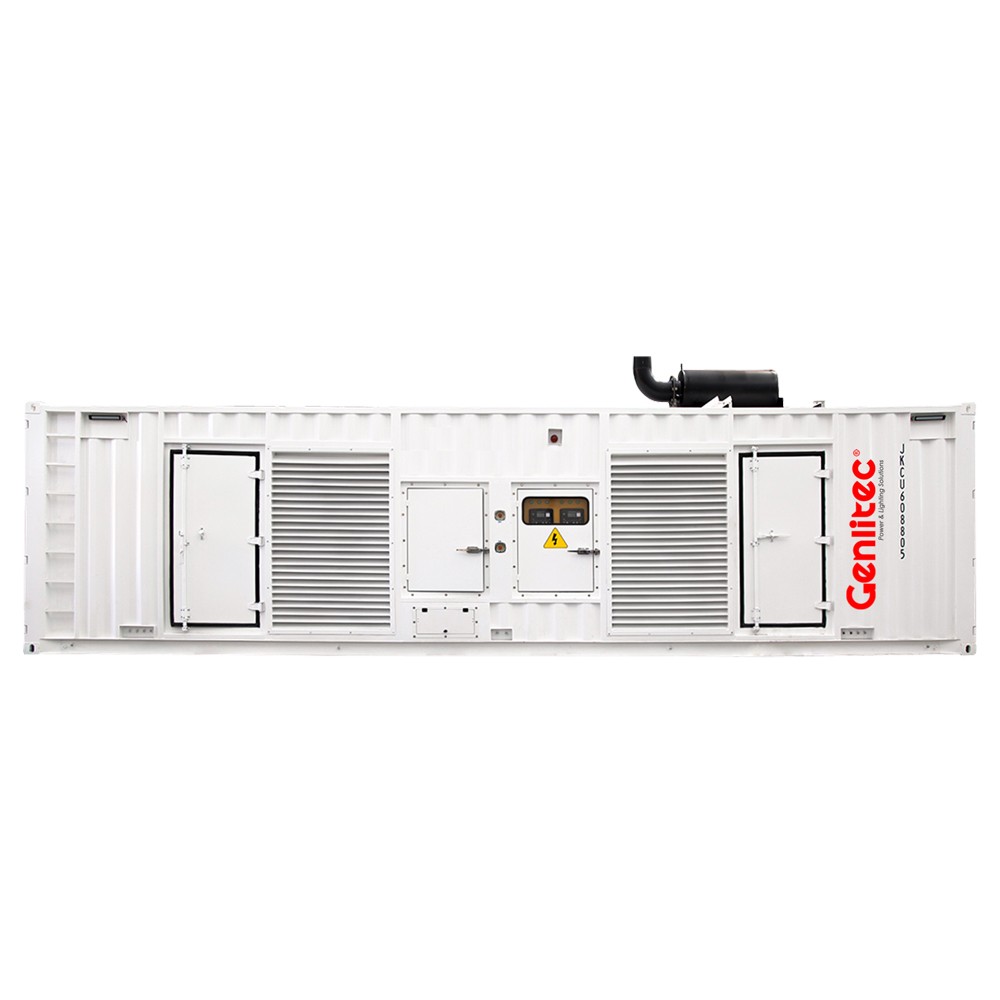

CONTAINERIZED SOUND ATTENUATED ENCLOSURE

• Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
• Highly Corrosion Resistant Construction
• Brand New ISO 40'' Containerized Enclosure with CSC Certification


WARRANTY

• 12 months or 1000 working hours, whichever comes first

OPTIONS

• ATS panel (for automatic start & stop when electricity power off & on)
• 12 hours fuel tank
• 24 hours fuel tank
• Power sockets (CEE or AUS standard)
• Remote & Monitoring system (4G, WIFI or Ethernet)
• Synchronization panel
