50Hz 10.4kW 13kVA Diesel Generator with Kubota D1703-E2BG Diesel Engine
Short Description
GENLITEC POWER GPK13D5/GPK13S5 diesel generator set powered by original KUBOTA D1703-E2BG, with prime power 10.4KW/13KVA, standby power 11.4KW/14.3KVA.
- ModelGPK13D5 | GPK13S5
- Frequency50Hz
- Prime Power10.4KW/13KVA
- Standby Power11.4KW/14.3KVA
- EngineKubota D1703-E2BG-CHN
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)3.5L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER GPK13D5/GPK13S5 is a compact 50Hz diesel generator set rated at 10.4kW/13kVA prime power and 11.4kW/14.3kVA standby power. It is powered by a reliable Kubota D1703-E2BG-CHN diesel engine and designed for dependable prime and standby power applications.
The GPK13D5 is the open type version, while the GPK13S5 features a sound attenuated enclosure for applications requiring reduced operating noise and weather protection. With a 50L fuel tank and compact configuration, the GPK13 series is suitable for commercial, residential, agricultural and remote power applications.
Generator Set
| Open Type Model | GPK13D5 |
| Silent Type Model | GPK13S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 10.4KW/13KVA |
| Standby Power | 11.4KW/14.3KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Kubota D1703-E2BG-CHN |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 87 x 92.4mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1500 RPM |
| Displacement | 1.647L |
| Rated Power | 12.8KW |
| Standby Power | 15.0KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Cylinder Number | 3 |
| Oil Capacity | 7.0L |
| Charger Alternator Capacity | 12V-40A |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 3.5L/H |
| 75% Prime Load | 2.8L/H |
| 50% Prime Load | 1.75L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 10KW/12.5KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency Stop | ○ Main Circuit Breaker |
| ○ Float Battery Charger | ○ Manual / Auto Start |
| ○ Fuel Level Meter | ○ Controller Power Switch |
| ○ Alarm Buzzer |
Sound Attenuated Enclosure

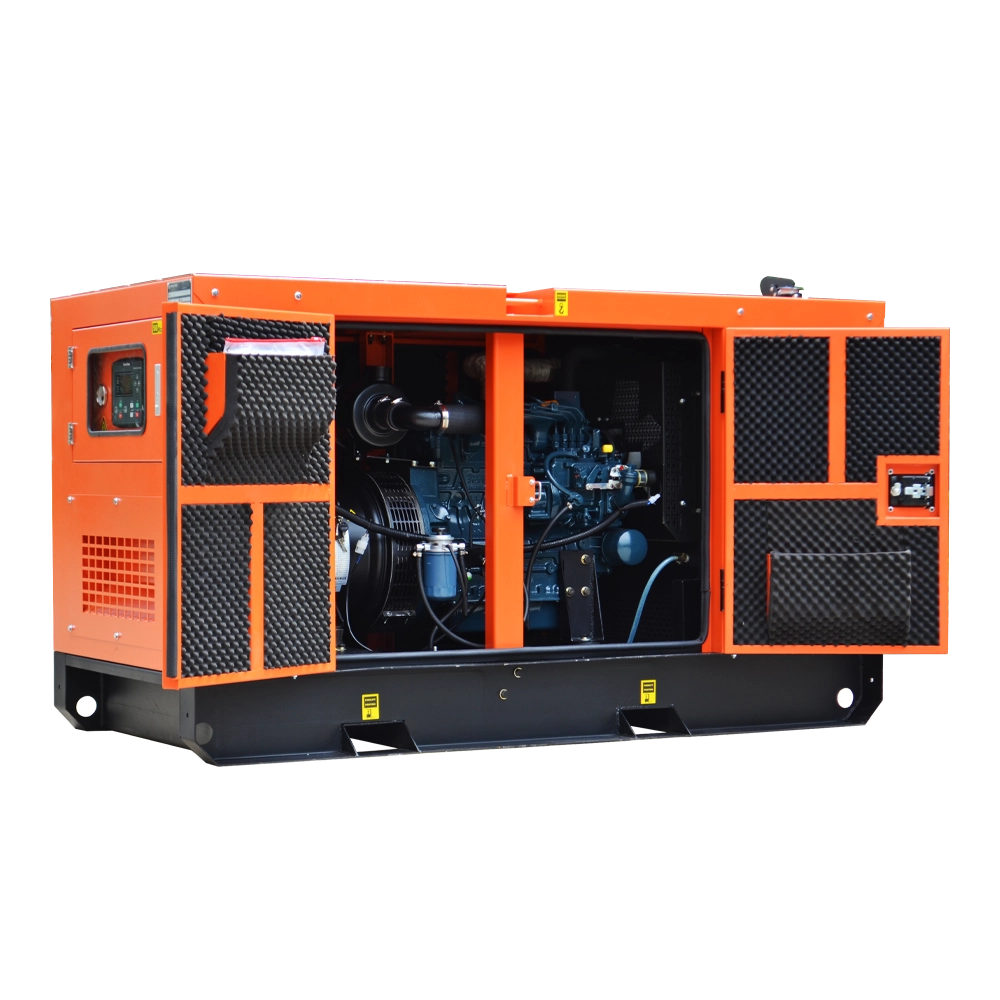

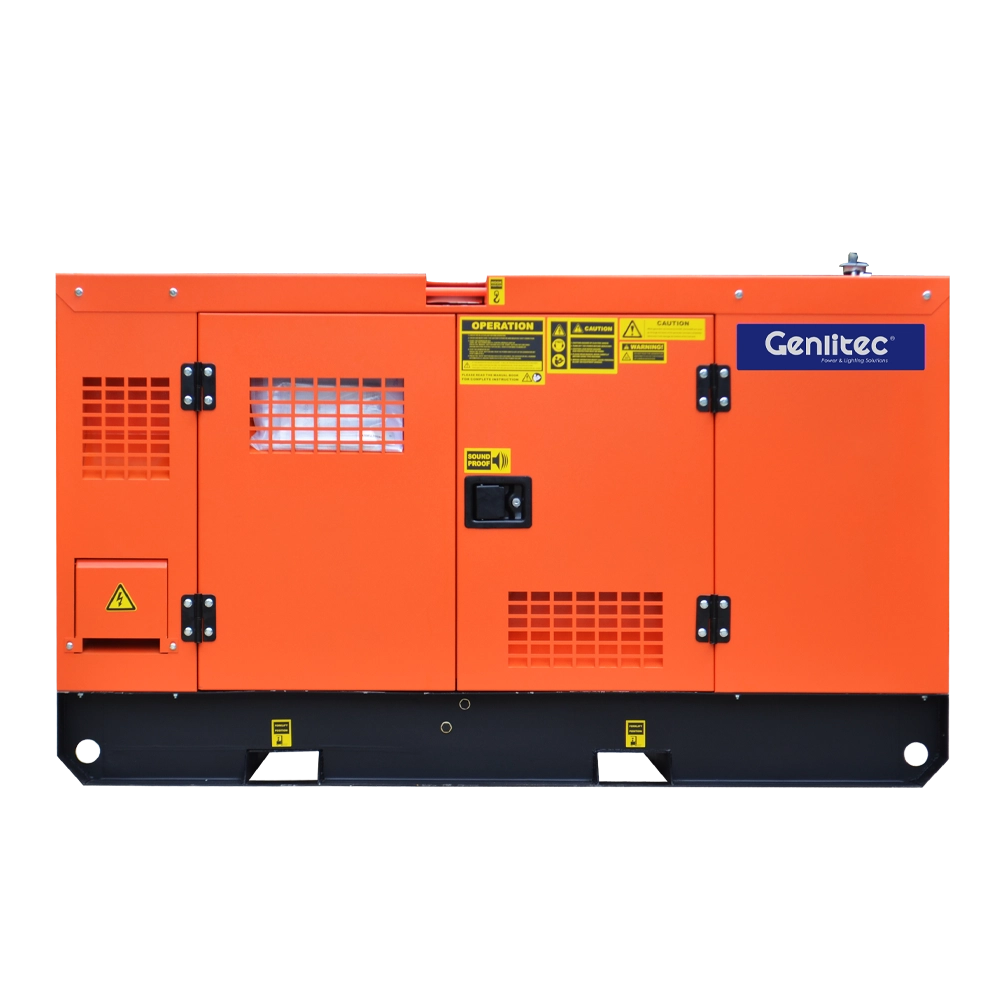

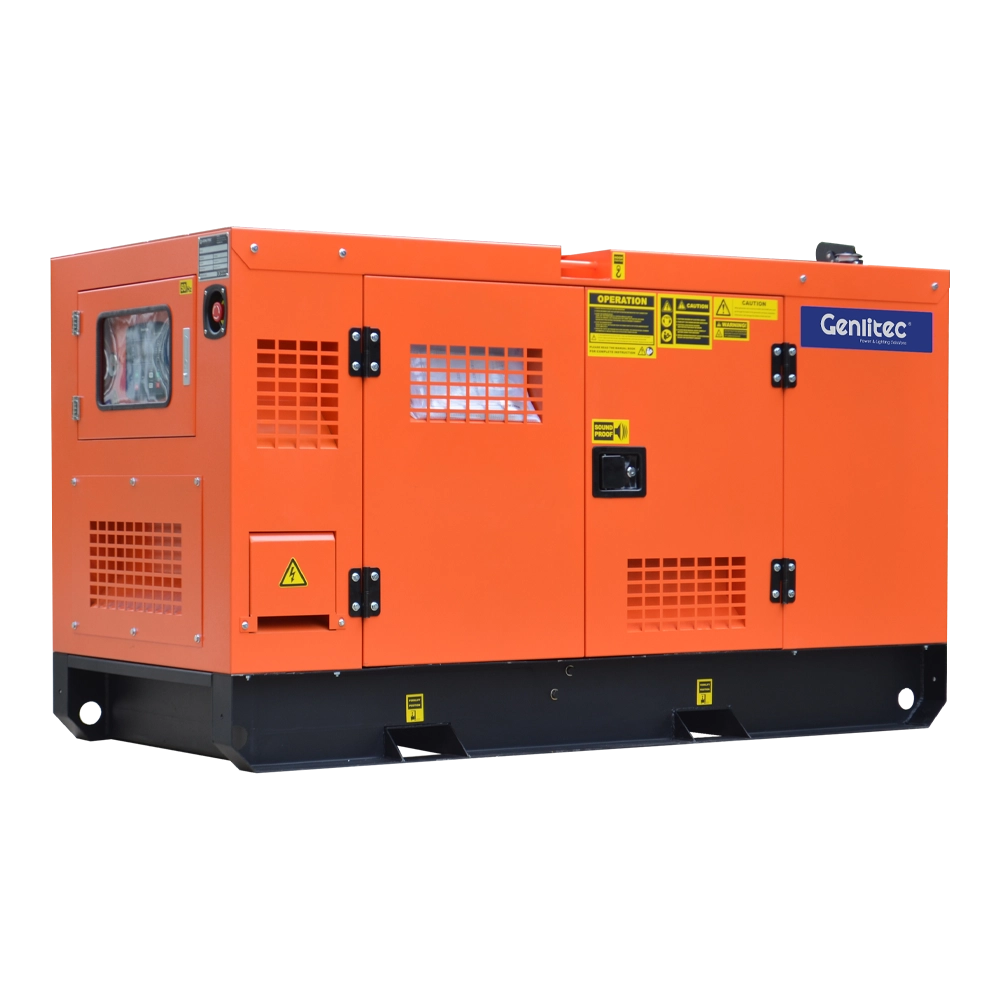

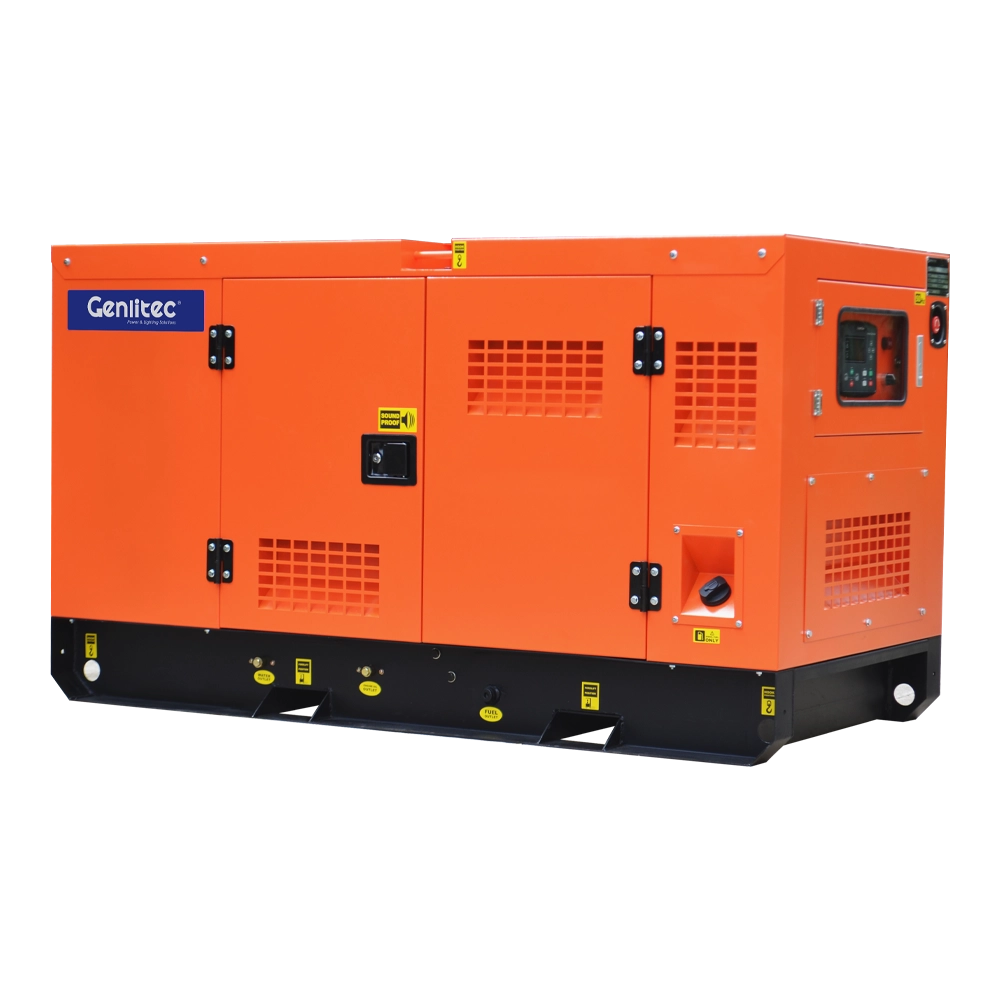

The GPK13S5 is equipped with a sound attenuated enclosure designed for outdoor operation and reduced operating noise.
Options
Applications
The GENLITEC POWER 10.4kW/13kVA Kubota diesel generator set is suitable for reliable prime and standby power in small-scale applications, including:
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers worldwide. Since its establishment, GENLITEC POWER has focused on generator manufacturing, engineering support and international power projects.
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
For details, please refer to the GENLITEC POWER® Warranty Policy.
Frequently Asked Questions
A: The GPK13D5/GPK13S5 provides 10.4kW/13kVA prime power and 11.4kW/14.3kVA standby power at 50Hz.
A: The GPK13 series is powered by a Kubota D1703-E2BG-CHN three-cylinder diesel engine with a 1.647L displacement and 1500 RPM rated speed.
A: The Kubota D1703-E2BG-CHN engine has a rated power of 12.8kW and a standby power of 15.0kW.
A: The standard fuel tank capacity is 50L. Fuel consumption is approximately 3.5L/H at 100% prime load and 2.8L/H at 75% prime load. Fuel consumption data at 50% and 25% load is not provided.
A: The GPK13 series operates at 50Hz with a rated voltage range of 380~415V and a three-phase, four-wire configuration.
A: The GPK13D5 is the open type model, while the GPK13S5 is equipped with a sound attenuated enclosure for reduced noise and outdoor protection.
A: Yes. The GPK13D5/GPK13S5 is rated for 10.4kW/13kVA prime power and can be used for continuous or regular power generation within its rated capacity.
A: Yes. An ATS panel is available as an option for automatic transfer between the utility power supply and the generator set.
A: The GPK13 series is suitable for residential and commercial backup power, construction sites, workshops, agricultural applications, telecom facilities, remote locations and emergency power applications.
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
