50Hz 13kW 16kVA Diesel Generator with Kubota D1803-M-DI-BG Engine
Short Description
GENLITEC POWER GPK16D5/GPK16S5 diesel generator set powered by original KUBOTA D1803-M-DI-BG, with prime power 13KW/16KVA, standby power 14KW/17.6KVA.
- ModelGPK16S5
- Prime Power (PRP)13kW/16kVA
- Standby Power (ESP)14kW/17.6kVA
- EngineD1803-M-DI-BG
- Fuel consumption (100%)3.95L/H
Product Details
Product Tags
Introduction
The GENLITEC POWER GPK16D5/GPK16S5 is a compact 50Hz diesel generator set rated at 13kW/16kVA prime power and 14kW/17.6kVA standby power. It is powered by a reliable Kubota D1803-M-DI-BG diesel engine and designed for dependable prime and standby power applications.

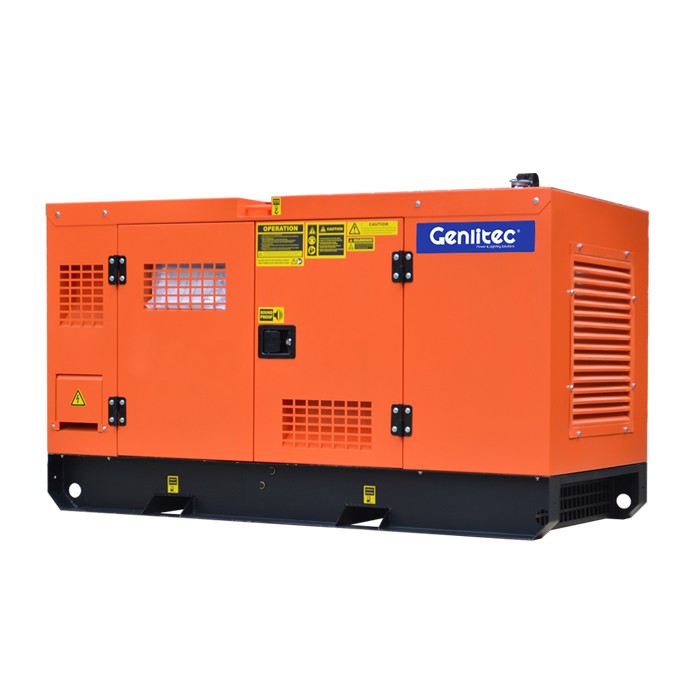

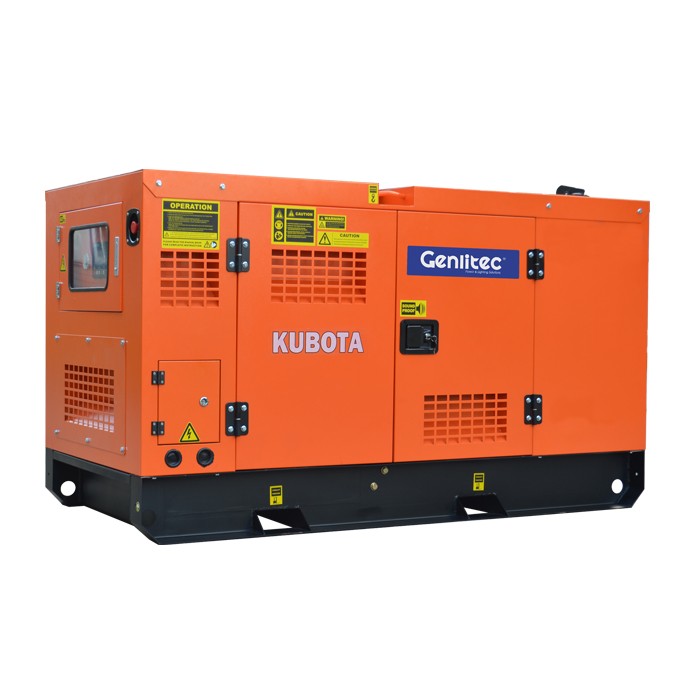

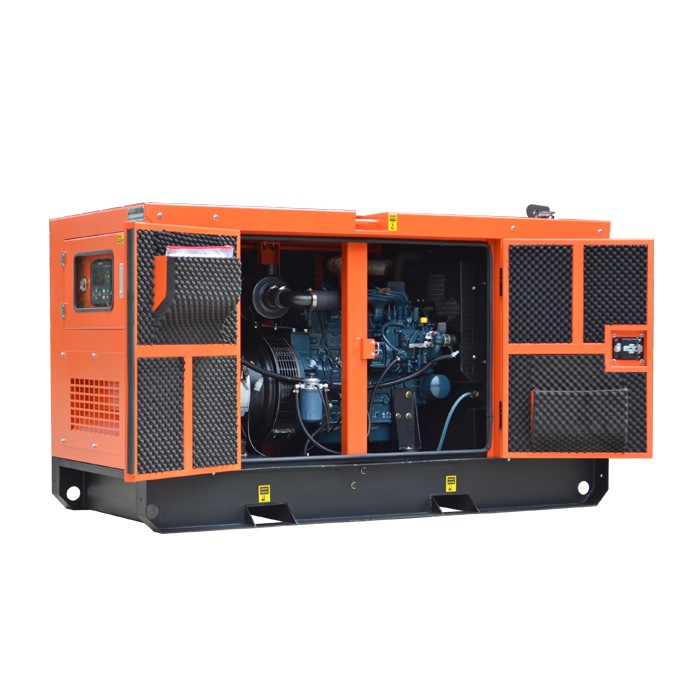

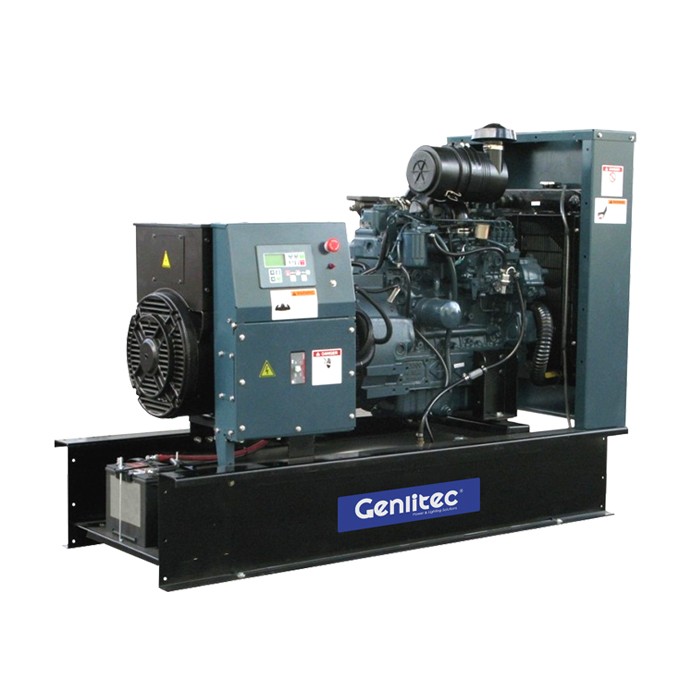

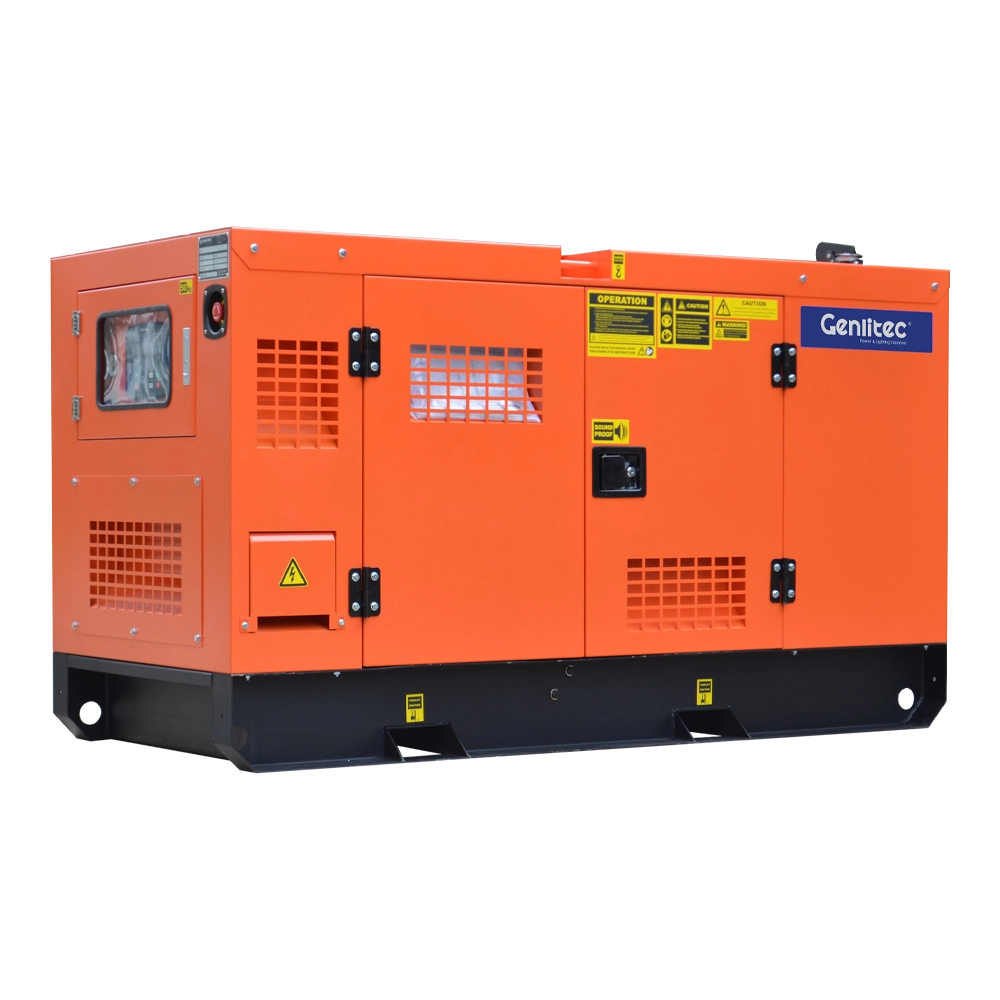

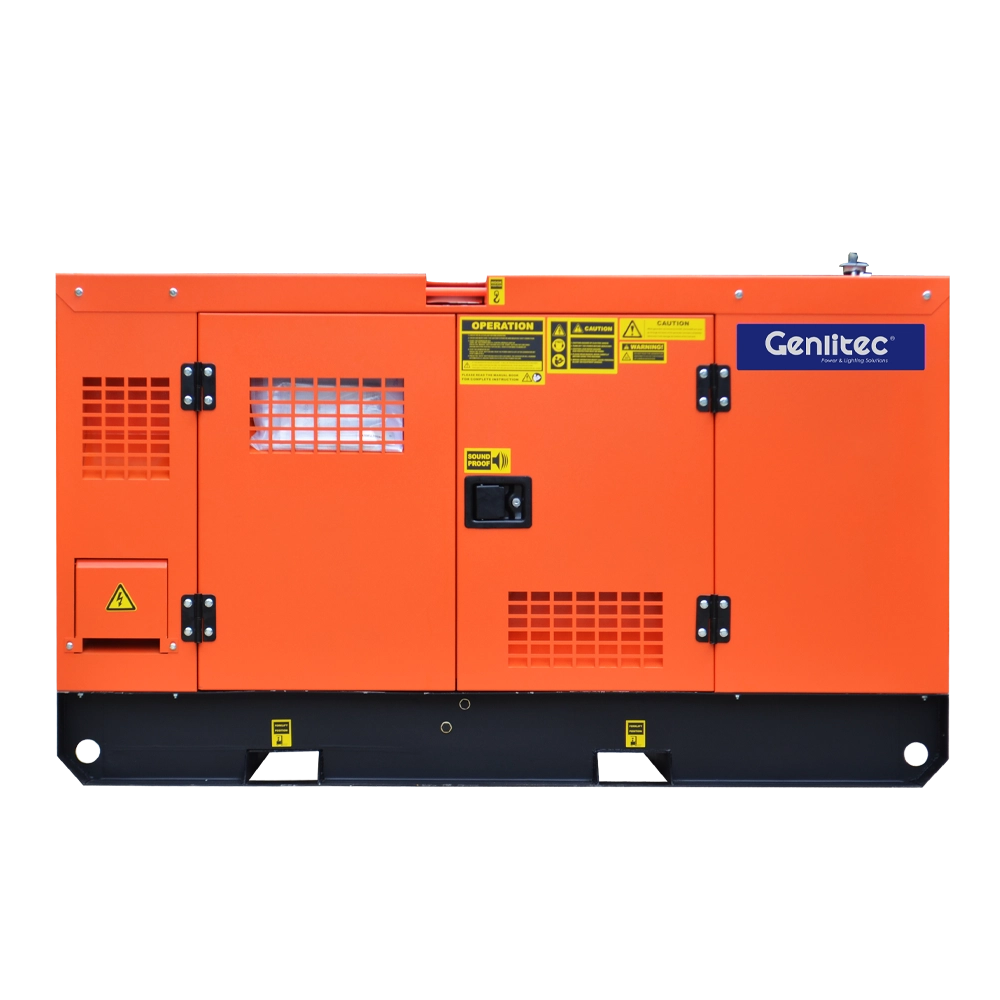

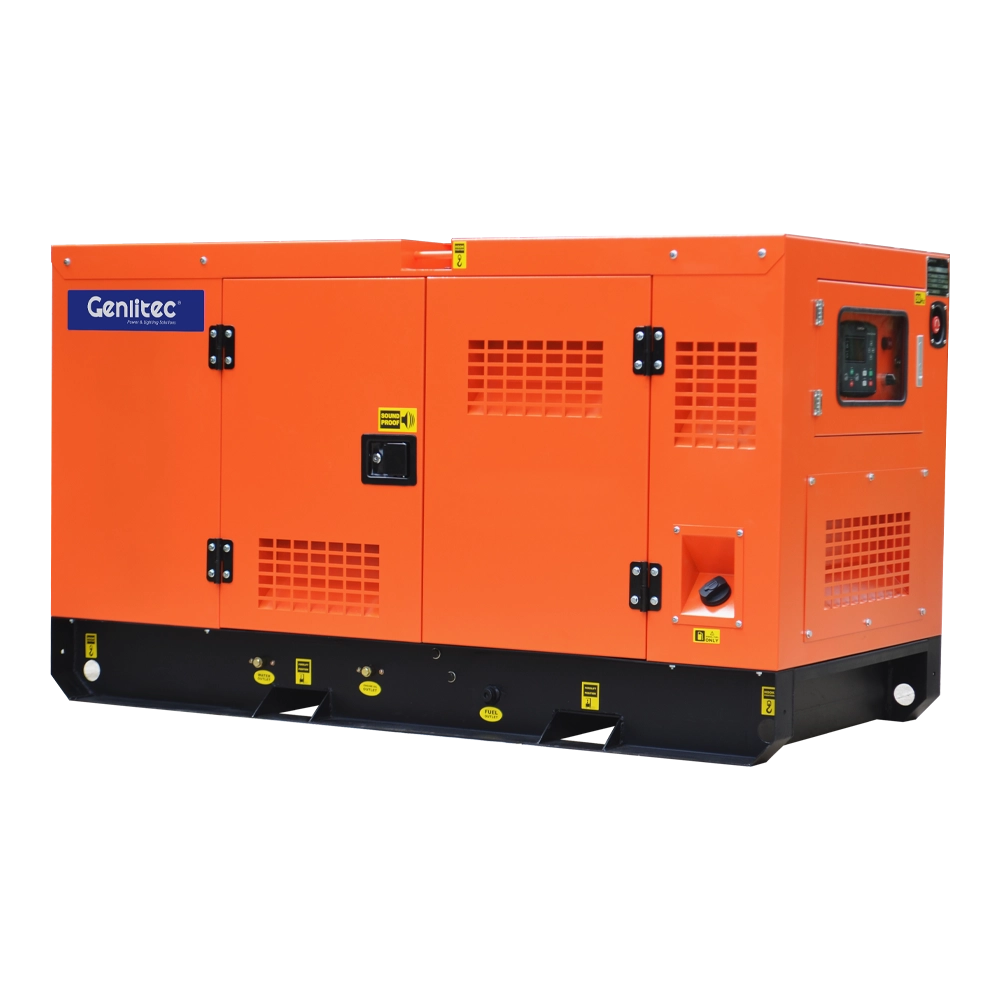

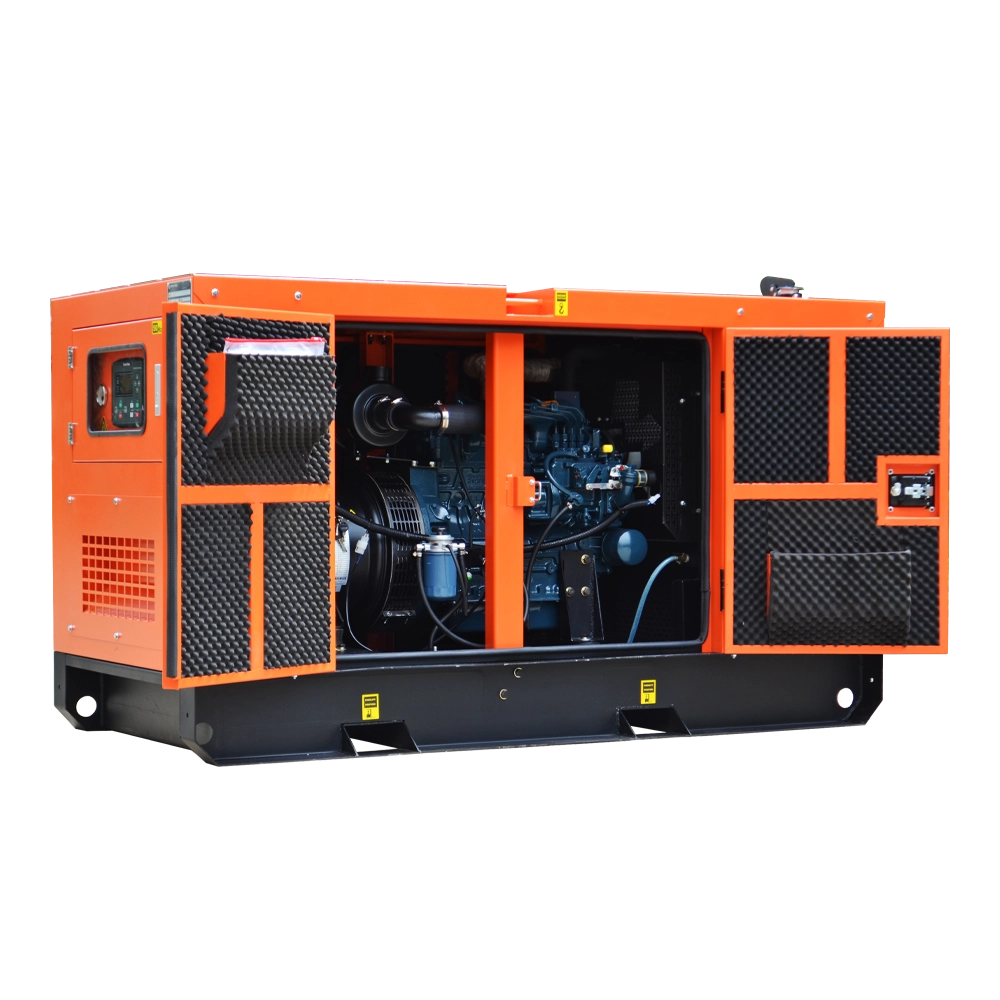

The GPK16D5 is the open type version, while the GPK16S5 features a sound attenuated enclosure for applications requiring reduced operating noise and weather protection. With a 50L fuel tank and compact configuration, the GPK16 series is suitable for residential, commercial, agricultural and remote power applications.
Generator Set
| Open Type Model | GPK16D5 |
| Silent Type Model | GPK16S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 13KW/16KVA |
| Standby Power | 14KW/17.6KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Kubota D1803-M-DI-BG |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Direct Injection |
| Bore x Stroke | 87 x 102.4mm |
| Compression Ratio | 20.2:1 |
| Rated Speed | 1500 RPM |
| Displacement | 1.826L |
| Rated Power | 15.5KW |
| Standby Power | 17.0KW |
| Fuel Injection Pump | / |
| Oil Capacity | 7.0L |
| Charger Alternator Capacity | 12V |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 3.95L/H |
| 75% Prime Load | 3.03L/H |
| 50% Prime Load | 2.1L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 12.8KW/16KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
The GPK16S5 is equipped with a weatherproof sound attenuated enclosure designed for outdoor operation and reduced operating noise.
Options
Applications
The GENLITEC POWER 13kW/16kVA Kubota diesel generator set is suitable for reliable prime and standby power in small-scale applications, including:
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for customers worldwide. Since its establishment, GENLITEC POWER has focused on generator manufacturing, engineering support and international power projects.
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
For details, please refer to the GENLITEC POWER® Warranty Policy.
Frequently Asked Questions
A: The GPK16D5/GPK16S5 provides 13kW/16kVA prime power and 14kW/17.6kVA standby power at 50Hz.
A: The GPK16 series is powered by a Kubota D1803-M-DI-BG three-cylinder diesel engine with a 1.826L displacement and 1500 RPM rated speed.
A: The Kubota D1803-M-DI-BG engine has a rated power of 15.5kW and a standby power of 17.0kW.
A: The standard fuel tank capacity is 50L. Fuel consumption is approximately 3.95L/H at 100% prime load, 3.03L/H at 75% load and 2.1L/H at 50% load. Fuel consumption data at 25% load is not provided.
A: The GPK16 series operates at 50Hz with a rated voltage range of 380~415V and a three-phase, four-wire configuration.
A: The GPK16D5 is the open type model, while the GPK16S5 is equipped with a sound attenuated enclosure for reduced noise and outdoor protection.
A: Yes. The GPK16D5/GPK16S5 is rated for 13kW/16kVA prime power and can be used for continuous or regular power generation within its rated capacity.
A: Yes. An ATS panel is available as an option for automatic transfer between the utility power supply and the generator set.
A: The GPK16 series is suitable for residential and commercial backup power, construction sites, agricultural applications, telecom facilities, remote locations and emergency power applications.
A: GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
