50Hz 1800kW 2250kVA Diesel Generator with Perkins 4016-61TRG3 Engine
Introduction
The GENLITEC POWER GPP2250D5 / GPP2250S5 is a 2250 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 1800KW/2250KVA prime power and 2000KW/2500KVA standby power, this 50Hz diesel generator operates at 1500 RPM and provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications and other demanding applications.

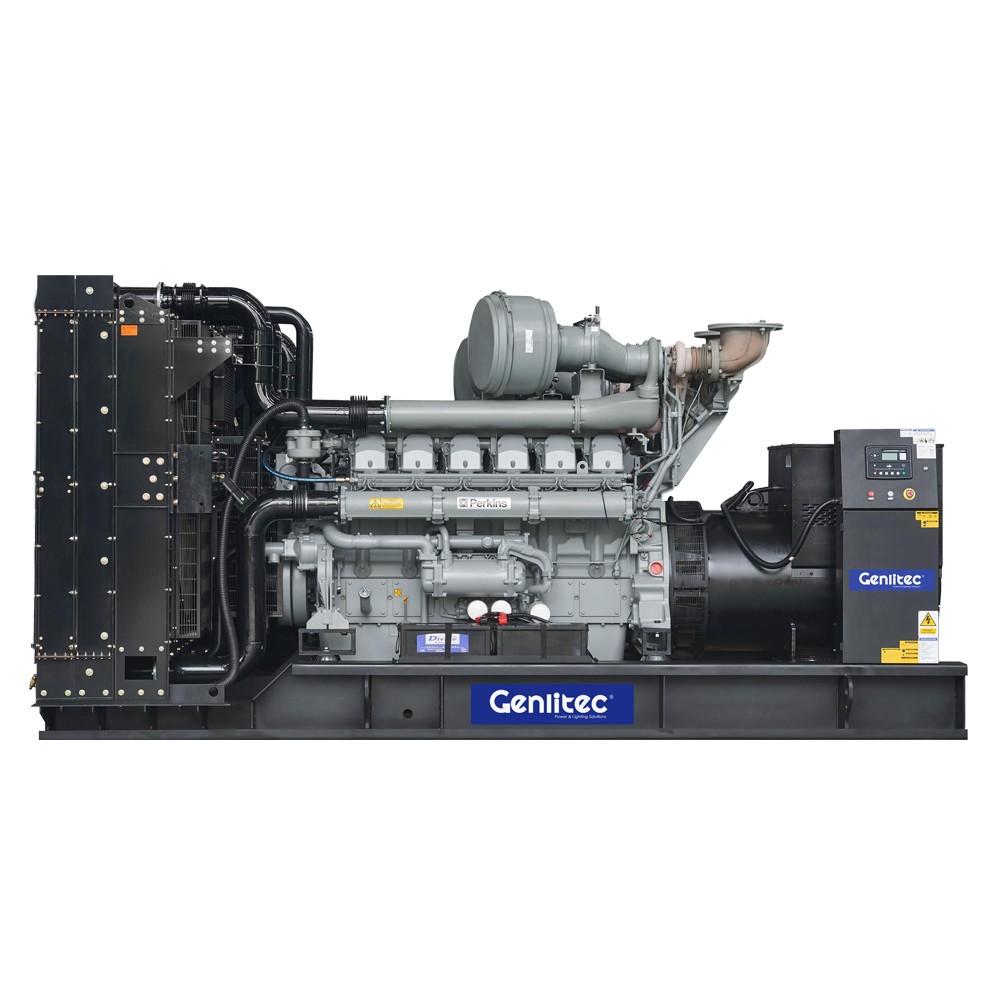

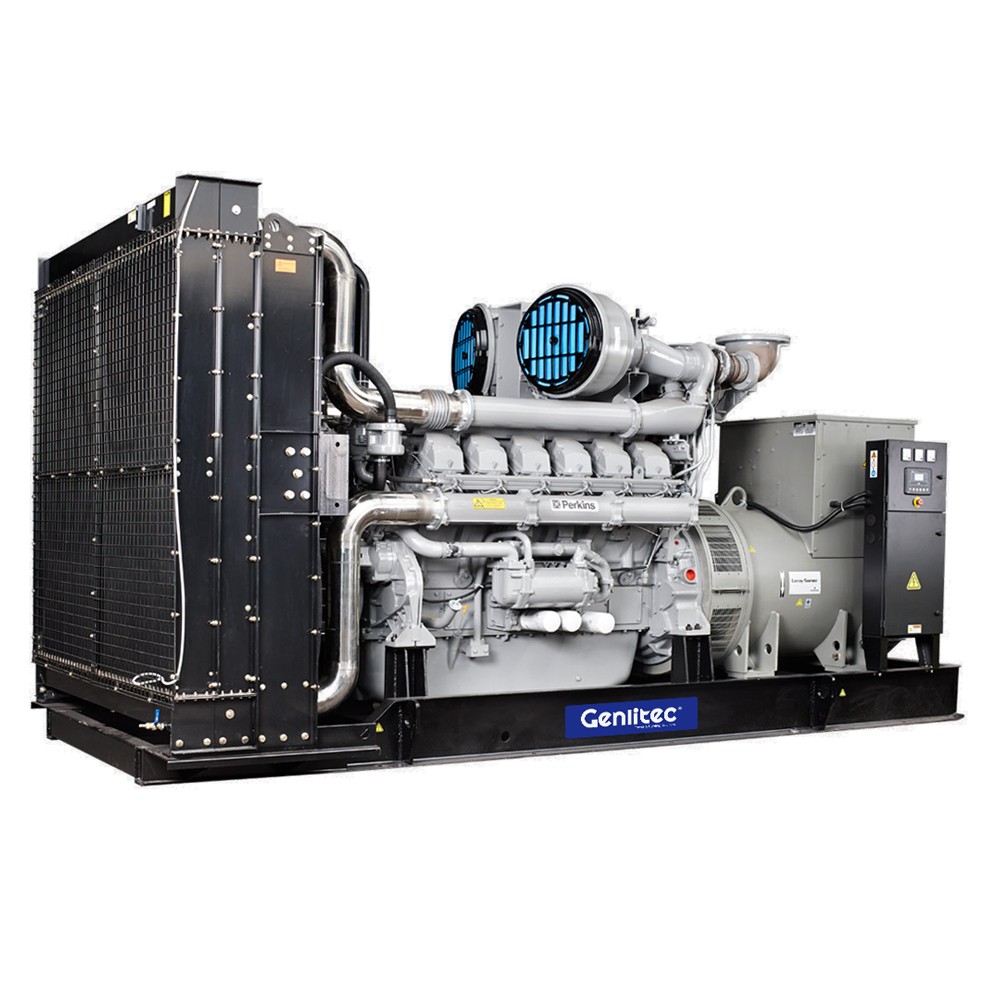

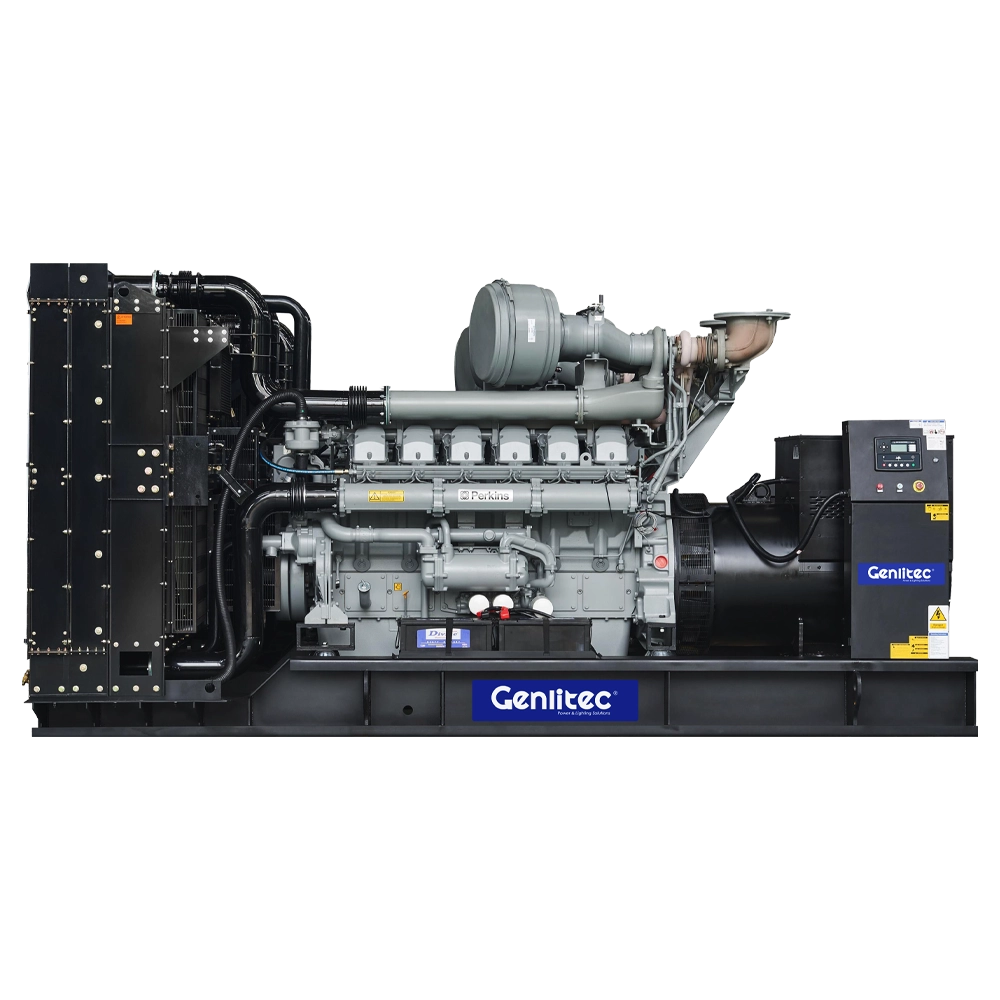

Powered by a Perkins 4016-61TRG3 diesel engine, the GPP2250D5 / GPP2250S5 features a 61.1L sixteen-cylinder V-type engine with quad turbocharged and air-to-water charge cooled induction, direct injection and electronic governing. The generator set is equipped with a 1800KW/2250KVA alternator and a standard 2000L fuel tank. The GPP2250D5 is supplied in open type configuration, while the GPP2250S5 is supplied as standard with a 40HQ containerized canopy for sound attenuation, weather protection and international transportation.
Generator Set
| Open Type Model | GPP2250D5 |
| Silent Type Model | GPP2250S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 1800KW/2250KVA |
| Standby Power | 2000KW/2500KVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 2000L |
Diesel Engine
| Engine Model | Perkins 4016-61TRG3 |
| Cylinder Number | 16 |
| Cylinder Arrangement | 60° V-Type |
| Cycle | 4 Stroke |
| Aspiration System | Quad Turbocharged and Air-to-Water Charge Cooled |
| Cooling Method | Liquid Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.0:1 |
| Rated Speed | 1500 RPM |
| Displacement | 61.1L |
| Engine Power - Prime | 1975KW Gross / 1875KW Net |
| Engine Power - Standby | 2183KW Gross / 2083KW Net |
| Combustion System | Direct Injection |
| Coolant Capacity | Approximately 270L |
| Oil Capacity | Approximately 237.2L |
| Electric Starting System | DC 24V |
Fuel Consumption
| Standby Power Rating | 529L/H |
| 100% Prime Load | 470L/H |
| 75% Prime Load | 344L/H |
| 50% Prime Load | 234L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1800KW/2250KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure

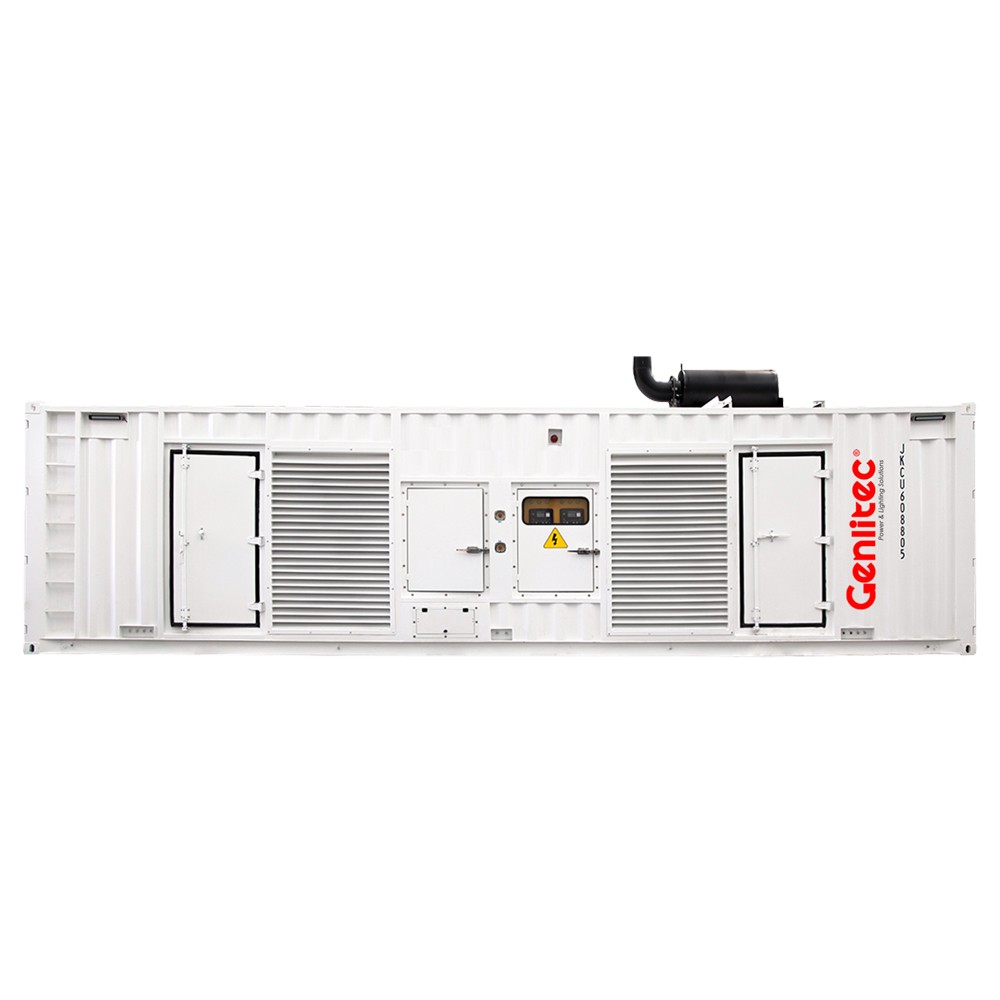

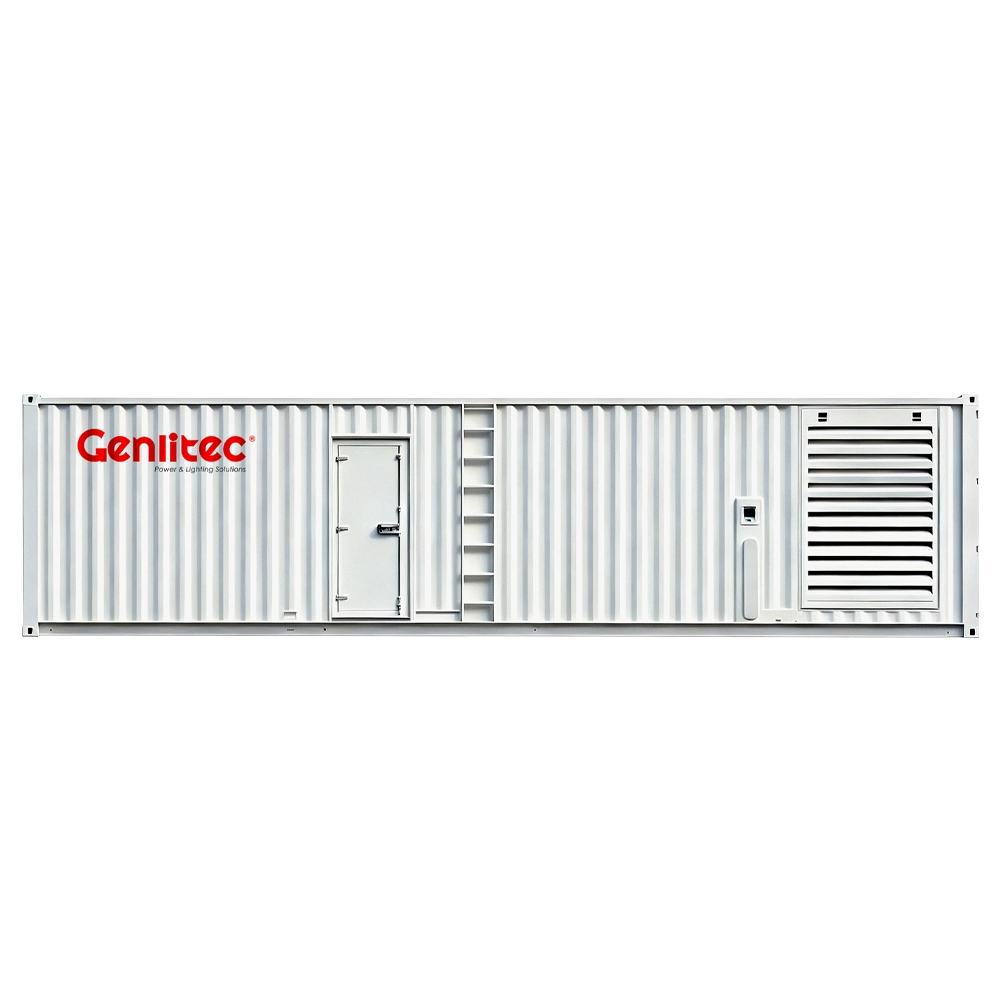

○ GPP2250S5 is supplied as standard with a 40HQ containerized canopy
○ Weatherproof sound-attenuated containerized enclosure with internal exhaust silencer
○ Corrosion-resistant construction suitable for outdoor installation
○ Suitable for international transportation and demanding outdoor applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
Applications
The GENLITEC POWER 1800KW/2250KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP2250D5 / GPP2250S5 diesel generator sets combine the Perkins 4016-61TRG3 engine with a high-power configuration for dependable prime and standby power.
○ Perkins 4016-61TRG3 diesel engine for reliable high-power generation
○ 1800KW/2250KVA prime power and 2000KW/2500KVA standby power
○ 61.1L sixteen-cylinder V-type engine with quad turbocharged and air-to-water charge cooled induction
○ 1800KW/2250KVA alternator for high-power generator applications
○ Multiple voltage configurations available
○ Open type and 40HQ containerized canopy configurations available
○ Electronic engine governing for precise engine speed and performance management
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
