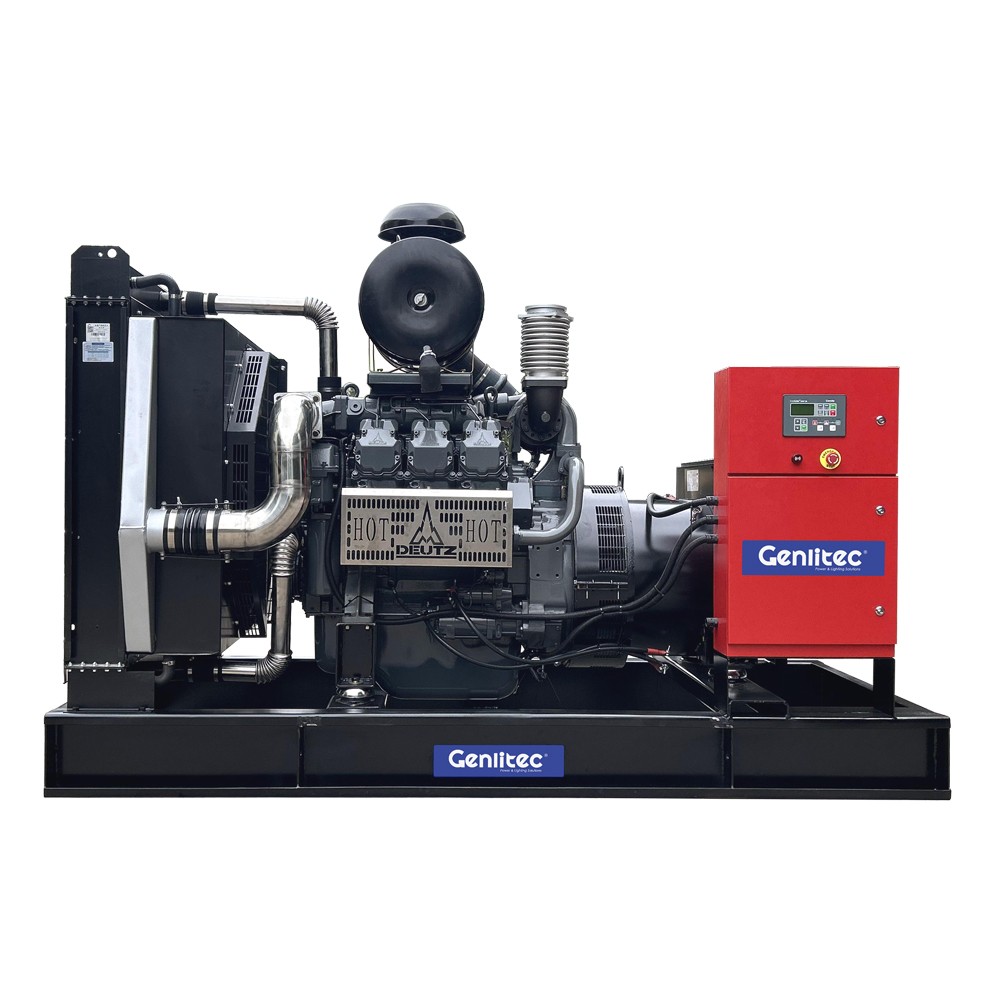

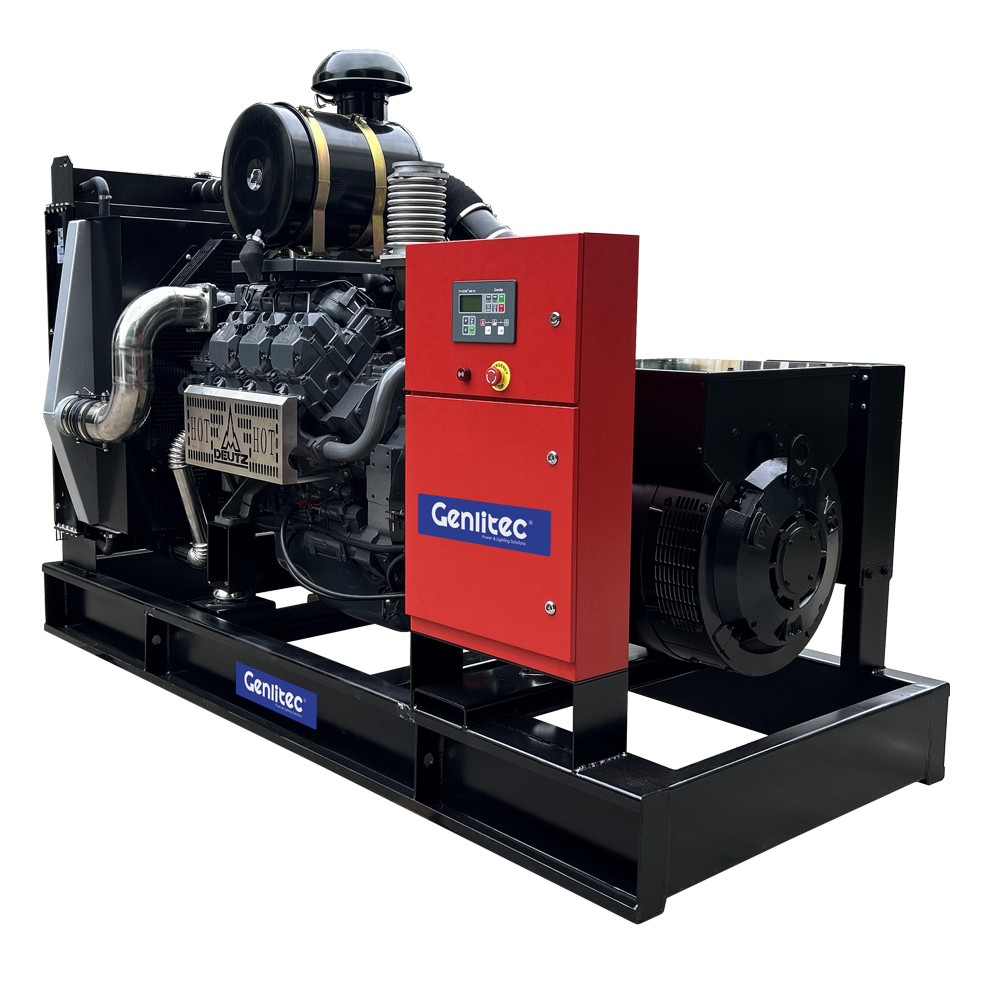

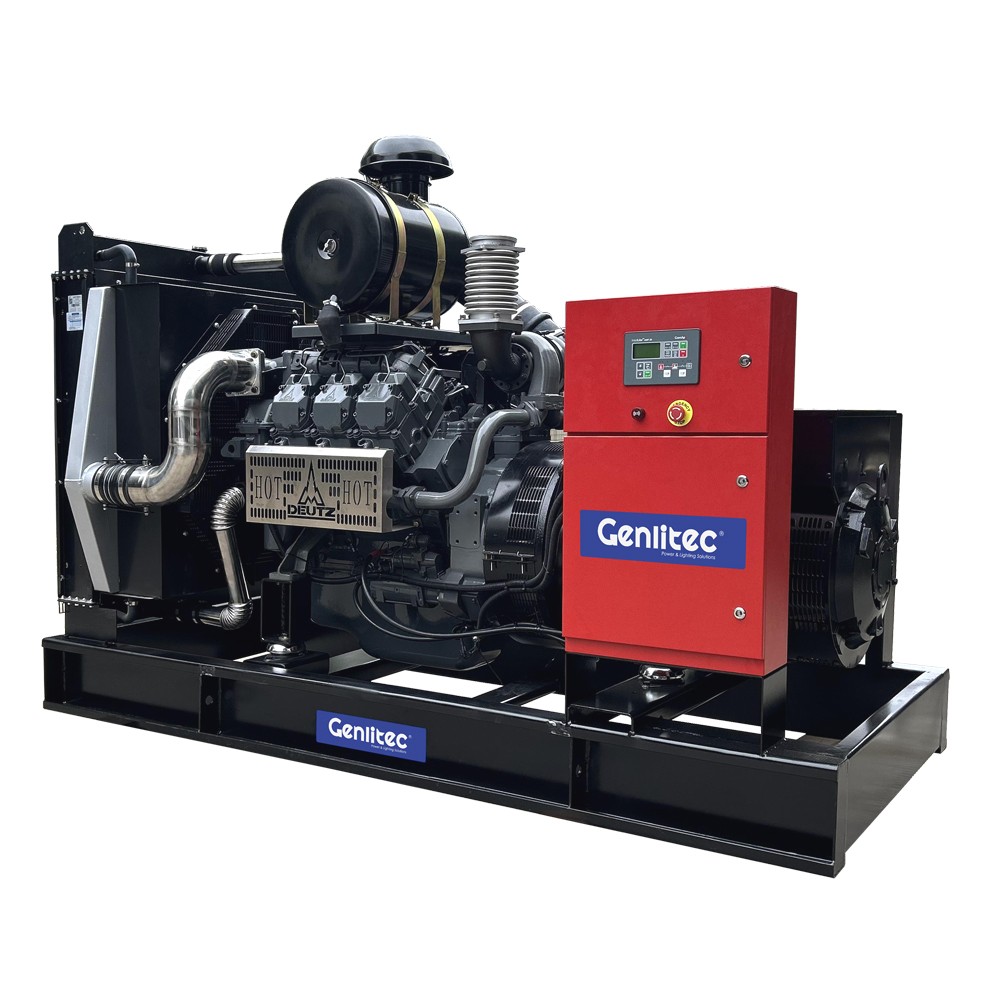

500KVA Deutz Diesel Generator-50Hz

500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz
  • 500KVA Deutz Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GPD500D5 (open type), GPD500S5 (silent type) diesel generator set powered by original DEUTZ diesel engine BF8M1015CP-LA G2, with prime power 400KW/500KVA and standby power 440KW/550KVA....


  • Model: GPD500D5 | GPD500S5
  • Engine: DEUTZ BF8M1015CP-LA G2
  • Prime Power: 400KW/500KVA
  • Standby Power: 440KW/550KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags

400KW/500KVA DEUTZ DIESEL GENERATOR SET SPECIFICATIONS

  • Standby Power: 440KW/550KVA
  • Prime Power: 400KW/500KVA
  • Frequency: 50Hz
  • Speed: 1500 RPM
  • Voltage: 220/380V (230/400V or 240/415V available according to different countries)
  • Fuel Tank Capacity: 8~10 hours continuous running


ENGINE

  • Powered by: DEUTZ
  • Engine Model: BF8M1015CP-LA G2


ALTERNATOR

  • Alternator Model: GENLITEC S354G400(STAMFORD & LEROY SOMER alternators for options)
  • High Efficiency
  • IP23 Protection


CONTROL PANEL

  • Emergency stop button
  • Main circuit breaker
  • Float baterry charger
  • Manual/Autostart control panel
  • Fuel level meter
  • Controller power switch
  • Alarm buzzer
  • DEIF digital controller (SMARTGEN, DEEPSEA & COMAP controllers for options)

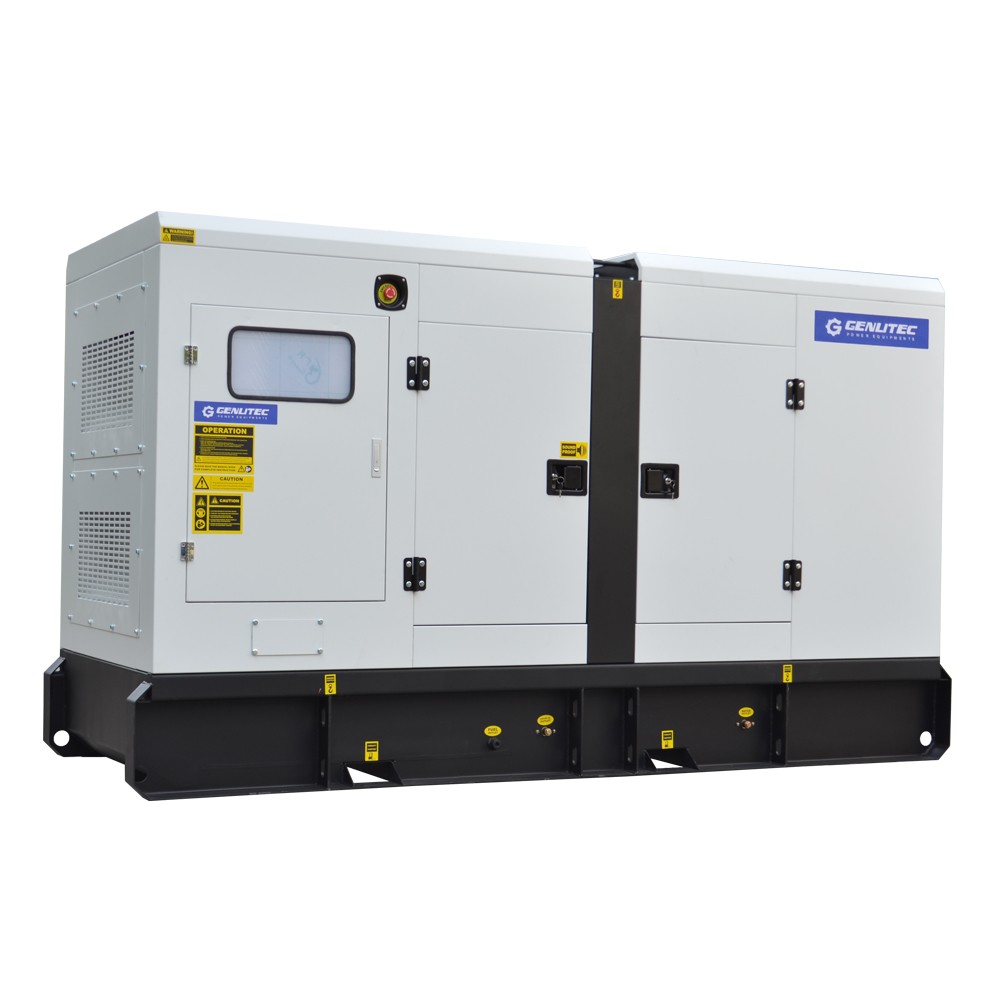

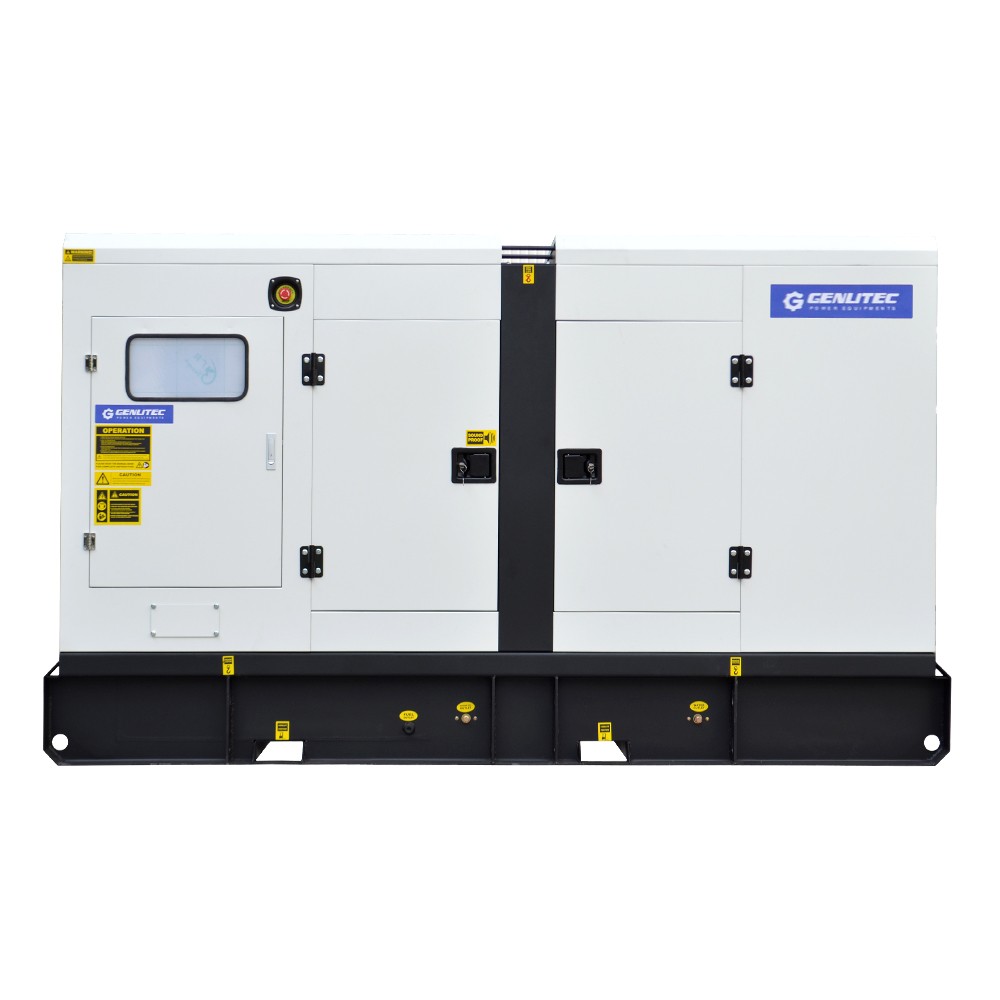

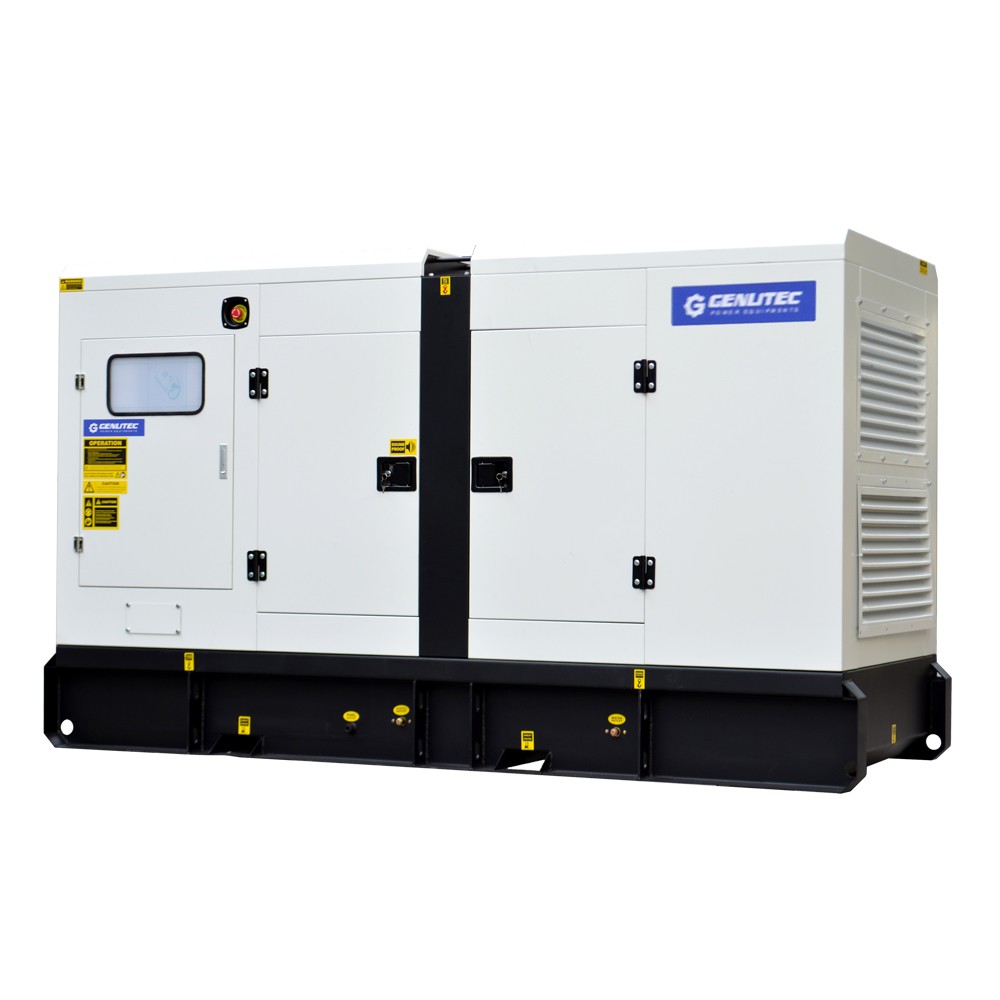

SOUND ATTENUATED ENCLOSURE

  • Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
  • Highly Corrosion Resistant Construction


WARRANTY

  • 12 months or 1000 working hours, whichever comes first


OPTIONS

  • ATS (for automatic start & stop when electricity power off & on)
  • Synchronization panel
  • Remote & Monitoring system (4G, WIFI or Ethernet)
  • 12 hours fuel tank
  • 24 hours fuel tank
  • Power Sockets (CEE or AUS standard)
  • Heater for cold-enviroment starting
