60Hz 1200kW 1500kVA Diesel Generator with Perkins 4012-46TAG2A Engine
Introduction
The GENLITEC POWER GPP1500D6 / GPP1500S6 diesel generator set is a powerful and reliable power solution designed for prime, standby and backup power applications.
Powered by a Perkins 4012-46TAG2A 12-cylinder, 45.842L turbocharged and air-to-air charge cooled diesel engine, the generator set delivers 1200kW/1500kVA prime power and 1320kW/1650kVA standby power at 60Hz and 1800RPM. The GPP1500S6 silent type is equipped with a 40HQ containerized enclosure, while multiple voltage configurations are available for different applications.
Generator Set
| Open Type Model | GPP1500D6 |
| Silent Type Model | GPP1500S6 |
| Frequency | 60Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 1200kW/1500kVA |
| Standby Power | 1320kW/1650kVA |
| Rated Voltage | 120/208V; 127/220V; 220/380V; 254/440V |
| Rated Speed | 1800 RPM |
| Fuel Tank Capacity | 2000L |
Diesel Engine
| Engine Model | Perkins 4012-46TAG2A |
| Cylinder Number | 12 |
| Cylinder Arrangement | 60° Vee |
| Engine Type | 4-Cycle Diesel |
| Aspiration System | Turbocharged, Air-to-Air Charge Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Electronic, ISO 8528-5 Class G2 with Isochronous Capability |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.6:1 |
| Rated Speed | 1800 RPM |
| Displacement | 45.842L |
| Rated Power | 1332kW @ 1800RPM |
| Standby Power | 1459kW @ 1800RPM |
| Fuel System | Direct Injection |
| Oil Capacity | 177L |
| Coolant Capacity | 210L (Tropical) |
| Electric Starting System | DC 24V |
| Battery Charging Alternator | 55A |
Fuel Consumption
| 100% Prime Load | 319L/H |
| 75% Prime Load | 195L/H |
| 50% Prime Load | 171L/H |
| 25% Prime Load | - |
| 100% Standby Load | 251L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1230kW/1537kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
|
SOUND ATTENUATED ENCLOSURE

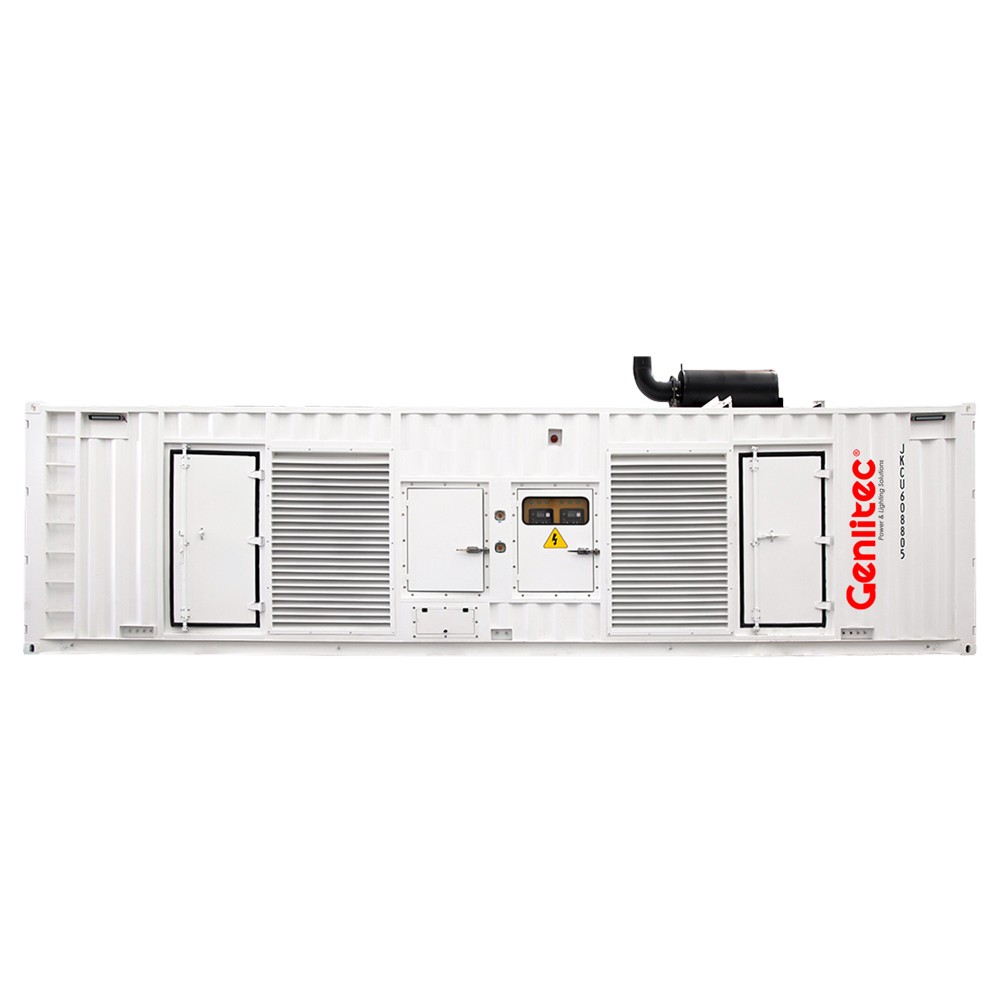

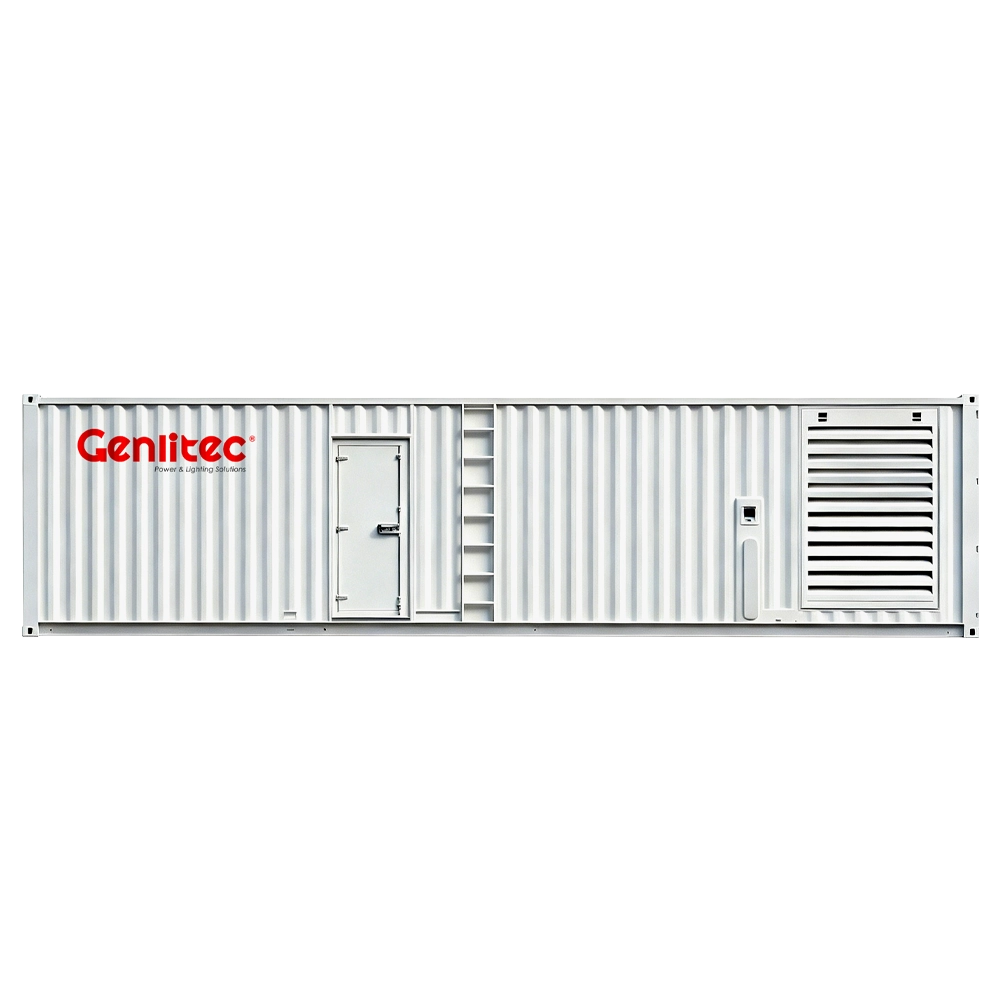

The GPP1500S6 silent type generator set is equipped with a 40HQ containerized enclosure designed to reduce operating noise and provide reliable protection for outdoor applications.
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization System
○ AREP Excitation System
○ PMG Excitation System
Applications
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ 1200kW/1500kVA prime power and 1320kW/1650kVA standby power
○ 2000L fuel tank for extended operating time
○ 40HQ containerized enclosure for the GPP1500S6 silent type model
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
