50Hz 380kW 475kVA Diesel Generator with Deutz BF8M1015CP-LA G1A Engine
Introduction

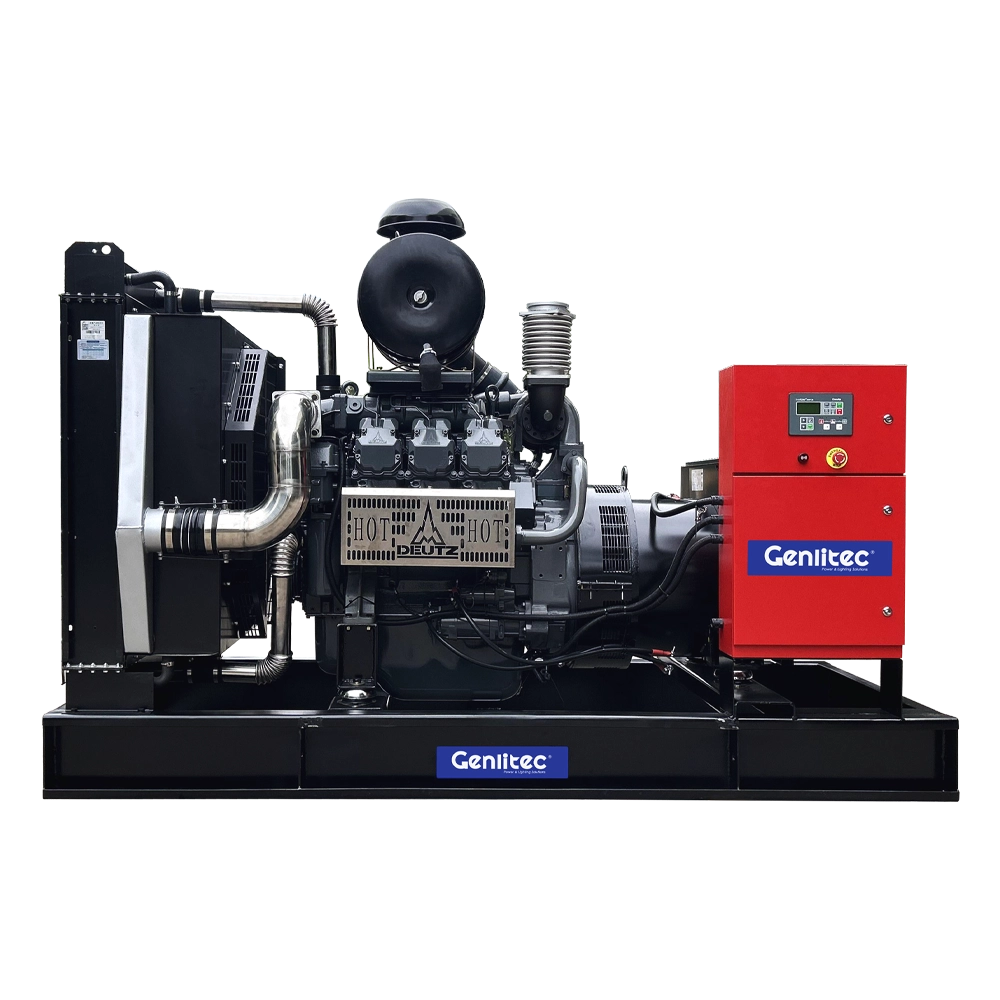

The GENLITEC POWER GPD475D5 / GPD475S5 is a 475kVA DEUTZ diesel generator set designed for reliable prime power and standby power in industrial, commercial and infrastructure applications. Powered by the DEUTZ BF8M1015CP-LA G1A engine, this 50Hz diesel genset operates at 1500RPM and delivers 380kW/475kVA prime power and 420kW/525kVA standby power. Its robust engine platform and practical configuration make it suitable for facilities requiring dependable three-phase power for continuous operations or emergency backup. The GPD475 series supports three-phase, four-wire voltage configurations of 220/380V, 230/400V and 240/415V, subject to the selected alternator connection. A 720L fuel tank provides substantial onboard fuel storage, helping support operation between refuelling intervals depending on load and operating conditions. The GPD475D5 open-type diesel generator allows convenient access for installation, inspection and maintenance, while the GPD475S5 silent diesel generator features a sound-attenuated enclosure for applications where noise control and weather protection are important. This 475kVA DEUTZ generator is suitable for factories, commercial buildings, construction projects, agricultural facilities, telecommunications sites and other installations requiring dependable 50Hz power generation.
Generator Set
| Open Type Model | GPD475D5 |
| Silent Type Model | GPD475S5 |
| Engine Brand | DEUTZ |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 380kW/475kVA |
| Standby Power | 420kW/525kVA |
| Rated Voltage | 220/380V; 230/400V; 240/415V |
| Rated Speed | 1500 RPM |
| Fuel Tank Capacity | 720L |
Diesel Engine
| Engine Brand | DEUTZ |
| Engine Model | BF8M1015CP-LA G1A |
| Cylinder Number | 8 |
| Cylinder Arrangement | V-Type, 90° Angle |
| Engine Type | 4-Stroke Diesel |
| Aspiration System | Turbocharged with Charge Air Cooling |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical Governor |
| Fuel Injection System | EUP Fuel Injection System |
| Bore x Stroke | 132 x 145 mm |
| Compression Ratio | 16.5:1 |
| Rated Speed | 1500 RPM |
| Displacement | 15.874L |
| Prime Power (Engine) | 413kW at 1500 RPM |
| Standby Power (Engine) | 459kW at 1500 RPM |
| Oil Capacity | 48L |
| Coolant Capacity | 21L (with radiator) |
| Electric Starting System | DC 24V |
Fuel Consumption
| 100% Prime Load | 96.9L/H |
| 75% Prime Load | N/A |
| 50% Prime Load | N/A |
| 25% Prime Load | N/A |
Alternator
| Number of Phase | 3 |
| Rated Power | 400kW/500kVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer | ○ Remote monitoring interface |
SOUND ATTENUATED ENCLOSURE

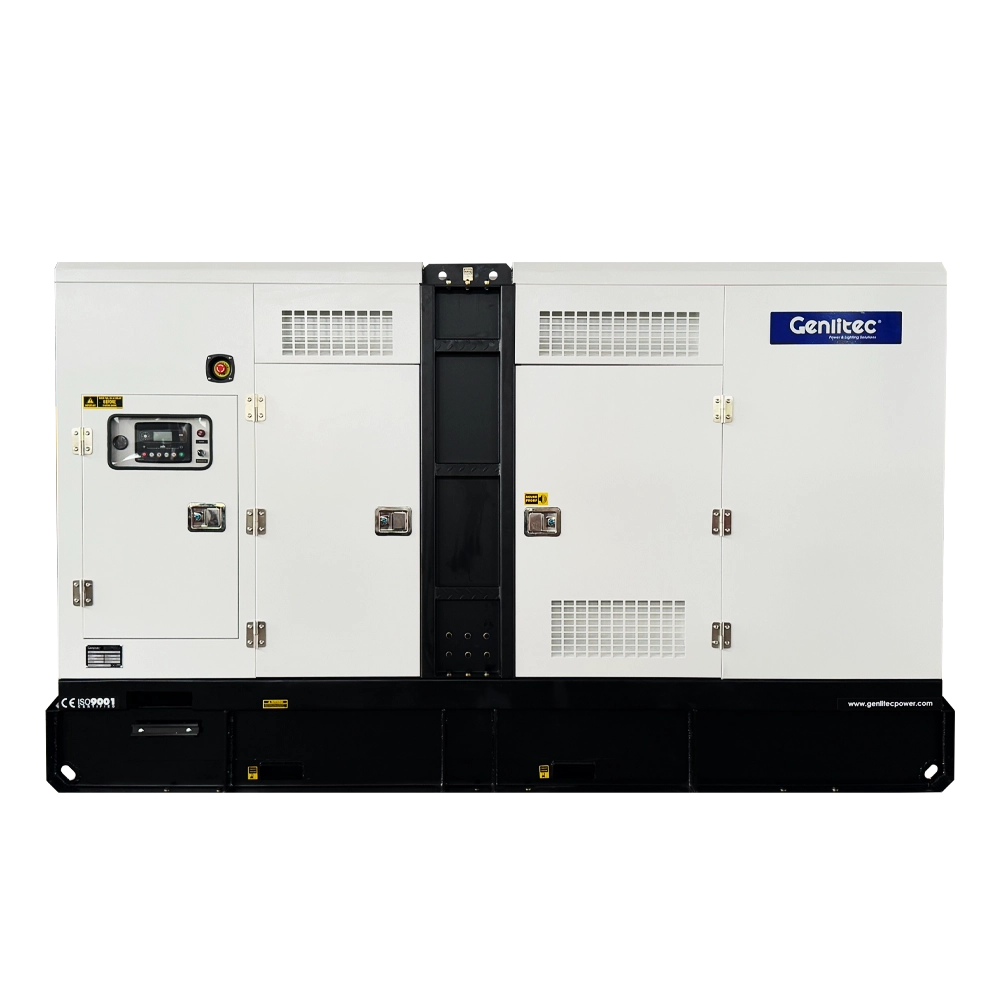

The GPD475S5 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide weather protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization system
Applications
The GENLITEC POWER 380kW/475kVA DEUTZ diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ DEUTZ diesel engine for reliable power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
