60Hz 1000kW 1250kVA Diesel Generator with Perkins 4012-46TWG2A Engine
Introduction
The GENLITEC POWER GPP1250D6 / GPP1250S6 diesel generator set is a high-capacity and reliable power solution designed for prime, standby and backup power applications.

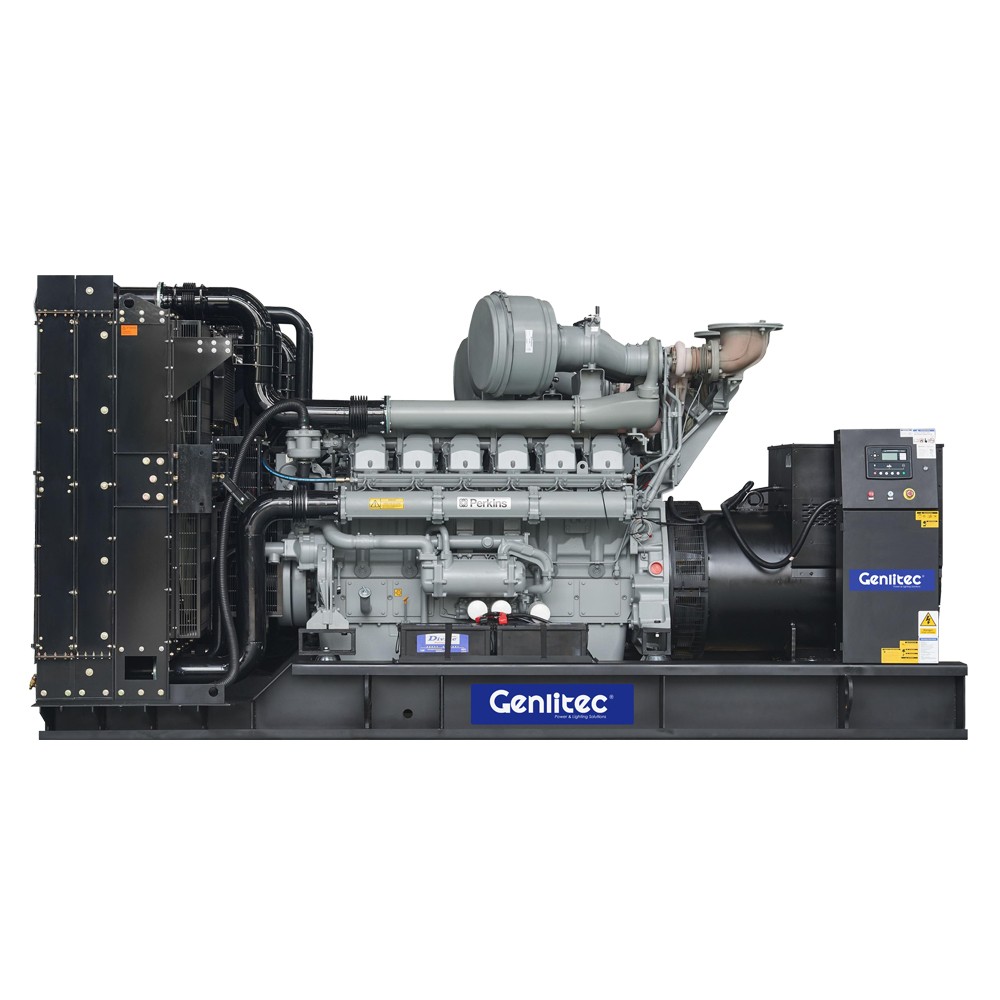

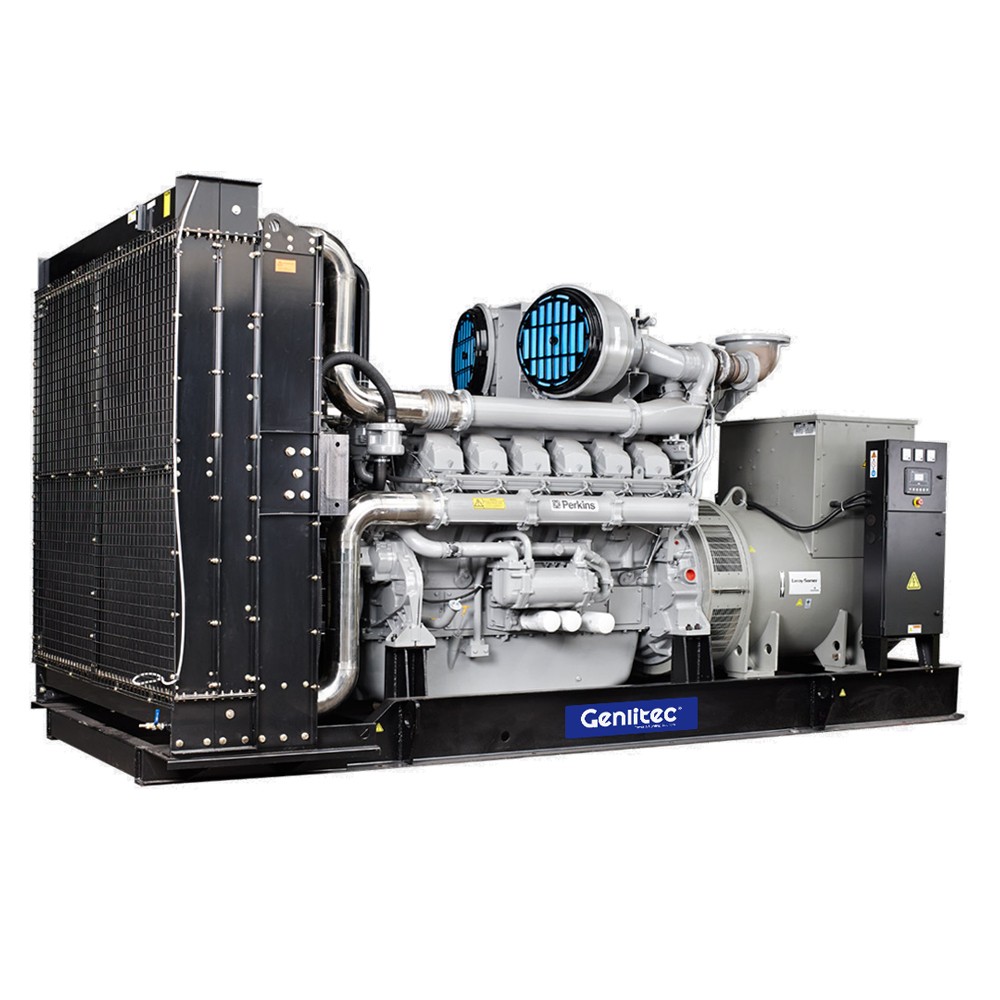

Powered by a Perkins 4012-46TWG2A 12-cylinder, 45.8L turbocharged diesel engine, the generator set delivers 1000kW/1250kVA prime power and 1100kW/1375kVA standby power at 60Hz and 1800RPM. The GPP1250S6 is supplied with a 20GP containerized enclosure for outdoor applications.
Generator Set
| Open Type Model | GPP1250D6 |
| Silent Type Model | GPP1250S6 |
| Frequency | 60Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 1000kW/1250kVA |
| Standby Power | 1100kW/1375kVA |
| Rated Voltage | 240/416V; 254/440V; 277/480V |
| Rated Speed | 1800 RPM |
| Fuel Tank Capacity | N/A |
Diesel Engine
| Engine Model | Perkins 4012-46TWG2A |
| Cylinder Number | 12 |
| Cylinder Arrangement | Vee |
| Engine Type | 4-Cycle Diesel |
| Aspiration System | Turbocharged |
| Cooling Method | Water Cooled |
| Governor Type | Electronic |
| Bore x Stroke | 160 x 190 mm |
| Compression Ratio | 13.0:1 |
| Rated Speed | 1800 RPM |
| Displacement | 45.8L |
| Rated Power | 1113kW @ 1800RPM |
| Standby Power | 1224kW @ 1800RPM |
| Fuel System | Direct Injection |
| Electric Starting System | DC 24V |
| Battery Charging Alternator | 40A |
Fuel Consumption
| 100% Prime Load | 266L/H |
| 75% Prime Load | 200L/H |
| 50% Prime Load | 143L/H |
| 25% Prime Load | 82L/H |
| 100% Standby Load | 298L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1019kW/1273kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
|

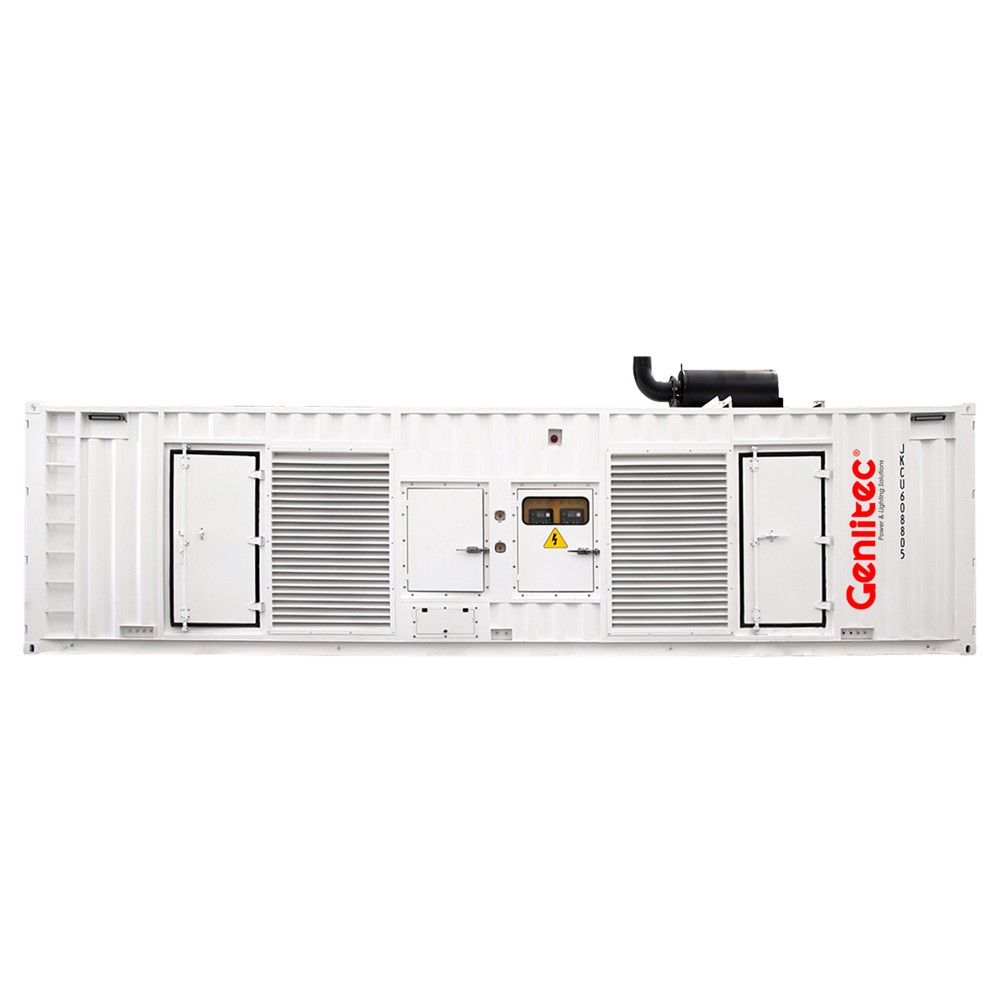

20GP CONTAINERIZED ENCLOSURE
The GPP1250S6 silent type generator set is equipped with a 20GP containerized enclosure designed to provide noise attenuation, weather protection and convenient access for outdoor power applications.
○ Sound-attenuated design for reduced operating noise
○ Weatherproof construction for reliable outdoor operation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ 40HQ Containerized Enclosure
○ Remote Monitoring System
○ Water-Jacket Heater
○ Synchronization System
○ AREP Excitation System
○ PMG Excitation System
Applications
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for demanding prime and standby power applications.
○ 1000kW/1250kVA prime power and 1100kW/1375kVA standby power
○ 60Hz operation at 1800RPM
○ High-capacity alternator rated at 1019kW/1273kVA
○ Open and 20GP containerized configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
