50Hz 1200kW 1500kVA Diesel Generator with Perkins 4012-46TAG2A Engine
Introduction
The GENLITEC POWER GPP1500D5 / GPP1500S5 is a 1500 kVA diesel generator set designed for reliable prime, standby and backup power applications. With a rated output of 1200KW/1500KVA prime power and 1320KW/1650KVA standby power, this 50Hz diesel generator provides dependable three-phase power for commercial, industrial, construction, agricultural, telecommunications, data center and other demanding applications.

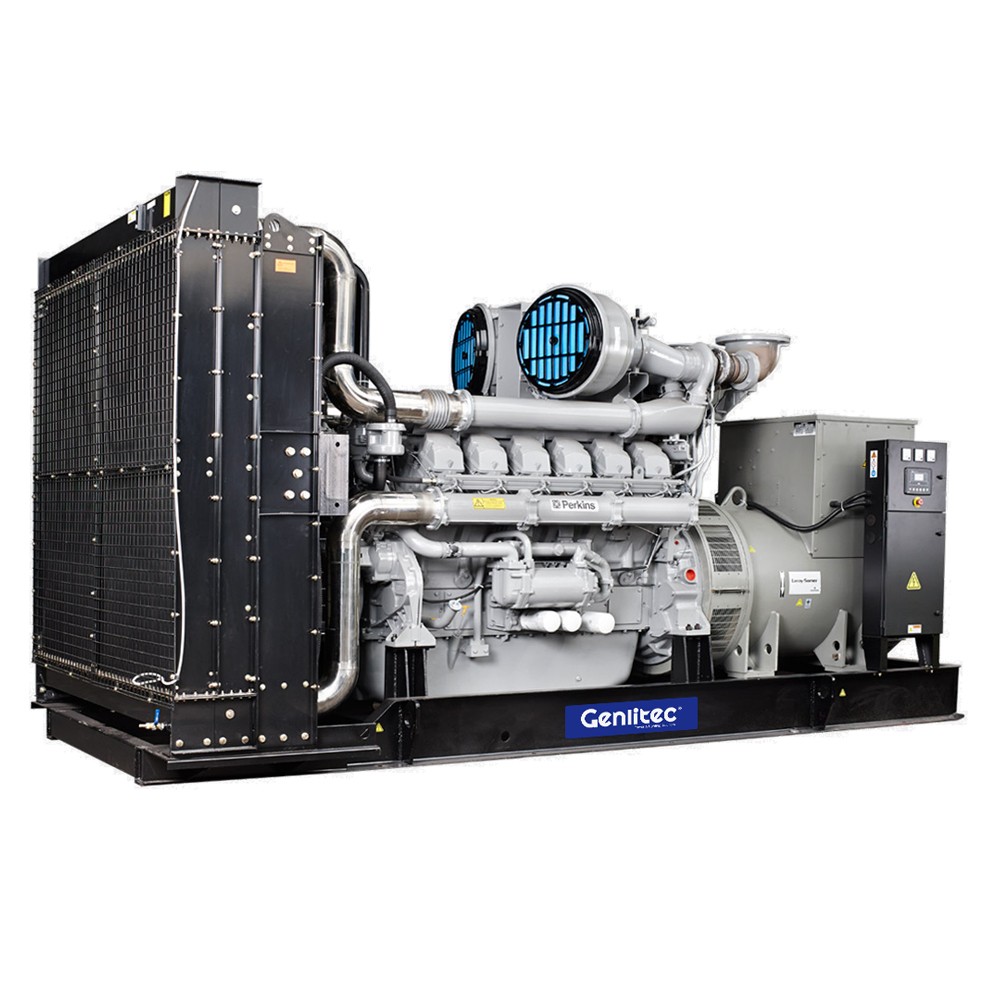

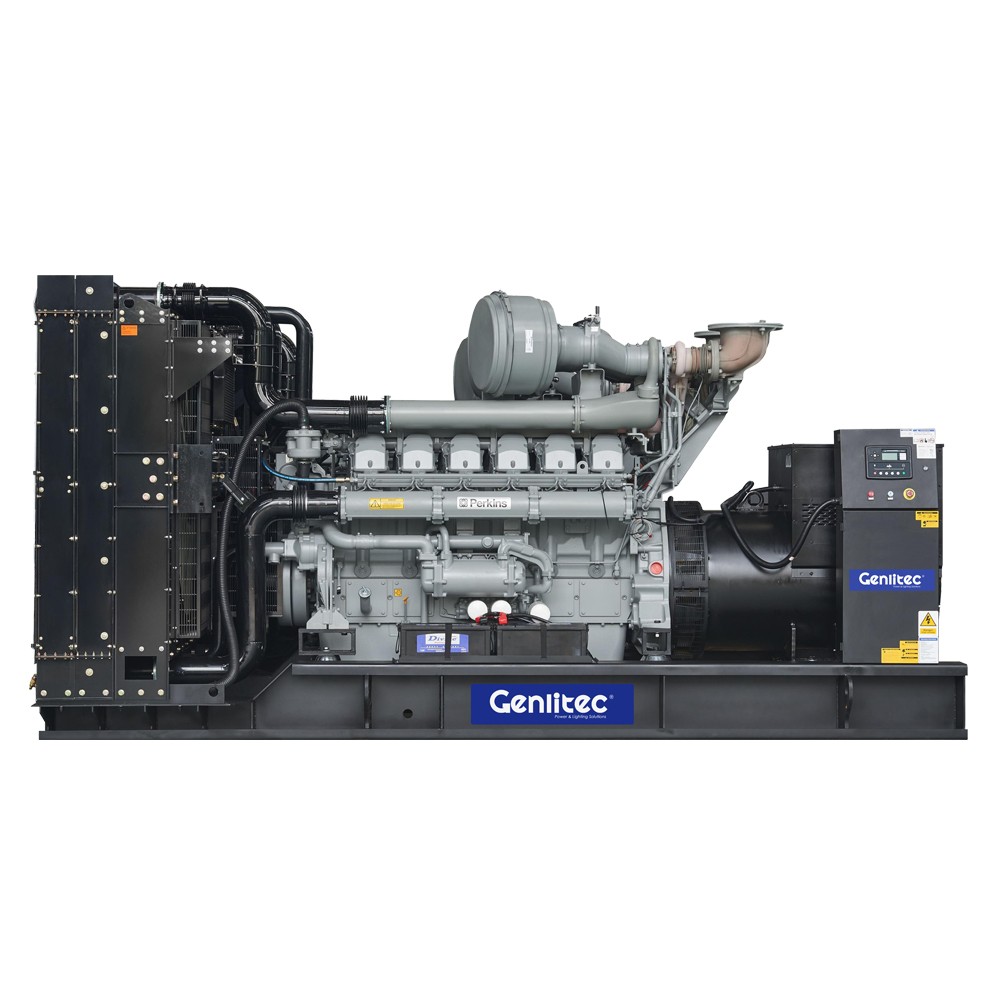

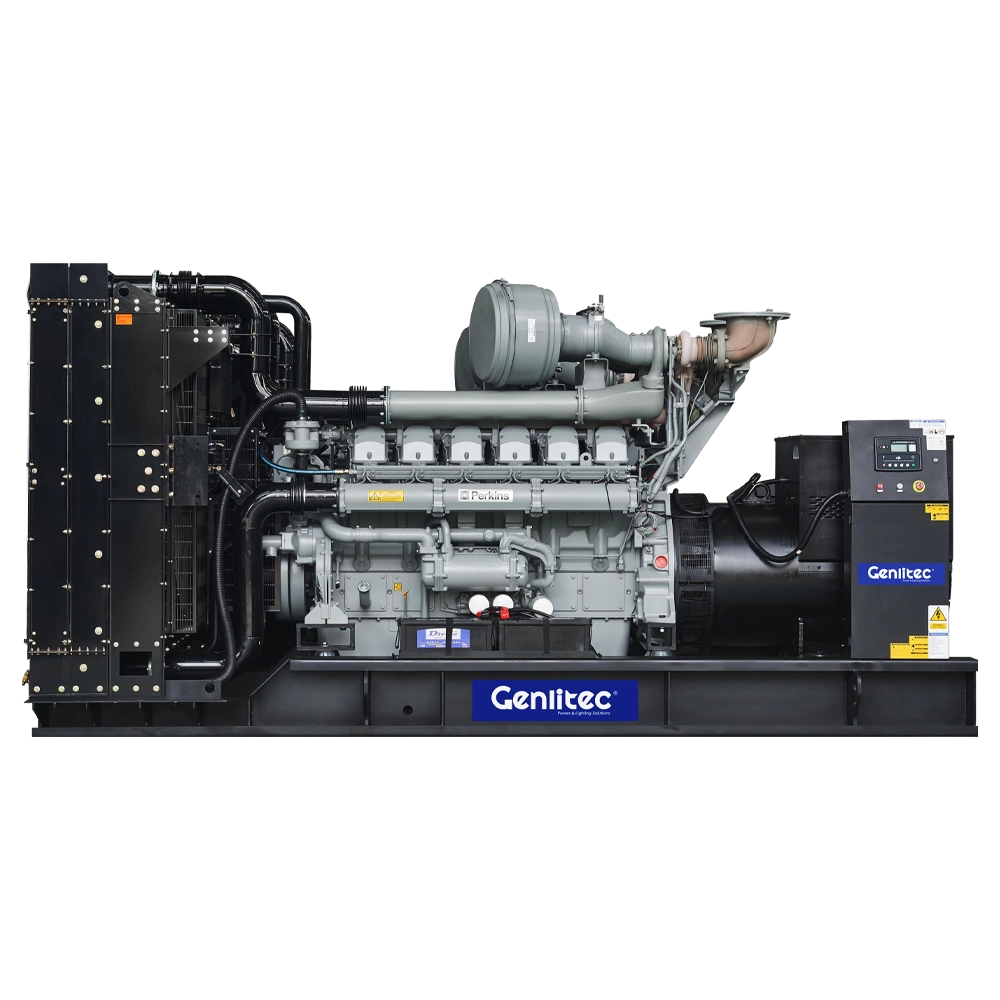

Powered by a Perkins 4012-46TAG2A turbocharged and air-to-air charge cooled diesel engine, the GPP1500D5 / GPP1500S5 combines a 12-cylinder 45.842L engine with electronic governing, direct injection and high power density. The generator set is available in an open type configuration and a silent type configuration. The GPP1500S5 is supplied as standard with a 40HQ containerized canopy for enhanced noise attenuation, weather protection and convenient transportation. A 2000L fuel tank is provided, while optional ATS panel, synchronization system, remote monitoring system and other accessories are available for different project requirements.
Generator Set
| Open Type Model | GPP1500D5 |
| Silent Type Model | GPP1500S5 |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 50Hz |
| Prime Power | 1200KW/1500KVA |
| Standby Power | 1320KW/1650KVA |
| Rated Voltage | 220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity | 2000L |
Diesel Engine
| Engine Model | 4012-46TAG2A |
| Cylinder Number | 12-V |
| Aspiration System | Turbocharged and air to air charge cooled |
| Cooling Method | Water Cooled with Radiator |
| Governor Type | Electronic |
| Combustion System | Direct Injection |
| Bore x Stroke | 160 x 190 mm |
| Rated Speed | 1500 RPM |
| Displacement | 45.842L |
| Rated Power | 1331KW |
| Standby Power | 1459KW |
| Coolant Capacity | 207L |
| Oil Capacity | 177L |
| Electric Starting System | DC 24V |
Fuel Consumption
| 110% Prime Load | 341L/H |
| 100% Prime Load | 310L/H |
| 75% Prime Load | 234L/H |
| 50% Prime Load | 157L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 1200KW/1500KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 12 |
| Insulation Class | H |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure

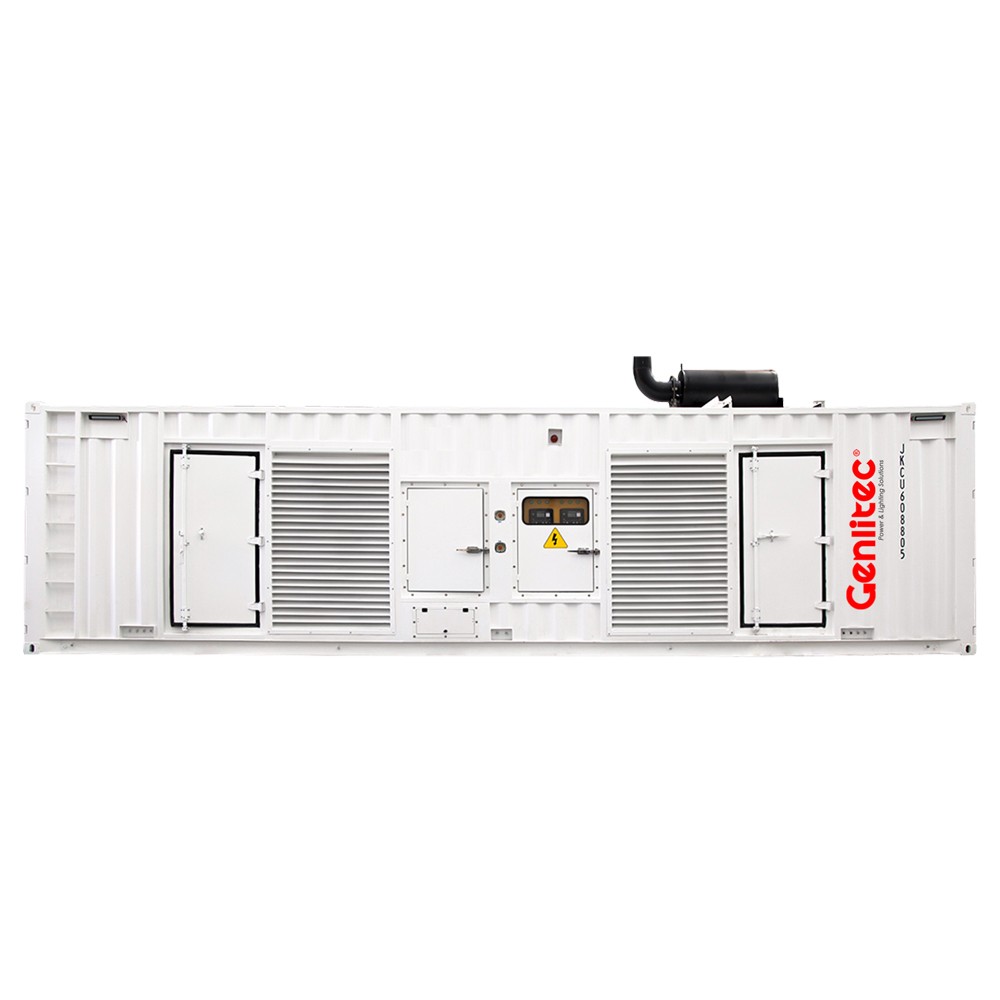

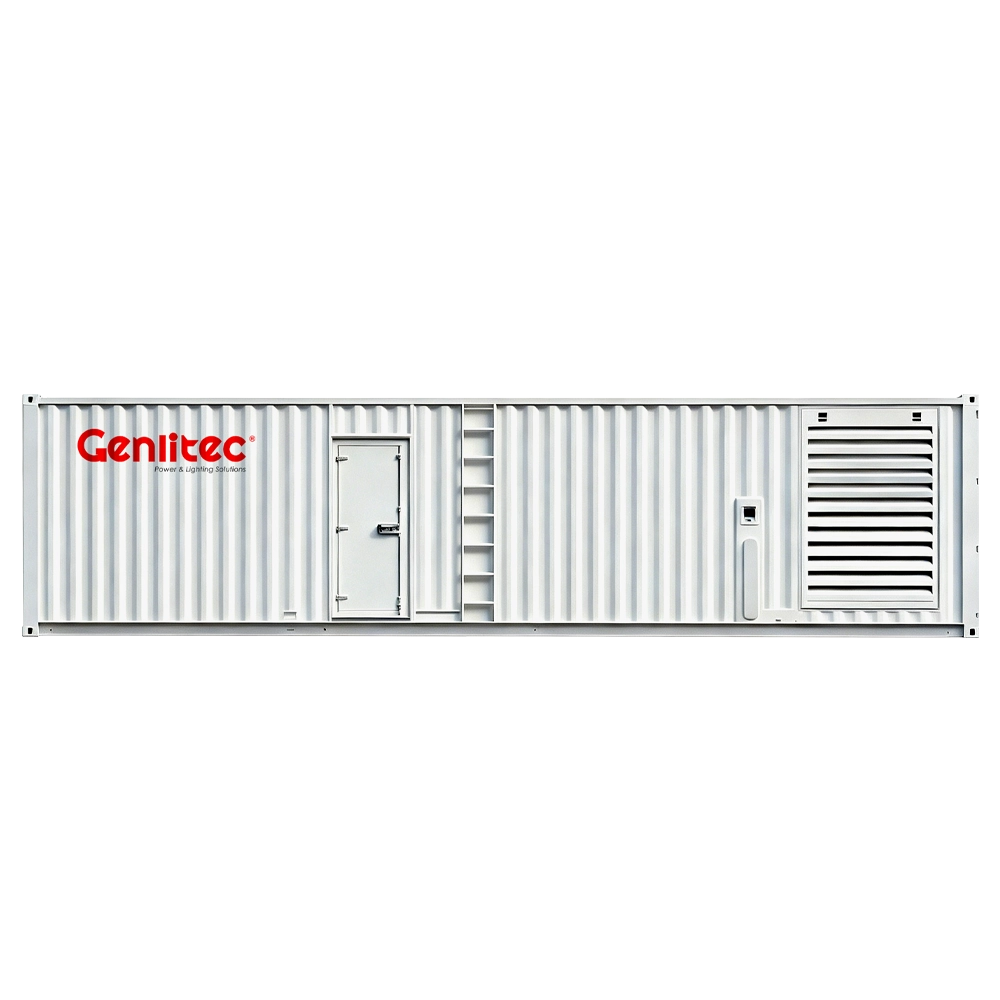

○ GPP1500S5 silent type generator set is supplied as standard with a 40HQ containerized canopy
○ Weatherproof containerized canopy with integrated sound attenuation and exhaust silencer
○ Suitable for outdoor installation and international transportation
○ 40HQ containerized design provides convenient transportation and equipment protection
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Synchronization System
○ Remote monitoring system
○ Water-Jacket Heater
○ Other Heaters
Applications
The GENLITEC POWER 1200KW/1500KVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Data centers and critical infrastructure
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER GPP1500D5 / GPP1500S5 diesel generator sets combine a Perkins 4012-46TAG2A engine with a high-power generator set configuration for dependable prime and standby power.
○ Perkins 4012-46TAG2A diesel engine for reliable high-power generation
○ 1200KW/1500KVA prime power and 1320KW/1650KVA standby power
○ 45.842L twelve-cylinder engine with turbocharged and air-to-air charge cooled induction
○ 1200KW/1500KVA alternator for high-power generator applications
○ 2000L fuel tank for extended operating time
○ GPP1500S5 silent type supplied as standard with a 40HQ containerized canopy
○ Multiple voltage configurations available
○ Electronic engine governing for precise engine speed and performance management
○ Suitable for commercial, industrial, data center and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
